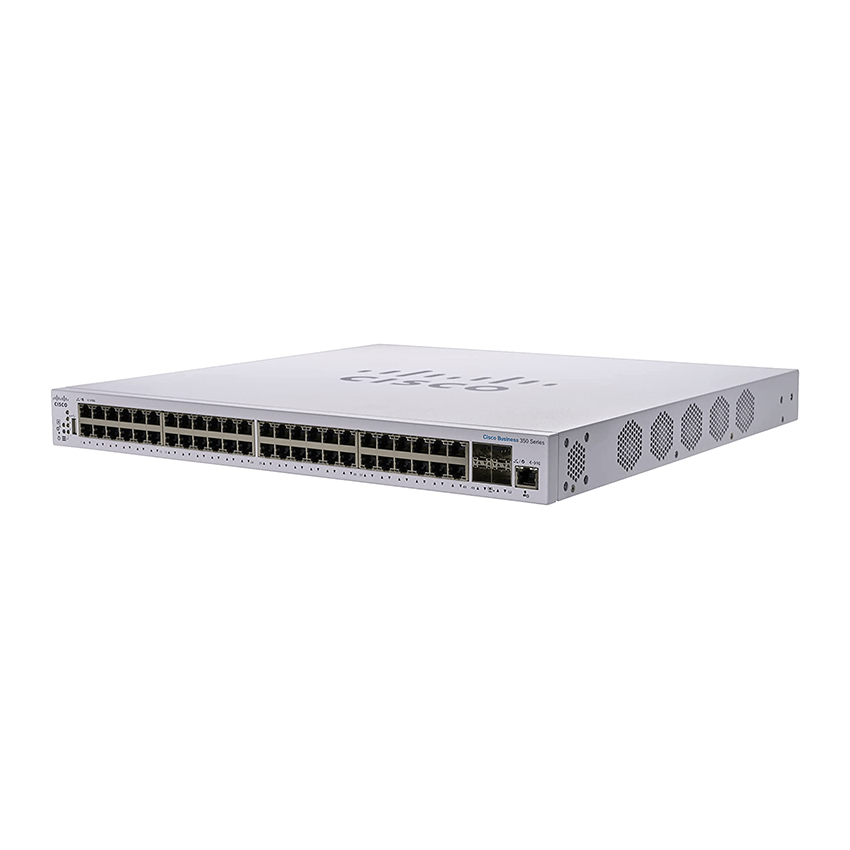

Cisco CBS350-48FP-4X – Switch – L3 – managed – 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ – rack-mountable – PoE+ (740 W)

The Cisco CBS350-48FP-4X is a versatile Ethernet switch designed to meet the networking needs of small to medium-sized businesses. With 48 Gigabit Ethernet ports, the switch provides ample connectivity options for your network devices.

One notable feature of the CBS350-48FP-4X is its Power over Ethernet (PoE) support. This means that the switch can deliver both data and power to compatible PoE-enabled devices such as IP phones, wireless access points, and surveillance cameras, eliminating the need for separate power sources and reducing cable clutter.

In addition to the 48 Ethernet ports, the switch also includes four 10 Gigabit Ethernet uplink ports. These uplink ports offer high-speed connectivity to connect the switch to other switches, routers, or network devices, ensuring fast and reliable data transfer between network segments.

The switch features a user-friendly web-based management interface that allows for easy configuration and monitoring of network settings. It also supports security features such as Access Control Lists (ACLs) and port security, helping to protect your network from unauthorized access and ensuring data integrity.

With its rack-mountable design, the CBS350-48FP-4X can be easily integrated into your existing network infrastructure. The switch is built with durability in mind, and its fanless design ensures silent operation, making it suitable for deployment in office environments or network closets.

Overall, the Cisco CBS350-48FP-4X switch offers a combination of high-performance networking, PoE support, and advanced features, making it a reliable and scalable solution for small to medium-sized businesses looking to enhance their network infrastructure.

MAIN SPECIFICATIONS

Product Description Cisco Business 350 Series 350-48FP-4X – switch – 48 ports – managed – rack-mountable Device Type Switch – 48 ports – L3 – managed – stackable Enclosure Type Rack-mountable Subtype Gigabit Ethernet Ports 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ Power Over Ethernet (PoE) PoE+ PoE Budget 740 W Performance Switching capacity: 176 Gbps ¦ Forwarding performance (64-byte packet size): 130.94 Mpps Capacity Link aggregation groups: 8 ¦ VLANs supported: 4094 ¦ Buffer capacity (MB): 3 MAC Address Table Size 16K entries Jumbo Frame Support 2KB Routing Protocol IGMP, policy-based routing (PBR), CIDR Remote Management Protocol SNMP 1, RMON, SNMP 3, SNMP 2c, SSH, SSH-2, ICMP Features DHCP support, ARP support, VLAN support, DoS attack prevention, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), Type of Service (ToS), Storm Control, IP source guard, Bridge protocol data unit (BPDU), Voice VLAN, Secure Core Technology (SCT), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, STP loop guard, Weighted Round Robin (WRR), multiple tag protocol identifiers (TPID) Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az Power AC 100-240 V (50/60 Hz) Dimensions (WxDxH) 17.5 in x 13.8 in x 1.7 in Weight 12.83 lbs



EXTENDED SPECIFICATIONS

General

Device Type Switch – 48 ports – L3 – managed – stackable Enclosure Type Rack-mountable Subtype Gigabit Ethernet Ports 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ Power Over Ethernet (PoE) PoE+ PoE Budget 740 W Performance Switching capacity: 176 Gbps ¦ Forwarding performance (64-byte packet size): 130.94 Mpps Capacity Link aggregation groups: 8 ¦ VLANs supported: 4094 ¦ Buffer capacity (MB): 3 MAC Address Table Size 16K entries Jumbo Frame Support 2KB Max Units In A Stack 4 Routing Protocol IGMP, policy-based routing (PBR), CIDR Remote Management Protocol SNMP 1, RMON, SNMP 3, SNMP 2c, SSH, SSH-2, ICMP Encryption Algorithm SSL Authentication Method Secure Shell (SSH), RADIUS, TACACS+ Features DHCP support, ARP support, VLAN support, DoS attack prevention, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), Type of Service (ToS), Storm Control, IP source guard, Bridge protocol data unit (BPDU), Voice VLAN, Secure Core Technology (SCT), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, STP loop guard, Weighted Round Robin (WRR), multiple tag protocol identifiers (TPID) Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az Processor X ARM: 800 MHz RAM 512 MB Flash Memory 256 MB Status Indicators Status, link/activity

Expansion / Connectivity

Interfaces 48 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 4 x 10GBase-X SFP+ ¦ 1 x console (USB) Type B ¦ 1 x USB Type A ¦ 1 x console RJ-45

Power

Power Device Internal power supply Voltage Required AC 100-240 V (50/60 Hz)

Miscellaneous

Rack Mounting Kit Included MTBF 856,301 hours Compliant Standards UL 60950, CSA C22.2, FCC CFR47, USGv6

Dimensions & Weight

Width 17.5 in Depth 13.8 in Height 1.7 in Weight 12.83 lbs
