Aruba Instant On SMB Switch 1430 R8R48A Front

Aruba Instant On SMB Switch 1430 R8R48A Back

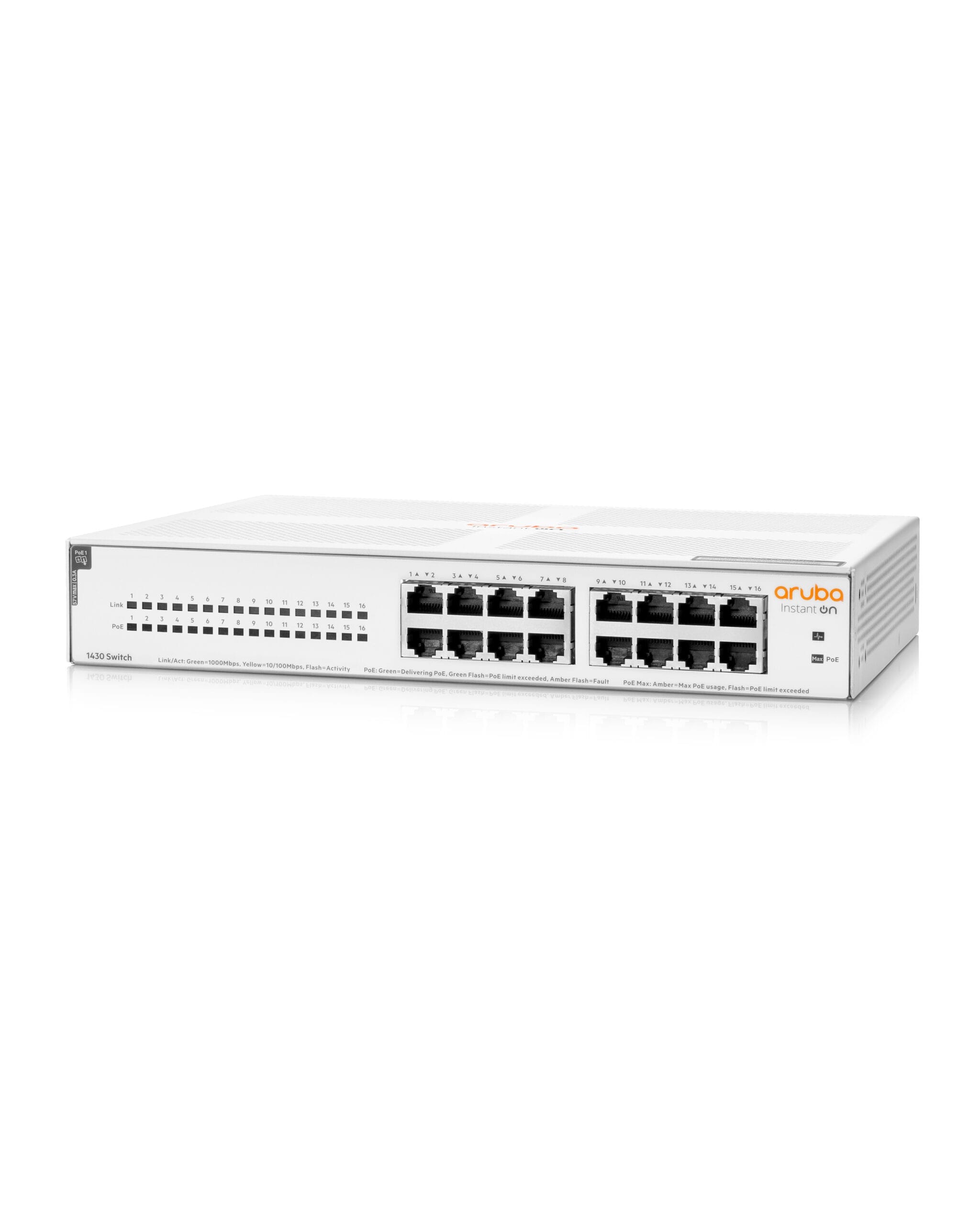

Aruba Instant On SMB Switch 1430 R8R48A Side

HPE Networking Instant On Switch Series 1430 16-Port Gb Unmanaged Layer 2 Ethernet Switch with PoE | 16x 1G | 16x CL4 PoE (124W) | Fan-less | US Cord (R8R48A#ABA)

Name: HPE Networking Instant On 1430 16G Class4 PoE 124W Switch US R8R48A#ABA
Brand: HPE
SKU: R8R48A#ABA
Price: 204.35 USD
Availability: OutOfStock

Original price was: $333.00.Current price is: $204.35.

HPE Networking Instant On 1430 16G Class4 PoE 124W Switch US

On order Ask for price and lead time

ConditionNew

WarrantyManufacturer

ShippingFree (US)

ReturnsRMA required · See policy

HPE Networking Instant On Authorized Online Reseller

SKU: R8R48A#ABA Categories: 1430, Instant On, Switches

Description
1430 Series Overview

The Aruba Instant On 1430 Switch Series is an affordable, plug-and-play, unmanaged switch series for small businesses looking for simple reliable, and low-cost network connectivity. These unmanaged switches offer Layer 2 Ethernet switching capabilities –at an affordable price point – to help connect and share common resources like printers and access points, without any complicated network configuration or management needed. With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these unmanaged switches deliver simple, reliable connectivity for the smallest SMBs and home offices.

The Aruba Instant On 1430 16G PoE switch is an unmanaged plug-and-play Layer 2 Gigabit Ethernet switch that provides simple, reliable, and low-cost connectivity for small businesses and home offices. With 124W of Class 4 PoE to power APs, IP phones, and security cameras
Fast, reliable Gigabit Ethernet speeds with no configuration or management required and fan-less for silent operation
Management: Unmanaged with plug and play simplicity – zero configuration and no required ongoing administration. Install and forget
Configuration: Mounts in an EIA standard 19 in. telco rack or equipment cabinet. 2-post rack kit included. Supports table-top mounting, rackmounting using the brackets provided, wallmounting with ports facing either up or down using the brackets provided, and undertable mounting using the brackets provided. Must be mounted top surface up. To prevent possible impact to longterm reliability, product should not be mounted upside-down| #ABA US cord | Limited Lifetime warranty
Ports: 16 active ports | 16x Gigabit 10/100/1000 | Power over Ethernet: Class 4 PoE | PoE power budget 124 Watts | Fanless | Unmanaged

Specifications
Ports	16 RJ-45 10/100/1000 Class 4 PoE ports
Memory and processor	128Kb EEPROM
Packet buffer size	2.0 Mb
Throughput	23.80 Mpps
Switching capacity	32 Gbps
PoE capability	124W Class 4 PoE
Management features	Unmanaged
Power supply name	External Power Adapter
Input voltage	100-127VAC / 200-240VAC, depending on model
Operating temperature	0°C to 40°C, 32°F to 104°F
Power consumption	Maximum: 147W Idle: 5W
Product dimensions (imperial)	10.24 x 10.83 x 1.73 in
Weight	4.60 lb

Introducing the 1430 Switch Family

Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-and 26-port non-PoE and PoE models.
No configuration or management needed.
Plug-and-play with fully automated functions and zero ongoing maintenance.
Up to 124W of PoE to power APs, IP Phones, and other IoT devices.
Fan-less design for silent deployment in office spaces.

Features

Unmanaged Ethernet Connectivity for Small Businesses

The Aruba Instant On 1430 Switch Series is an unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in seven models in PoE and non-PoE configurations: one (1) 5-port, two (2) 8-port, two (2) 16-port, one (1) 24-port, and one (1) 26-port model with 2 SFP uplinks models.
With PoE models, you get up to 30W PoE per port power delivery for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port and 16-port PoE models come with the power budget of 64W and 124W respectively to support the latest IoT devices.
Two dedicated 1G SFP fiber ports on the 26-port model can be used for uplinks and to support long distance connectivity using fiber transceivers, for a total of 28 Ethernet ports.
Aruba Instant On Limited Lifetime support provides 24x7 phone support for the first 90 days and chat support for the entire warranty period. Community support is included for the life of the product.

Aruba Instant On SMB 1430 Switch Series Packaging

Plug-and-Play Operation

The Aruba Instant On 1430 Switch Series models are easy to use with zero configuration and no required ongoing administration.
The unmanaged PoE models delivers fully automated support for powering compatible IP phones, video surveillance cameras, or wireless access points.
No configuration beyond installation of optional 1GbE SFP transceivers on 26-port model to extend connectivity with gigabit fiber.
Install flexibility with support for table-top, under-table, wall-mount, and rack-mount options (varies per model).
Simplified cabling automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports using Auto MDI/MDI-X.

Energy Efficiency and Traffic Optimization

The Aruba Instant On 1430 Switch Series supports Energy Efficient Ethernet (EEE) and is compliant with 802.3az standard requirements to save energy during periods of low data activity.
All models are fan-less for silent operation in office settings or acoustically sensitive environments and require less power to operate.
Quality of Service provides priority of time-sensitive packets (like VoIP and video) over other traffic based on DSCP or IEEE 802.1p classification.
Jumbo frame support provides up to 9216 bytes frame size to improve the performance of large data transfers.
Flow control provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node.
