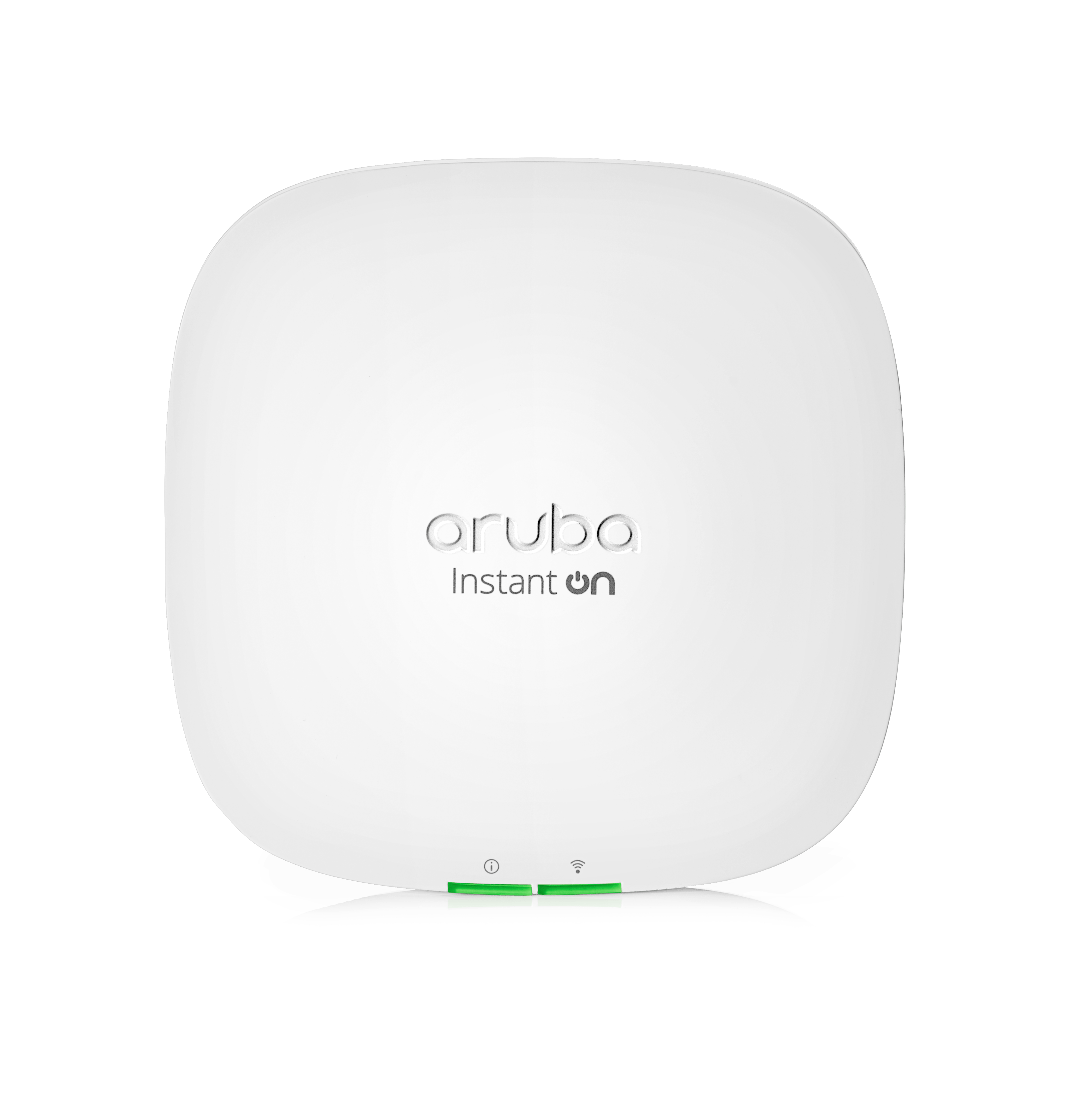

Aruba Instant On AP22 802.11ax 2×2 Wi-Fi 6 Access Point | Long Range, Secure, Built-In Gateway, Smart Mesh Support, Bluetooth, Wireless | Power Source Not Included | US Model (R4W01A)
Aruba Instant On AP22 Wi-Fi certified 6™ access points are designed with small and growing businesses in mind. Each box includes one access point, one Quick Start Guide, a combined ceiling and wall mount clip, and an Ethernet cable. The Instant On AP22 is easy to manage and control by touch thanks to the official Instant On mobile app. Plus, pairing your AP22 with your smart device is easy with the integrated Bluetooth feature. Keep your clients happy—multiple users, outputs, and inputs allow your network to serve multiple clients at once. The high-speed 802.11ax, 2X2:2 delivers four times the capacity of 802.11ac access points while also providing quick and smooth connections. Your access point is Wi-Fi certified 6™ so you and your clients can count on improved roaming and uninterrupted connections. The AP22 also supports open Wi-Fi networks for easy connections in cafes, retail stores, and other business establishments. No external gateway is necessary; Cloudflare integration keeps connections private, secure, and speedy for easy web browsing. Maintain solid connections and extended coverage indoors or outdoors thanks to our smart mesh Wi-Fi support. Host multiple clients on one network with peace of mind knowing that the Aruba Instant On AP22 includes a 2-year* warranty includes unlimited chat support, 24/7 phone support for the first 90 days, and community support for as long as you own the product
- WHAT’S IN THE BOX: Aruba Instant On AP22 Access Point, Quick Start Guide, combined ceiling and wall rail mount clip, and Ethernet cable
- EASY SETUP AND MANAGEMENT: The Aruba Instant On mobile or web app allows you to seamlessly control everything from your favorite device—no subscription required
- FAST PERFORMANCE: The 802.11ax, 2X2:2 improves roaming performance and helps clients quickly connect to access points
- WI-FI CERTIFIED 6™ (WI-FI 6): AP22 is a Wi-Fi Certified 6™ access point that delivers high-performance, capacity, and efficiency to small and growing business
- WARRANTY: Aruba Instant On 2-year* warranty includes unlimited chat support, 24/7 phone support for the first 90 days, and community support for as long as you own the product
- INTEGRATED BLUETOOTH: Easily pair Instant On AP22 with your smart device for anytime management and monitoring of your networks
- MU-MIMO PERFORMANCE: Multi-user, multiple inputs, and multiple output functionality allows for serving multiple clients at the same time
- SECURE GUEST WI-FI WITH SIMPLE SETUP: The Instant On Access Point supports open Wi-Fi networks to support small and growing businesses such as cafés and retail stores
- BUILT-IN WI-FI GATEWAY FUNCTIONALITY: Easily utilize advanced features without the need for an external gateway; Cloudflare integration allows for secure and quick web browsing
- SMART MESH WI-FI SUPPORT: Set a Wi-Fi network indoors or outdoors with the Instant On mobile app to extend your Wi-Fi coverage where ethernet cables are not available
Specifications | |
---|---|
Certifications |
EN 60601-1-1 and EN 60601-1-2 (medical environments) Wi-Fi Alliance certified (WFA): 802.11ax (Wi-Fi 6), WPA2, WPA3 |
Power | Power over Ethernet (PoE): 802.3af (class 3) DC power (12V) Note: Power sources are sold separately |
Wi-Fi Antenna | Integrated down-tilt omni-directional antennas (2×2 MIMO) Max gain: 4.3dBi (2.4GHz), 5.6dBi (5GHz) |
Connectivity Standards | IEEE 802.11ax |
Ports | (1) Uplink Gigabit Ethernet port with POE-in support (802.3af) |
Mounting | Includes white mount clip (wall & ceiling) Optional aesthetic mount available (R6P90A) |
Power Consumption | Max: 10.1W (PoE), 8.8W (DC) |
Radio Coverage | Dual radio, simultaneous dual-band operation 5 GHz 802.11ax 2×2 MIMO, up to 1.2 Gbps, Multi-User MIMO (Wi-Fi 6) 2.4 GHz 802.11ax 2×2 MIMO, up to 574 Mbps (Wi-Fi 6) |
Warranty | Aruba Instant On 2-Year warranty: 24×7 phone (90 days), chat (full period), community support |
Dimensions (imperial) | 1.5 x 6.3 x 6.3 in |
Weight | 1.1 lb |
Aruba Instant On WiFi 6 Comparison
AP21 | AP22 | AP22D | AP25 | AP32 | |
---|---|---|---|---|---|
Ideal deployment |
SOHOs, conference rooms, studio retail, low-density areas |
Boutique hotels, independent restaurants, medical offices, schools |
SOHOs, reception areas, retail shops |
Gaming, high-traffic areas, professional offices |
High device density, offices, tech start-ups, multi-purpose facility |
Recommended number of devices |
50 | 75 | 75 | 100+ | 100 |
Data rate | 1.2 Gbps (5Ghz) 300 Mbps (2.4Ghz) |
1.2 Gbps (5Ghz) 574 Mbps (2.4Ghz) |
1.2 Gbps (5Ghz) 574 Mbps (2.4Ghz) 900 Mbps switching capacity |
4.8 Gbps (5Ghz) 574 Mbps (2.4Ghz) |
2.4 Gbps (6Ghz) 1.2 Gbps (5Ghz) 300 Mbps (2.4Ghz) |
Antennas | Dual-band 802.11ax 2x2 5Ghz/2.4Ghz MIMO |
Dual-band 802.11ax 2x2 5Ghz/2.4Ghz MIMO |
Dual-band 802.11ax 2x2 5Ghz/2.4Ghz MIMO |
Dual-band 802.11ax 4x4 5Ghz MU-MIMO 2x2 2.4Ghz MU-MIMO |
Tri-band 802.11ax 2x2 6Ghz/5Ghz/2.4Ghz MIMO |
Physical specifications |
145mm x 145mm x 51mm Weight: 255g |
160mm x 160mm x 37mm Weight: 500g |
86mm x 150mm x 47mm Weight: 360g |
200mm x 200mm x 45mm Weight: 775g |
160mm x 160mm x 39mm Weight: 520g |
Power | PoE In: 802.3at 11.0 W (POE) 10.9W (DC) |
PoE In: 802.3af 10.1W (POE) 8.8W (DC) |
PoE In: 802.3at/802.3bt 51W (POE) 50W (DC) |
PoE In: 802.3at 20,1W (POE) 15.9W (DC) |
PoE In: 802.3at 12.9 (PoE) 11.0W (DC) |
