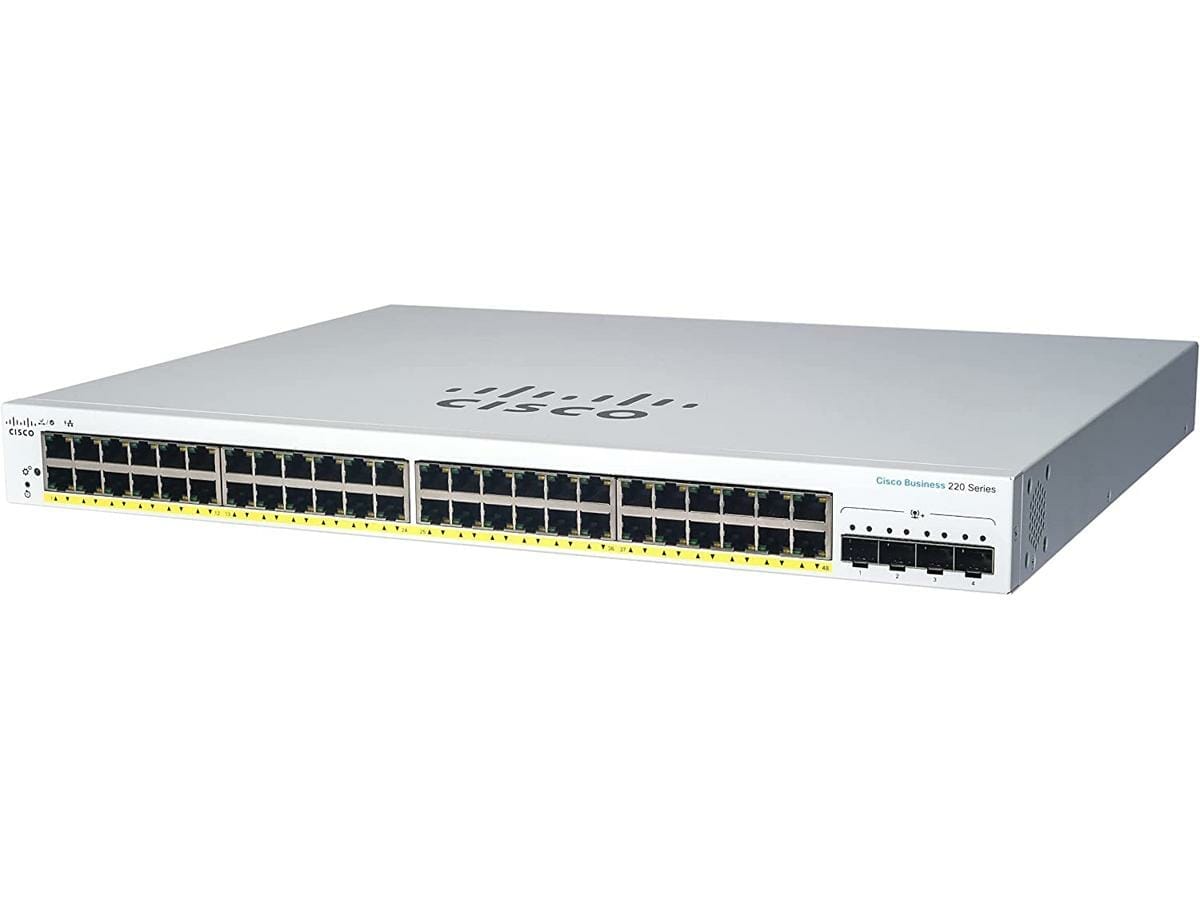

Cisco CBS220-48T-4G – Switch – smart – 48 x 10/100/1000 + 4 x Gigabit SFP (uplink) – rack-mountable

Name: Cisco CBS220-48T-4G Smart Switch - 48 Port with 4 Gigabit SFP Uplink
Brand: Cisco
SKU: CBS220-48T-4G
Price: 439.98 USD
Availability: InStock

Original price was: $669.28.Current price is: $439.98.

Condition: NEW

Availability: 2 unit(s) In Stock

Questions? Call (984) 225-1600

SKU: CBS220-48T-4G Categories: Cisco, Switches

Description

The Cisco CBS220-48T-4G is a high-performance Ethernet switch designed for small to medium-sized business networks. It offers advanced features, robust connectivity options, and efficient network management capabilities.

The CBS220-48T-4G switch features 48 Gigabit Ethernet ports, providing fast and reliable connectivity for network devices such as computers, printers, and IP phones. These ports support high-speed data transfer and ensure efficient communication within the network. Additionally, the switch includes four Gigabit Ethernet combo ports, which can be used as either copper or fiber uplinks, offering flexible connectivity options.

Overall, the Cisco CBS220-48T-4G switch is a reliable and feature-rich solution for small to medium-sized business networks. Its combination of Gigabit Ethernet ports, advanced switching capabilities, flexible connectivity options, and efficient management interface make it an ideal choice for businesses seeking scalable and secure network connectivity.

MAIN SPECIFICATIONS

Product Description	Cisco Business 220 Series CBS220-48T-4G – switch – 52 ports – smart – rack-mountable
Device Type	Switch – 52 ports – smart
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 + 4 x Gigabit SFP (uplink)
Performance	Forwarding performance (64-byte packet size): 74.38 Mpps ¦ Switching capacity: 104 Gbps
Capacity	MSTP instances: 16 ¦ VLANs supported: 256 ¦ ACL rules: 512 ¦ Buffer capacity (MB): 12
MAC Address Table Size	8192 entries
Jumbo Frame Support	9216 bytes
Routing Protocol	IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol	SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Features	BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Access Control List (ACL) support, Quality of Service (QoS), Cable Diagnostics Function, LACP support, LLDP support, Port Security, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dual firmware images, Neighbor Discovery Protocol (NDP), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, 1 fan, VLAN management, LLDP-MED, Guest VLAN, User Datagram Protocol (UDP), STP loop guard, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Telnet server, Unknown Storm Control, BPDU Guard, Cisco Discovery Protocol (CDP), Duplicate Address Detection (DAD), TCP support, auto voice VLAN, Automatic Media-Dependent Interface Crossover (MDIX)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Power	AC 100-240 V (50/60 Hz)
Dimensions (WxDxH)	17.3 in x 10.1 in x 1.7 in
Weight	7.01 lbs
Localization	Colombia, Canada, Chile, Mexico, Latin America, United States

EXTENDED SPECIFICATIONS

General

Device Type	Switch – 52 ports – smart
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 + 4 x Gigabit SFP (uplink)
Performance	Forwarding performance (64-byte packet size): 74.38 Mpps ¦ Switching capacity: 104 Gbps
Capacity	MSTP instances: 16 ¦ VLANs supported: 256 ¦ ACL rules: 512 ¦ Buffer capacity (MB): 12
MAC Address Table Size	8192 entries
Jumbo Frame Support	9216 bytes
Routing Protocol	IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol	SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Encryption Algorithm	SSL
Authentication Method	Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features	BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Access Control List (ACL) support, Quality of Service (QoS), Cable Diagnostics Function, LACP support, LLDP support, Port Security, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dual firmware images, Neighbor Discovery Protocol (NDP), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, 1 fan, VLAN management, LLDP-MED, Guest VLAN, User Datagram Protocol (UDP), STP loop guard, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Telnet server, Unknown Storm Control, BPDU Guard, Cisco Discovery Protocol (CDP), Duplicate Address Detection (DAD), TCP support, auto voice VLAN, Automatic Media-Dependent Interface Crossover (MDIX)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
RAM	256 MB
Flash Memory	64 MB
Status Indicators	System, link/activity/speed

Expansion / Connectivity

Interfaces

48 x 10/100/1000 Base-T RJ-45 ¦ 4 x 1000Base-X SFP uplink

Power

Power Device	Internal power supply
Voltage Required	AC 100-240 V (50/60 Hz)
Power Consumption Operational	36.5 Watt

Miscellaneous

Rack Mounting Kit	Included
MTBF	727,181 hours
Compliant Standards	C-Tick, UL 60950, CSA 22.2, FCC CFR47 Part 15 A
Localization	Colombia, Canada, Chile, Mexico, Latin America, United States
