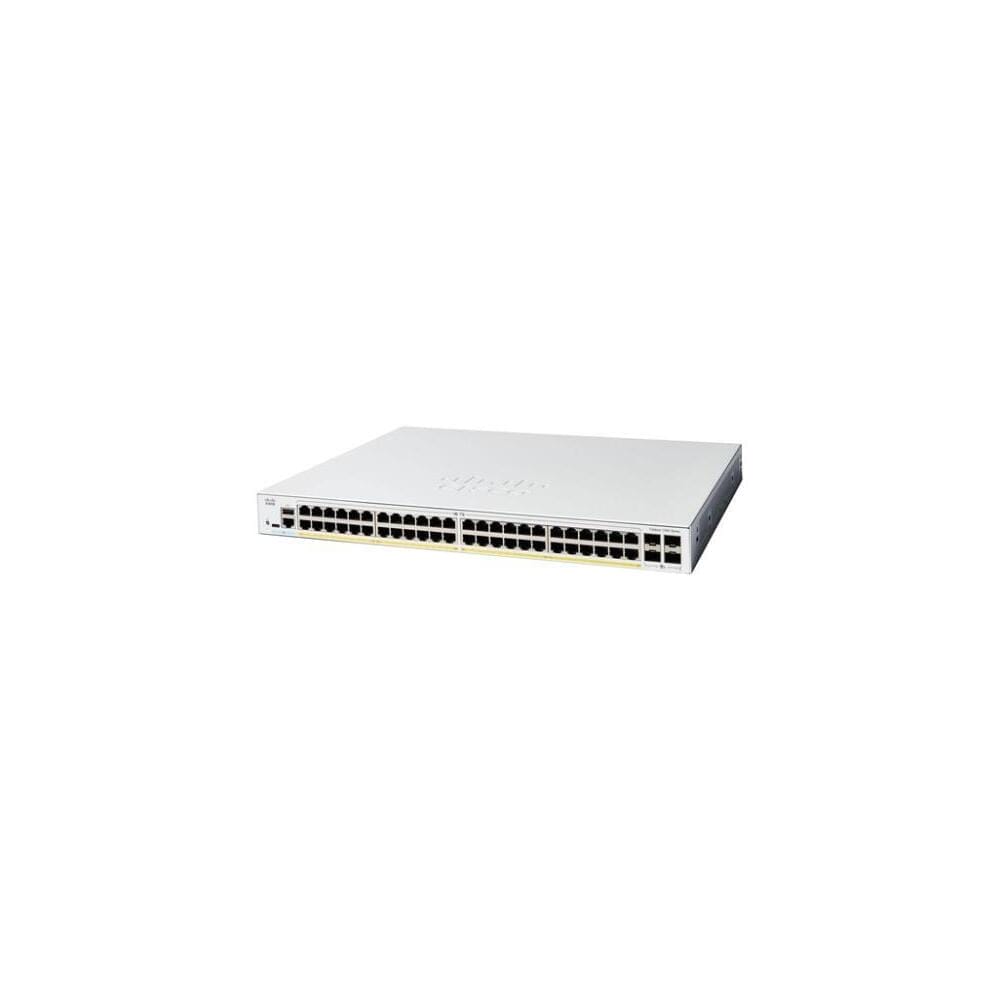

Cisco C1300-48FP-4X – 48-port GE – Full PoE – 4x10G SFP+

The Cisco Catalyst C1300-48FP-4X is a high-performance, fixed-configuration managed switch designed for small and medium-sized businesses (SMBs) who need advanced features, high port density, and substantial power delivery.

This switch features 48 Gigabit Ethernet ports with full Power over Ethernet Plus (PoE+) capabilities, providing a generous power budget to support a wide range of devices like IP phones, wireless access points, and security cameras. For high-speed connectivity to the network core or aggregation layer, it is equipped with four 10 Gigabit Ethernet (10G SFP+) uplink ports.

The C1300 series offers a blend of enterprise-grade reliability and security with simplified management. It includes advanced Layer 3 routing features, robust security protocols, and enhanced Quality of Service (QoS) to prioritize critical network traffic while using the Cisco C1300-48FP-4X.

• Primary Information

  Network Device Type:	Switch
  Model:	C1300-48FP-4X
  Form Factor:	Rack-Mountable
  Connectivity Technology:	Wired
  Data Transfer Rate:	10 Gbps
  Networking / Ports Qty:	55
  Data Link Protocol:	Gigabit Ethernet
  Status Indicators:	LED Indicators
  Processor / Type:	ARM
  RAM / Total Installed Size:	1 GB
  Flash Memory / Installed Size:	512 MB
  Networking Compliant Standards:	802.1s,802.1w,802.1d, 802.1x
  Power / Device Type:	Power Supply
  Media Layer Supported:	Layer 2 and Layer 3
  Uplink Port:	4x 10 Gigabit SFP+
  Power / Provided (W):	740 Watt
  Power / Voltage Required:	100-240V 50-60 Hz
  MTBF:	1469406 hours
  Features:	Ease of management and deployment; High reliability and resiliency; Strong security; Power over Ethernet; IPv6 support; Advanced Layer 3 traffic management; True stacking

• Network

  Power Over Ethernet (PoE) Support:	Yes
  PoE Power Consumption:	740W
  MAC Address Table Size:	16000
  Jumbo Frame Support:	Up to 9000 bytes
  Remote Management Protocol:	SNMP; DHCP; HTTPS; TFTP; HTTP
  Routing Protocol:	RIP v2,CIDR
  Authentication Method:	RADIUS, TACACS+, 802.1X
  10/100/1000BASE-T Ports:	48
  SFP+ Ports:	4
  Interfaces:	48 Gigabit Ethernet +4x 10 Gigabit Ethernet; RJ-45 console port and USB Type C port; USB Type C port

• Interfaces / Ports

  Interfaces:	48 Gigabit Ethernet +4x 10 Gigabit Ethernet; RJ-45 console port and USB Type C port; USB Type C port
  10/100/1000BASE-T Ports:	48
  SFP+ Ports:	4
