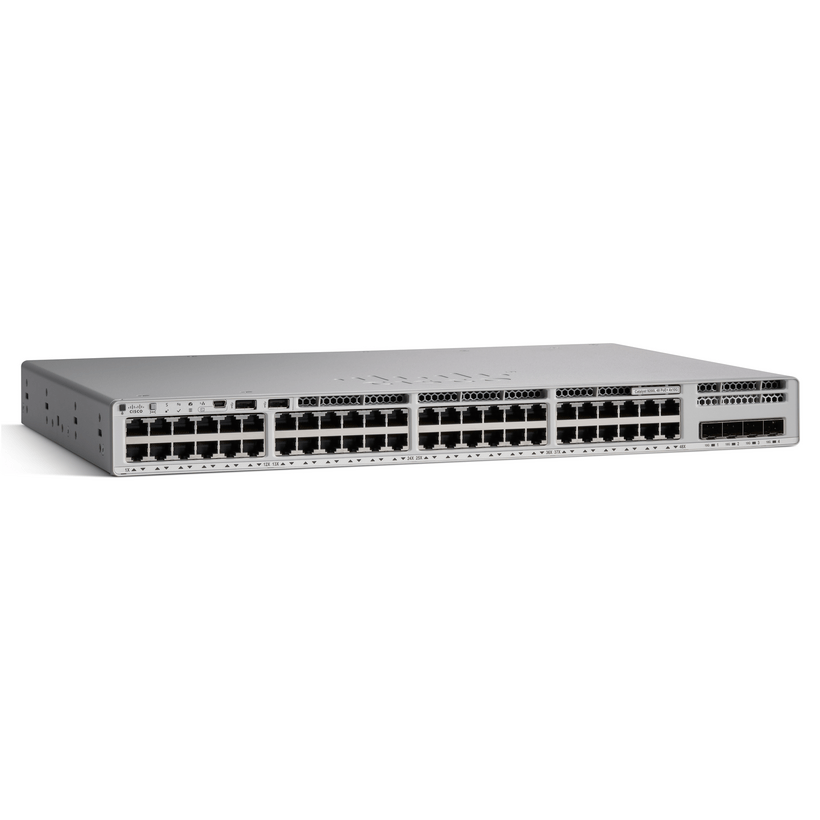

Cisco C9200L-48P-4X-A – Switch – L3 – managed – 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) – rack-mountable – PoE+ (1440 W)

The Cisco C9200L-48P-4X-A is a network switch designed for use in enterprise and campus environments. It is part of the Cisco Catalyst 9200L series of switches, which are built on the Cisco Unified Access Data Plane (UADP) 2.0 platform. The C9200L-48P-4X-A is a 48-port switch that offers a range of features to help improve network performance, security, and reliability.

The C9200L-48P-4X-A is equipped with 48 10/100/1000 Ethernet ports, as well as four 10 Gigabit Ethernet SFP/SFP+ uplink ports. The switch supports a range of advanced features, such as Cisco StackWise-160 technology for easy stacking and management, and Cisco DNA Center software for network management and automation.

In terms of performance, the C9200L-48P-4X-A is capable of delivering up to 176 Gbps of switching capacity and up to 130.95 Mpps of forwarding rate. It also offers low-latency cut-through switching for improved network response time. Additionally, the switch is designed for energy efficiency, with features such as Energy Efficient Ethernet (EEE) and variable-speed fans to help reduce power consumption.

One key difference between the C9200L-48P-4X-A and other models in the C9200L series is that the C9200L-48P-4X-A is a “PoE” model, which means it is equipped with Power over Ethernet (PoE) capabilities. This allows the switch to provide power to PoE-enabled devices, such as IP phones, wireless access points, and security cameras, over the Ethernet cable. This can help reduce the need for separate power cables and outlets

MAIN SPECIFICATIONS

C9200L-48P-4X-A – EXTENDED SPECIFICATIONS
