JL679A

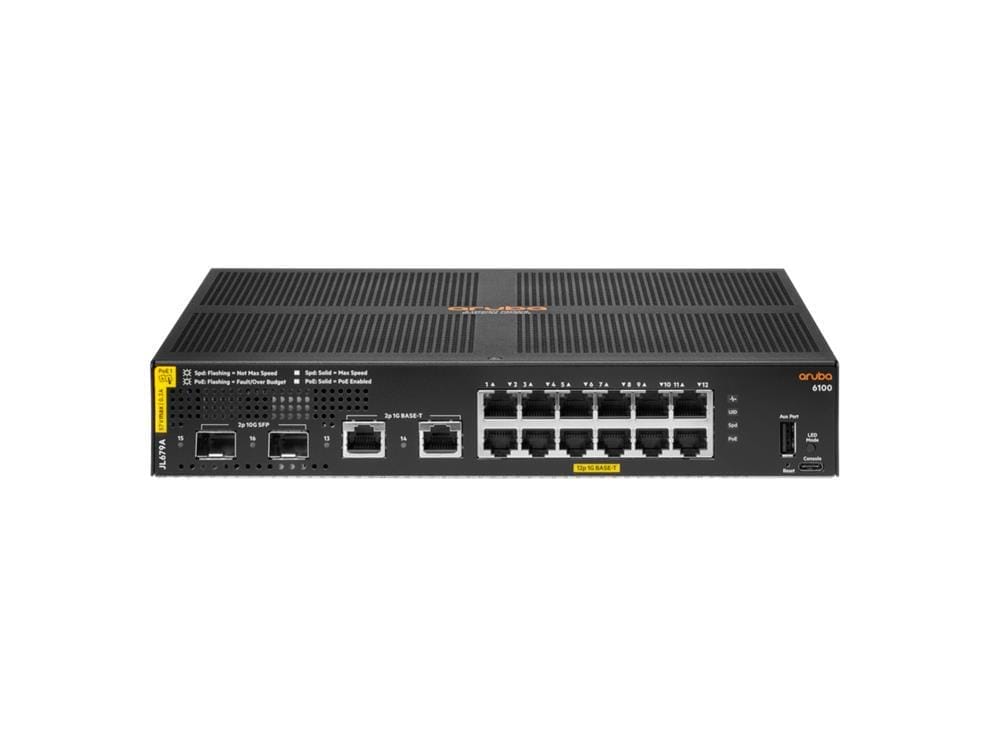

Hewlett Packard JL679A: The High-Performance Switch for Growing Networks

The Hewlett Packard JL679A, also known as the Aruba CX 6100 12G Class4 PoE 2G/2SFP+ 139W Switch, is a high-performance networking solution designed for modern businesses and organizations. It offers a powerful combination of features and capabilities, making it ideal for a range of applications, including:

• Small and medium-sized businesses (SMBs): Facilitate high-speed data transfer for a growing number of devices with 12 Gigabit Ethernet ports and PoE support.
• Branch offices: Ensure reliable and efficient network connectivity for remote locations.
• Retail and hospitality environments: Connect point-of-sale systems, security cameras, and Wi-Fi access points with centralized power and data management.
• Educational institutions: Provide seamless and high-speed network access for classrooms, labs, and administrative offices.

Key Features:

• 12 Gigabit Ethernet ports with Class 4 PoE support: Deliver high-bandwidth connectivity and power a diverse range of devices, including IP phones, VoIP cameras, and wireless access points.
• 2 Gigabit Ethernet ports and 2 SFP+ ports: Provide flexibility for connecting devices with different network speeds and enable high-bandwidth uplinks for future network expansion.
• QoS (Quality of Service) features: Prioritize critical traffic for optimal network performance and ensure smooth operation of business-critical applications.
• Advanced security features: Protect your network from unauthorized access and cyber threats with features like Aruba ClearPass and Network Access Control.
• Cloud-based management: Simplify switch configuration and monitoring with Aruba Central, enabling centralized control and easy network administration.
• Fanless operation: Ideal for noise-sensitive environments where quiet operation is important.

Benefits:

• Increased efficiency: Class 4 PoE eliminates the need for separate power injectors, reducing hardware and installation costs.
• Enhanced performance: 12 Gigabit Ethernet and optional fiber connectivity deliver exceptional data transfer speeds for demanding applications.
• Simplified management: Cloud-based tools provide centralized control and configuration for easy network administration.
• Improved security: Advanced features ensure network safety and protect against cyber threats, providing peace of mind and data security.
• Scalability: The JL679A can be easily integrated with other Aruba CX 6100 switches for seamless network expansion as your business grows.

Overall, the Hewlett Packard JL679A offers a compelling combination of high performance, advanced features, and ease of management. It empowers businesses and organizations to optimize their network infrastructure, improve efficiency, and secure their valuable data. Whether you’re a small company or a large organization, the JL679A is a reliable and scalable solution that can meet your evolving needs.

• Primary Information

  Product Description:	HPE Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch – switch – 16 ports – managed – rack-mountable
  Device Type:	Switch – 16 ports – managed – stackable
  Enclosure Type:	Rack-mountable 1U
  Subtype:	10 Gigabit Ethernet
  Ports:	12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1000Base-T
  Power Over Ethernet (PoE):	PoE+
  PoE Budget:	139 W
  Performance:	Switching capacity: 68 Gbps ¦ Throughput: 45.1 Mpps ¦ Latency (1 Gbps): 2.3 µs ¦ Latency (10 Gbps): 2.6 µs
  Capacity:	Switched virtual interfaces (SVIs): 16 ¦ ARP entries: 1024 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256
  MAC Address Table Size:	8192 entries
  Routing Protocol:	IGMPv2, IGMPv3
  Features:	Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, MLD snooping, fanless, LACP support, LLDP support, port based access control, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Network Access Control (NAC), Neighbor Discovery Protocol (NDP), SNMP support, Internet Control Message Protocol (ICMP), EntityMIB, DNS client, LLDP-MED, User Datagram Protocol (UDP), Rapid Reconfiguration of Spanning Tree (RSTP), IPv6 addressing
  Compliant Standards:	IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
  Power:	AC 230 V (50/60 Hz)
  Dimensions (WxDxH):	10 in x 10 in x 1.7 in
  Weight:	6.13 lbs
  Localization:	English / United States

• General

  Device Type:	Switch – 16 ports – managed – stackable
  Enclosure Type:	Rack-mountable 1U
  Subtype:	10 Gigabit Ethernet
  Ports:	12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1000Base-T
  Power Over Ethernet (PoE):	PoE+
  PoE Budget:	139 W
  Performance:	Switching capacity: 68 Gbps ¦ Throughput: 45.1 Mpps ¦ Latency (1 Gbps): 2.3 µs ¦ Latency (10 Gbps): 2.6 µs
  Capacity:	Switched virtual interfaces (SVIs): 16 ¦ ARP entries: 1024 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256
  MAC Address Table Size:	8192 entries
  Routing Protocol:	IGMPv2, IGMPv3
  Encryption Algorithm:	SSL
  Authentication Method:	Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
  Features:	Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, MLD snooping, fanless, LACP support, LLDP support, port based access control, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Network Access Control (NAC), Neighbor Discovery Protocol (NDP), SNMP support, Internet Control Message Protocol (ICMP), EntityMIB, DNS client, LLDP-MED, User Datagram Protocol (UDP), Rapid Reconfiguration of Spanning Tree (RSTP), IPv6 addressing
  Compliant Standards:	IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
  Processor:	1 x ARM A9: 1.016 GHz
  RAM:	4 GB DDR3 SDRAM
  Flash Memory:	16 GB

• Expansion / Connectivity

  Interfaces:

  12 x 10/100/1000 Base-T RJ-45 ¦ 2 x 1/10Gbit LAN SFP+ ¦ 1 x USB-C console ¦ 1 x USB Type A ¦ 2 x Gigabit LAN

• Power

  Power Device:	Internal power supply
  Power Provided:	165 Watt 0.9 A
  Voltage Required:	AC 230 V (50/60 Hz)
  Power Consumption Operational:	16 Watt

• Miscellaneous

  Compliant Standards:

  FCC Class A certified, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, UL 60950-1 Second Edition, EN 60825, VCCI Class A, EN 60825-1:2007, CAN/CSA C22.2 No. 60950 Second Edition, IEC 60825-1:2007 Class 1, EN 55022/CISPR 22 Class A, RFC1213, RFC1493, RFC2674, IEC/EN 60950-1, RFC768, RFC2460, RFC2925, RFC1591, RFC783, RFC792

  Localization:

  English / United States

• Dimensions & Weight

  Width:	10 in
  Depth:	10 in
  Height:	1.7 in
  Weight:	6.13 lbs
