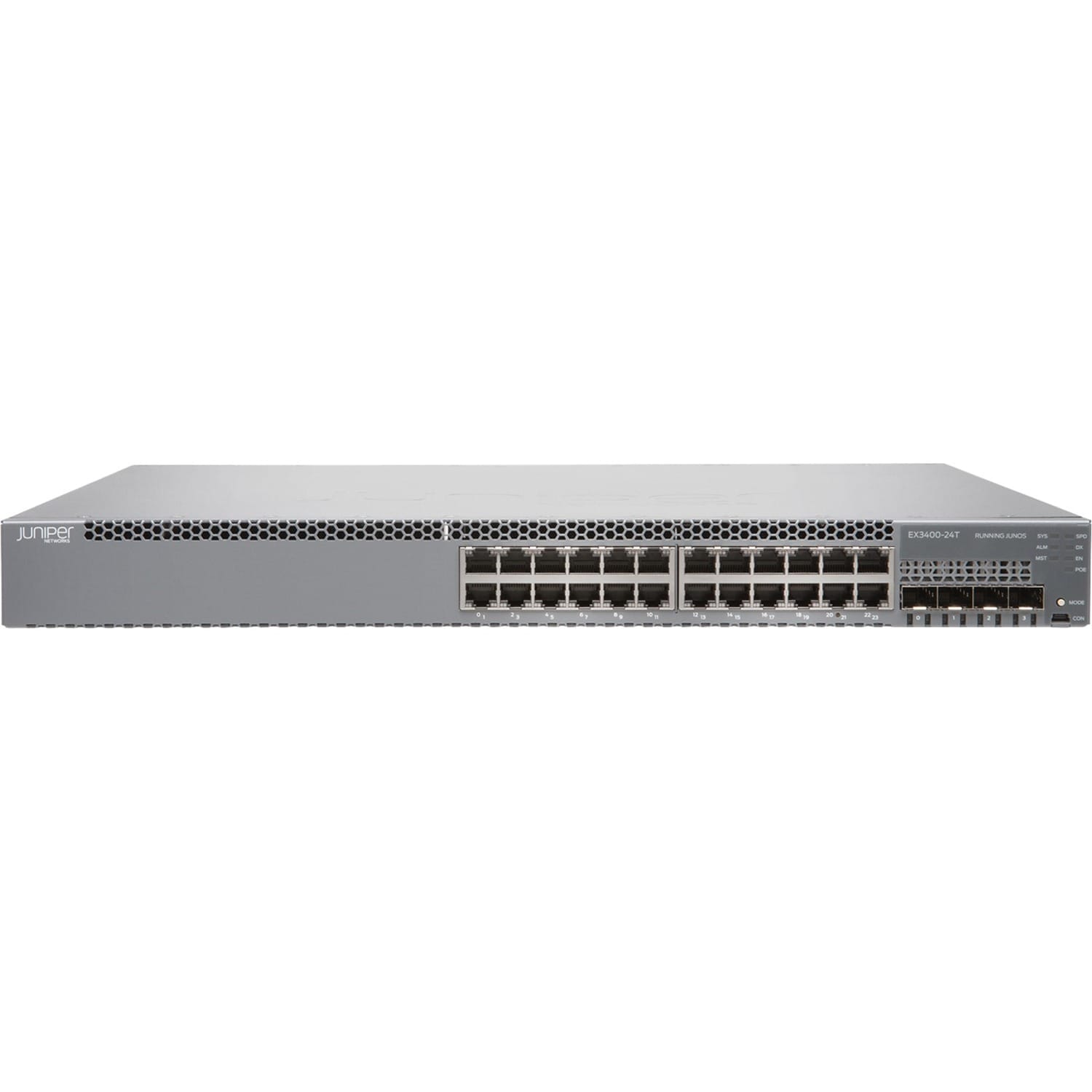

Juniper EX3400-24T Ethernet Switch – 24 Ports – Manageable – Gigabit Ethernet, 40 Gigabit Ethernet, 10 Gigabit Ethernet – 1000Base-T, 10GBase-X, 40GBase-X – 3 Layer Supported – Modular – 100 W Power Consumption – Twisted Pair, Optical Fiber – 1U High – Rack-mountable, Wall Mountable
- Effectively increases available bandwidth on your network
- Features 24 networking ports to establish large network
- Power Supply power source for required power supply to ensure maximum efficiency
- Can work as layer 3 routing for scalable network design
- Rack-mountable form factor allows hassle-free and easy usage with increased efficiency
- 40 Gigabit Ethernet for efficient data transfer and fast connectivity
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Juniper Networks EX3400 Ethernet Switch delivers a high-performance, flexible, and cost-effective solution for today’s most demanding converged data, voice, and video enterprise access environments.
To simplify network operations, the EX3400 is hardware-ready to act as a satellite device to Fusion Enterprise deployment, which can combine several wiring closets into one logical management platform. The EX3400 also supports Juniper Networks Virtual Chassis technology, allowing up to 10 switches to be interconnected over uplink ports and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.
General Information
| Manufacturer |
Juniper Networks, Inc |
| Manufacturer Part Number |
EX3400-24T |
| Manufacturer Website Address |
http://www.juniper.net |
| Brand Name |
Juniper |
| Product Series |
EX4300 |
| Product Model |
EX3400-24T |
| Product Name |
EX3400-24T Ethernet Switch |
| Product Type |
Ethernet Switch |
Interfaces/Ports
| Total Number of Network Ports |
24 |
| Uplink Port |
Yes |
| Modular |
Yes |
| Stack Port |
No |
| Port/Expansion Slot Details |
- 24 x Gigabit Ethernet Network
- 4 x 10 Gigabit Ethernet Expansion Slot
- 2 x 40 Gigabit Ethernet Uplink
|
Media & Performance
| Media Type Supported |
- Twisted Pair
- Optical Fiber
|
| Ethernet Technology |
- Gigabit Ethernet
- 40 Gigabit Ethernet
- 10 Gigabit Ethernet
|
| Network Technology |
- 1000Base-T
- 10GBase-X
- 40GBase-X
|
I/O Expansions
| Number of Total Expansion Slots |
6 |
| Expansion Slot Type |
|
| Number of SFP+ Slots |
4 |
Network & Communication
Management & Protocols
Power Description
| Power Source |
Power Supply |
| Redundant Power Supply Supported |
Yes |
| Power Consumption |
100 W |
Physical Characteristics
| Compatible Rack Unit |
1U |
| Form Factor |
- Rack-mountable
- Wall Mountable
|
| Height |
1.7″ |
| Width |
17.4″ |
| Depth |
13.8″ |
| Weight (Approximate) |
10.49 lb |
Miscellaneous
| Environmentally Friendly |
Yes |
