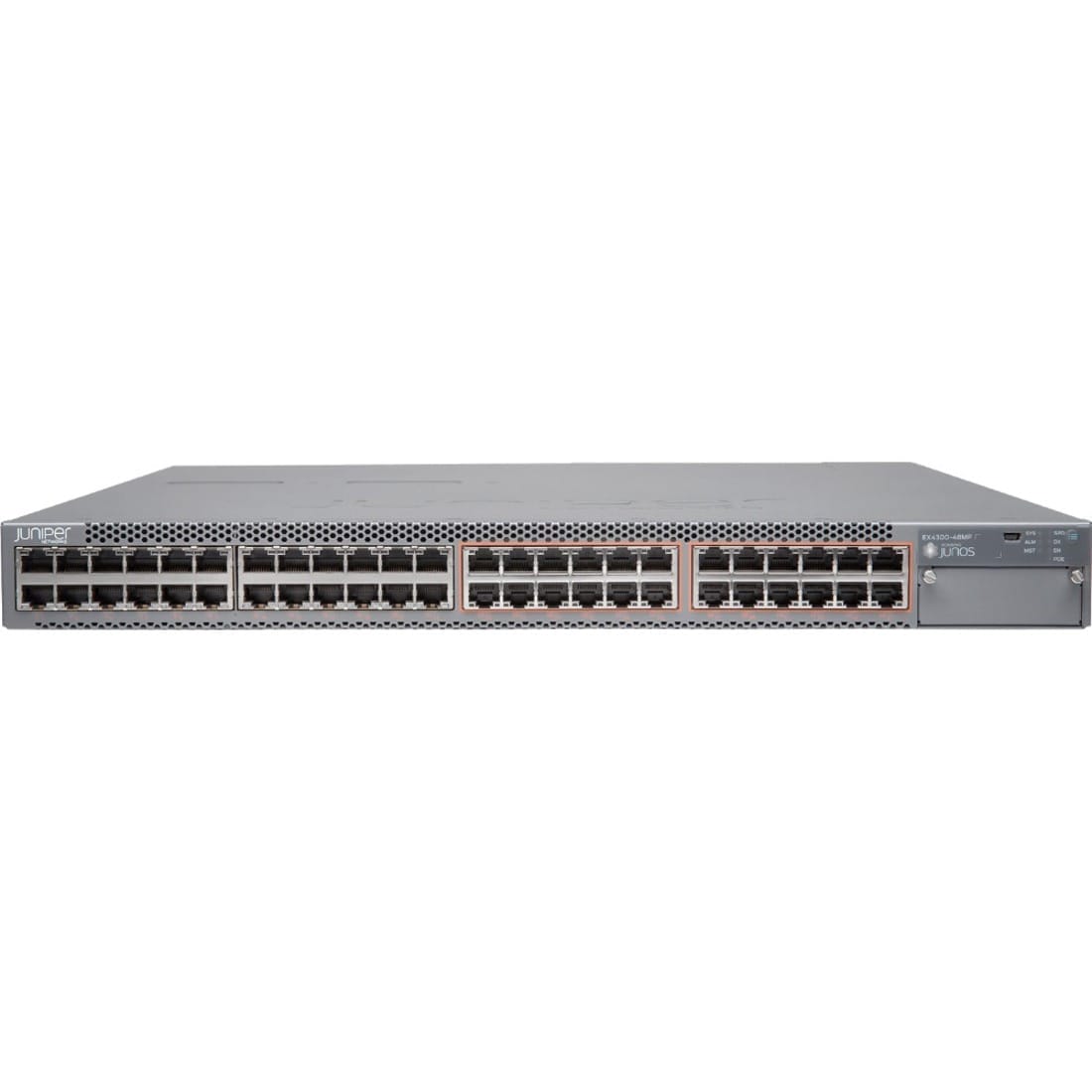

About the EX4300-48MP
The EX4300-48MP combines Gigabit and multigigabit copper access for campus and branch networks. Half its 48 RJ-45 ports provide 1GbE; the other 24 support 100M/1/2.5/5/10GbE. This PoE configuration uses AC power and front-to-back airflow, with standard software features available without an add-on tier.
What’s included
- EX4300-48MP multigigabit PoE switch with AC power and front-to-back airflow
- Standard software features, available without an Advanced or Premium license
- AC power supply
Sold separately
- Advanced and Premium licenses and Juniper Care, listed in Support & Licensing above
Choosing a version
- EX4300-48MP (this page): AC power, front-to-back airflow
- EX4300-48MP-S: spare chassis only
Related models: EX4300-32F.
Not sure which version you need? Call (984) 225-1600 or request a quote and we’ll check it against your rack and network.
EX4300-48MP specifications
| Network ports | 48x RJ-45 |
|---|---|
| Module slots | 1 |
| PoE | 48 ports, 802.3bt, up to 95 W per port, budget 1030 W with one 1400 W AC supply; 1700 W with two |
| Switching capacity (bidirectional) | 928 Gbps |
| Forwarding rate | 714 Mpps |
| Form factor | 1U, fixed chassis |
| Dimensions (H x W x D) | 1.72 x 17.36 x 18.39 in (4.4 x 44.1 x 46.7 cm) |
| Weight (chassis only) | 16.42 lb / 7.45 kg |
| Airflow | Front-to-back |
| Power supplies | 2x JPSU-1400W-AC-AFO (hot-swappable) |
| Fans | 2x EX4300-FAN (hot-swappable) |
| CPU | 2.2 GHz Dual-Core Intel Broadwell CPU |
| Memory | 8 GB |
| Storage | 50 GB |
| Virtual Chassis | Up to 10 members, 4x QSFP+ ports |
| MAC addresses (thousands) | 64 |
| IPv4 routes (thousands) | 16 |
| Operating temperature | 32° through 113° F / 0° through 45° C |
| Operating system | Junos OS |
Full specifications (72)
Network ports
| RJ-45 Ports | 48 |
|---|
Management and other ports
| Console Ports | 2 |
|---|---|
| Console Port Type | RJ-45, Mini USB Type B |
| Management Ports | 1 |
| Management Port Type | RJ-45 |
| USB Ports | 1 |
| USB Port Type | Type A |
PoE
| PoE power per port | 95 W |
|---|---|
| PoE budget | 1030 W with one 1400 W AC supply; 1700 W with two |
| PoE port type | RJ-45 |
| PoE ports | 48 |
| PoE standard | 802.3bt |
Chassis
| Chassis type | Fixed |
|---|---|
| Form Factor | 1U |
| Chassis Height | 1.72 in / 4.3688 cm |
| Chassis Width | 17.36 in / 44.0944 cm |
| Chassis Depth | 18.39 in / 46.7106 cm |
| Chassis depth (with power supplies and fans) | 19.64 in / 49.8856 cm |
| Weight (chassis only) | 16.42 lb / 7.45 kg |
| Chassis Model Number | EX4300-48MP-S |
Power
| Power supplies | 2 |
|---|---|
| Power supply airflow | Front-to-back |
| Hot-swappable power supplies | Yes |
| AC power supply model | JPSU-1400W-AC-AFO |
Cooling
| Airflow Direction | Front-to-back |
|---|---|
| Fan module model | EX4300-FAN |
| Fan modules | 2 |
| Hot-swappable fans | Yes |
Processor
| CPU | 2.2 GHz Dual-Core Intel Broadwell CPU |
|---|---|
| Memory (DRAM) | 8 GB |
Storage
| Internal Storage Size | 50 GB |
|---|
Routing engines and fabric
| Module Slots | 1 |
|---|
High availability
| HA / Virtual Chassis ports | 4 |
|---|---|
| HA / Virtual Chassis port type | QSFP+ |
| Virtual Chassis members (max) | 10 |
Switching and routing scale
| Packet Switching Unidirectional (64B) | 464 Gbps |
|---|---|
| Packet Switching Bidirectional (64B) | 928 Gbps |
| L2/L3 Throughput (64B) | 714 Mpps |
| IPv4 Unicast Host Routes (thousands) | 32 |
| IPv4 Unicast Routes Prefixes (RIB) (thousands) | 16 |
| IPv4 Multicast Routes (thousands) | 16 |
| IPv6 Unicast Host Routes (thousands) | 15 |
| IPv6 Unicast Routes Prefixes (RIB) (thousands) | 4 |
| IPv6 Multicast Routes (thousands) | 16 |
| IPv6 Neighbor Discovery Entries (thousands) | 32 |
| Egress VLAN ACL | 512 |
| Egress Port ACL | 512 |
| Egress Routed ACL | 1024 |
| Ingress VLAN ACL | 3500 |
| Ingress Port ACL | 3072 |
| Ingress Routed ACL | 7000 |
| ARP Entries (thousands) | 64 |
| MSTP Instances | 64 |
| VSTP Instances | 510 |
| Link aggregation groups (LAGs) | 128 |
| Ports Per LAG | 16 |
| MAC Addresses Per System (thousands) | 64 |
| Maximum Mirroring Sessions | 4 |
| Traffic Mirroring Destination VLANs | 1 |
| Traffic Mirroring Destination Ports | 4 |
| VLAN IDs | 4093 |
| Jumbo Frame | 9216 bytes |
Environmental
| Operating Temperature | 32° through 113° F / 0° through 45° C |
|---|---|
| Storage Temperature | -40° through 158° F / -40° through 70° C |
| Non-Operating Altitude | 16000 ft / 4876 m |
| Operating Altitude | 6000 ft (1824 m) |
| Humidity, operating (noncondensing) | 10% through 85% |
| Humidity, non-operating (noncondensing) | 0% through 95% |
| Seismic Tolerance | Zone 4 |
| Acoustic Noise Level (Max) | 53.7 dB |
| Maintenance Clearance | 24 in / 60.96 cm |
Software
| Operating system | Junos OS |
|---|
Common questions
Does it support PoE?
Yes. This configuration provides PoE alongside its Gigabit and multigigabit copper access connections.
Can the multigigabit model support Virtual Chassis?
Yes. It supports up to 10 members and provides four QSFP+ Virtual Chassis connections.
Do I need a license to use the multigigabit ports?
No. The standard software runs without one. Advanced, Premium and a MACsec option are add-ons, and Juniper Care is offered too; see Support & Licensing above.
