Juniper SRX345-SYS-JE Firewall with Junos Enhanced Software

Name: Juniper SRX345-SYS-JE Firewall with Junos Enhanced Software
Brand: Juniper
SKU: SRX345-SYS-JE
Price: 5469.75 USD
Availability: InStock

$5,469.75List price: $12,750.00

Available direct from Juniper Ask us for current lead time

ConditionNew

WarrantyManufacturer

ShippingFree (US)

ReturnsRMA required · See policy

Juniper Care & licenses for this modelSee options ↓

An SRX345 branch firewall with Junos Software Enhanced, eight RJ-45 ports, eight SFP ports and four Mini-PIM slots. The bundle includes a power supply and rack kit.

SKU: SRX345-SYS-JE Categories: Juniper, Firewalls

Support & Licensing for the SRX345-SYS-JE

The SRX345-SYS-JE comes with Junos software for firewall, NAT, IPsec VPN, routing and switching. Most buyers add Juniper Care support; security subscriptions add threat protection such as IPS, antivirus and web filtering. Not sure what you need? Call (984) 225-1600 or request a quote and we'll spec it with you.

1Juniper Care support recommended

A support contract from Juniper for the SRX345-SYS-JE. Every level includes 24/7 tech support and software updates; they differ in how fast a failed part is replaced.

Core24/7 Juniper tech support (JTAC) and software updates. No hardware replacement.SVC-COR-SRX345JE
$929 / yr
Core PlusCore, plus repair or replacement shipped within 10 business days of Juniper receiving the failed part.SVC-CP-SRX345JE
$1,256 / yr
Next DayCore, plus a replacement part delivered the next business day (RMA issued by 3 p.m. local time).SVC-ND-SRX345JE
$1,290 / yr
Same DayCore, plus a replacement part delivered within 4 hours, 24/7.SVC-SD-SRX345JE
$1,619 / yr

More levels: onsite technician and 2-hour delivery

Next Day OnsiteNext Day delivery, plus a technician on site to install the replacement part.SVC-NDCE-SRX345JE
$1,436 / yr
Same Day OnsiteSame Day delivery, plus a technician on site to install the replacement part.SVC-SDCE-SRX345JE
$1,833 / yr
Same Day 2-HourCore, plus a replacement part delivered within 2 hours, 24/7.SVC-SD2-SRX345JE
$2,106 / yr

Delivery times depend on your location. Onsite technicians handle hardware replacement; software questions go to JTAC.

2Security subscription optional

Optional threat protection for the SRX345-SYS-JE, sold as 1, 3 or 5-year subscriptions. Licenses are per firewall.

Junos software

Included with the firewall

Firewall and NAT
IPsec VPN
Routing, MPLS and switching

Included

Advanced 1

Adds:

IPS (intrusion prevention)
App+ application security: identify, control and prioritize apps
SD-WAN application routing
SecIntel threat intelligence feeds

Subscription Includes Juniper software supportS-SRX345-A1-1/3/5

1 yr$347 3 yr$693$231 / yr 5 yr$1,040$208 / yr

Advanced 2

Everything in Advanced 1, plus:

Antivirus
Enhanced web filtering
Antispam

Subscription Includes Juniper software supportS-SRX345-A2-1/3/5

1 yr$1,591 3 yr$3,182$1,061 / yr 5 yr$4,773$955 / yr

Premium 1

Everything in Advanced 1, plus:

Juniper ATP Cloud: detects and blocks zero-day malware

Subscription Includes Juniper software supportS-SRX345-P1-1/3/5

1 yr$1,004 3 yr$2,007$669 / yr 5 yr$3,011$602 / yr

Premium 2

Everything in Advanced 2 and Premium 1:

Antivirus, web filtering and antispam
Juniper ATP Cloud zero-day protection

Subscription Includes Juniper software supportS-SRX345-P2-1/3/5

1 yr$1,921 3 yr$3,843$1,281 / yr 5 yr$5,764$1,153 / yr

3Add-on licenses only if you need them

Remote access VPN (Juniper Secure Connect)VPN for remote users with the Juniper Secure Connect client, licensed by the number of users connected at once.
- 5 usersS-RA3-5CCU-S-1/3/5
  1 yr$67 3 yr$134$45 / yr 5 yr$201$40 / yr
- 25 usersS-RA3-25CCU-S-1/3/5
  1 yr$286 3 yr$571$190 / yr 5 yr$856$171 / yr
- 50 usersS-RA3-50CCU-S-1/3/5
  1 yr$504 3 yr$1,007$336 / yr 5 yr$1,511$302 / yr
- 100 usersS-RA3-100CCU-S-1/3/5
  1 yr$874 3 yr$1,745$582 / yr 5 yr$2,620$524 / yr
- 250 users, SRX345 packS-RA3-SRX345-S-1/3/5
  1 yr$840 3 yr$1,679$560 / yr 5 yr$2,519$504 / yr
- 250 usersS-RA3-250CCU-S-1/3/5
  1 yr$1,679 3 yr$3,358$1,119 / yr 5 yr$5,037$1,007 / yr
Mist WAN AssuranceManage and monitor this firewall from the Juniper Mist cloud, with AI insights and service-level tracking.S-WAN-C2-1/3/5
1 yr$655 3 yr$1,306$435 / yr 5 yr$1,961$392 / yr
Mist WAN Assurance, Standard bundleWAN Assurance plus application visibility (Junos AppID, activated from Mist).S-SRX-S-C2-1/3/5
1 yr$782 3 yr$1,564$521 / yr 5 yr$2,346$469 / yr
Bundled with Juniper Care
- With Core supportS-SRX-S-C2-1/3/5-COR
  1 yr$956 3 yr$2,088$696 / yr 5 yr$3,217$643 / yr
- With Core Plus supportS-SRX-S-C2-1/3/5-CP
  1 yr$1,078 3 yr$2,447$816 / yr 5 yr$3,826$765 / yr
- With Next Day supportS-SRX-S-C2-1/3/5-ND
  1 yr$1,117 3 yr$2,574$858 / yr 5 yr$4,029$806 / yr
- With Same Day supportS-SRX-S-C2-1/3/5-SD
  1 yr$1,260 3 yr$2,993$998 / yr 5 yr$4,730$946 / yr
Mist WAN Assurance, Advanced bundleThe Standard bundle plus Marvis, Juniper's AI assistant for troubleshooting.S-SRX-A-C2-1/3/5
1 yr$1,176 3 yr$2,346$782 / yr 5 yr$3,521$704 / yr
Bundled with Juniper Care
- With Core supportS-SRX-A-C2-1/3/5-COR
  1 yr$1,349 3 yr$2,871$957 / yr 5 yr$4,392$878 / yr
- With Core Plus supportS-SRX-A-C2-1/3/5-CP
  1 yr$1,471 3 yr$3,229$1,076 / yr 5 yr$5,001$1,000 / yr
- With Next Day supportS-SRX-A-C2-1/3/5-ND
  1 yr$1,510 3 yr$3,356$1,119 / yr 5 yr$5,204$1,041 / yr
- With Same Day supportS-SRX-A-C2-1/3/5-SD
  1 yr$1,653 3 yr$3,775$1,258 / yr 5 yr$5,905$1,181 / yr
IPS signature updatesIntrusion prevention signature updates on their own. Every security subscription tier includes IPS.SRX345-IPS-1/3/5
1 yr$1,029 3 yr$2,825$942 / yr 5 yr$4,368$874 / yr
Enhanced web filteringWeb filtering on its own. The Advanced 2 tier includes it.SRX345-W-EWF-1/3/5
1 yr$1,029 3 yr$2,825$942 / yr 5 yr$4,368$874 / yr
ATP threat feedsJuniper ATP Cloud threat intelligence feeds only, with no file scanning. The Premium tiers include full ATP Cloud.SRX345-THRTFEED-1/3/5
1 yr$293 3 yr$593$198 / yr 5 yr$1,183$237 / yr

Description

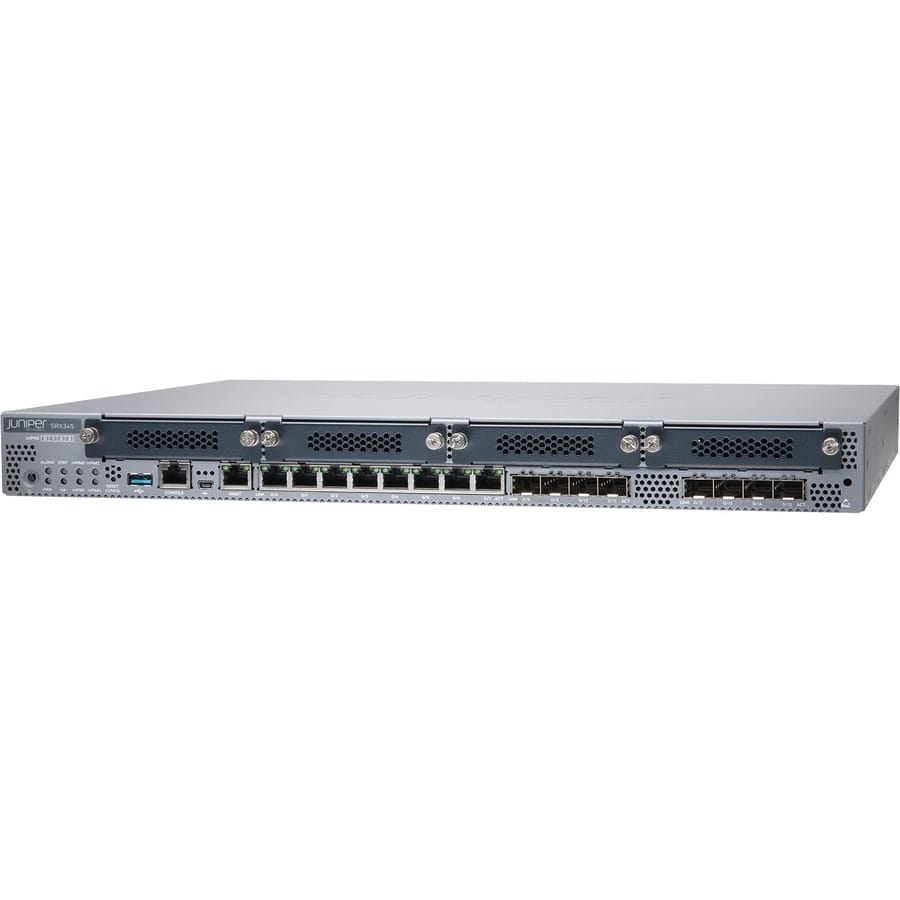

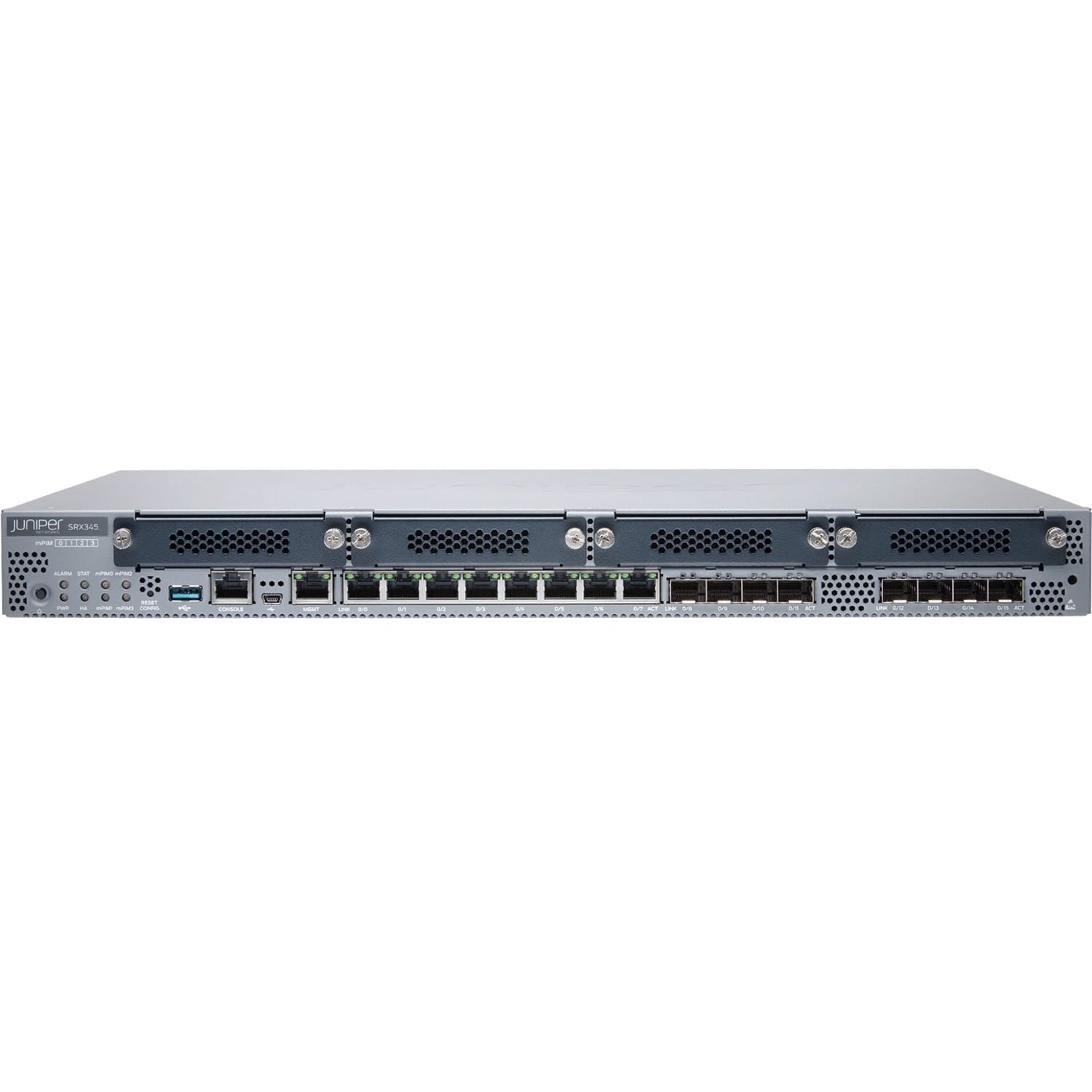

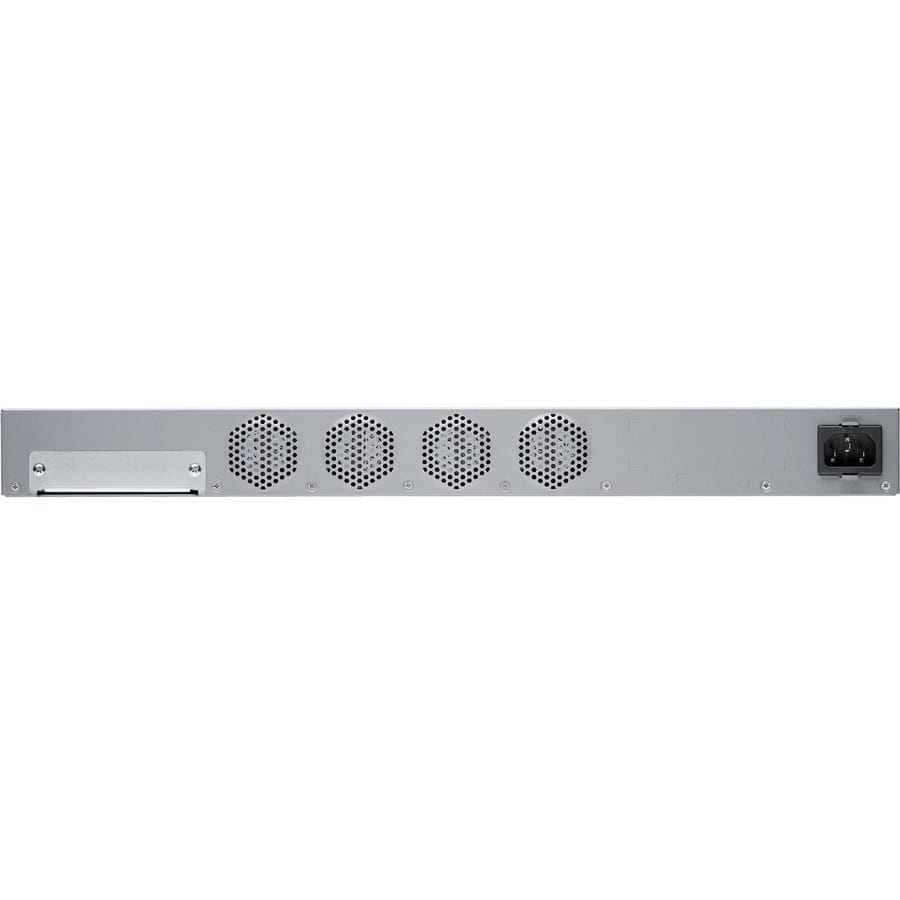

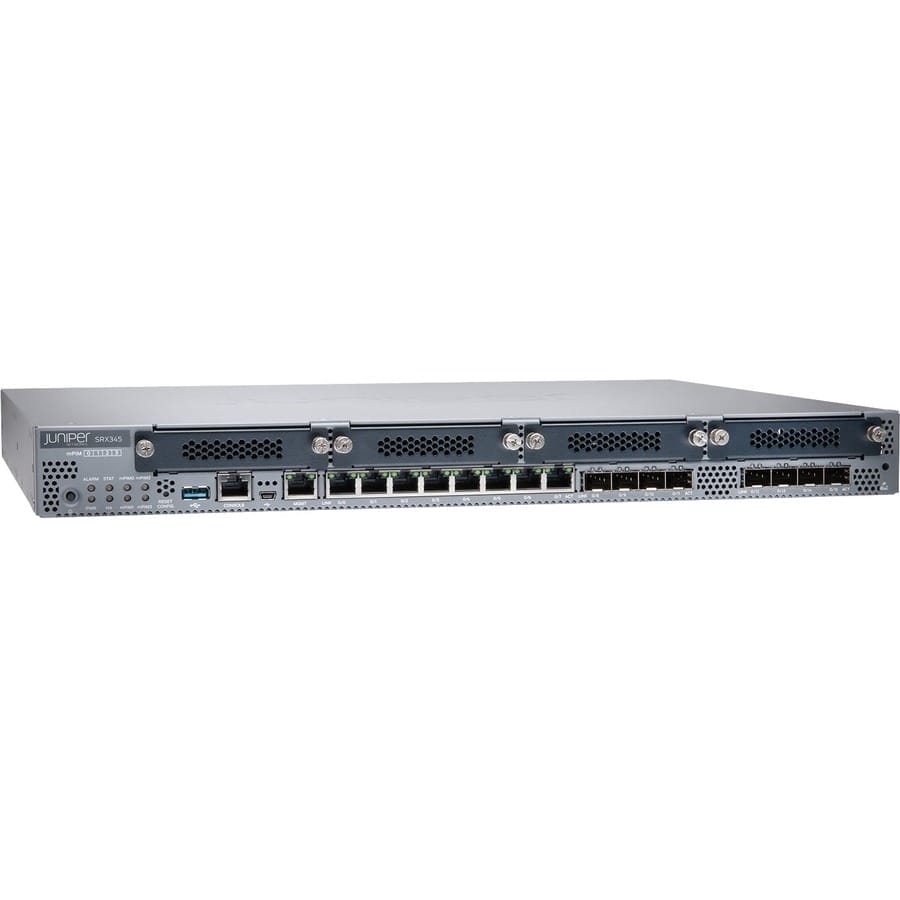

About the SRX345-SYS-JE

Junos Software Enhanced comes with this SRX345 gateway for midsize and large branch offices. The 1U hardware offers eight RJ-45 ports, eight SFP ports and four Mini-PIM slots for optional interface modules.

Enhanced includes application security alongside firewall, NAT, IPsec, routing, MPLS and switching. The bundle also includes a power supply, cable and rack-mount kit.

What’s included

SRX345-SYS-JE gateway with front-to-back airflow
Power supply and power cable
Rack-mount kit
Junos Software Enhanced: firewall, NAT, IPsec, routing, MPLS and switching, plus application security

Sold separately

Advanced and Premium licenses and Juniper Care, listed in Support & Licensing above

Choosing a version

SRX345-SYS-JE (this page): Junos Software Enhanced bundle, front-to-back airflow
SRX345: hardware only; JSB or JSE required, front-to-back airflow
SRX345-DC: hardware only; JSB or JSE required, DC power, front-to-back airflow
SRX345-DUAL-AC: hardware only; JSB or JSE required, dual AC power, front-to-back airflow
SRX345-DUAL-AC-T: hardware only; JSB or JSE required, dual AC power, front-to-back airflow, TAA-compliant
SRX345-SYS-JB: Junos Software Base bundle, front-to-back airflow
SRX345-SYS-JB-2AC: Junos Software Base bundle, dual AC power, front-to-back airflow
SRX345-SYS-JB-2ACT: Junos Software Base bundle, dual AC power, front-to-back airflow, TAA-compliant
SRX345-SYS-JB-DC: Junos Software Base bundle, DC power, front-to-back airflow
SRX345-SYS-JB-T: Junos Software Base bundle, front-to-back airflow, TAA-compliant
SRX345-SYS-JE-2AC: Junos Software Enhanced bundle, dual AC power, front-to-back airflow
SRX345-SYS-JE-DC: software bundle, DC power, front-to-back airflow

Related models: SRX300, SRX320.

Not sure which version you need? Call (984) 225-1600 or request a quote and we’ll check it against your rack and network.

SRX345-SYS-JE specifications

Network ports	8x RJ-45, 8x SFP
Mini-PIM slots	4
MACsec	Yes
Firewall throughput (1518B)	5000 Mbps
Firewall throughput (IMIX)	1500 Mbps
IPsec VPN throughput (IMIX)	0.325 Gbps
Concurrent sessions (thousands)	375
Form factor	1U, fixed chassis
Dimensions (H x W x D)	1.72 x 17.36 x 14.57 in (4.4 x 44.1 x 37 cm)
Weight (as shipped)	10.8 lb / 4.9 kg
Airflow	Front-to-back
Power supplies	1
Fans	4
Memory	4 GB
Storage	8 GB Flash
MAC addresses (thousands)	15
Operating temperature	32° through 104° F / 0° through 40° C
Operating system	Junos OS

Full specifications (65)

Network ports

RJ-45 Ports	8
RJ-45 Port MACsec	Yes
SFP Ports	8
SFP Port MACsec	Yes

Management and other ports

Console Ports	2
Console Port Type	RJ-45, Mini USB Type B
Management Ports	1
Management Port Type	RJ-45
USB Ports	1
USB Port Type	USB 3.0 Type A

Chassis

Chassis type	Fixed
Form Factor	1U
Chassis Height	1.72 in / 4.3688 cm
Chassis Width	17.36 in / 44.0944 cm
Chassis Depth	14.57 in / 37.0078 cm
Weight (as shipped)	10.8 lb / 4.9 kg

Power

Power supplies	1
AC Average Power Consumption	122 W
AC PSU Average Heat Dissipation	420 BTU/h
Maximum Current Consumption	1.496 A
Maximum Inrush Current	7.3 A (220 VAC)

Cooling

Airflow Direction	Front-to-back
Fan modules	4

Processor

Memory (DRAM)	4 GB

Storage

Internal Storage Size	8 GB
Internal Storage Type	Flash

Routing engines and fabric

Mini PIM Slots	4

Security performance

Firewall Throughput (1518B)	5000 Mbps
Firewall Throughput (64B)	550 Kpps
Firewall Throughput (IMIX)	1500 Mbps
IPsec VPN Throughput (1400B)	0.977 Gbps
IPsec VPN Throughput (IMIX)	0.325 Gbps
Routing With Packet Mode (64B)	750 Kpps
Routing With Packet Mode (1518B)	5500 Mbps
Routing With Packet Mode (IMIX)	2300 Mbps
NGFW Performance (CPS)	0.43 Gbps
Secure Web Access Firewall (CPS)	0.295 Gbps
AppID Sessions (thousands)	64
Application Visibility And Control	1.7 Gbps
GRE Tunnels	1024
IPS Sessions (thousands)	64
Maximum SSL VPN Concurrent Users	250
Maximum Security Policies	4000
Maximum Security Zones	64
Maximum Virtual Routers	128
NAT Rules	2000
Recommended IPS	0.6 Gbps
URLF Sessions (thousands)	64

Performance

Route Table Size (RIB) (IPv4) (thousands)	1000
Route Table Size (FIB) (IPv4) (thousands)	600
Route Table Size (RIB) (IPv6) (thousands)	1000
Route Table Size (FIB) (IPv6) (thousands)	600
Max Concurrent Sessions (IPv4/IPv6) (thousands)	375
IPsec VPN Tunnels	2048

Switching and routing scale

MAC Addresses Per System (thousands)	15
VLAN IDs	3000

Environmental

Operating Temperature	32° through 104° F / 0° through 40° C
Storage Temperature	-4° through 158° F / -20° through 70° C
Operating Altitude	10000 ft (3040 m)
Humidity, operating (noncondensing)	10% through 90%
Humidity, non-operating (noncondensing)	5% through 95%
Acoustic Noise Level (Max)	45.5 dB
Maintenance Clearance	24 in / 60.96 cm

Software

Operating system	Junos OS
Minimum software release	15.1X49-D35

Common questions

Do I get Junos software with it?

Yes, Junos Software Enhanced is part of the SKU, so the gateway with 8x RJ-45 and 8x SFP needs no separate software license for firewall, NAT, IPsec, routing, MPLS and switching plus application security.

Does the package include mounting hardware?

Yes, the rack-mount kit ships with the SRX345, along with an internal power supply and a cable.

Is there room for Mini-PIM modules?

Yes, 4 Mini-PIM slots are available for interface modules. The fixed ports are 8x RJ-45 and 8x SFP.

How does Enhanced differ from Base?

Enhanced includes application security in addition to the firewall, NAT, IPsec, routing, MPLS and switching in Base.
