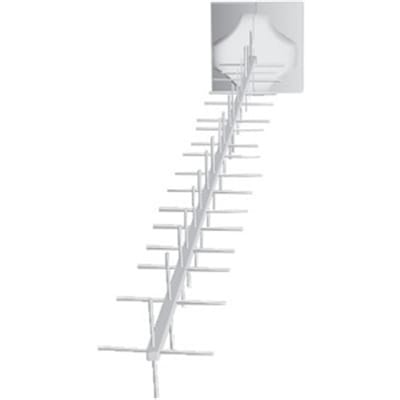

Ubiquiti Networks AMY-9M16x2900 MHz airMAX 2×2 MIMO PtP/PtMP YAGI Antenna.

900 MHz 2×2 MIMO Yagi Antenna

The airMAX® 900 MHz Yagi Antenna is a high-gain array antenna designed to seamlessly integrate with the RocketM900 radio (sold separately). It features incredible range performance of up to 20+ km and speeds of 90+ Mbps.

On the right is one example of how the airMAX Yagi Antenna can be deployed for directional coverage in Point-to-Point (PtP) bridging and a Point-to-MultiPoint (PtMP) network.

2×2 Dual-Polarity Design

The airMAX Yagi Antenna is a high-gain array antenna that delivers high performance in the 900 MHz radio band.

Long-Range Deployments

The airMAX Yagi Antenna performs at ultra-long ranges in Non-Line-of-Sight (NLoS) applications.

Durable Construction

The airMAX Yagi Antenna features a robust mechanical design for outdoor application use.

Plug and Play Integration

The airMAX Yagi Antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of RocketM900 radio and airMAX Yagi Antenna for your application.

Pair the RocketM900 radio with the airMAX Yagi Antenna to create a powerful basestation. This combination gives network architects unparalleled flexibility and convenience.

Product Type:   Antenna
Packaged Quantity:   2

Technical Information

Frequency Band Type:   UHF
Frequency:   902 MHz to 928 MHz
Antenna Gain:   16 dBi
Polarization:   Dual Linear
Survival Wind Speed:   2112 in/s
Features:   MIMO Technology

Interfaces/Ports

Number of Connectors:   2
Connector Type:   RF
USB:   No

Physical Characteristics

Height:   53.74″
Width:   8.46″
Depth:   8.58″
Form Factor:   Pole
Weight (Approximate):   5.51 lb

Miscellaneous

Application/Usage:   Base Station
Package Contents:

• 900 MHz 2×2 MIMO Yagi Antenna
• 4 x M8 U Bolts
• 8 x M8 Serrated Flange Nuts
• Quick Start Guide

Compatibility:

Ubiquiti Rocket M900 Basestation

Certifications & Standards:

• CE
• EN 302 326 DN2

Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Environmental Certification:   WEEE
