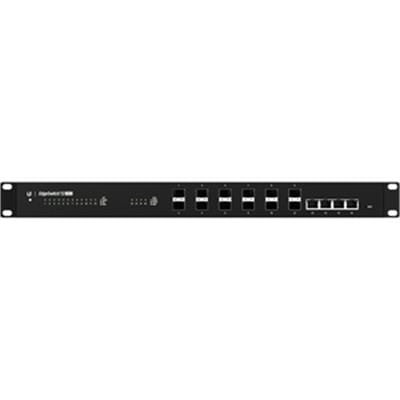

ES-12F

Managed Gigabit Fiber Switch

The EdgeSwitch™ Fiber is an aggregation switch that offers robust performance, low latency, and intelligent switching for growing networks.

Gigabit Connectivity

For fiber connectivity, the EdgeSwitch Fiber features 12 SFP ports, eight of which also support 100 Mbps. For copper connectivity, the EdgeSwitch Fiber offers four Gigabit RJ45 ports.

Powerful Switching Performance

The EdgeSwitch Fiber offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the EdgeSwitch Fiber supports up to 16 Gbps.

Advanced Enterprise Switching

The EdgeSwitch Fiber uses a sophisticated operating system that provides advanced switching features, including VLAN tagging and link aggregation, and limited layer-3 features, including static routing and DHCP server functionality.

Product Type:   Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:   4
Modular:   Yes
Port/Expansion Slot Details:   12 x Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details:   4 x Gigabit Ethernet Network

Media & Performance

Media Type Supported:   Optical Fiber
Media Type Supported:   Twisted Pair
Ethernet Technology:   Gigabit Ethernet
Network Technology:   1000Base-X
Network Technology:   1000Base-T

I/O Expansions

Number of Total Expansion Slots:   12
Expansion Slot Type:   SFP
Shared SFP Slot:   No
Number of SFP Slots:   12

Network & Communication

Layer Supported:   3

Management & Protocols

Manageable:   Yes

Power Description

Power Source:   Power Supply
Redundant Power Supply Supported:   No

Physical Characteristics

Compatible Rack Unit:   1U
Form Factor:   Rack-mountable
Height:   1.7″
Width:   17.4″
Depth:   8.7″
Weight (Approximate):   5.71 lb

Miscellaneous

Package Contents:

• Managed Gigabit Fiber Switch
• Rack-Mount Brackets
