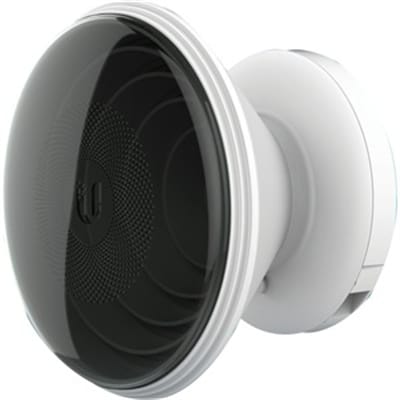

Ubiquiti Networks IS-5AC-US IsoStation AC WLAN access point 450 Mbit/s Power over Ethernet (PoE) White

IsoStation IS-5AC Wireless Bridge

Shielded airMAX® CPE

With a die-cast aluminum base and interchangeable antenna, the IsoStation™ is available in two models and brings increased performance to your network using technology that isolates beam communications between your devices. The IsoStation AC delivers throughput speeds of up to 450+ Mbps, and the IsoStation M5 delivers throughput speeds of up to 100+ Mbps.

Modular Design

The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs. The IsoStation also gets maximum gain out of the smallest footprint.

Beam Performance Perfected

The IsoStation can use a variety of horn antenna sectors designed for increased co-location performance without sacrificing gain. Its unique beam performance and superb co-location characteristics allow for a higher density of sectors than traditional sector technology.

Enhanced Co-Location

Asymmetrical horn antenna options (60° and 90°) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30° and 45°, the default) are ideal for cluster sector installations with high co-location requirements.

Improved Noise Immunity

IsoStation blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

High MAC Efficiency

High MAC efficiency provides ±80% PHY RATE throughput.

Management Wi-Fi Radio

The IsoStation AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Now with airOS®8

airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Product Type:   Wireless Bridge

Technical Information

Wireless LAN Standard:   IEEE 802.11ac
Frequency Band:   5 GHz
Wireless Transmission Speed:   450 Mbit/s

Interfaces/Ports

Ethernet Technology:   Gigabit Ethernet
Number of Network (RJ-45) Ports:   1
PoE (RJ-45) Port:   No
PoE PD Port:   Yes
VGA:   No
HDMI:   No
USB:   No
Powerline:   No
Management Port:   No

Physical Characteristics

Form Factor:   Pole-mountable
Height:   2.6″
Width:   5.2″
Depth:   5.2″
Weight (Approximate):   14.40 oz
