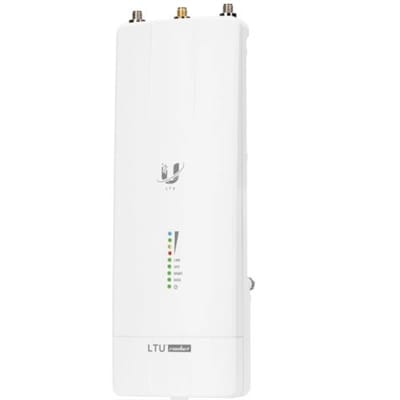

Ubiquiti Networks LTU-Rocket-US PtMP 5GHz Access Point

5 GHz PtMP LTU BaseStation Radio

Incorporating Ubiquiti’s proprietary LTU technology, the LTU-Rocket is a Point-to-MultiPoint (PtMP) 5 GHz Access Point featuring 2+ Mpps processing, proprietary RF filtering, and flexible GPS sync for superior performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. A custom co-processor is included for future performance and feature upgrades.

Functions in a PtMP environment using the LTU-Pro, LTU-Lite for subscriber stations.

Product Type:   Wireless Access Point

Technical Information

Frequency Band:   5 GHz
Wireless Transmission Speed:   600 Mbit/s
MIMO Technology:   Yes

Interfaces/Ports

Ethernet Technology:   Gigabit Ethernet
Number of Network (RJ-45) Ports:   1
PoE PD Port:   Yes
Management Port:   Yes

Physical Characteristics

Form Factor:   Pole-mountable
Height:   9.6″
Width:   3.2″
Depth:   1.9″
Weight (Approximate):   1.03 lb

Miscellaneous

Package Contents:

• 5 GHz PtMP LTU BaseStation Radio
• 24V, 1A Gigabit PoE Adapter
• Integrated Pole Mount
• GPS Pole Mount
