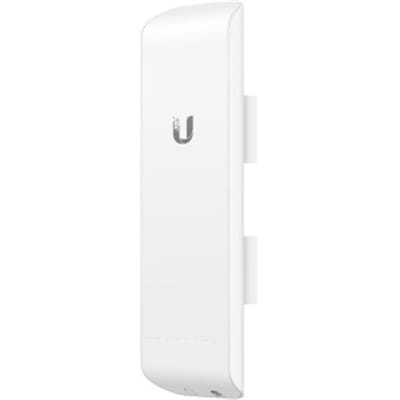

Ubiquiti Networks NSM2(US) 150 Mbit/s White Power over Ethernet (PoE)

NanoStationM NSM2 Wireless Bridge

Featuring a panel antenna and dual-polarity performance, the NanoStation®M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.

Compact CPE Design

The NanoStation®M features the CPE design that expanded the global Wireless ISP industry.

Plug and Play Installation

The NanoStation®M requires no tools for assembly; only a single wrench is required for pole-mounting.

Versatile Application Use

The NanoStation®M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX®CPE.

Dual Ethernet Connectivity

With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.

Powerful airOS® Features

Ubiquiti’s versatile airOS® firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration and system management services.

Advanced Software Technology

Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Window/Wall Mounting Kit

Use the NanoStation® Mount to quickly mount the NanoStationM on a window or wall. 180° vertical or horizontal adjustment allows for custom positioning.

Wall/Pole Mounting Kit

The Universal Arm Bracket is designed for convenient wall or pole mounting of the NanoStation®M. 90° tilt adjustment allows for easy positioning.

Product Type:   Wireless Bridge

Technical Information

Wireless LAN Standard:   IEEE 802.11n
Frequency Band:   2.40 GHz
Outdoor Antenna Range:   8.1 Mile
Wireless Transmission Speed:   150 Mbit/s
MIMO Technology:   Yes

Interfaces/Ports

Ethernet Technology:   Ethernet
Ethernet Technology:   Fast Ethernet
Number of Network (RJ-45) Ports:   2
PoE (RJ-45) Port:   No
PoE PD Port:   Yes
VGA:   No
HDMI:   No
USB:   No
Powerline:   No
Management Port:   No

Physical Characteristics

Form Factor:   Pole-mountable
Height:   11.6″
Width:   3.1″
Depth:   1.2″
Weight (Approximate):   14.11 oz

Miscellaneous

Package Contents:

• NanoStationM NSM2 Wireless Bridge
• Pole-Mount Kit

Environmentally Friendly:   Yes
Environmental Certification:   RoHS
