Ubiquiti Networks UniFi UDM-US Dream Machine
$319.29
On order Ask for price and lead time
Tell us how many you need and we'll reply with current price and lead time. Or call (984) 225-1600.

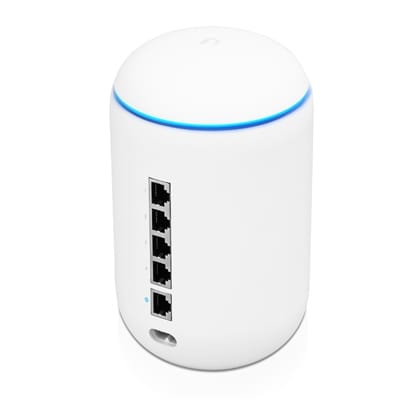

Ubiquiti Networks UniFi UDM-US is an all-in-one console and security gateway designed to support powerful LAN and WiFi networks.
The comprehensive Dream Machine allows home and enterprise users to host multiple UniFi devices and applications
UniFi Dream Machine (UDM) is the easiest way to introduce UniFi to homes and businesses. The UDM includes everything you need for a small-scale wired or Wi-Fi network. It’s easy to use and still offers all the benefits of UniFi for homes and businesses.
Features:
- High-Performance Dual Band 802.11ac 4×4 Wave 2 AP
- Managed 4-Port Gigabit Switch
- Advanced Security Gateway with IDS/IPS and DPI
- UniFi Network Controller with Intuitive User Interface
- Scalable Through Additional UniFi Devices Connected to LAN
- Powered by Fast 1.7 GHz Quad-Core Processor
Product Type: Wireless Router
| UDM-US – Mechanical | |
|---|---|
| Dimensions | Ø 110 x 184.2 mm (Ø 4.33 x 7.25″) |
| Weight | 1.05 kg (2.32 lb) |
| Networking Interfaces | (4) LAN 10/100/1000 RJ45 Ports (1) WAN 10/100/1000 RJ45 Port |
| Buttons | Reset |
| IDS/IPS Throughput | 850 Mbps |
| Processor | Arm Cortex-A57 Quad-Core at 1.7 GHz |
| System Memory | 2 GB DDR RAM |
| On-Board Flash Storage | 16 GB |
| Maximum Power Consumption | 26W |
| Supported Voltage Range | 100 – 240VAC |
| Power Method | AC Power Cord |
| Power Supply | Internal AC/DC Power Adapter (24V, 0.6A, 100 – 240VAC) |
| Power Save | Supported |
| Beamforming | Supported |
| TX Power* 2.4 GHz 5 GHz |
23 dBm 26 dBm |
| Antenna | (1) Dual-Band, Quad-Polarity Antenna |
| Antenna Gain 2.4 GHz 5 GHz |
3 dBi 4.5 dBi |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF |
| BSSID | Up to 8 per Radio |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
