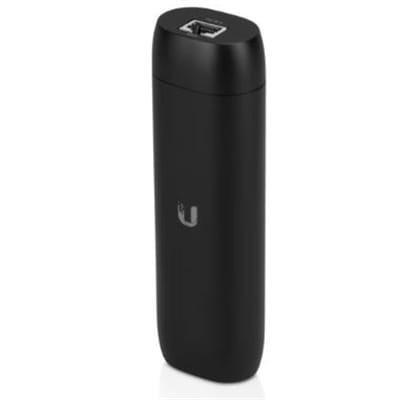

The Ubiquiti Networks UFP-VIEWPORT UniFi Protect ViewPort allows you to view your UniFi Protect camera feeds on an HDMI display. It uses Power over Ethernet and connects to the local network hosting your cameras and connects via HDMI to a display. The UniFi Protect ViewPort offers 4K video output at 30 frames per second. Protect systems can be viewed in custom high-density camera matrix configurations.
The UFP-VIEWPORT is an easy-to-use hub for viewing Protect camera feeds on an HDMI display.
Features
- View Unifi Protect cameras on an HDMI display
- Display up to 16 IP cameras simultaneously
- Easy setup with UniFi Protect System
- Powered by Power over Ethernet up to 1 Gbps
- HDMI video output up to 4K @ 30 fps
Product Type: Multiview Device
UFP-VIEWPORT – Mechanical | |
---|---|
Dimensions | 157 x 52 x 37 mm (6.18 x 2.05 x 1.46″) |
Weight | Without mount: 230 g (8.11 oz)
With TV mount: 252 g (8.89 oz) |
Enclosure material | Polycarbonate |
Mount material | Polycarbonate |
Hardware | |
Processor | ARM® octa-cores Kryo™ |
Memory information | 4GB low power DDR4X |
Management interface | UniFi Protect |
Networking interface | GbE RJ45 port |
Max. power consumption | 9.5W |
Power method | PoE |
ESD/EMP protection | Air: ± 8kV, contact: ± 4kV |
Operating temperature | 0 to 40° C (32 to 104° F) |
Operating humidity | 20 to 80% noncondensing |
Button | Factory reset |
Antennas | Bluetooth |
Antenna gain | 2 dB |
Bluetooth | 5.0 |
Certifications | FCC, IC, CE |
