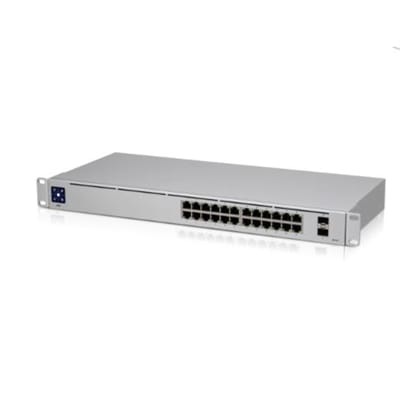

Ubiquiti Networks UniFi USW-24 network switch Managed L2 Gigabit Ethernet (10/100/1000) Silver
$247.00
In stock (10+) Ships in 1–2 business days
Buying in volume or need it refurbished? Ask for a quote. Or call (984) 225-1600.
The Ubiquiti Networks UniFi USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3″ touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.
Features:
- (24) Gigabit Ethernet Ports
- (2) Gigabit SFP Ports
- 1.3″ color touchscreen for status information
- Managed by UniFi Network Controller
- 1U rackmountable (kit included)
Managed by UniFi Network Controller version: 5.12.32 or higher
Product Type: Ethernet Switch
| USW-24 – Mechanical | |
|---|---|
| Dimensions | 442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72″) |
| Weight | Without Mount: 2.70 kg (5.95 lb)
With Mount: 2.79 kg (6.15 lb) |
| Enclosure Material | SGCC Steel |
| Hardware | |
| Total Non-Blocking Throughput | 26 Gbps |
| Switching Capacity | 52 Gbps |
| Forwarding Rate | 38.69 Mpps |
| Max. Power Consumption | 25W |
| Power Method | Universal AC Input: 100-240VAC, 50/60 Hz |
| Power Supply | AC/DC, Internal, 36W |
| Networking Interfaces | (24) 10/100/1000 Mbps Ethernet RJ45 Ports
(2) 1 Gbps SFP Ports |
| Management Interface | Ethernet In-Band |
| Modes | SMB Layer 2 Gigabit Ethernet Switch |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 – 90% Noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | (1) Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
| Ethernet | Green: 1G, Amber: 10/100 Mbps |
| SFP | Green: 1G |
