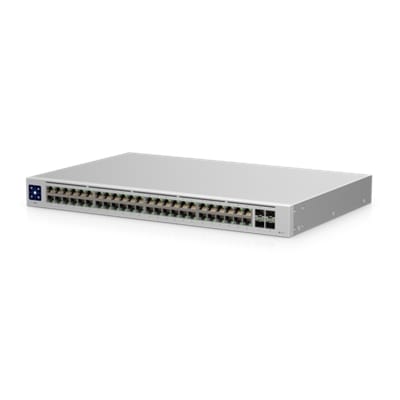

Ubiquiti Networks UniFi USW-48 network switch Managed L2 Gigabit Ethernet (10/100/1000) Silver
$430.00
In stock (2) Ships in 1–2 business days
Buying in volume or need it refurbished? Ask for a quote. Or call (984) 225-1600.
UniFi Switch 48 is a fully managed Layer 2 switch with (48) Gigabit Ethernet ports and (4) 1G SFP ports for fiber connectivity.
The Ubiquiti Networks UniFi USW-48 Switch 48 features a rich set of Layer 2 capabilities and fanless, silent cooling for use as an access layer switch. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Features:
- (48) Gigabit RJ45 ports
- (4) 1G SFP ports
- Layer 2 features
- Fanless, silent cooling
- 1.3″ touchscreen display, supports UniFi Network AR
- Managed by UniFi Network Controller (5.13.10 or later)
Product Type: Ethernet Switch
| USW-48 – Mechanical | |
|---|---|
| Dimensions | 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72″) |
| Weight | Without Mount: 3.9 kg (8.6 lb)
With Mount: 3.99 kg (8.8 lb) |
| Enclosure Characteristics | SGCC Steel |
| Hardware | |
| Total Non-Blocking Line Rate | 52 Gbps |
| Max. Power Consumption | 40W |
| Forwarding Rate | 77.376 Mpps |
| Power Method | Universal AC Input: 100-240VAC, 50/60 Hz |
| Power Supply | AC/DC, Internal, 60W |
| Supported Voltage Range | 100 – 240VAC |
| Networking Interfaces | (48) 10/100/1000 Mbps Ethernet RJ45 Ports
(4) 1 Gbps SFP Ports |
| Management Interface | Ethernet In-Band |
| Modes | SMB Layer 2 Gigabit Ethernet Switch |
| Operating Temperature | -15 to 40° C (5 to 104° F) |
| Operating Humidity | 10 – 90% Noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | (1) Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
| Ethernet | Green: 1G, Amber: 10/100 Mbps |
| SFP | Green: 1G |
