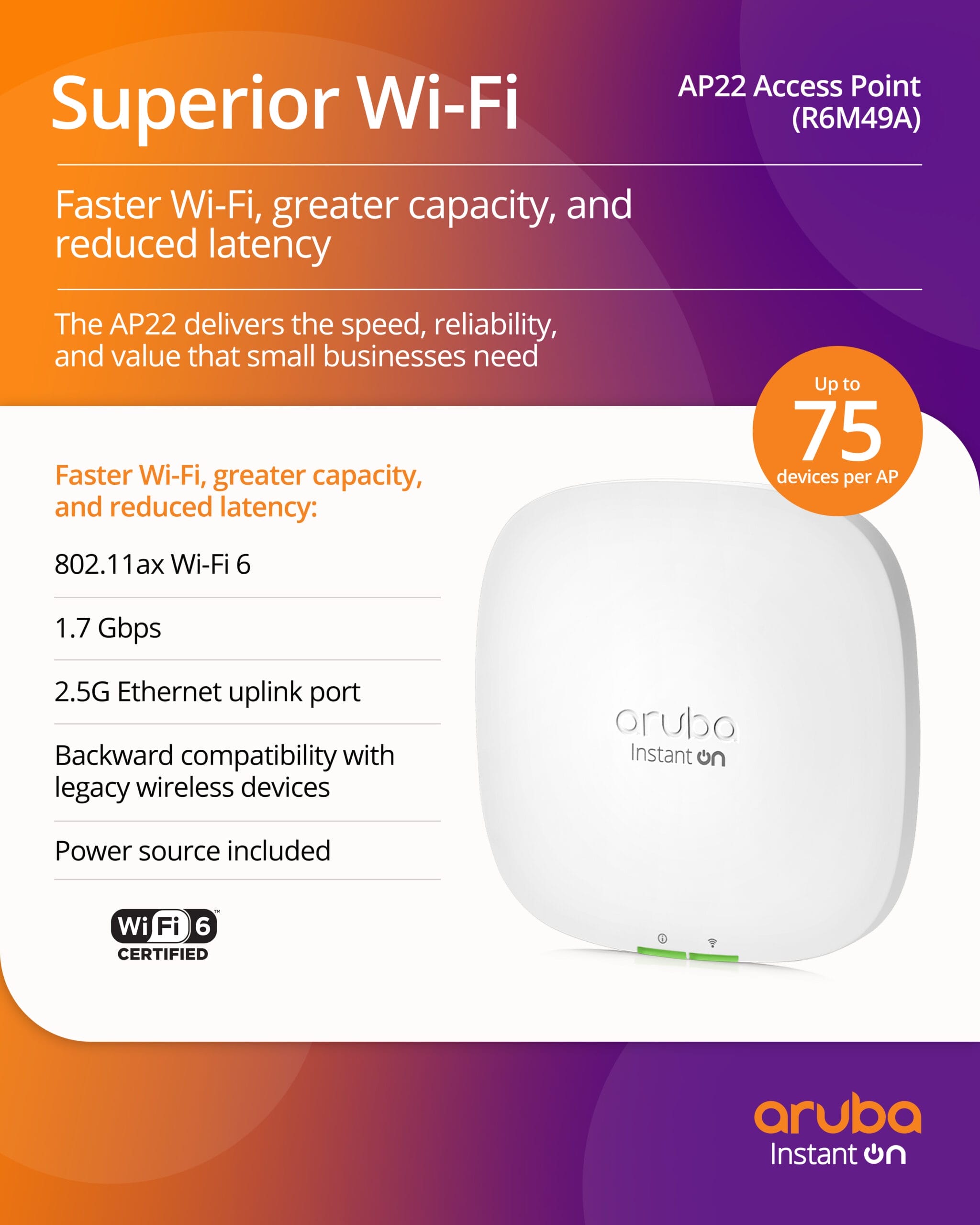

HPE Networking Instant On Access Point AP22 – 2×2 WiFi 6, Power Source Included (R6M49A)

Aruba Instant On AP22 802.11ax 2×2 Wi-Fi 6 Wireless Access Point | US Model | Power Source Included (R6M49A)

Aruba Instant On AP22 Wi-Fi certified 6™ access points are designed with small and growing businesses in mind. Each box includes one access point, one Quick Start Guide, a combined ceiling and wall mount clip, and an Ethernet cable. The Instant On AP22 is easy to manage and control by touch thanks to the official Instant On mobile app. Plus, pairing your AP22 with your smart device is easy with the integrated Bluetooth feature. Keep your clients happy—multiple users, outputs, and inputs allow your network to serve multiple clients at once. The high-speed 802.11ax, 2X2:2 delivers four times the capacity of 802.11ac access points while also providing quick and smooth connections. Your access point is Wi-Fi certified 6™ so you and your clients can count on improved roaming and uninterrupted connections. The AP22 also supports open Wi-Fi networks for easy connections in cafes, retail stores, and other business establishments. No external gateway is necessary; Cloudflare integration keeps connections private, secure, and speedy for easy web browsing. Maintain solid connections and extended coverage indoors or outdoors thanks to our smart mesh Wi-Fi support. Host multiple clients on one network with peace of mind knowing that the Aruba Instant On AP22 includes a 2-year* warranty includes unlimited chat support, 24/7 phone support for the first 90 days, and community support for as long as you own the product

• WHAT’S IN THE BOX: Aruba Instant On AP22 Access Point, Quick Start Guide, combined ceiling and wall rail mount clip, Ethernet cable, and 12V local power adapter
• EASY SETUP AND MANAGEMENT: The Aruba Instant On mobile or web app allows you to seamlessly control everything from your favorite device—no subscription required
• FAST PERFORMANCE: The 802.11ax, 2X2:2 improves roaming performance and helps clients quickly connect to access points
• WI-FI CERTIFIED 6™ (WI-FI 6): AP22 is a Wi-Fi Certified 6™ access point that delivers high-performance, capacity, and efficiency to small and growing business
• WARRANTY: Aruba Instant On 2-year* warranty includes unlimited chat support, 24/7 phone support for the first 90 days, and community support for as long as you own the product

Specifications
Certifications	EN 60601-1-1 and EN 60601-1-2 (medical environments) Wi-Fi Alliance certified (WFA): 802.11ax (Wi-Fi 6), WPA2, WPA3
Power	Power over Ethernet (PoE): 802.3af (class 3) Included DC power (12V)
Wi-Fi Antenna	Integrated down-tilt omni-directional antennas (2×2 MIMO) Max gain: 4.3dBi (2.4GHz), 5.6dBi (5GHz)
Connectivity Standards	IEEE 802.11ax
Ports	(1) Uplink Gigabit Ethernet port with POE-in support (802.3af)
Mounting	Includes white mount clip (wall & ceiling) Optional aesthetic mount available (R6P90A)
Power Consumption	Max: 10.1W (PoE), 8.8W (DC)
Radio Coverage	Dual radio, simultaneous dual-band operation 5 GHz 802.11ax 2×2 MIMO, up to 1.2 Gbps, Multi-User MIMO (Wi-Fi 6) 2.4 GHz 802.11ax 2×2 MIMO, up to 574 Mbps (Wi-Fi 6)
Warranty	Aruba Instant On 2-Year warranty: 24×7 phone (90 days), chat (full period), community support
Dimensions (imperial)	1.5 x 6.3 x 6.3 in
Weight	1.1 lb
