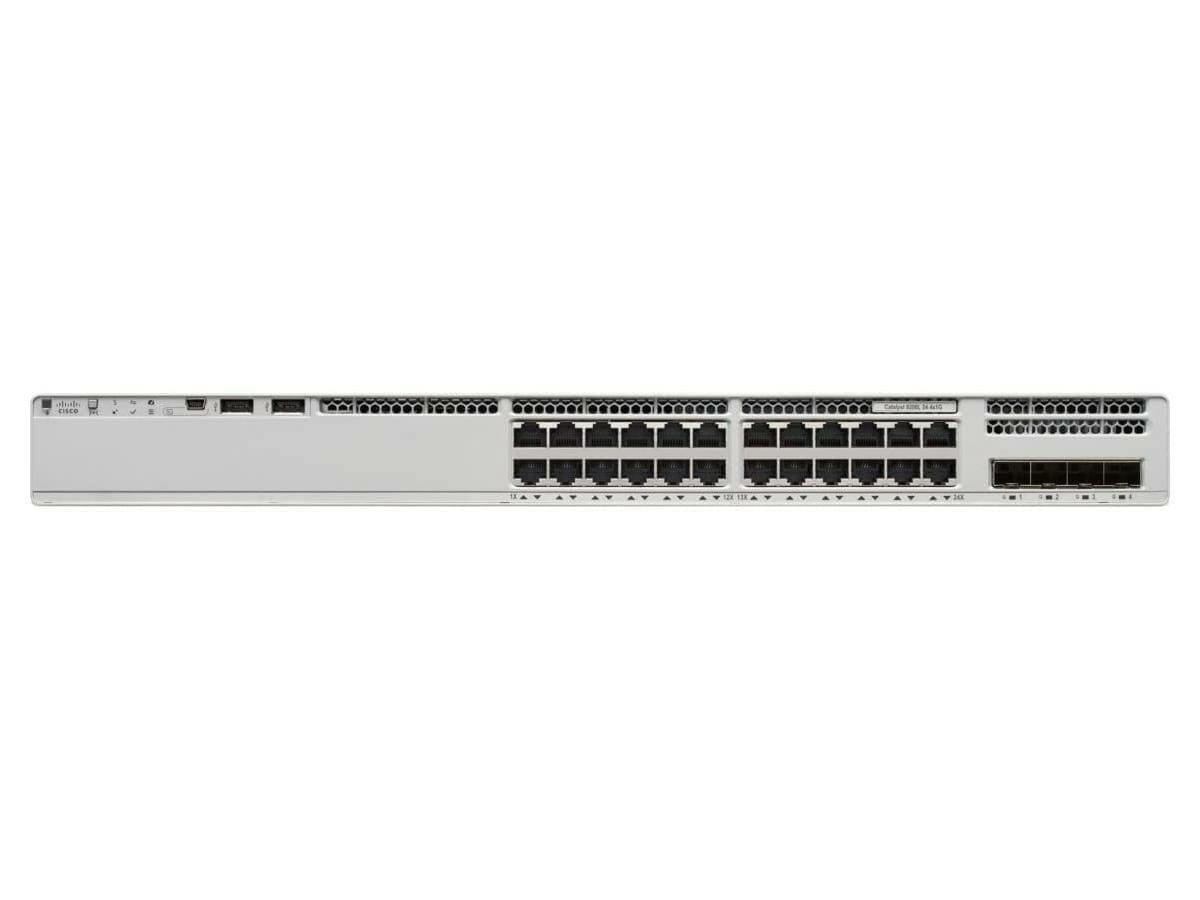

About the C9200L-24PXG-2Y-A
The C9200L-24PXG-2Y-A is the 9200L with 25G uplinks. Its two fixed uplink ports take SFP, SFP+ or SFP28 and run at 1G, 10G or 25G. For downlinks it has 24 PoE+ copper ports: eight multigigabit at up to 10G and 16 at up to 1G. It runs Cisco IOS XE with the Network Advantage software tier.
With the 25G uplinks it switches at 292 Gbps, with a forwarding rate of 229.16 Mpps. The C9200L-24PXG-4X-A has the same downlinks with four 1G/10G SFP/SFP+ uplinks instead of two at up to 25G.
The included PWR-C5-600WAC gives a 370 W PoE budget, up to 740 W with a second supply; on DC, one PWR-C5-715WDC gives 485 W. Up to 8 9200L switches stack over StackWise-80 at 80 Gbps.
What’s included
- C9200L-24PXG-2Y-A switch with 24 PoE+ ports (8 multigigabit), two 1G/10G/25G SFP/SFP+/SFP28 uplinks and the Network Advantage software tier
- 600 W AC power supply (PWR-C5-600WAC)
Sold separately
- An optional second supply for up to 740 W of PoE, or the PWR-C5-715WDC for DC power
- The C9200L-STACK-KIT with a STACK-T4-50CM, STACK-T4-1M or STACK-T4-3M cable
Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.
C9200L-24PXG-2Y-A specifications
| Downlink ports | 24× PoE+: 8× multigigabit (up to 10G) + 16× up to 1G |
|---|---|
| Uplink ports | 2× 1G/10G/25G SFP/SFP+/SFP28 (fixed) |
| PoE budget | 370 W with 1× PWR-C5-600WAC (default); 485 W with 1× PWR-C5-715WDC= (spare-order DC option); up to 740 W with two power supplies |
| Stacking | StackWise-80, 80 Gbps; up to 8 members (C9200L only); stack kit sold separately |
| Switching capacity | 292 Gbps |
| Forwarding rate | 229.16 Mpps |
| Power supply | 600 W AC PWR-C5-600WAC included; second supply optional |
| Form factor | 1U rack-mount; 1.73 × 17.5 × 15.4 in (4.4 × 44.5 × 39.1 cm) (H × W × D) with power supply and fans |
| Management | Cisco IOS XE (CLI, WebUI) |
| Feature tier | Network Advantage |
| Dimensions | 1.73 × 17.5 × 13.8 in (4.4 × 44.5 × 35.0 cm) |
| Weight | 12 lb (5.44 kg) |
Compare Catalyst 9200L models
Swipe the table sideways to see every column.
| Model | Ports | Uplinks | PoE budget | Price |
|---|---|---|---|---|
| C9200L-24PXG-2Y-A this page | 24× PoE+: 8× multigigabit (up to 10G) + 16× up to 1G | 2× 1G/10G/25G SFP/SFP+/SFP28 | 370 W | $6,693.35 |
| C9200L-24P-4G-A | 24× 10/100/1000 PoE+ (full PoE+) | 4× 1G SFP | 370 W | $2,450.00 · In stock |
| C9200L-24P-4X-A | 24× 10/100/1000 PoE+ (full PoE+) | 4× 1G/10G SFP/SFP+ | 370 W | $3,650.00 |
| C9200L-24PXG-4X-A | 24× PoE+: 8× multigigabit (up to 10G) + 16× up to 1G | 4× 1G/10G SFP/SFP+ | 370 W | $7,993.22 |
| C9200L-24T-4G-A | 24× 10/100/1000, data only | 4× 1G SFP | None | $1,840.00 |
| C9200L-24T-4X-A | 24× 10/100/1000, data only | 4× 1G/10G SFP/SFP+ | None | $3,141.55 · In stock |
| C9200L-48P-4G-A | 48× 10/100/1000 PoE+ (full PoE+) | 4× 1G SFP | 740 W | $3,850.00 · In stock |
| C9200L-48P-4X-A | 48× 10/100/1000 PoE+ (full PoE+) | 4× 1G/10G SFP/SFP+ | 740 W | $7,150.00 · In stock |
| C9200L-48PL-4X-A-WS | 48× 10/100/1000, partial PoE+ | 4× 1G/10G SFP/SFP+ | 370 W | $2,433.20 |
| C9200L-48PXG-4X-A | 48× PoE+: 12× multigigabit (up to 10G) + 36× up to 1G | 4× 1G/10G SFP/SFP+ | 740 W | $6,273.07 |
| C9200L-48T-4G-A | 48× 10/100/1000, data only | 4× 1G SFP | None | $3,495.00 · In stock |
| C9200L-48T-4X-A | 48× 10/100/1000, data only | 4× 1G/10G SFP/SFP+ | None | $3,149.00 · In stock |
| C9200L-48PL-4G-A | 48× 10/100/1000, partial PoE+ | 4× 1G SFP | 370 W | Ask for a quote |
| C9200L-48PXG-2Y-A | 48× PoE+: 8× multigigabit (up to 10G) + 40× up to 1G | 2× 1G/10G/25G SFP/SFP+/SFP28 | 740 W | Ask for a quote |
Compatible parts
| Power supplies | ||
|---|---|---|
| PWR-C5-600WAC | 600 W AC power supply | $1,205.75 |
| PWR-C5-715WDC | 715 W DC power supply | $1,148.61 |
| Stack kits | ||
| C9200L-STACK-KIT | StackWise-80, 80 Gbps | $742.00 · In stock |
| Stack cables | ||
| STACK-T4-50CM | Data stack cable, 50 cm | $57.43 |
| STACK-T4-1M | Data stack cable, 1 m | $114.86 |
| STACK-T4-3M | Data stack cable, 3 m | $172.29 |
| Rack mount kits | ||
| REC-KIT-T1= | Recessed 1RU rack mount | Ask for a quote |
| Accessory | ||
| C9K-ACC-RBFT | Accessory | Ask for a quote |
| CAB-GUIDE-1RU | 1RU cable management guides | Ask for a quote |
Common questions
What speeds do the uplinks on the C9200L-24PXG-2Y-A support?
1G, 10G or 25G. The two built-in ports take SFP, SFP+ or SFP28.
How does it differ from the C9200L-24PXG-4X-A?
The uplinks: two at up to 25G here, four at up to 10G on the 4X-A. The 24 PoE+ downlinks are the same.
What PoE budget does the C9200L-24PXG-2Y-A have?
370 W on the included 600 W supply and up to 740 W with two power supplies.
