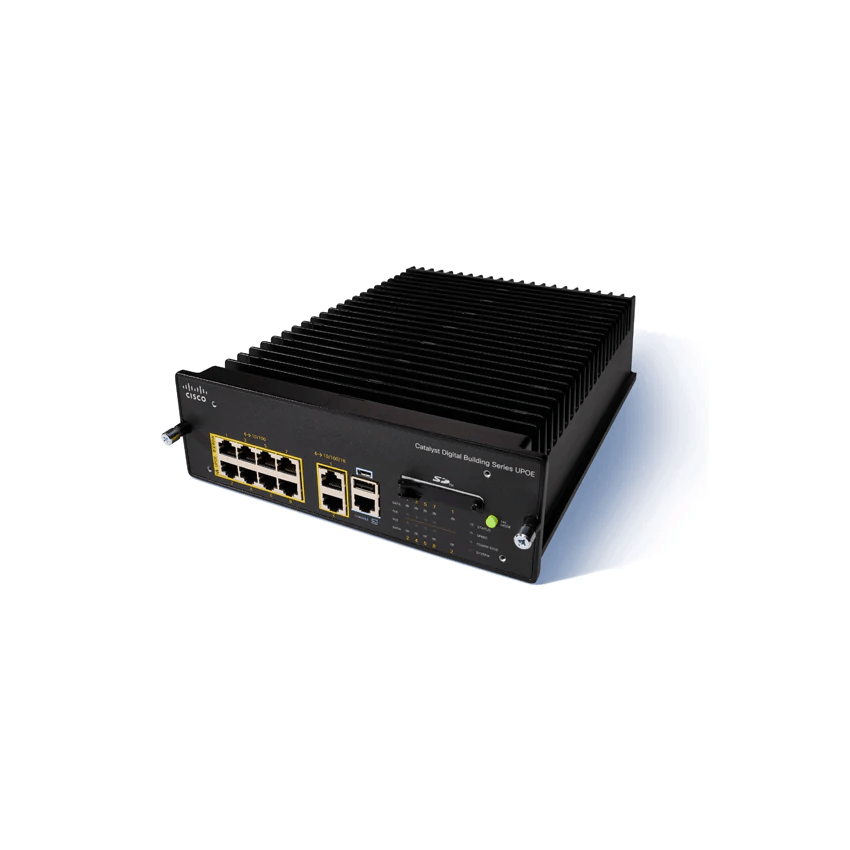

Cisco CDB-8U – Switch – managed – 8 x 10/100 + 2 x 10/100/1000 (uplink) – rack-mountable – UPOE (480 W) – AC 100 – 277 V

The Cisco CDB-8U allows companies that are going digital in an effort to enable new customer experiences, empower workforce innovation, and build innovative business models powered by analytics. Buildings are central to this digital transformation, as buildings are where most traditional businesses run and operate from. For enhanced experiences and improved efficiencies in buildings, owners and facilities managers realize the value in interconnecting various building sub-systems, including lighting, HVAC, security, sensors and audio-video systems, which have historically remained stagnant, disparate and difficult to manage. Although the convergence of these isolated sub-systems is fundamental to digital transformation, it has remained complex and costly to implement thus far.

This complex problem changes their quiet, fanless design and compact footprint, the Cisco Catalyst Digital Building Series Switches offer flexible mounting options and open up a variety of network design and connectivity options. They can be deployed to support a variety of use cases, and are leaps ahead of the last generation of lighting and building technology enablers.

The Cisco CDB-8U is a perfect quiet switch, designed for ease of use.

• Primary Information

  Product Description:	Cisco Catalyst Digital Building – switch – managed – rack-mountable
  Device Type:	Switch – managed
  Enclosure Type:	Rack-mountable
  Subtype:	Fast Ethernet
  Ports:	8 x 10/100 + 2 x 10/100/1000 (uplink)
  Power Over Ethernet (PoE):	UPOE
  PoE Budget:	480 W
  Performance:	Forwarding bandwidth: 2.8 Gbps ¦ Switching bandwidth: 5.6 Gbps ¦ Forwarding performance (64-byte packet size): 4.2 Mpps
  Capacity:	VLANs supported: 64 ¦ VLAN IDs: 1 – 4094 ¦ Maximum transmission unit (MTU) (bytes): up to 1500 ¦ MAC address entries: 8192 ¦ Port channels: 6 ¦ Queues per port (egress): 4 ¦ ACL: 180
  Routing Protocol:	IGMP, IGMPv3
  Remote Management Protocol:	SNMP 1, SNMP 2, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP
  Features:	DHCP support, BOOTP support, ARP support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, fanless, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), ceiling mountable, Class of Service (CoS), 802.1x authentication, VLAN Trunking Protocol (VTP), Internet Control Message Protocol (ICMP), Network Timing Protocol (NTP), LLDP-MED, CoAP support, secure boot, PVLAN edge, Network-as-a-sensor (NaaS) support, Network-as-an-enforcer (NaaE) support, hibernate mode, Energy-Efficient Ethernet (EEE), IF MIB v3
  Compliant Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0
  Power:	AC 100 – 277 V
  Dimensions (WxDxH):	2.7 in x 8.7 in x 11.1 in
  Weight:	9.66 lbs

• General

  Device Type:	Switch – managed
  Enclosure Type:	Rack-mountable
  Subtype:	Fast Ethernet
  Ports:	8 x 10/100 + 2 x 10/100/1000 (uplink)
  Power Over Ethernet (PoE):	UPOE
  PoE Budget:	480 W
  Performance:	Forwarding bandwidth: 2.8 Gbps ¦ Switching bandwidth: 5.6 Gbps ¦ Forwarding performance (64-byte packet size): 4.2 Mpps
  Capacity:	VLANs supported: 64 ¦ VLAN IDs: 1 – 4094 ¦ Maximum transmission unit (MTU) (bytes): up to 1500 ¦ MAC address entries: 8192 ¦ Port channels: 6 ¦ Queues per port (egress): 4 ¦ ACL: 180
  Routing Protocol:	IGMP, IGMPv3
  Remote Management Protocol:	SNMP 1, SNMP 2, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP
  Authentication Method:	RADIUS, TACACS+, WebAuth, MACAuth
  Features:	DHCP support, BOOTP support, ARP support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, fanless, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), ceiling mountable, Class of Service (CoS), 802.1x authentication, VLAN Trunking Protocol (VTP), Internet Control Message Protocol (ICMP), Network Timing Protocol (NTP), LLDP-MED, CoAP support, secure boot, PVLAN edge, Network-as-a-sensor (NaaS) support, Network-as-an-enforcer (NaaE) support, hibernate mode, Energy-Efficient Ethernet (EEE), IF MIB v3
  Compliant Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0
  RAM:	512 MB
  Flash Memory:	256 MB
  Status Indicators:	Port transmission speed, power, system, status, PoE

• Expansion / Connectivity

  Interfaces:	8 x 100Base-TX RJ-45 60 W ¦ 2 x 1000Base-X RJ-45 uplink ¦ 1 x console RJ-45 ¦ 1 x console (USB) Type A ¦ 1 x console (micro-USB) Type B
  Expansion Slots:	1 (total) / 1 (free) x SD Memory Card

• Power

  Power Device:	Internal power supply
  Installed Qty:	1
  Power Provided:	545 Watt
  Voltage Required:	AC 100 – 277 V
  Features:	80 PLUS Gold efficiency

• Miscellaneous

  MTBF:	710,270 hours
  Compliant Standards:	Plug and Play, EN55022, EN55024, FCC Part 15, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, FCC CFR47, GB 4943, KCC Class A, IEC 60825, VCCI Class A, KN22, KN24, VCCI V-3/2007.04 Class A, UL 2108, CAN/CSA-C22.2 No. 60950-1

• Software / System Requirements

  Software Included:

  Cisco Prime Infrastructure, Cisco Network Assistant, Cisco Active Advisor, Cisco Energy Manager

• Dimensions & Weight

  Width:	2.7 in
  Depth:	8.7 in
  Height:	11.1 in
  Weight:	9.66 lbs
