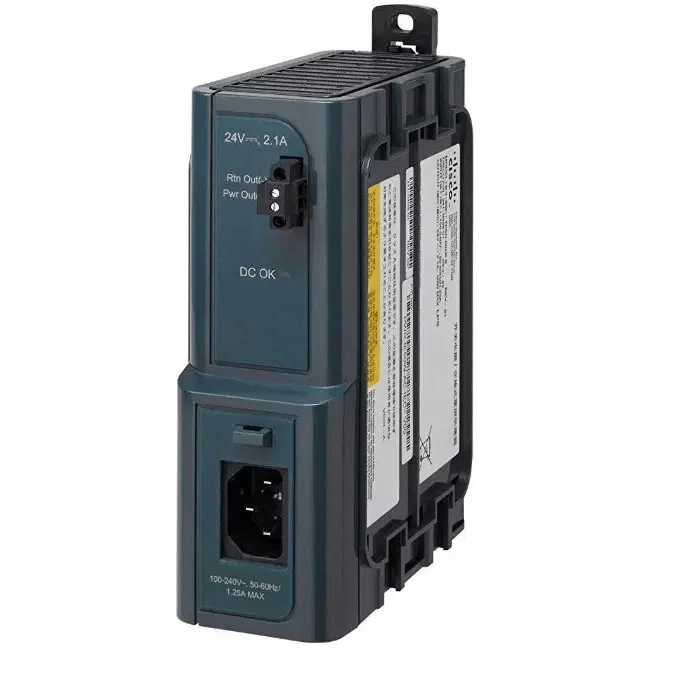

About the PWR-IE50W-AC-IEC=
The input on the PWR-IE50W-AC-IEC= is plug-in, through an IEC 60320 C14 connector. It takes AC 100–240 V at 1.25 A, 50–60 Hz, and outputs 24 V DC at 2.1 A, for 50 W. It has no PoE.
Operating temperature is -20°C to +70°C. The supply is IP20, measures 118 × 51 × 148 mm (4.64 × 2 × 5.82 in), weighs 1.43 lb and has a 20ms output holdup time.
It fits switches such as the IE-3000-8TC, IE-3300-8T2S-E and ISA-3000-4C-K9. The full list is below.
What’s included
- PWR-IE50W-AC-IEC= power supply
Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.
PWR-IE50W-AC-IEC= specifications
| Type | 50 W AC to DC power supply with IEC connector (IEC 60320 C14), DIN rail |
|---|---|
| Output | 50 W at 24 V DC |
| PoE support | No |
Full specifications (8)
Power and PoE
| Power input | AC 100–240 V/1.25 A, 50–60 Hz |
|---|
Power
| Output rating | 24 V DC, 2.1 A |
|---|---|
| Input receptacle | Plug-in |
| Output holdup time | 20ms |
Environment
| IP rating | IP20 |
|---|---|
| Operating temperature | -20°C to +70°C |
Physical
| Dimensions (H × W × D) | 118 × 51 × 148 mm (4.64 × 2 × 5.82 in) |
|---|---|
| Weight | 1.43 lb (0.65 kg) |
Fits these models
- IE-2000U-4S-G
- IE-2000U-4T-G
- IE-3000-4TC
- IE-3000-4TC-E
- IE-3000-8TC
- IE-3000-8TC-E
- IE-3200-8P2S-E
- IE-3200-8T2S-E
- IE-3300-8P2S-A
- IE-3300-8P2S-E
- IE-3300-8T2S-A
- IE-3300-8T2S-E
- IE-3300-8T2X-A
- IE-3300-8T2X-E
- IE-3300-8U2X-A
- IE-3300-8U2X-E
- IE-3400-8P2S-A
- IE-3400-8P2S-E
- IE-3400-8T2S-A
- IE-3400-8T2S-E
- ISA-3000-2C2F-K9
- ISA-3000-4C-K9
Models without a link: ask us for a quote, answered the same business day.
Common questions
Is the input on the PWR-IE50W-AC-IEC= plug-in or hardwired?
Plug-in, through an IEC 60320 C14 connector.
Does the PWR-IE50W-AC-IEC= support PoE?
No PoE. It outputs 50 W at 24 V DC.
What temperature range does the PWR-IE50W-AC-IEC= cover?
It operates from -20°C to +70°C and is IP20.
