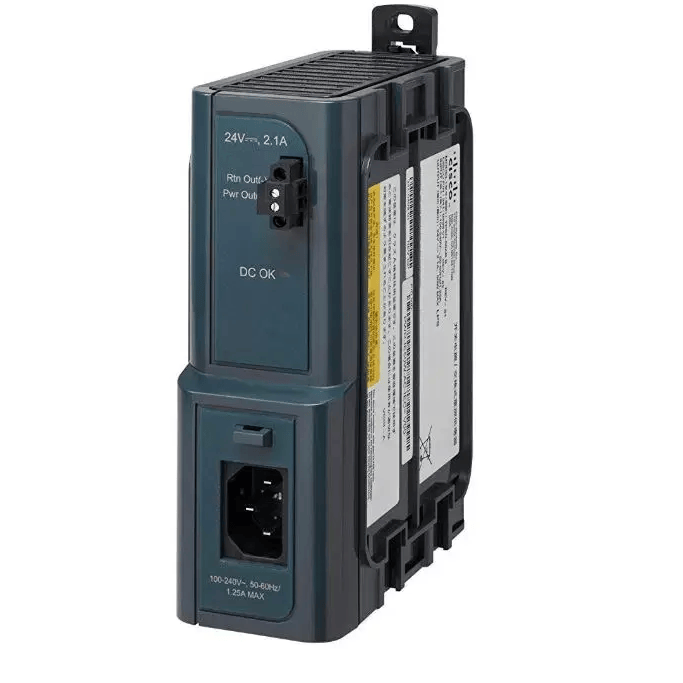

About the PWR-IE50W-AC=
The PWR-IE50W-AC= is an AC to DC or High DC to DC supply that outputs 24 V DC at 2.1 A, for 50 W. It has no PoE. Input is AC 100–240 V at 1.25 A, 50–60 Hz, or DC 125–250 V at 1.25 A, and it is hardwired.
At 118 × 51 × 148 mm (4.64 × 2 × 5.82 in) and 1.41 lb, the supply is IP20 with a 20ms output holdup time. It operates from -40°C to +75°C and is approved for Class 1, Div 2/Zone 2 installations.
It fits switches such as the IE-2000-16TC-G-E, IE-3300-8T2S-E and IE-4000-8GT4G-E. The full list is below.
What’s included
- PWR-IE50W-AC= power supply
Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.
PWR-IE50W-AC= specifications
| Type | 50 W AC to DC or High DC to DC power supply, DIN rail |
|---|---|
| Output | 50 W at 24 V DC |
| PoE support | No |
Full specifications (9)
Power and PoE
| Power input | AC 100–240 V/1.25 A, 50–60 Hz or DC 125–250 V/1.25 A |
|---|
Power
| Output rating | 24 V DC, 2.1 A |
|---|---|
| Input receptacle | Hardwired |
| Output holdup time | 20ms |
Environment
| IP rating | IP20 |
|---|---|
| Operating temperature | -40°C to +75°C |
| Hazardous locations | Approved for Class 1, Div 2/Zone 2 installations |
Physical
| Dimensions (H × W × D) | 118 × 51 × 148 mm (4.64 × 2 × 5.82 in) |
|---|---|
| Weight | 1.41 lb (0.64 kg) |
Fits these models
- IE-1000-4T1T-LM
- IE-2000-16PTC-G-E
- IE-2000-16PTC-G-L
- IE-2000-16PTC-G-NX
- IE-2000-16TC-B
- IE-2000-16TC-G-E
- IE-2000-16TC-G-L
- IE-2000-16TC-G-N
- IE-2000-16TC-G-X
- IE-2000-16TC-L
- IE-2000-4S-TS-G-B
- IE-2000-4S-TS-G-L
- IE-2000-4T-B
- IE-2000-4T-G-B
- IE-2000-4T-G-L
- IE-2000-4T-L
- IE-2000-4TS-B
- IE-2000-4TS-G-B
- IE-2000-4TS-G-L
- IE-2000-4TS-L
- IE-2000-8TC-B
- IE-2000-8TC-G-B
- IE-2000-8TC-G-E
- IE-2000-8TC-G-L
- IE-2000-8TC-G-N
- IE-2000-8TC-L
- IE-2000U-4S-G
- IE-2000U-4T-G
- IE-3000-4TC
- IE-3000-4TC-E
- IE-3000-8TC
- IE-3000-8TC-E
- IE-3200-8P2S-E
- IE-3200-8T2S-E
- IE-3300-8P2S-A
- IE-3300-8P2S-E
- IE-3300-8T2S-A
- IE-3300-8T2S-E
- IE-3300-8T2X-A
- IE-3300-8T2X-E
- IE-3300-8U2X-A
- IE-3300-8U2X-E
- IE-3400-8P2S-A
- IE-3400-8P2S-E
- IE-3400-8T2S-A
- IE-3400-8T2S-E
- IE-4000-16GT4G-E
- IE-4000-4GC4GP4G-E
- IE-4000-4S8P4G-E
- IE-4000-4T4P4G-E
- IE-4000-8GS4G-E
- IE-4000-8GT4G-E
- IE-4000-8S4G-E
- ISA-3000-2C2F-K9
- ISA-3000-4C-K9
Models without a link: ask us for a quote, answered the same business day.
Common questions
Does the PWR-IE50W-AC= provide PoE?
No. It has no PoE. Output is 24 V DC at 2.1 A.
Does the PWR-IE50W-AC= run from DC as well as AC?
Yes. It takes DC 125–250 V at 1.25 A or AC 100–240 V at 1.25 A, 50–60 Hz.
Is the PWR-IE50W-AC= approved for Div 2 locations?
Yes, for Class 1, Div 2/Zone 2 installations.
