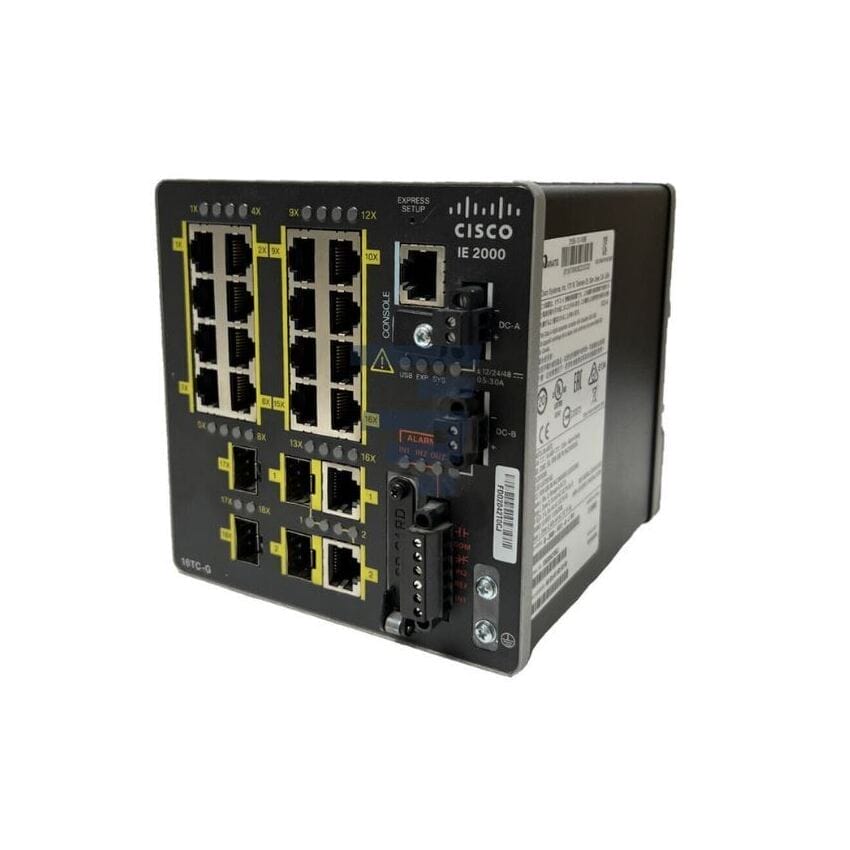

Cisco IE-2000-16PTC-G-L IE2000 Industrial Switch – 16x 100M (4 PoE+), 2x 1G Combo, LAN Lite

About the IE-2000-16PTC-G-L

PoE/PoE+ is on 4 of the 16 copper 10/100 Fast Ethernet downlinks of the IE-2000-16PTC-G-L, and two Gigabit combo uplinks, each SFP or RJ-45, sit beside them. It mounts on DIN rail and you manage it through the Cisco IOS CLI, Web Device Manager or Express Setup. Its feature tier is LAN Lite.

The budget for those 4 ports depends on the power supply fitted. Options for its DC input run from 50 W to 480 W, among them the PWR-IE65W-PC-AC= and PWR-IE240W-PCAC-L, and the list below names each one. The IE-3200-8P2S-E is a newer model.

Hazardous-location coverage is Class 1, Div 2 A-D under ANSI/ISA 12.12.01 and ATEX Class 1, Zone 2 A-D, with a cabinet enclosure required. It also meets EN 50155 for railway use and NEMA TS-2 for traffic and rail signalling.

What’s included

• IE-2000-16PTC-G-L switch

Sold separately

• A DIN-rail power supply, such as the PWR-IE240W-PCAC-L
• SFP transceivers, if you use the SFP side of the combo uplinks

Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.

IE-2000-16PTC-G-L specifications

Downlink ports	16× 10/100 Fast Ethernet copper (4 of them PoE/PoE+)
Uplink ports	2× Gigabit combo (SFP or RJ45)
PoE budget	4× PoE/PoE+ ports; budget depends on the power supply fitted (see compatible parts)
Switching capacity	Up to 7.6 Gbps (series maximum)
Forwarding rate	Up to 5.66 Mpps with 64-byte packets, line rate at all packet sizes (series maximum)
Power supply	DC input; DIN-rail power supplies (50 W to 480 W options)
Form factor	DIN-rail mount; 5.1"H x 5.0"W x 5.26"D (130mm H x 127mm W x 134mm D); 4.35 lb (1.97 kg)
Management	Cisco IOS CLI; Web Device Manager; Express Setup
Feature tier	LAN Lite
Operating temperature	-40 to +70°C (vented enclosure, 40 LFM); -40 to +60°C (sealed enclosure); -34 to +75°C (fan or blower-equipped enclosure, 200 LFM)

Full specifications (6)

Industrial certifications

Hazardous locations	ANSI/ISA 12.12.01 Class 1, Div 2 A-D; ATEX (EN 60079-0, -15) Class 1, Zone 2 A-D; cabinet enclosure required
Substation	IEEE 1613; IEC 61850-3 (KEMA)
Railway	EN 50155; EN 50121-3-2; EN 50121-4
Traffic and rail signalling	NEMA TS-2
Marine	DNV
Ingress protection	IP30

Compare IE2000 models

Swipe the table sideways to see every column.

Model	Ports	Uplinks	PoE budget	Software tier	Price
IE-2000-16PTC-G-L this page	16× 10/100 Fast Ethernet copper (4 of them PoE/PoE+)	2× Gigabit combo (SFP or RJ45)	4× PoE/PoE+ ports	LAN Lite	$3,304.84
IE-2000-16PTC-G-E	16× 10/100 Fast Ethernet copper (4 of them PoE/PoE+)	2× Gigabit combo (SFP or RJ45)	4× PoE/PoE+ ports	LAN Base	$2,250.00 · In stock
IE-2000-16PTC-G-NX	16× 10/100 Fast Ethernet copper (4 of them PoE/PoE+)	2× Gigabit combo (SFP or RJ45)	4× PoE/PoE+ ports	Enhanced LAN Base	$2,740.00 · In stock
IE-2000-16TC-B	16× 10/100 Fast Ethernet copper	2× FE combo (SFP or RJ45) + 2× FE SFP	None	LAN Base	$2,775.00 · In stock
IE-2000-16TC-G-E	16× 10/100 Fast Ethernet copper	2× Gigabit combo (SFP or RJ45) + 2× FE SFP	None	LAN Base	$2,150.00 · In stock
IE-2000-16TC-G-L	16× 10/100 Fast Ethernet copper	2× Gigabit combo (SFP or RJ45) + 2× FE SFP	None	LAN Lite	$1,995.00
IE-2000-16TC-G-N	16× 10/100 Fast Ethernet copper	2× Gigabit combo (SFP or RJ45) + 2× FE SFP	None	Enhanced LAN Base	$2,410.00
IE-2000-16TC-G-X	16× 10/100 Fast Ethernet copper	2× Gigabit combo (SFP or RJ45) + 2× FE SFP	None	LAN Base	$2,796.37
IE-2000-16TC-L	16× 10/100 Fast Ethernet copper	2× FE combo (SFP or RJ45) + 2× FE SFP	None	LAN Lite	$1,775.00 · In stock
IE-2000-4S-TS-G-B	4× 100 Mbps SFP (FE)	2× Gigabit SFP		LAN Base	$995.00
IE-2000-4S-TS-G-L	4× 100 Mbps SFP (FE)	2× Gigabit SFP		LAN Lite	$480.00 · In stock
IE-2000-4T-B	6× 10/100 Fast Ethernet copper	None separate (all six ports copper)		LAN Base	$879.00
IE-2000-4T-G-B	4× 10/100 Fast Ethernet copper	2× Gigabit copper		LAN Base	$990.25
IE-2000-4T-G-L	4× 10/100 Fast Ethernet copper	2× Gigabit copper		LAN Lite	$946.11
IE-2000-4T-L	6× 10/100 Fast Ethernet copper	None separate (all six ports copper)		LAN Lite	$831.05
IE-2000-4TS-B	4× 10/100 Fast Ethernet copper	2× 100 Mbps SFP (FE)		LAN Base	$789.37
IE-2000-4TS-G-B	4× 10/100 Fast Ethernet copper	2× Gigabit SFP		LAN Base	$890.39
IE-2000-4TS-G-L	4× 10/100 Fast Ethernet copper	2× Gigabit SFP		LAN Lite	$929.00
IE-2000-4TS-L	4× 10/100 Fast Ethernet copper	2× 100 Mbps SFP (FE)		LAN Lite	$865.66
IE-2000-8TC-B	8× 10/100 Fast Ethernet copper	2× FE combo (SFP or RJ45)	None	LAN Base	$1,250.00
IE-2000-8TC-G-B	8× 10/100 Fast Ethernet copper	2× Gigabit combo (SFP or RJ45)	None	LAN Base	$1,645.21 · In stock
IE-2000-8TC-G-E	8× 10/100 Fast Ethernet copper	2× Gigabit combo (SFP or RJ45)	None	LAN Base	$2,050.00
IE-2000-8TC-G-L	8× 10/100 Fast Ethernet copper	2× Gigabit combo (SFP or RJ45)	None	LAN Lite	$1,348.82
IE-2000-8TC-G-N	8× 10/100 Fast Ethernet copper	2× Gigabit combo (SFP or RJ45)	None	Enhanced LAN Base	$1,860.83
IE-2000-8TC-L	8× 10/100 Fast Ethernet copper	2× FE combo (SFP or RJ45)	None	LAN Lite	$1,701.20 · In stock

Compatible parts

Power supplies
PWR-IE50W-AC-L	50 W AC, no PoE	$395.00 · In stock
PWR-IE50W-AC=	50 W, no PoE	$390.00 · In stock
PWR-IE65W-PC-AC=	65 W, PoE-capable	$240.00
PWR-IE65W-PC-DC	65 W DC, PoE-capable	$524.63 · In stock
PWR-IE170W-PC-AC	170 W, PoE-capable	$695.00 · In stock
PWR-IE170W-PC-DC	170 W DC, PoE-capable	$838.33
PWR-IE240W-PCAC-L	240 W, PoE-capable	$1,095.00
PWR-IE480W-PCAC-L	480 W, PoE-capable	$1,985.99 · In stock
Rack mount kits
STK-RACK-DINRAIL	19 in. DIN rail mount kit	$225.00 · In stock
SD card
SD-IE-1GB=	ruggedized SD memory card	Ask for a quote

Newer model: IE-3200-8P2S-E

Common questions

Are all ports on the IE-2000-16PTC-G-L PoE?

No. 4 of the 16 copper 10/100 downlinks are PoE/PoE+.

How much PoE does the IE-2000-16PTC-G-L deliver?

It depends on the power supply fitted. The compatible parts list shows the DIN-rail supplies, with options from 50 W to 480 W.
