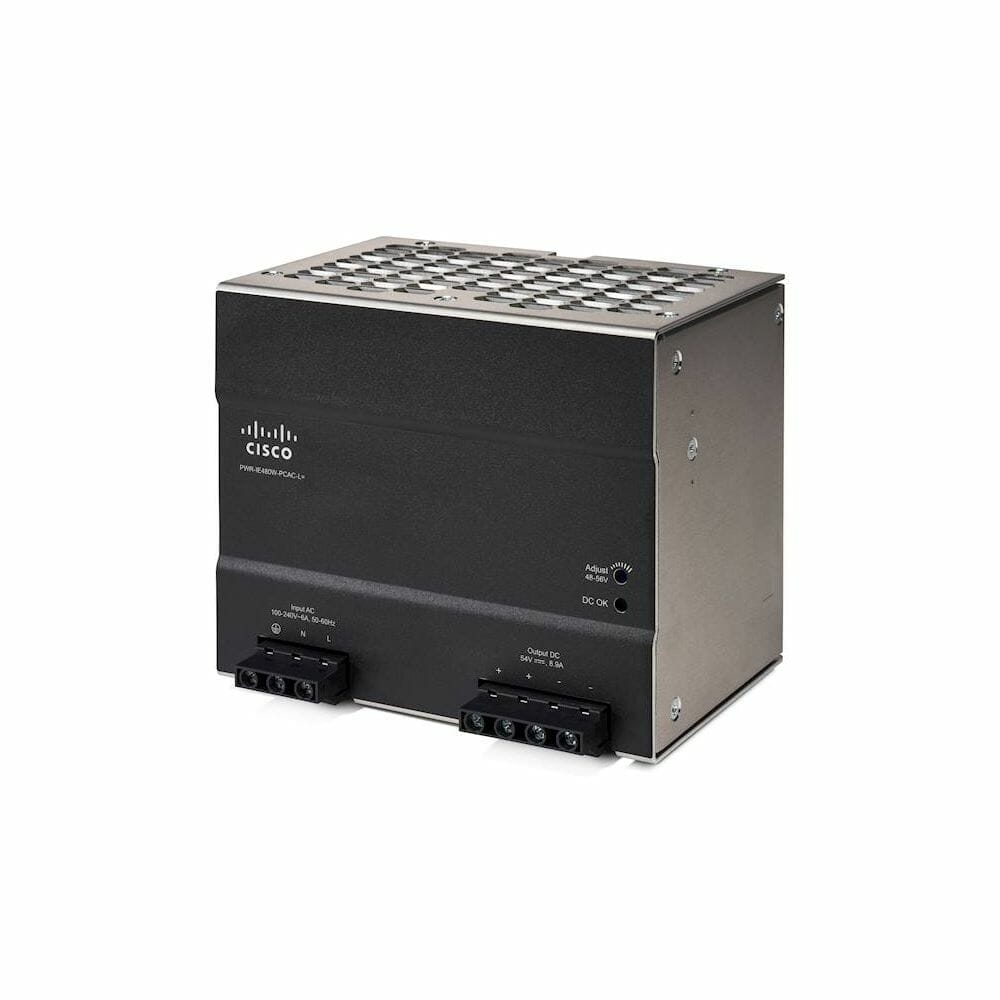

About the PWR-IE480W-PCAC-L
The PWR-IE480W-PCAC-L delivers 480 W at 54 V DC / 48-56 V DC, 8.9 A, with PoE support, from a hardwired AC 100–240 V input drawing 6 A at 50–60 Hz.
The unit is IP20 and operates from -40°C to +75°C, with 20ms of output holdup. Among the switches it fits are the IE-3200-8P2S-E, IE-2000-16PTC-G-L and IE-3400-8P2S-E; the list below shows them all.
What’s included
- PWR-IE480W-PCAC-L power supply
Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.
PWR-IE480W-PCAC-L specifications
| Type | 480 W AC to DC power supply, DIN rail |
|---|---|
| Output | 480 W at 54 V DC |
| PoE support | Yes |
Full specifications (8)
Power and PoE
| Power input | AC 100–240 V/6 A, 50–60 Hz |
|---|
Power
| Output rating | 54 V DC / 48-56 V DC, 8.9 A |
|---|---|
| Input receptacle | Hardwired |
| Output holdup time | 20ms |
Environment
| IP rating | IP20 |
|---|---|
| Operating temperature | -40°C to +75°C |
Physical
| Dimensions (H × W × D) | 121 × 144 × 118.6 mm (4.76 × 5.66 × 4.66 in) |
|---|---|
| Weight | 3.02 lb (1.37 kg) |
Fits these models
- IE-1000-4T1T-LM
- IE-2000-16PTC-G-E
- IE-2000-16PTC-G-L
- IE-2000-16PTC-G-NX
- IE-2000-16TC-B
- IE-2000-16TC-G-E
- IE-2000-16TC-G-L
- IE-2000-16TC-G-N
- IE-2000-16TC-G-X
- IE-2000-16TC-L
- IE-2000-4S-TS-G-B
- IE-2000-4S-TS-G-L
- IE-2000-4T-B
- IE-2000-4T-G-B
- IE-2000-4T-G-L
- IE-2000-4T-L
- IE-2000-4TS-B
- IE-2000-4TS-G-B
- IE-2000-4TS-G-L
- IE-2000-4TS-L
- IE-2000-8TC-B
- IE-2000-8TC-G-B
- IE-2000-8TC-G-E
- IE-2000-8TC-G-L
- IE-2000-8TC-G-N
- IE-2000-8TC-L
- IE-3200-8P2S-E
- IE-3200-8T2S-E
- IE-3300-8P2S-A
- IE-3300-8P2S-E
- IE-3300-8T2S-A
- IE-3300-8T2S-E
- IE-3300-8T2X-A
- IE-3300-8T2X-E
- IE-3300-8U2X-A
- IE-3300-8U2X-E
- IE-3400-8P2S-A
- IE-3400-8P2S-E
- IE-3400-8T2S-A
- IE-3400-8T2S-E
- IE-4000-16GT4G-E
- IE-4000-4GC4GP4G-E
- IE-4000-4S8P4G-E
- IE-4000-4T4P4G-E
- IE-4000-8GS4G-E
- IE-4000-8GT4G-E
- IE-4000-8S4G-E
- MS130R-8P
Models without a link: ask us for a quote, answered the same business day.
Common questions
What input does the PWR-IE480W-PCAC-L require?
AC 100–240 V at 6 A, 50–60 Hz, on a hardwired input.
Does the PWR-IE480W-PCAC-L have PoE?
Yes. It supports PoE, with 480 W at 54 V DC.
What are the dimensions of the PWR-IE480W-PCAC-L?
121 × 144 × 118.6 mm (4.76 × 5.66 × 4.66 in). It weighs 3.02 lb.
