Add to Wishlist
IE-3200-8T2S-E
IE-3200-8P2S-E
IE-3200-8T2S-E
IE-3200-8P2S-E

IE-3200-8T2S-E

$1,995.00

Cisco – IE3200 Rugged Series – Network Essentials – switch – managed – 8 x 10/100/1000 + 2 x Gigabit SFP – DIN rail mountable – DC power

Availability: 3 unit(s) In Stock

Questions? Call (984) 225-1600

SKU: IE-3200-8T2S-E Categories: ,

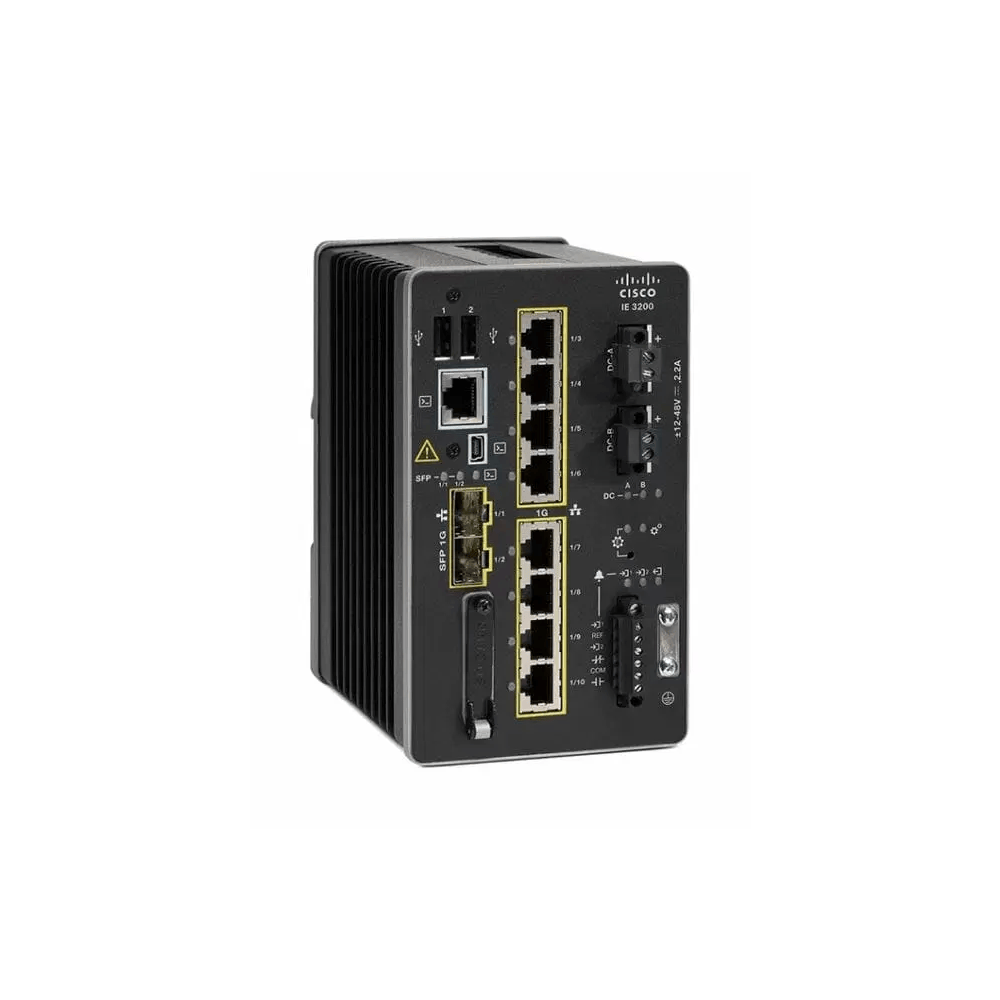

The Cisco IE-3200-8T2S-E is a rugged and compact industrial switch designed to provide reliable and secure connectivity in harsh environments. It offers advanced features and flexible port options, making it suitable for various industrial applications.

The IE-3200-8T2S-E switch features eight 10/100/1000BASE-T Ethernet ports, providing ample connectivity options for a range of industrial devices and equipment. Additionally, it includes two 1 Gigabit SFP (Small Form-Factor Pluggable) ports, offering flexibility for fiber optic connections or uplink connectivity.

Furthermore, the IE-3200-8T2S-E switch supports Cisco’s Industrial Ethernet (IE) protocols, such as EtherNet/IP and PROFINET, allowing seamless integration with existing industrial automation systems. It also provides easy configuration and management through Cisco’s industrial network management software, enabling centralized control and monitoring of the network.

Overall, the Cisco IE-3200-8T2S-E switch is a reliable and rugged industrial switch that provides secure and efficient connectivity in harsh environments. Its compact size, versatile port options, and robust design make it an ideal choice for various industrial applications, helping organizations achieve reliable and high-performance network connectivity in challenging conditions.

Product Description Cisco Catalyst IE3200 Rugged Series – Network Essentials – switch – 8 ports – managed
Device Type Switch – 8 ports – managed
Subtype Gigabit Ethernet
Ports 8 x 10/100/1000 + 2 x Gigabit SFP
Capacity SPAN sessions: 256 ¦ IGMP groups: 1000 ¦ STP instances: 128
MAC Address Table Size 8K entries
Routing Protocol IGMPv2, IGMP, IGMPv3, MSTP, RSTP, STP
Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, SCP, NTP
Features DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), IPv4 support, fanless, LACP support, LLDP support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), 802.1x authentication, Precision Time Protocol (PTP), IGMP filtering, IP source guard, Resilient Ethernet Protocol (REP), SmartPort technology, Internet Control Message Protocol (ICMP), CIP Sync (IEEE 1588), IGMP querier, Voice VLAN, Guest VLAN, User Datagram Protocol (UDP), VLAN Trunking Protocol (VTP) v.3, BPDU Guard, Dying Gasp, VLAN Trunking Protocol (VTP) v.2
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 1588v2
Power DC 9.6 – 60 V 3.2 A
Power Redundancy Yes
Dimensions (WxDxH) 3.6 in x 5.3 in x 6 in
Weight 3.75 lbs



EXTENDED SPECIFICATIONS

General
Device Type Switch – 8 ports – managed
Enclosure Type DIN rail mountable
Subtype Gigabit Ethernet
Ports 8 x 10/100/1000 + 2 x Gigabit SFP
Capacity SPAN sessions: 256 ¦ IGMP groups: 1000 ¦ STP instances: 128
MAC Address Table Size 8K entries
Routing Protocol IGMPv2, IGMP, IGMPv3, MSTP, RSTP, STP
Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, SCP, NTP
Authentication Method Secure Shell (SSH), RADIUS, TACACS+
Features DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), IPv4 support, fanless, LACP support, LLDP support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), 802.1x authentication, Precision Time Protocol (PTP), IGMP filtering, IP source guard, Resilient Ethernet Protocol (REP), SmartPort technology, Internet Control Message Protocol (ICMP), CIP Sync (IEEE 1588), IGMP querier, Voice VLAN, Guest VLAN, User Datagram Protocol (UDP), VLAN Trunking Protocol (VTP) v.3, BPDU Guard, Dying Gasp, VLAN Trunking Protocol (VTP) v.2
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 1588v2
RAM 2 GB
Flash Memory 1.5 GB
Built-in Devices SD card reader
Expansion / Connectivity
Interfaces 8 x 1000Base-T RJ-45 ¦ 2 x 1000Base-X SFP ¦ 1 x serial (RS-232) RJ-45 ¦ 1 x mini-USB Type B
Expansion Slots 1 (total) / 1 (free) x SD Memory Card
Power
Power Device Internal power supply
Power Redundancy Yes
Voltage Required DC 9.6 – 60 V
Electric Current Required 3.2 A
Power Consumption Operational 33 Watt
Miscellaneous
MTBF 641,150 hours
Compliant Standards EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, IEC 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, EN 61326-1, EN 61000-4-16, EN 61000-4-29, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, VCCI Class A, CISPR 11 class A, EN 61000-4-10, EN 61000-4-18, IEC 61850-3, FCC CFR47 Part 15 B Class A, IEEE 1613, CNS 13438 Class A, EN 300 386, KN35, UL/CSA60950-1, AS/NZS CISPR 32 Class A, KN32 Class A, IEC 62368-1, IEEE 1588, EN 60068-2-52, EN 60068-2-60, EN 60079-15, CB 60950-1, IEC 60079-0, IEC 60079-15, EN 60079-0, EN 55032/CISPR 32 Class A, CISPR 35, EN 61000-4-17, UL 121201, UL/CSA/EN 62368-1, EN 61850-3, UL/CSA 61010-2-201, IEC/EN 61010-2-201, UL/CSA 60079-0, UL/CSA 60079-15
Dimensions & Weight
Width 3.6 in
Depth 5.3 in
Height 6 in
Weight 3.75 lbs
