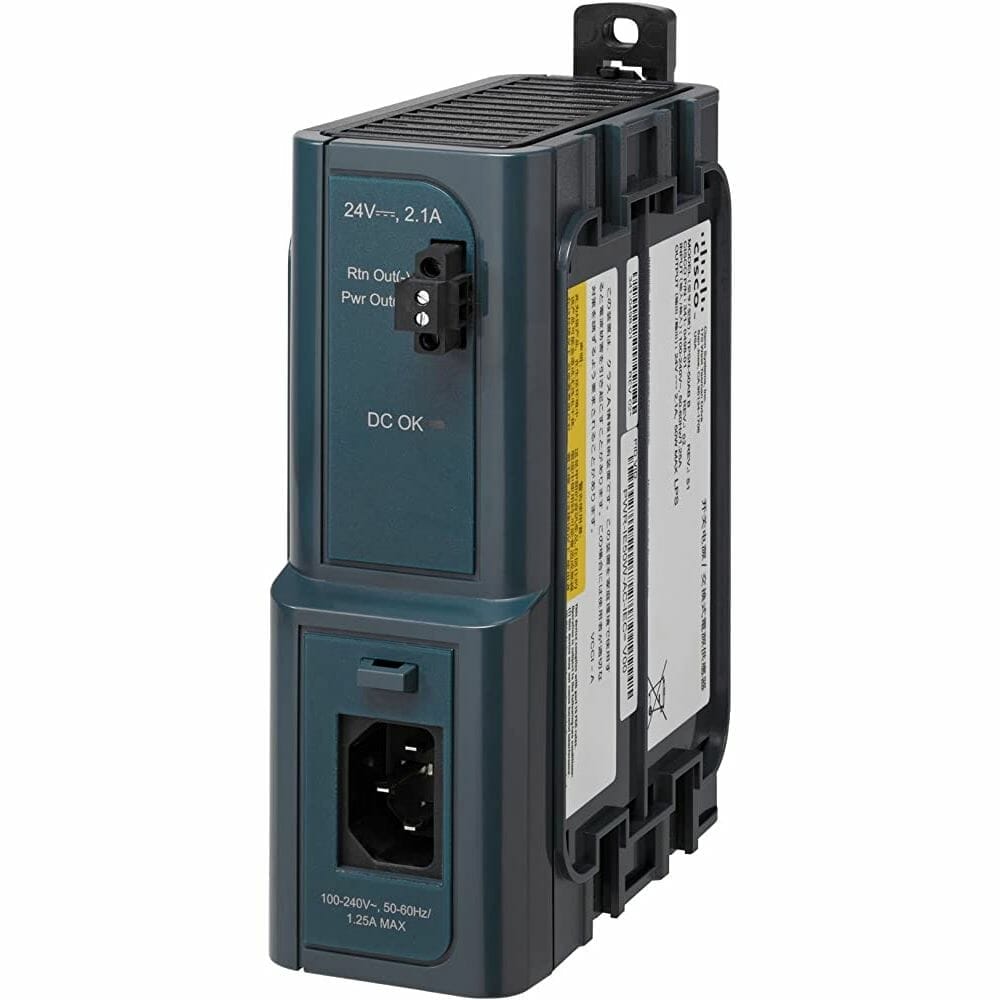

About the PWR-IE50W-AC-L
The PWR-IE50W-AC-L takes AC 100–240 V at 1.2 A, 50–60 Hz, and outputs 24 V DC / 24-28 V DC at 2.1 A, for 50 W. It has no PoE, and operating temperature is -20°C to +70°C.
Its size is 75 × 30 × 89.5 mm (2.95 × 1.18 × 3.52 in). The supply is IP20 and has a 20ms output holdup time. Switches it fits include the IE-3200-8T2S-E, IE-3300-8T2S-E and IE-3400-8T2S-E; all of the models are listed below.
What’s included
- PWR-IE50W-AC-L power supply
Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.
PWR-IE50W-AC-L specifications
| Type | 50 W AC to DC power supply, DIN rail |
|---|---|
| Output | 50 W at 24 V DC |
| PoE support | No |
Full specifications (8)
Power and PoE
| Power input | AC 100–240 V/1.2 A, 50–60 Hz |
|---|
Power
| Output rating | 24 V DC / 24-28 V DC, 2.1 A |
|---|---|
| Input receptacle | Hardwired |
| Output holdup time | 20ms |
Environment
| IP rating | IP20 |
|---|---|
| Operating temperature | -20°C to +70°C |
Physical
| Dimensions (H × W × D) | 75 × 30 × 89.5 mm (2.95 × 1.18 × 3.52 in) |
|---|---|
| Weight | 0.39 lb (0.18 kg) |
Fits these models
- IE-1000-4T1T-LM
- IE-2000-16PTC-G-E
- IE-2000-16PTC-G-L
- IE-2000-16PTC-G-NX
- IE-2000-16TC-B
- IE-2000-16TC-G-E
- IE-2000-16TC-G-L
- IE-2000-16TC-G-N
- IE-2000-16TC-G-X
- IE-2000-16TC-L
- IE-2000-4S-TS-G-B
- IE-2000-4S-TS-G-L
- IE-2000-4T-B
- IE-2000-4T-G-B
- IE-2000-4T-G-L
- IE-2000-4T-L
- IE-2000-4TS-B
- IE-2000-4TS-G-B
- IE-2000-4TS-G-L
- IE-2000-4TS-L
- IE-2000-8TC-B
- IE-2000-8TC-G-B
- IE-2000-8TC-G-E
- IE-2000-8TC-G-L
- IE-2000-8TC-G-N
- IE-2000-8TC-L
- IE-3200-8P2S-E
- IE-3200-8T2S-E
- IE-3300-8P2S-A
- IE-3300-8P2S-E
- IE-3300-8T2S-A
- IE-3300-8T2S-E
- IE-3300-8T2X-A
- IE-3300-8T2X-E
- IE-3300-8U2X-A
- IE-3300-8U2X-E
- IE-3400-8P2S-A
- IE-3400-8P2S-E
- IE-3400-8T2S-A
- IE-3400-8T2S-E
- IE-4000-16GT4G-E
- IE-4000-4GC4GP4G-E
- IE-4000-4S8P4G-E
- IE-4000-4T4P4G-E
- IE-4000-8GS4G-E
- IE-4000-8GT4G-E
- IE-4000-8S4G-E
Models without a link: ask us for a quote, answered the same business day.
Common questions
Does the PWR-IE50W-AC-L have PoE?
No. Its output is 24 V DC / 24-28 V DC at 2.1 A, with no PoE.
How big is the PWR-IE50W-AC-L?
75 × 30 × 89.5 mm (2.95 × 1.18 × 3.52 in), and it weighs 0.39 lb.
What is the operating temperature of the PWR-IE50W-AC-L?
-20°C to +70°C.
