Cisco IE-2000-16TC-G-N IE2000 Industrial Switch – 16x 100M, 2x 1G Combo + 2x 100M SFP

About the IE-2000-16TC-G-N

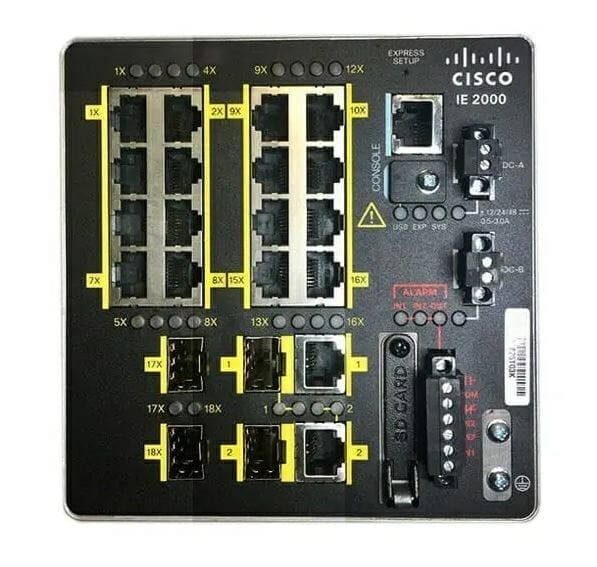

The IE-2000-16TC-G-N puts 16 copper 10/100 Fast Ethernet ports on a DIN-rail IE2000 switch. Its uplinks come in two kinds: two 1G combo ports, each SFP or RJ-45, and two FE SFP ports. You manage it through the Cisco IOS CLI, Web Device Manager or Express Setup. It runs Enhanced LAN Base, with IEEE 1588 and L2NAT.

Power arrives as DC input from a DIN-rail supply, with options from 50 W to 480 W. The PWR-IE50W-AC= and PWR-IE240W-PCAC-L are two of them, and the compatible parts list below has the full set. The newer model is the IE-3105-18T2C-E.

Hazardous-location coverage is ANSI/ISA 12.12.01 Class 1, Div 2 A-D and ATEX Class 1, Zone 2 A-D, with a cabinet enclosure required. It also meets IEEE 1613 and IEC 61850-3 for substations.

What’s included

• IE-2000-16TC-G-N switch

Sold separately

• A DIN-rail power supply, such as the PWR-IE50W-AC=
• SFP transceivers for the two FE SFP ports and for the SFP side of the combo uplinks

Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.

IE-2000-16TC-G-N specifications

Downlink ports	16× 10/100 Fast Ethernet copper
Uplink ports	2× Gigabit combo (SFP or RJ45) + 2× FE SFP
Switching capacity	Up to 7.6 Gbps (series maximum)
Forwarding rate	Up to 5.66 Mpps with 64-byte packets, line rate at all packet sizes (series maximum)
Power supply	DC input; DIN-rail power supplies (50 W to 480 W options)
Form factor	DIN-rail mount; 5.1"H x 5.0"W x 5.26"D (130mm H x 127mm W x 134mm D); 4.35 lb (1.97 kg)
Management	Cisco IOS CLI; Web Device Manager; Express Setup
Feature tier	Enhanced LAN Base
Industrial features	IEEE 1588, L2NAT
PoE budget	None (no PoE ports)
Operating temperature	-40 to +70°C (vented enclosure, 40 LFM); -40 to +60°C (sealed enclosure); -34 to +75°C (fan or blower-equipped enclosure, 200 LFM)

Full specifications (6)

Industrial certifications

Hazardous locations	ANSI/ISA 12.12.01 Class 1, Div 2 A-D; ATEX (EN 60079-0, -15) Class 1, Zone 2 A-D; cabinet enclosure required
Substation	IEEE 1613; IEC 61850-3 (KEMA)
Railway	EN 50155; EN 50121-3-2; EN 50121-4
Traffic and rail signalling	NEMA TS-2
Marine	DNV
Ingress protection	IP30

Compare IE2000 models

Swipe the table sideways to see every column.

Model	Ports	Uplinks	PoE budget	Software tier	Price
IE-2000-16TC-G-N this page	16× 10/100 Fast Ethernet copper	2× Gigabit combo (SFP or RJ45) + 2× FE SFP	None	Enhanced LAN Base	$2,410.00
IE-2000-16PTC-G-E	16× 10/100 Fast Ethernet copper (4 of them PoE/PoE+)	2× Gigabit combo (SFP or RJ45)	4× PoE/PoE+ ports	LAN Base	$2,250.00 · In stock
IE-2000-16PTC-G-L	16× 10/100 Fast Ethernet copper (4 of them PoE/PoE+)	2× Gigabit combo (SFP or RJ45)	4× PoE/PoE+ ports	LAN Lite	$3,304.84
IE-2000-16PTC-G-NX	16× 10/100 Fast Ethernet copper (4 of them PoE/PoE+)	2× Gigabit combo (SFP or RJ45)	4× PoE/PoE+ ports	Enhanced LAN Base	$2,740.00 · In stock
IE-2000-16TC-B	16× 10/100 Fast Ethernet copper	2× FE combo (SFP or RJ45) + 2× FE SFP	None	LAN Base	$2,775.00 · In stock
IE-2000-16TC-G-E	16× 10/100 Fast Ethernet copper	2× Gigabit combo (SFP or RJ45) + 2× FE SFP	None	LAN Base	$2,150.00 · In stock
IE-2000-16TC-G-L	16× 10/100 Fast Ethernet copper	2× Gigabit combo (SFP or RJ45) + 2× FE SFP	None	LAN Lite	$1,995.00
IE-2000-16TC-G-X	16× 10/100 Fast Ethernet copper	2× Gigabit combo (SFP or RJ45) + 2× FE SFP	None	LAN Base	$2,796.37
IE-2000-16TC-L	16× 10/100 Fast Ethernet copper	2× FE combo (SFP or RJ45) + 2× FE SFP	None	LAN Lite	$1,775.00 · In stock
IE-2000-4S-TS-G-B	4× 100 Mbps SFP (FE)	2× Gigabit SFP		LAN Base	$995.00
IE-2000-4S-TS-G-L	4× 100 Mbps SFP (FE)	2× Gigabit SFP		LAN Lite	$480.00 · In stock
IE-2000-4T-B	6× 10/100 Fast Ethernet copper	None separate (all six ports copper)		LAN Base	$879.00
IE-2000-4T-G-B	4× 10/100 Fast Ethernet copper	2× Gigabit copper		LAN Base	$990.25
IE-2000-4T-G-L	4× 10/100 Fast Ethernet copper	2× Gigabit copper		LAN Lite	$946.11
IE-2000-4T-L	6× 10/100 Fast Ethernet copper	None separate (all six ports copper)		LAN Lite	$831.05
IE-2000-4TS-B	4× 10/100 Fast Ethernet copper	2× 100 Mbps SFP (FE)		LAN Base	$789.37
IE-2000-4TS-G-B	4× 10/100 Fast Ethernet copper	2× Gigabit SFP		LAN Base	$890.39
IE-2000-4TS-G-L	4× 10/100 Fast Ethernet copper	2× Gigabit SFP		LAN Lite	$929.00
IE-2000-4TS-L	4× 10/100 Fast Ethernet copper	2× 100 Mbps SFP (FE)		LAN Lite	$865.66
IE-2000-8TC-B	8× 10/100 Fast Ethernet copper	2× FE combo (SFP or RJ45)	None	LAN Base	$1,250.00
IE-2000-8TC-G-B	8× 10/100 Fast Ethernet copper	2× Gigabit combo (SFP or RJ45)	None	LAN Base	$1,645.21 · In stock
IE-2000-8TC-G-E	8× 10/100 Fast Ethernet copper	2× Gigabit combo (SFP or RJ45)	None	LAN Base	$2,050.00
IE-2000-8TC-G-L	8× 10/100 Fast Ethernet copper	2× Gigabit combo (SFP or RJ45)	None	LAN Lite	$1,348.82
IE-2000-8TC-G-N	8× 10/100 Fast Ethernet copper	2× Gigabit combo (SFP or RJ45)	None	Enhanced LAN Base	$1,860.83
IE-2000-8TC-L	8× 10/100 Fast Ethernet copper	2× FE combo (SFP or RJ45)	None	LAN Lite	$1,701.20 · In stock

Compatible parts

Power supplies
PWR-IE50W-AC-L	50 W AC, no PoE	$395.00 · In stock
PWR-IE50W-AC=	50 W, no PoE	$390.00 · In stock
PWR-IE65W-PC-AC=	65 W, PoE-capable	$240.00
PWR-IE65W-PC-DC	65 W DC, PoE-capable	$524.63 · In stock
PWR-IE170W-PC-AC	170 W, PoE-capable	$695.00 · In stock
PWR-IE170W-PC-DC	170 W DC, PoE-capable	$838.33
PWR-IE240W-PCAC-L	240 W, PoE-capable	$1,095.00
PWR-IE480W-PCAC-L	480 W, PoE-capable	$1,985.99 · In stock
Rack mount kits
STK-RACK-DINRAIL	19 in. DIN rail mount kit	$225.00 · In stock
SD card
SD-IE-1GB=	ruggedized SD memory card	Ask for a quote

Newer model: IE-3105-18T2C-E. Ask us for a quote on it.

Common questions

What uplinks does the IE-2000-16TC-G-N have?

Two 1G combo ports, each usable as SFP or RJ-45, and two FE SFP ports.

Does the IE-2000-16TC-G-N need an enclosure in a hazardous location?

A cabinet enclosure is required for its Class 1, Div 2 A-D and ATEX Class 1, Zone 2 A-D coverage.

Does the IE-2000-16TC-G-N support L2NAT?

Yes. It runs Enhanced LAN Base and has L2NAT and IEEE 1588.
