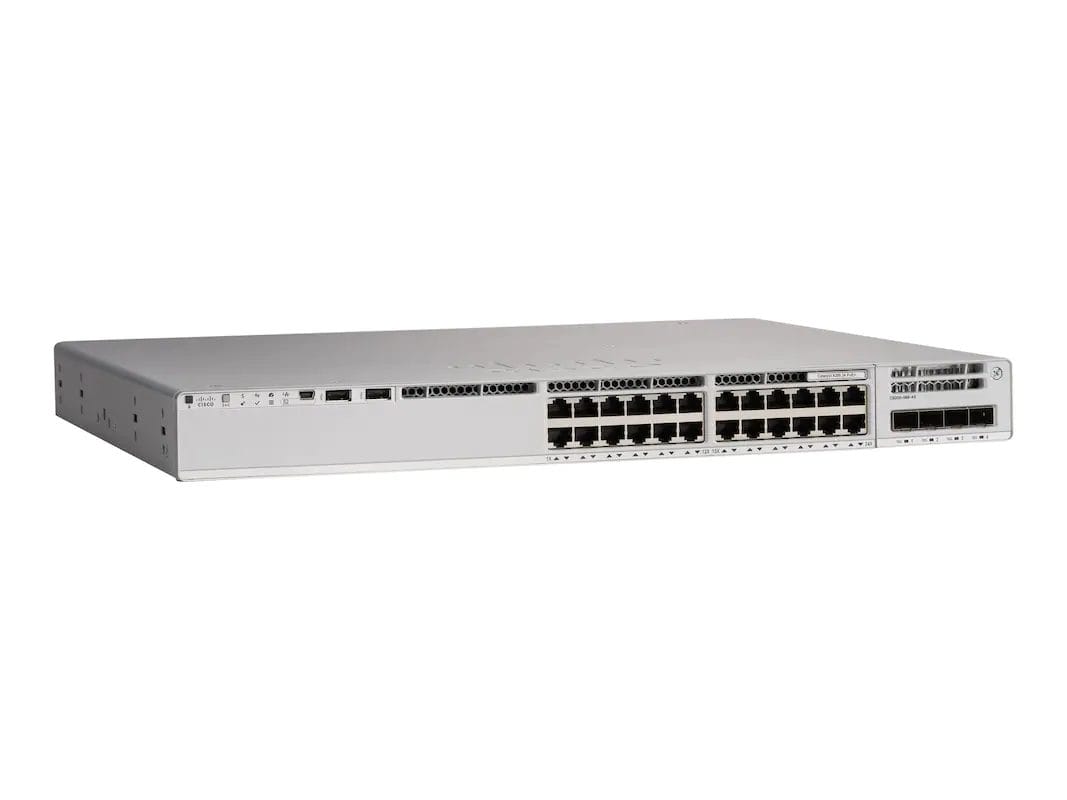

Cisco C9200L-24P-4X-E 24 Port PoE Switch

C9200L-24P-4X-E

Name: Cisco C9200L-24P-4X-E - Link US Online
Brand: Cisco
SKU: C9200L-24P-4X-E
Price: 2295.00 USD
Availability: InStock

$2,295.00

Cisco – Includes 3 Year Network Essentials DNA License – switch – L3 – 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) – rack-mountable – PoE+ (740 W)

Availability: 3 unit(s) In Stock

Questions? Call (984) 225-1600

SKU: C9200L-24P-4X-E Categories: Cisco, Switches Tag: featured

The Cisco C9200L-24P-4X-E Catalyst 9200L 24-port PoE+ switch (C9200L-24P-4X-E) is a fixed-configuration, stackable switch that is part of the Cisco Catalyst 9200 series. This switch is designed for small and medium-sized businesses, as well as enterprise branch offices, and can be deployed in a variety of network environments.

The C9200L-24P-4X-E switch has 24 Gigabit Ethernet (GbE) ports, and 4 10 Gigabit Uplinks (GbE), providing a total power budget of up to 740W. The switch also has four 10 GbE uplink ports, allowing for high-speed connectivity to other switches and network devices. Additionally, the switch has security features such as access control lists (ACLs) and advanced network segmentation capabilities, providing robust protection against network threats.

The C9200L-24P-4X-E switch supports Cisco’s StackWise-160 technology, which allows for up to nine switches to be stacked together, providing up to 216 ports in a single logical unit. This allows for easy scalability and management of a growing network. The switch also has an intuitive user interface and can be easily managed using Cisco’s network management tools, such as Cisco DNA Center and Cisco Prime.

Overall, the Cisco C9200L-24P-4X-E is a versatile, high-performance switch that is ideal for organizations looking to upgrade their network infrastructure.

MAIN SPECIFICATIONS

Product Description	Cisco Catalyst 9200L – Network Essentials – switch – 24 ports – rack-mountable
Device Type	Switch – 24 ports – L3 – stackable
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)	PoE+
PoE Budget	740 W
Performance	Stacking bandwidth: 80 Gbps ¦ Switching capacity: 128 Gbps ¦ Forwarding rate: 190.4 Mpps
Capacity	Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8
MAC Address Table Size	16000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features	Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz
Power	AC 100-240 V (50 – 60 Hz)
Power Redundancy	Optional
Dimensions (WxDxH)	17.5 in x 1.7 in x 11.3 in
Weight	12.13 lbs

C9200L-24P-4X-E – EXTENDED SPECIFICATIONS

General

Device Type	Switch – 24 ports – L3 – stackable
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)	PoE+
PoE Budget	740 W
Performance	Stacking bandwidth: 80 Gbps ¦ Switching capacity: 128 Gbps ¦ Forwarding rate: 190.4 Mpps
Capacity	Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8
MAC Address Table Size	16000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features	Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz
RAM	2 GB
Flash Memory	4 GB

Expansion / Connectivity

Interfaces

24 x 1000Base-T RJ-45 PoE+ – 30 W ¦ 4 x 10GBase-X SFP+ uplink ¦ 1 x network stack device ¦ 1 x management (LAN) RJ-45 ¦ 1 x console RJ-45

Power

Power Device	Internal power supply – hot-plug
Max Supported Qty	2
Power Redundancy	Optional
Voltage Required	AC 100-240 V (50 – 60 Hz)

Manufacturer	Cisco
Product Type	NEW
