C9200-48T-A

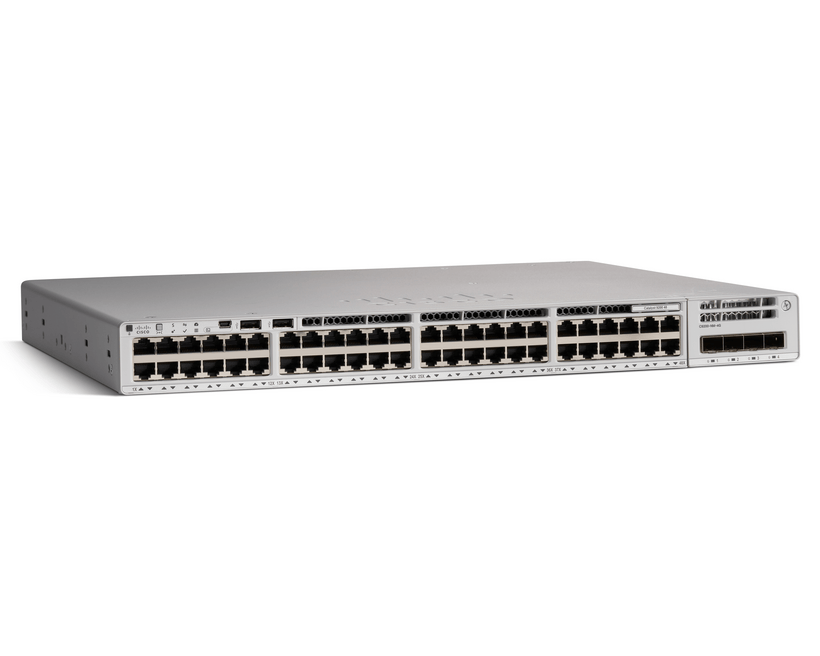

Name: Cisco C9200-48T-A Managed L3 Switch - Rack-Mountable IT Hardware
Brand: Cisco
SKU: C9200-48T-A
Price: 3500.00 USD
Availability: InStock

$3,500.00

Cisco – Includes 3 Year Network Advantage DNA License – switch – L3 – managed – 48 x 10/100/1000 – rack-mountable

Availability: 3 unit(s) In Stock

Questions? Call (984) 225-1600

Use Code C9200-TEN-PERCENT for 10% off at Checkout

SKU: C9200-48T-A Categories: Cisco, Switches Tag: featured

Description

The Cisco C9200-48T-A Switch is an advanced Layer 3 switch, designed to provide a high performance, secure and reliable network solution. It features 48 ports of Gigabit Ethernet, making it ideal for larger networks. The C9200-48T-A also features an advanced Layer 3 IP routing capability, allowing for advanced features such as policy-based routing and advanced Quality of Service (QoS). It comes with a range of management options, including web-based GUI, SNMP, SSH and Telnet. The switch is designed for both enterprise and service provider networks, providing a reliable, secure and easy to manage solution.

MAIN SPECIFICATIONS

Product Description	Cisco Catalyst 9200 – Network Advantage – switch – 48 ports – managed – rack-mountable
Device Type	Switch – 48 ports – L3 – managed – stackable
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000
Performance	Stacking bandwidth: 160 Gbps ¦ Switching bandwidth: 176 Gbps ¦ Forwarding rate: 261.9 Mpps
Capacity	Virtual networks: 4 ¦ IPv4 routing table entries: 4000 ¦ IPv6 routing table entries: 2000 ¦ Flexible NetFlow entries: 16000 ¦ Packet buffer size: 6 MB ¦ VLAN IDs: 4096 ¦ Switched virtual interfaces (SVIs): 1000
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features	ARP support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Class of Service (CoS), Flexible NetFlow (FNF), Cisco StackWise-160 technology, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Location ID Separation Protocol (LISP), Switched Port Analyzer (SPAN), Security Group Tag (SGT) caching, Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
Power	AC 100-240 V (50 – 60 Hz)
Power Redundancy	Optional
Dimensions (WxDxH)	17.5 in x 13.8 in x 1.7 in
Weight	11.02 lbs

C9200-48T-A – EXTENDED SPECIFICATIONS

General

Device Type	Switch – 48 ports – L3 – managed – stackable
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000
Performance	Stacking bandwidth: 160 Gbps ¦ Switching bandwidth: 176 Gbps ¦ Forwarding rate: 261.9 Mpps
Capacity	Virtual networks: 4 ¦ IPv4 routing table entries: 4000 ¦ IPv6 routing table entries: 2000 ¦ Flexible NetFlow entries: 16000 ¦ Packet buffer size: 6 MB ¦ VLAN IDs: 4096 ¦ Switched virtual interfaces (SVIs): 1000
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm	128-bit AES
Features	ARP support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Class of Service (CoS), Flexible NetFlow (FNF), Cisco StackWise-160 technology, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Location ID Separation Protocol (LISP), Switched Port Analyzer (SPAN), Security Group Tag (SGT) caching, Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
RAM	4 GB
Flash Memory	4 GB

Expansion / Connectivity

Interfaces	48 x 10/100/1000 Base-T RJ-45 ¦ 1 x network stack device ¦ 1 x management (LAN) RJ-45 ¦ 1 x console RJ-45
Expansion Slots	1 (total) / 1 (free) x expansion slot

Power

Power Device	Internal power supply – hot-plug
Max Supported Qty	2
Power Redundancy	Optional
Power Provided	125 Watt
Voltage Required	AC 100-240 V (50 – 60 Hz)
