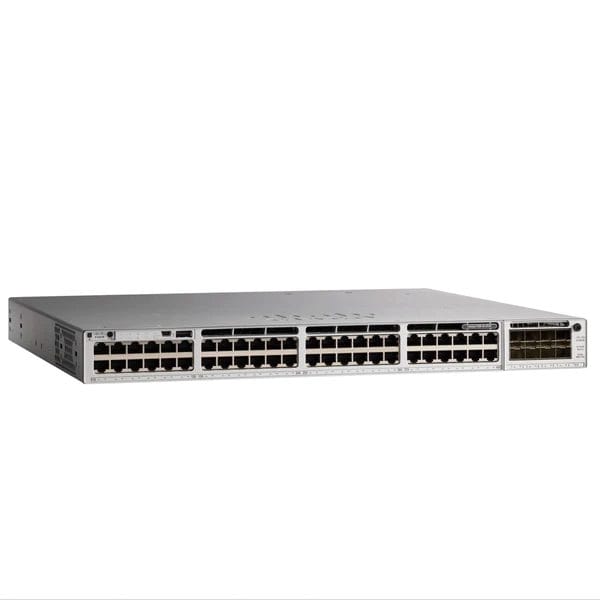

Cisco C9200L-48P-4G-E - Switch - L3 - 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) - rack-mountable - PoE+ (1440 W)

Cisco C9200L-48P-4G-E – Switch – L3 – 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) – rack-mountable – PoE+ (1440 W)

$2,749.65List price: $8,893.25

In stock (9) Ships today if ordered by 3 PM ET

ConditionNew
Warranty90 days
ShippingFree (US)
ReturnsRMA required · See policy
SKU: C9200L-48P-4G-E Categories: , Tag:

The Cisco Catalyst 9200L C9200L-48P-4G-E is a stackable access switch for connecting business devices to a wired network.

  • Access ports: 48 10/100/1000 Ethernet copper ports for wired network connections.
  • Power over Ethernet: PoE+ on the access ports, with 740 W available using the default primary power supply.
  • Default primary power supply: 1,000 W AC; a second compatible supply can be used for additional power.
  • Uplinks: four fixed 1 Gigabit SFP connections for linking the switch to the rest of the network.
  • Stacking: supports Cisco StackWise-80, allowing compatible switches to be managed as a stack.
  • Software: Network Essentials license.
  • Switching capacity: 104 Gbps for the standalone switch, as listed by Cisco.

MAIN SPECIFICATIONS

Product Description Cisco Catalyst 9200L – Network Essentials – switch – 48 ports – rack-mountable
Device Type Switch – 48 ports – L3 – stackable
Enclosure Type Rack-mountable
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Power Over Ethernet (PoE) PoE+
PoE Budget 740 W
Performance Stacking bandwidth: 80 Gbps ¦ Switching capacity: 104 Gbps ¦ Forwarding rate: 77.38 Mpps
Capacity Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8
MAC Address Table Size 16000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Power AC 100-240 V (50 – 60 Hz)
Power Redundancy Optional
Dimensions (WxDxH) 17.5 in x 1.7 in x 11.3 in
Weight 9.59 lbs



C9200L-48P-4G-E – EXTENDED SPECIFICATIONS

General
Device Type Switch – 48 ports – L3 – stackable
Enclosure Type Rack-mountable
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Power Over Ethernet (PoE) PoE+
PoE Budget 740 W
Performance Stacking bandwidth: 80 Gbps ¦ Switching capacity: 104 Gbps ¦ Forwarding rate: 77.38 Mpps
Capacity Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8
MAC Address Table Size 16000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
RAM 2 GB
Flash Memory 4 GB
Expansion / Connectivity
Interfaces 48 x 1000Base-T RJ-45 PoE+ – 30 W ¦ 4 x 1000Base-X SFP uplink ¦ 1 x network stack device ¦ 1 x management (LAN) RJ-45 ¦ 1 x console RJ-45
Power
Power Device Internal power supply – hot-plug
Max Supported Qty 2
Power Redundancy Optional
Voltage Required AC 100-240 V (50 – 60 Hz)
