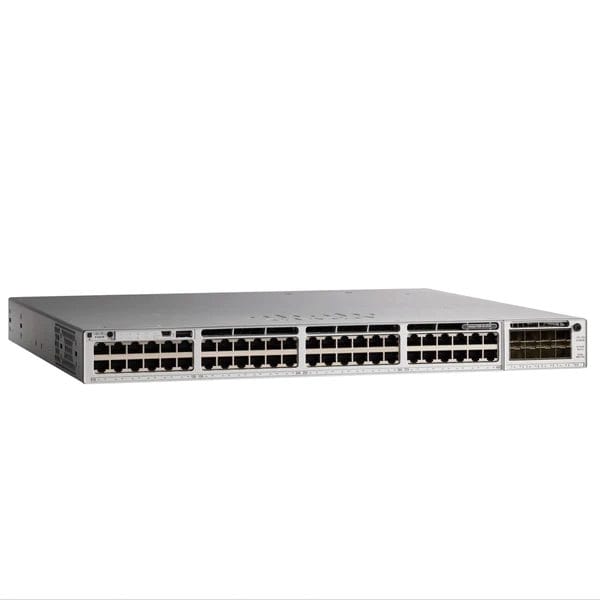

Cisco C9200L-48P-4G-E-WS Catalyst 9200L Switch – 48x 1G PoE+, 4x 1G SFP, Certified Refurbished

About the C9200L-48P-4G-E-WS

As a Certified Refurbished unit, the C9200L-48P-4G-E-WS carries the same hardware and software tier as the new C9200L-48P-4G-E: 48 PoE+ copper ports at up to 1G, four fixed 1G SFP uplinks and Network Essentials on Cisco IOS XE. The C9200L-48P-4G-A is the new model with Network Advantage.

The included PWR-C5-1KWAC supply gives 740 W of PoE, and a second supply raises the budget to 1440 W. Two PWR-C5-715WDC DC supplies give 970 W. It switches at 104 Gbps and stacks with up to 8 9200L switches over StackWise-80 at 80 Gbps.

What’s included

• C9200L-48P-4G-E-WS switch, Certified Refurbished, with the Network Essentials software tier
• 1000 W AC power supply (PWR-C5-1KWAC)

Sold separately

• An optional second supply for up to 1440 W of PoE
• The C9200L-STACK-KIT and stack cables to stack it

Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.

C9200L-48P-4G-E-WS specifications

Downlink ports	48× 10/100/1000 PoE+ (full PoE+)
Uplink ports	4× 1G SFP (fixed)
PoE budget	740 W with 1× PWR-C5-1KWAC (default); 485 W with 1× PWR-C5-715WDC= (spare-order DC option); up to 1440 W with two power supplies
Stacking	StackWise-80, 80 Gbps; up to 8 members (C9200L only); stack kit sold separately
Switching capacity	104 Gbps
Forwarding rate	77.38 Mpps
Power supply	1000 W AC PWR-C5-1KWAC included; second supply optional
Form factor	1U rack-mount; 1.73 × 17.5 × 12.9 in (4.4 × 44.5 × 32.9 cm) (H × W × D) with power supply and fans
Management	Cisco IOS XE (CLI, WebUI)
Feature tier	Network Essentials
PoE: primary supply (PWR-C5-715WDC=) + a second supply	second PWR-C5-715WDC=: 970 W
Dimensions	1.73 × 17.5 × 11.3 in (4.4 × 44.5 × 28.8 cm)
Weight	10.58 lb (4.80 kg)

Other versions of this model

• C9200L-48P-4G-A Network Advantage$3,850.00 · In stock
• C9200L-48P-4G-E Network Essentials$2,749.65 · In stock
• C9200L-48P-4G-A-WS Certified Refurbished$1,749.90

Compare Catalyst 9200L models

Swipe the table sideways to see every column.

Model	Ports	Uplinks	PoE budget	Price
C9200L-48P-4G-E same hardware, new	48× 10/100/1000 PoE+ (full PoE+)	4× 1G SFP	740 W	$2,749.65 · In stock
C9200L-24P-4G-E	24× 10/100/1000 PoE+ (full PoE+)	4× 1G SFP	370 W	$2,350.00 · In stock
C9200L-24P-4X-E	24× 10/100/1000 PoE+ (full PoE+)	4× 1G/10G SFP/SFP+	370 W	$3,049.99
C9200L-24PXG-4X-E	24× PoE+: 8× multigigabit (up to 10G) + 16× up to 1G	4× 1G/10G SFP/SFP+	370 W	$7,950.42 · In stock
C9200L-24T-4G-E	24× 10/100/1000, data only	4× 1G SFP	None	$1,950.00 · In stock
C9200L-24T-4X-E	24× 10/100/1000, data only	4× 1G/10G SFP/SFP+	None	$2,275.99
C9200L-48P-4X-E	48× 10/100/1000 PoE+ (full PoE+)	4× 1G/10G SFP/SFP+	740 W	$3,850.00 · In stock
C9200L-48PXG-4X-E	48× PoE+: 12× multigigabit (up to 10G) + 36× up to 1G	4× 1G/10G SFP/SFP+	740 W	$6,273.07
C9200L-48T-4G-E	48× 10/100/1000, data only	4× 1G SFP	None	$2,450.00 · In stock
C9200L-48T-4X-E	48× 10/100/1000, data only	4× 1G/10G SFP/SFP+	None	$3,749.99 · In stock
C9200L-24PXG-2Y-E	24× PoE+: 8× multigigabit (up to 10G) + 16× up to 1G	2× 1G/10G/25G SFP/SFP+/SFP28	370 W	Ask for a quote
C9200L-48PL-4G-E	48× 10/100/1000, partial PoE+	4× 1G SFP	370 W	Ask for a quote
C9200L-48PL-4X-E	48× 10/100/1000, partial PoE+	4× 1G/10G SFP/SFP+	370 W	Ask for a quote
C9200L-48PXG-2Y-E	48× PoE+: 8× multigigabit (up to 10G) + 40× up to 1G	2× 1G/10G/25G SFP/SFP+/SFP28	740 W	Ask for a quote

Compatible parts

Power supplies
PWR-C5-1KWAC	1000 W AC power supply	$1,350.00 · In stock
PWR-C5-715WDC	715 W DC power supply	$1,148.61
Stack kits
C9200L-STACK-KIT	StackWise-80, 80 Gbps	$742.00 · In stock
Stack cables
STACK-T4-50CM	Data stack cable, 50 cm	$57.43
STACK-T4-1M	Data stack cable, 1 m	$114.86
STACK-T4-3M	Data stack cable, 3 m	$172.29
Rack mount kits
REC-KIT-T1=	Recessed 1RU rack mount	Ask for a quote
Accessory
C9K-ACC-RBFT	Accessory	Ask for a quote
CAB-GUIDE-1RU	1RU cable management guides	Ask for a quote

Common questions

Is the C9200L-48P-4G-E-WS the same as the C9200L-48P-4G-E?

Yes, in hardware and software tier. This one is Certified Refurbished.

Does the C9200L-48P-4G-E-WS need a network module?

No. Its four 1G SFP uplinks are built into the switch.
