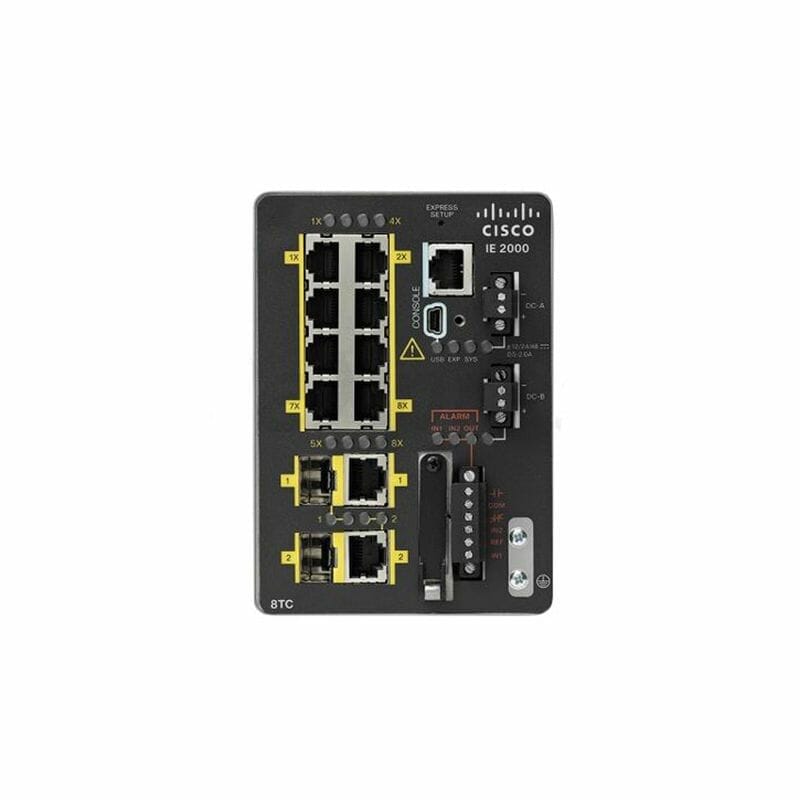

Cisco IE-2000-8TC-G-B IE2000 Industrial Switch – 8x 100M, 2x 1G Combo, LAN Base

Name: Cisco IE-2000-8TC-G-B IE2000 8-Port Switch
Brand: Cisco
SKU: IE-2000-8TC-G-B
Price: 1645.21 USD
Availability: InStock

$1,645.21List price: $2,355.00

In stock (1) Ships today if ordered by 3 PM ET

ConditionNew

Warranty90 days

ShippingFree (US)

ReturnsRMA required · See policy

SKU: IE-2000-8TC-G-B Categories: Cisco, Industrial, Switches

Description

About the IE-2000-8TC-G-B

On the IE-2000-8TC-G-B, the two uplinks are 1G combo ports, each one SFP or RJ45, alongside eight 10/100 Fast Ethernet copper downlinks. The series maximums are up to 7.6 Gbps of switching capacity and up to 5.66 Mpps of forwarding with 64-byte packets, at line rate at all packet sizes. It runs LAN Base.

It takes DC input from a DIN-rail power supply, in options from 50 W to 480 W. The PWR-IE65W-PC-AC= and PWR-IE240W-PCAC-L are two of the supplies in its list below.

It meets IEEE 1613 and IEC 61850-3 (KEMA) for substations, and its hazardous-location coverage needs a cabinet enclosure. The IE-3100-8T2C-E is its newer model.

What’s included

IE-2000-8TC-G-B switch

Sold separately

A DIN-rail power supply, such as the PWR-IE65W-PC-AC=
SFP transceivers, if you use the SFP side of the 1G combo uplinks

Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.

IE-2000-8TC-G-B specifications

Downlink ports	8× 10/100 Fast Ethernet copper
Uplink ports	2× Gigabit combo (SFP or RJ45)
Switching capacity	Up to 7.6 Gbps (series maximum)
Forwarding rate	Up to 5.66 Mpps with 64-byte packets, line rate at all packet sizes (series maximum)
Power supply	DC input; DIN-rail power supplies (50 W to 480 W options)
Management	Cisco IOS CLI; Web Device Manager; Express Setup
Feature tier	LAN Base
PoE budget	None (no PoE ports)
Operating temperature	-40 to +70°C (vented enclosure, 40 LFM); -40 to +60°C (sealed enclosure); -34 to +75°C (fan or blower-equipped enclosure, 200 LFM)

Full specifications (6)

Industrial certifications

Hazardous locations	ANSI/ISA 12.12.01 Class 1, Div 2 A-D; ATEX (EN 60079-0, -15) Class 1, Zone 2 A-D; cabinet enclosure required
Substation	IEEE 1613; IEC 61850-3 (KEMA)
Railway	EN 50155; EN 50121-3-2; EN 50121-4
Traffic and rail signalling	NEMA TS-2
Marine	DNV
Ingress protection	IP30

Compare IE2000 models

Swipe the table sideways to see every column.

Model	Ports	Uplinks	PoE budget	Software tier	Price
IE-2000-8TC-G-B this page	8× 10/100 Fast Ethernet copper	2× Gigabit combo (SFP or RJ45)	None	LAN Base	$1,645.21 · In stock
IE-2000-16PTC-G-E	16× 10/100 Fast Ethernet copper (4 of them PoE/PoE+)	2× Gigabit combo (SFP or RJ45)	4× PoE/PoE+ ports	LAN Base	$2,250.00 · In stock
IE-2000-16PTC-G-L	16× 10/100 Fast Ethernet copper (4 of them PoE/PoE+)	2× Gigabit combo (SFP or RJ45)	4× PoE/PoE+ ports	LAN Lite	$3,304.84
IE-2000-16PTC-G-NX	16× 10/100 Fast Ethernet copper (4 of them PoE/PoE+)	2× Gigabit combo (SFP or RJ45)	4× PoE/PoE+ ports	Enhanced LAN Base	$2,740.00 · In stock
IE-2000-16TC-B	16× 10/100 Fast Ethernet copper	2× FE combo (SFP or RJ45) + 2× FE SFP	None	LAN Base	$2,775.00 · In stock
IE-2000-16TC-G-E	16× 10/100 Fast Ethernet copper	2× Gigabit combo (SFP or RJ45) + 2× FE SFP	None	LAN Base	$2,150.00 · In stock
IE-2000-16TC-G-L	16× 10/100 Fast Ethernet copper	2× Gigabit combo (SFP or RJ45) + 2× FE SFP	None	LAN Lite	$1,995.00
IE-2000-16TC-G-N	16× 10/100 Fast Ethernet copper	2× Gigabit combo (SFP or RJ45) + 2× FE SFP	None	Enhanced LAN Base	$2,410.00
IE-2000-16TC-G-X	16× 10/100 Fast Ethernet copper	2× Gigabit combo (SFP or RJ45) + 2× FE SFP	None	LAN Base	$2,796.37
IE-2000-16TC-L	16× 10/100 Fast Ethernet copper	2× FE combo (SFP or RJ45) + 2× FE SFP	None	LAN Lite	$1,775.00 · In stock
IE-2000-4S-TS-G-B	4× 100 Mbps SFP (FE)	2× Gigabit SFP		LAN Base	$995.00
IE-2000-4S-TS-G-L	4× 100 Mbps SFP (FE)	2× Gigabit SFP		LAN Lite	$480.00 · In stock
IE-2000-4T-B	6× 10/100 Fast Ethernet copper	None separate (all six ports copper)		LAN Base	$879.00
IE-2000-4T-G-B	4× 10/100 Fast Ethernet copper	2× Gigabit copper		LAN Base	$990.25
IE-2000-4T-G-L	4× 10/100 Fast Ethernet copper	2× Gigabit copper		LAN Lite	$946.11
IE-2000-4T-L	6× 10/100 Fast Ethernet copper	None separate (all six ports copper)		LAN Lite	$831.05
IE-2000-4TS-B	4× 10/100 Fast Ethernet copper	2× 100 Mbps SFP (FE)		LAN Base	$789.37
IE-2000-4TS-G-B	4× 10/100 Fast Ethernet copper	2× Gigabit SFP		LAN Base	$890.39
IE-2000-4TS-G-L	4× 10/100 Fast Ethernet copper	2× Gigabit SFP		LAN Lite	$929.00
IE-2000-4TS-L	4× 10/100 Fast Ethernet copper	2× 100 Mbps SFP (FE)		LAN Lite	$865.66
IE-2000-8TC-B	8× 10/100 Fast Ethernet copper	2× FE combo (SFP or RJ45)	None	LAN Base	$1,250.00
IE-2000-8TC-G-E	8× 10/100 Fast Ethernet copper	2× Gigabit combo (SFP or RJ45)	None	LAN Base	$2,050.00
IE-2000-8TC-G-L	8× 10/100 Fast Ethernet copper	2× Gigabit combo (SFP or RJ45)	None	LAN Lite	$1,348.82
IE-2000-8TC-G-N	8× 10/100 Fast Ethernet copper	2× Gigabit combo (SFP or RJ45)	None	Enhanced LAN Base	$1,860.83
IE-2000-8TC-L	8× 10/100 Fast Ethernet copper	2× FE combo (SFP or RJ45)	None	LAN Lite	$1,701.20 · In stock

Compatible parts

Power supplies
PWR-IE50W-AC-L	50 W AC, no PoE	$395.00 · In stock
PWR-IE50W-AC=	50 W, no PoE	$390.00 · In stock
PWR-IE65W-PC-AC=	65 W, PoE-capable	$240.00
PWR-IE65W-PC-DC	65 W DC, PoE-capable	$524.63 · In stock
PWR-IE170W-PC-AC	170 W, PoE-capable	$695.00 · In stock
PWR-IE170W-PC-DC	170 W DC, PoE-capable	$838.33
PWR-IE240W-PCAC-L	240 W, PoE-capable	$1,095.00
PWR-IE480W-PCAC-L	480 W, PoE-capable	$1,985.99 · In stock
Rack mount kits
STK-RACK-DINRAIL	19 in. DIN rail mount kit	$225.00 · In stock
SD card
SD-IE-1GB=	ruggedized SD memory card	Ask for a quote
