Cisco PWR-IE170W-PC-AC 170 W AC to DC or High DC to DC Power Supply – DIN rail
$695.00List price: $1,305.00
In stock (8) Ships today if ordered by 3 PM ET
Buying in volume or need it refurbished? Ask for a quote. Or call (984) 225-1600.

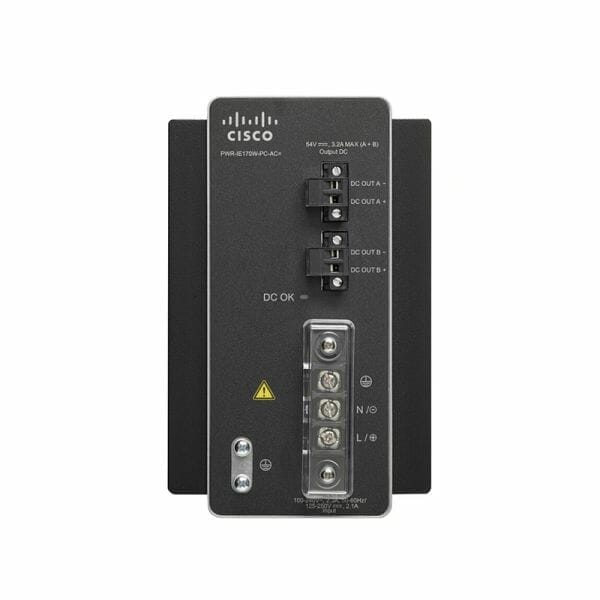

About the PWR-IE170W-PC-AC
The PWR-IE170W-PC-AC converts AC or high DC to 54 V DC at 3.2 A, for 170 W of output with PoE support. Input is AC 100–240 V at 2.3 A, 50–60 Hz, or DC 125–250 V at 2.1 A, and it is hardwired.
It fits switches such as the IE-3400-8P2S-E, IE-3300-8P2S-E and IE-4000-8GT4G-E; the full list of models is below. The supply measures 150 × 96 × 146 mm (5.90 × 3.77 × 5.74 in), weighs 3.88 lb and is IP20. It is approved for Class 1, Div 2/Zone 2 installations, and output holdup time is 20ms.
What’s included
- PWR-IE170W-PC-AC power supply
Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.
PWR-IE170W-PC-AC specifications
| Type | 170 W AC to DC or High DC to DC power supply, DIN rail |
|---|---|
| Output | 170 W at 54 V DC |
| PoE support | Yes |
Full specifications (9)
Power and PoE
| Power input | AC 100–240 V/2.3 A, 50–60 Hz or DC 125–250 V/2.1 A |
|---|
Power
| Output rating | 54 V DC, 3.2 A |
|---|---|
| Input receptacle | Hardwired |
| Output holdup time | 20ms |
Environment
| IP rating | IP20 |
|---|---|
| Operating temperature | -40°C to +75°C |
| Hazardous locations | Approved for Class 1, Div 2/Zone 2 installations |
Physical
| Dimensions (H × W × D) | 150 × 96 × 146 mm (5.90 × 3.77 × 5.74 in) |
|---|---|
| Weight | 3.88 lb (1.76 kg) |
Fits these models
- IE-1000-4T1T-LM
- IE-2000-16PTC-G-E
- IE-2000-16PTC-G-L
- IE-2000-16PTC-G-NX
- IE-2000-16TC-B
- IE-2000-16TC-G-E
- IE-2000-16TC-G-L
- IE-2000-16TC-G-N
- IE-2000-16TC-G-X
- IE-2000-16TC-L
- IE-2000-4S-TS-G-B
- IE-2000-4S-TS-G-L
- IE-2000-4T-B
- IE-2000-4T-G-B
- IE-2000-4T-G-L
- IE-2000-4T-L
- IE-2000-4TS-B
- IE-2000-4TS-G-B
- IE-2000-4TS-G-L
- IE-2000-4TS-L
- IE-2000-8TC-B
- IE-2000-8TC-G-B
- IE-2000-8TC-G-E
- IE-2000-8TC-G-L
- IE-2000-8TC-G-N
- IE-2000-8TC-L
- IE-2000U-4S-G
- IE-2000U-4T-G
- IE-3200-8P2S-E
- IE-3200-8T2S-E
- IE-3300-8P2S-A
- IE-3300-8P2S-E
- IE-3300-8T2S-A
- IE-3300-8T2S-E
- IE-3300-8T2X-A
- IE-3300-8T2X-E
- IE-3300-8U2X-A
- IE-3300-8U2X-E
- IE-3400-8P2S-A
- IE-3400-8P2S-E
- IE-3400-8T2S-A
- IE-3400-8T2S-E
- IE-4000-16GT4G-E
- IE-4000-4GC4GP4G-E
- IE-4000-4S8P4G-E
- IE-4000-4T4P4G-E
- IE-4000-8GS4G-E
- IE-4000-8GT4G-E
- IE-4000-8S4G-E
Models without a link: ask us for a quote, answered the same business day.
Common questions
Does the PWR-IE170W-PC-AC support PoE?
Yes. It delivers 170 W at 54 V DC with PoE support.
Can the PWR-IE170W-PC-AC run from DC?
Yes, from high DC: 125–250 V at 2.1 A. It also takes AC 100–240 V at 2.3 A, 50–60 Hz.
Which switches does the PWR-IE170W-PC-AC fit?
The list below has every model, including the IE-4000-8S4G-E and IE-3200-8P2S-E.
