IE-3200-8P2S-E

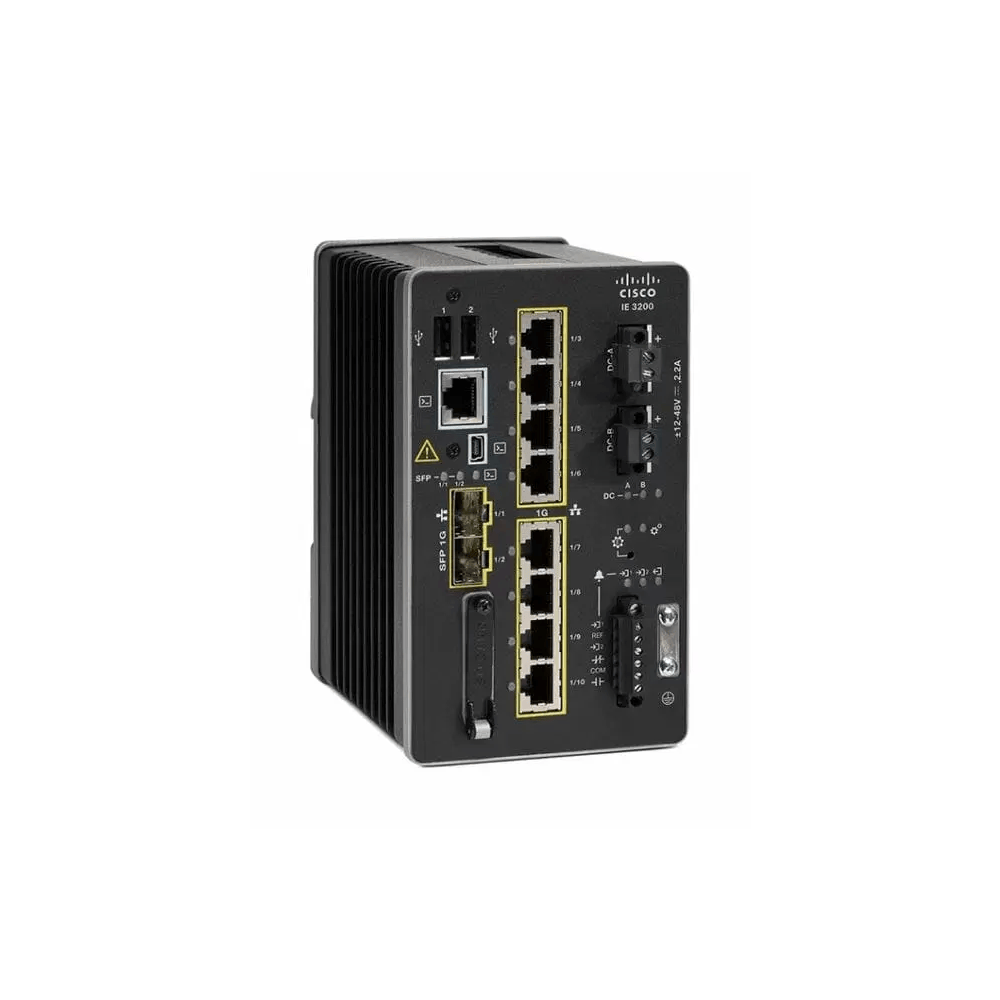

Name: Cisco IE-3200-8P2S-E Managed Switch with PoE+ & Gigabit SFP
Brand: Cisco
SKU: IE-3200-8P2S-E
Price: 2995.00 USD
Availability: InStock

$2,995.00

Cisco – Network Essentials – switch – managed – 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP – DIN rail mountable – PoE+ (240 W) – DC power

Availability: 3 unit(s) In Stock

Questions? Call (984) 225-1600

SKU: IE-3200-8P2S-E Categories: Cisco, Industrial, Switches

Description

The Cisco IE-3200-8P2S-E is an industrial Ethernet switch designed for rugged environments and industrial applications. It offers reliable and high-performance connectivity with advanced features tailored for industrial networking requirements.

The IE-3200-8P2S-E switch features eight Fast Ethernet (10/100BASE-TX) PoE+ ports, providing ample connectivity options for devices such as IP cameras, wireless access points, and industrial sensors. These ports can deliver both power and data to connected devices, simplifying deployment and reducing the need for additional power sources.

In addition to the PoE+ ports, the switch includes two Gigabit Ethernet (10/100/1000BASE-T or SFP) combo ports, offering flexibility for high-speed uplink connectivity or fiber optic connections. This enables efficient data transfer and connectivity to other network devices or the core network.

Overall, the Cisco IE-3200-8P2S-E switch is a reliable and ruggedized networking solution for industrial environments. Its combination of advanced features, PoE capabilities, rugged design, and industrial certifications make it an ideal choice for industries such as manufacturing, transportation, energy, and utilities, where network reliability and performance are crucial.

Product Description	Cisco Catalyst IE3200 Rugged Series – Network Essentials – switch – 8 ports – managed
Device Type	Switch – 8 ports – managed
Subtype	Gigabit Ethernet
Ports	8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
Power Over Ethernet (PoE)	PoE+
PoE Budget	240 W
Capacity	SPAN sessions: 256 ¦ IGMP groups: 1000 ¦ STP instances: 128
MAC Address Table Size	8K entries
Routing Protocol	IGMPv2, IGMP, IGMPv3, MSTP, RSTP, STP
Remote Management Protocol	SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, SCP, NTP
Features	DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), IPv4 support, fanless, LACP support, LLDP support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), 802.1x authentication, Precision Time Protocol (PTP), IGMP filtering, IP source guard, Resilient Ethernet Protocol (REP), SmartPort technology, Internet Control Message Protocol (ICMP), CIP Sync (IEEE 1588), IGMP querier, Voice VLAN, Guest VLAN, User Datagram Protocol (UDP), VLAN Trunking Protocol (VTP) v.3, BPDU Guard, Dying Gasp, VLAN Trunking Protocol (VTP) v.2
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2
Power	DC 9.6 – 60 V 5.5 A
Power Redundancy	Yes
Dimensions (WxDxH)	3.6 in x 5.3 in x 6 in
Weight	3.75 lbs

EXTENDED SPECIFICATIONS

General

Device Type	Switch – 8 ports – managed
Enclosure Type	DIN rail mountable
Subtype	Gigabit Ethernet
Ports	8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
Power Over Ethernet (PoE)	PoE+
PoE Budget	240 W
Capacity	SPAN sessions: 256 ¦ IGMP groups: 1000 ¦ STP instances: 128
MAC Address Table Size	8K entries
Routing Protocol	IGMPv2, IGMP, IGMPv3, MSTP, RSTP, STP
Remote Management Protocol	SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, SCP, NTP
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+
Features	DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), IPv4 support, fanless, LACP support, LLDP support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), 802.1x authentication, Precision Time Protocol (PTP), IGMP filtering, IP source guard, Resilient Ethernet Protocol (REP), SmartPort technology, Internet Control Message Protocol (ICMP), CIP Sync (IEEE 1588), IGMP querier, Voice VLAN, Guest VLAN, User Datagram Protocol (UDP), VLAN Trunking Protocol (VTP) v.3, BPDU Guard, Dying Gasp, VLAN Trunking Protocol (VTP) v.2
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2
RAM	2 GB
Flash Memory	1.5 GB
Built-in Devices	SD card reader

Expansion / Connectivity

Interfaces	8 x 1000Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP ¦ 1 x serial (RS-232) RJ-45 ¦ 1 x mini-USB Type B
Expansion Slots	1 (total) / 1 (free) x SD Memory Card

Power

Power Device	Internal power supply
Power Redundancy	Yes
Voltage Required	DC 9.6 – 60 V
Electric Current Required	5.5 A
Power Consumption Operational	35 Watt

Miscellaneous

MTBF

613,125 hours

Compliant Standards

EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, IEC 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, EN 61326-1, EN 61000-4-16, EN 61000-4-29, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, VCCI Class A, CISPR 11 class A, EN 61000-4-10, EN 61000-4-18, IEC 61850-3, FCC CFR47 Part 15 B Class A, IEEE 1613, CNS 13438 Class A, EN 300 386, KN35, UL/CSA60950-1, AS/NZS CISPR 32 Class A, KN32 Class A, IEC 62368-1, IEEE 1588, EN 60068-2-52, EN 60068-2-60, EN 60079-15, CB 60950-1, IEC 60079-0, IEC 60079-15, EN 60079-0, EN 55032/CISPR 32 Class A, CISPR 35, EN 61000-4-17, UL 121201, UL/CSA/EN 62368-1, EN 61850-3, UL/CSA 61010-2-201, IEC/EN 61010-2-201, UL/CSA 60079-0, UL/CSA 60079-15

Dimensions & Weight

Width	3.6 in
Depth	5.3 in
Height	6 in
Weight	3.75 lbs
