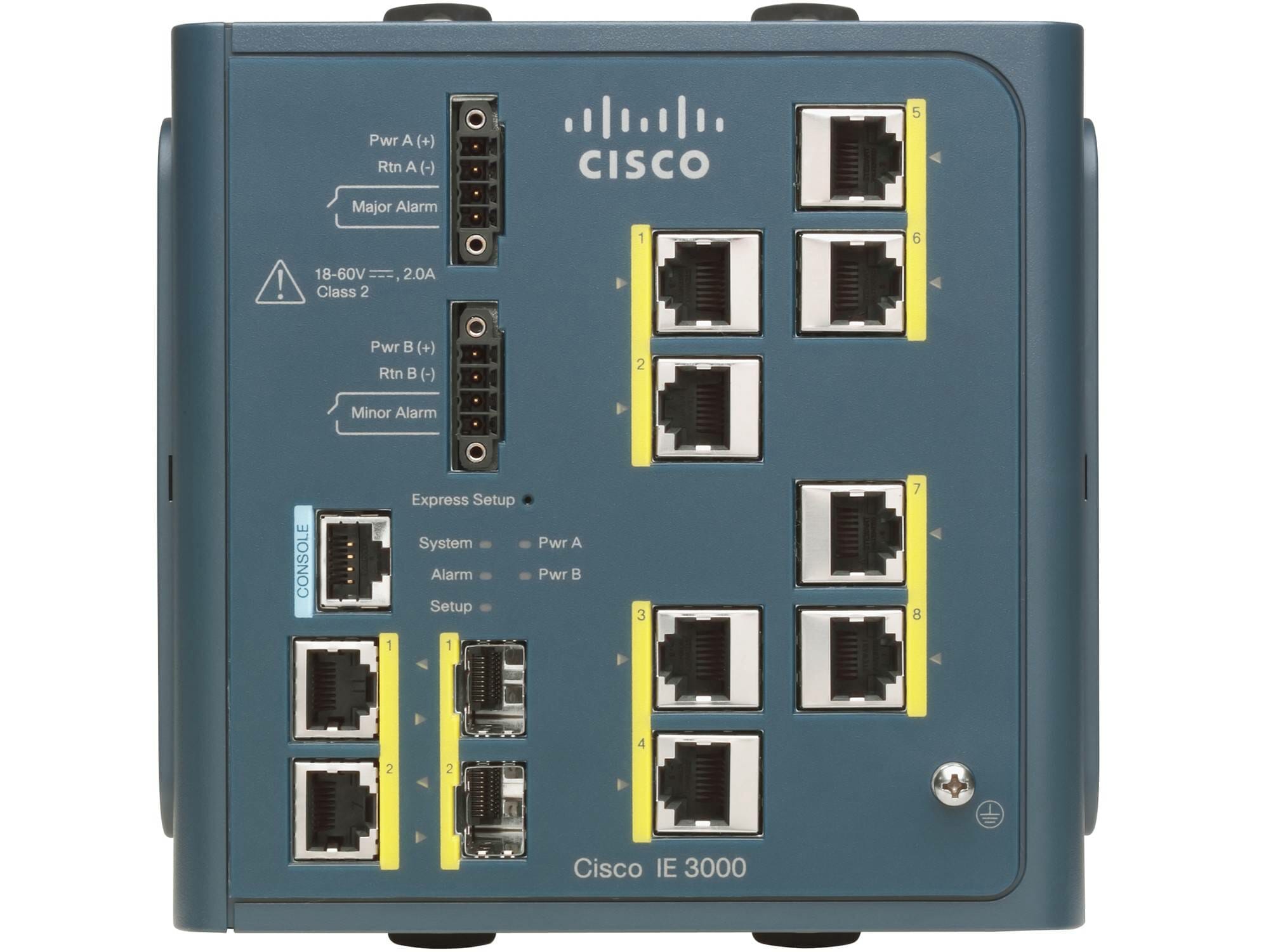

Cisco IE-3000-8TC-E IE3000 Industrial Switch – 8x 100M, 2x 1G Combo

About the IE-3000-8TC-E

Two dual-purpose uplinks, each 10/100/1000 copper or SFP fiber with one active at a time, sit alongside the eight 10/100 Ethernet ports on the IE-3000-8TC-E. The IE-3000-8TC is the other version of this model.

Marine type approval covers BV, DNV, Korean Register and Lloyd’s Register. It also meets IEEE 1613 and IEC 61850-3 for substations and NEMA TS-2 for traffic and rail signaling, with IP20 ingress protection.

It runs on 18 to 60 VDC, or adds the PWR-IE50W-AC= expansion power module. Up to two expansion modules fit, such as the IEM-3000-8FM= or the IEM-3000-4PC-4TC= with 4× PoE/PoE+ and 4× non-PoE.

What’s included

• IE-3000-8TC-E switch

Sold separately

• Expansion modules, such as the IEM-3000-8FM=
• The PWR-IE50W-AC= expansion power module
• SFP transceivers for the fiber side of the uplinks

Not sure which model fits? Call (984) 225-1600 or request a quote and we’ll answer the same business day.

IE-3000-8TC-E specifications

Downlink ports	8× 10/100 Ethernet
Uplink ports	2× dual-purpose uplinks (each is 10/100/1000 copper or SFP fiber, one active at a time)
Switching capacity	16 Gbps switching fabric
Forwarding rate	6.5 Mpps (64-byte packets)
Power supply	DC input 18 to 60 VDC; optional PWR-IE50W-AC= expansion power module
Form factor	DIN-rail; 6.0 in W × 5.8 in H × 4.4 in D (152mm W × 147mm H × 112mm D); 4.4 lb (2.0 kg); supports up to two expansion modules
Management	Cisco IOS CLI; Device Manager (web-based); Express Setup
Operating temperature	-40 to +70°C (vented enclosure, 40 LFM); -40 to +60°C (sealed enclosure)

Full specifications (6)

Industrial certifications

Hazardous locations	UL/CSA 60079-0, -15 Class 1, Div 2 A-D; ATEX (EN 60079-0, -15) Class 1, Zone 2 A-D; cabinet enclosure required
Substation	IEEE 1613; IEC 61850-3
Railway	EN 50155; EN 50121-3-2; EN 50121-4
Traffic and rail signalling	NEMA TS-2
Marine	Type approval: BV, DNV, Korean Register, Lloyd's Register
Ingress protection	IP20

Other versions of this model

• IE-3000-8TC New$1,151.00

Compare IE3000 models

Swipe the table sideways to see every column.

Model	Ports	Price
IE-3000-8TC-E this page	8× 10/100 Ethernet	$3,851.00
IE-3000-4TC	4× 10/100 Ethernet	$1,391.00
IE-3000-4TC-E	4× 10/100 Ethernet	$3,426.00
IE-3000-8TC	8× 10/100 Ethernet	$1,151.00

Compatible parts

Power supplies
PWR-IE3000-AC=	AC/DC power converter, 24 V DC output	$191.31
PWR-IE50W-AC-IEC=	50 W AC with IEC plug, no PoE	$599.57
PWR-IE50W-AC=	expansion power	$390.00 · In stock
PWR-IE65W-PC-AC=	65 W AC, PoE-capable	$240.00
PWR-IE65W-PC-DC	65 W DC, PoE-capable	$524.63 · In stock
Rack mount kits
STK-RACKMNT-2955=	DIN rail adapter for rack mounting	Ask for a quote
Accessory
BMP-IE3000=	DIN rail clip bumper 4-pack, spare	Ask for a quote
DINCLP-IE3000=	DIN rail clip 4-pack, spare	Ask for a quote
LPNL-IE3000=	Spare left panel	Ask for a quote
PWR-IE3000-CLP=	Spare power connector clip	Ask for a quote
PWR-IE3000-CNCT=	Spare power connector	Ask for a quote
RPNL-IE3000=	Spare right panel	Ask for a quote
Expansion module
IEM-3000-4PC-4TC=	4× PoE/PoE+ + 4× non-PoE	Ask for a quote
IEM-3000-4PC=	4× 10/100 PoE/PoE+	Ask for a quote
IEM-3000-4SM=	4× 100 Mb SFP	Ask for a quote
IEM-3000-8FM=	8× 100 FX fiber	$467.22
IEM-3000-8SM=	8× 100 Mb SFP	Ask for a quote
IEM-3000-8TM	8× 10/100 copper	$428.34
Fiber cable
CAB-SM-LCSC-1M	1 m single-mode LC-to-SC fiber cable	Ask for a quote
CAB-SM-LCSC-5M	5 m single-mode LC-to-SC fiber cable	Ask for a quote
Storage
CF-IE3000=	IE 3000 Compact Flash	Ask for a quote

Common questions

What marine approvals does the IE-3000-8TC-E have?

Type approval from BV, DNV, Korean Register and Lloyd’s Register.

How is the IE-3000-8TC-E managed?

Through the Cisco IOS CLI, the web-based Device Manager or Express Setup.
