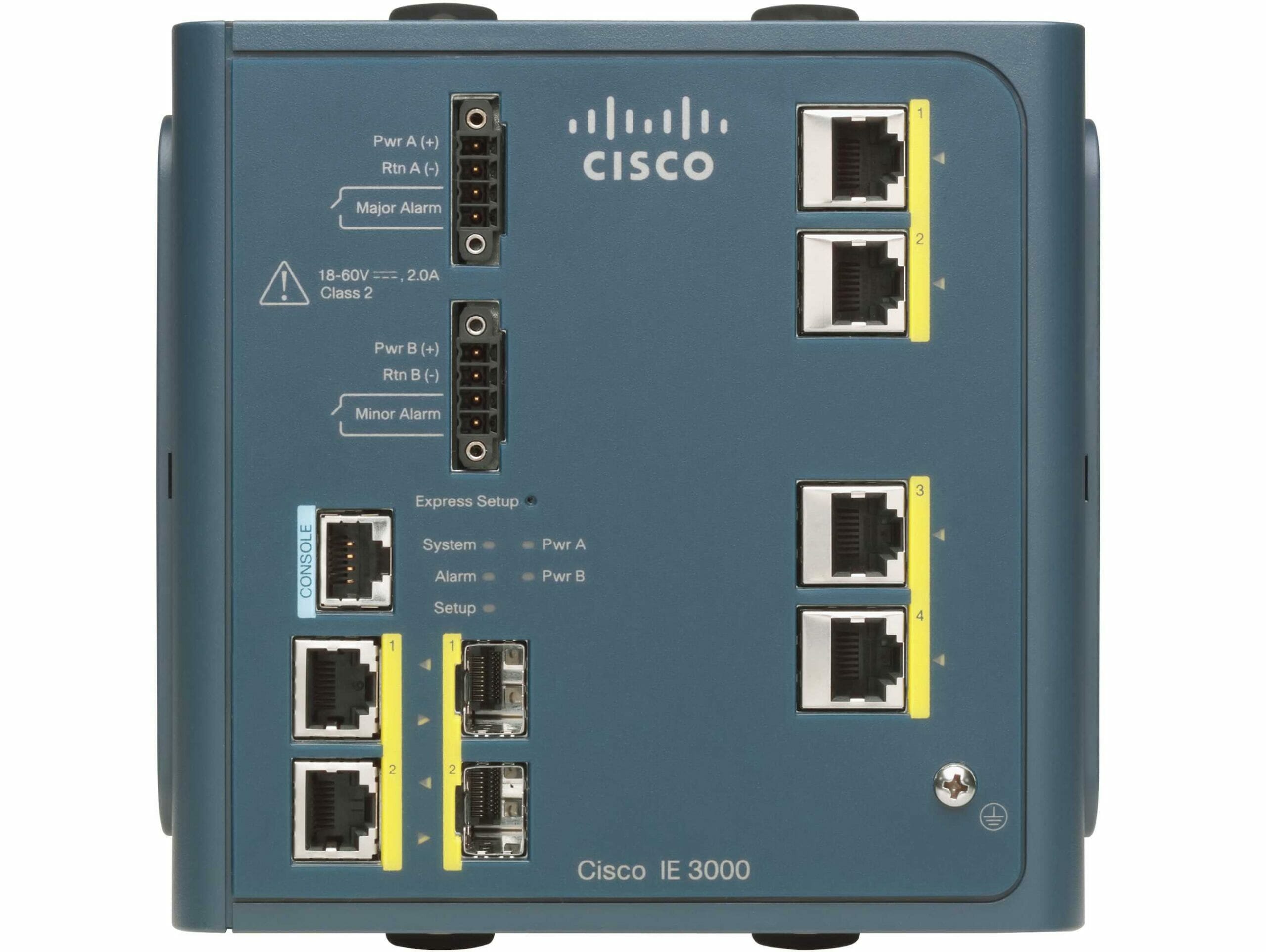

Cisco IE-3000-4TC-E – Switch – L3 – managed – 4 x 10/100 + 2 x combo Gigabit SFP – DIN rail mountable – DC power

Name: Cisco IE-3000-4TC-E L3 Managed Switch - 4x10/100, 2x Gigabit SFP
Brand: Cisco
SKU: IE-3000-4TC-E
Price: 3426.00 USD
Availability: OutOfStock

$3,426.00

On order Ask for price and lead time

ConditionNew

Warranty90 days

ShippingFree (US)

ReturnsRMA required · See policy

SKU: IE-3000-4TC-E Categories: Cisco, Industrial, Switches

Description

The Cisco IE-3000-4TC-E is a rugged industrial Ethernet switch designed for use in harsh environments. It is part of the Cisco Industrial Ethernet (IE) 3000 series of switches, which are built to withstand extreme temperatures, vibration, and shock.

Unlike other switches in the IE 3000 series, the IE-3000-4TC-E does not support Power over Ethernet (PoE) or PoE+. Instead, it has four 10/100Base-TX Ethernet ports, allowing businesses to easily connect devices such as IP cameras, access points, and VoIP phones in industrial settings.

In addition to its Ethernet connectivity, the IE-3000-4TC-E also has two Gigabit Ethernet SFP ports for fiber optic connections, making it suitable for a variety of industrial applications.

Overall, the Cisco IE-3000-4TC-E is a reliable and versatile industrial Ethernet switch that can withstand the challenges of harsh industrial environments, while providing fast and reliable connectivity without the need for PoE.

MAIN SPECIFICATIONS

Product Description	Cisco Industrial Ethernet 3000 Series – switch – 4 ports – managed
Device Type	Switch – 4 ports – L3 – managed
Subtype	Fast Ethernet
Ports	4 x 10/100 + 2 x combo Gigabit SFP
Capacity	ACL entries: up to 512 ¦ MAC addresses (layer 2): up to 8000 ¦ MAC addresses (layer 3): up to 2000 ¦ IGMP groups (layer 2): up to 256 ¦ IGMP groups (layer 3): up to 1000 ¦ Unicast routes (layer 3): up to 3000
MAC Address Table Size	8K entries
Jumbo Frame Support	9018 bytes
Routing Protocol	OSPF, IGRP, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, PIM-SM, PIM-DM, EIGRP for IPv6, OSPF for IPv6, policy-based routing (PBR), RIPng
Remote Management Protocol	SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH-2
Features	VLAN support, IGMP snooping, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Virtual Route Forwarding-Lite (VRF-Lite), Dynamic ARP Inspection (DAI), PROFINET v2
Compliant Standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 1588v2
Power	DC 18 -60 V
Dimensions (WxDxH)	6 in x 4.4 in x 5.8 in
Weight	4.41 lbs

IE-3000-4TC-E – EXTENDED SPECIFICATIONS

General

Device Type	Switch – 4 ports – L3 – managed
Enclosure Type	DIN rail mountable
Subtype	Fast Ethernet
Ports	4 x 10/100 + 2 x combo Gigabit SFP
Capacity	ACL entries: up to 512 ¦ MAC addresses (layer 2): up to 8000 ¦ MAC addresses (layer 3): up to 2000 ¦ IGMP groups (layer 2): up to 256 ¦ IGMP groups (layer 3): up to 1000 ¦ Unicast routes (layer 3): up to 3000
MAC Address Table Size	8K entries
Jumbo Frame Support	9018 bytes
Routing Protocol	OSPF, IGRP, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, PIM-SM, PIM-DM, EIGRP for IPv6, OSPF for IPv6, policy-based routing (PBR), RIPng
Remote Management Protocol	SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH-2
Authentication Method	RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features	VLAN support, IGMP snooping, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Virtual Route Forwarding-Lite (VRF-Lite), Dynamic ARP Inspection (DAI), PROFINET v2
Compliant Standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 1588v2
RAM	128 MB
Flash Memory	64 MB
Status Indicators	Port status, system
