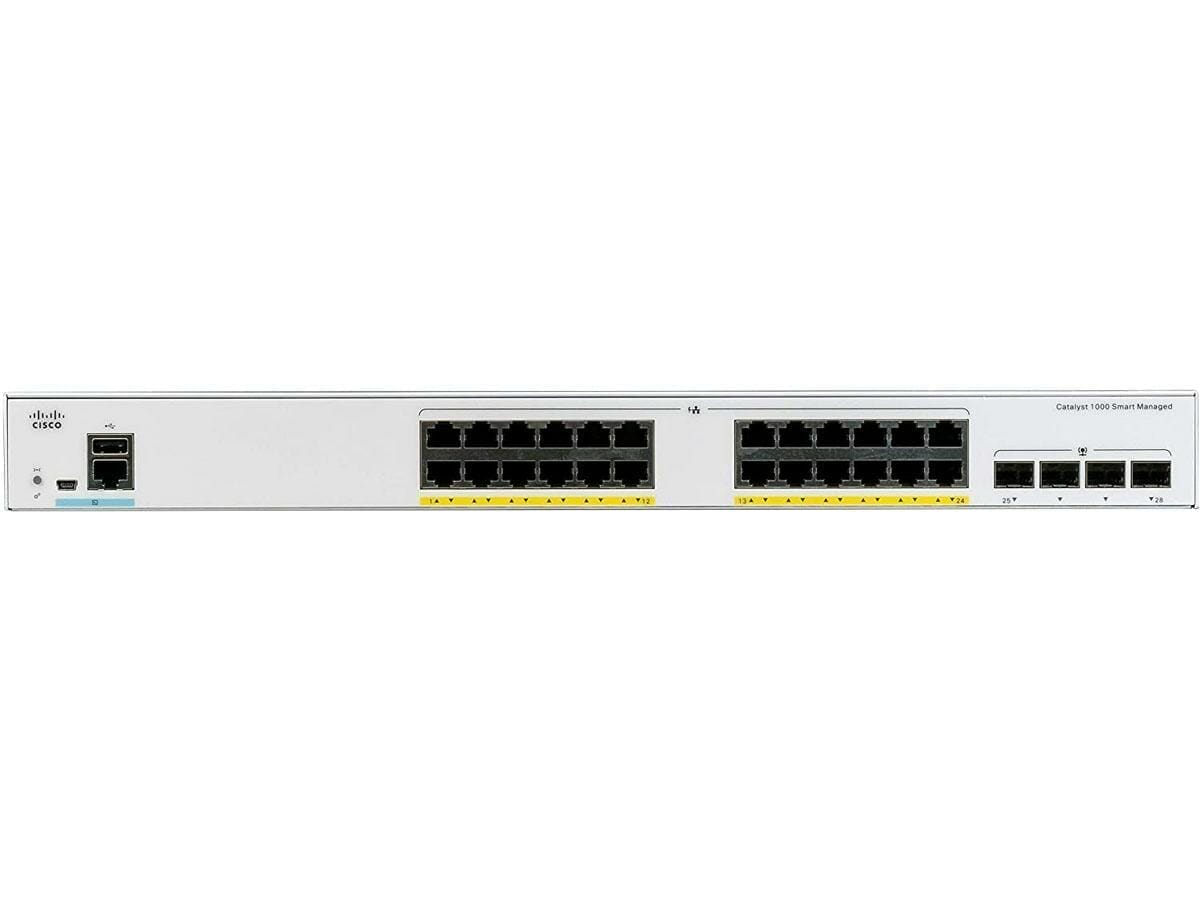

Cisco C1000FE-24T-4G-L – Excess – Switch – managed – 24 x 10/100 + 2 x combo Gigabit SFP/RJ-45 (uplink) + 2 x SFP (mini-GBIC) (uplink) – rack-mountable

The Cisco C1000FE-24T-4G-L is a versatile and high-performance switch designed for small to medium-sized businesses. It offers reliable and secure Ethernet connectivity, advanced features, and flexible deployment options.

The C1000FE-24T-4G-L switch provides 24 Fast Ethernet (FE) ports, offering reliable and high-speed connectivity for network devices. These ports support data transfer rates of up to 100 Mbps, making them suitable for various network applications.

In addition to the Fast Ethernet ports, the switch includes four Gigabit Ethernet uplink ports. These uplink ports enable high-speed connections to other switches or network devices, ensuring efficient data transfer and network performance.

The switch also features four Gigabit Ethernet combo ports, which can be used either as additional copper Ethernet ports or as SFP (Small Form-Factor Pluggable) slots for fiber-optic connections. This provides flexibility in network connectivity options, allowing you to choose the most suitable media type for your network requirements.

The compact form factor of the switch allows for flexible deployment options. It can be mounted on a desktop or rack-mounted, making it suitable for small office environments or network closets with limited space.

In summary, the Cisco C1000FE-24T-4G-L switch is a reliable and feature-rich solution for small to medium-sized businesses. Its combination of Fast Ethernet ports, Gigabit Ethernet uplink ports, advanced features, and flexible deployment options make it an ideal choice for organizations looking for efficient and secure Ethernet connectivity.

MAIN SPECIFICATIONS

Product Description Cisco Catalyst 1000FE-24T-4G-L – switch – 24 ports – managed – rack-mountable Device Type Switch – 24 ports – managed Enclosure Type Rack-mountable Subtype Fast Ethernet Ports 24 x 10/100 + 2 x combo Gigabit SFP/RJ-45 (uplink) + 2 x SFP (mini-GBIC) (uplink) Performance Forwarding bandwidth: 6.4 Gbps ¦ Switching bandwidth: 12.8 Gbps ¦ Forwarding rate (64-byte L3 packets): 9.52 Mpps Capacity IPv4 unicast direct routes: 542 ¦ IPv4 unicast indirect routes: 256 ¦ IPv6 unicast direct routes: 414 ¦ IPv6 unicast indirect routes: 128 ¦ IPv4 routes (Multicast): 1024 ¦ IPv6 groups (Multicast): 1024 ¦ IPv4/MAC security ACEs: 384 ¦ IPv6 security ACEs: 256 ¦ Active VLANs: 256 ¦ VLAN IDs: 4094 ¦ STP instances: 64 ¦ SPAN sessions: 4 ¦ MTU-L3 packet: 9198 byte MAC Address Table Size 16000 entries Jumbo Frame Support 10240 bytes Routing Protocol IGMP, MLDv2, MLD, MSTP, RSTP, STP Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS Features BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT) Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX Power AC 120/230 V (50/60 Hz) Dimensions (WxDxH) 17.3 in x 11.3 in x 1.7 in Weight 7.85 lbs



EXTENDED SPECIFICATIONS

General

Device Type Switch – 24 ports – managed Enclosure Type Rack-mountable Subtype Fast Ethernet Ports 24 x 10/100 + 2 x combo Gigabit SFP/RJ-45 (uplink) + 2 x SFP (mini-GBIC) (uplink) Performance Forwarding bandwidth: 6.4 Gbps ¦ Switching bandwidth: 12.8 Gbps ¦ Forwarding rate (64-byte L3 packets): 9.52 Mpps Capacity IPv4 unicast direct routes: 542 ¦ IPv4 unicast indirect routes: 256 ¦ IPv6 unicast direct routes: 414 ¦ IPv6 unicast indirect routes: 128 ¦ IPv4 routes (Multicast): 1024 ¦ IPv6 groups (Multicast): 1024 ¦ IPv4/MAC security ACEs: 384 ¦ IPv6 security ACEs: 256 ¦ Active VLANs: 256 ¦ VLAN IDs: 4094 ¦ STP instances: 64 ¦ SPAN sessions: 4 ¦ MTU-L3 packet: 9198 byte MAC Address Table Size 16000 entries Jumbo Frame Support 10240 bytes Routing Protocol IGMP, MLDv2, MLD, MSTP, RSTP, STP Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) Features BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT) Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX Processor X ARM: 800 MHz RAM 512 MB Flash Memory 256 MB Status Indicators Status, link/activity

Expansion / Connectivity

Interfaces 24 x 1000Base-T RJ-45 ¦ 2 x Gigabit LAN RJ-45/SFP uplink ¦ 2 x 1000Base-X SFP uplink ¦ 1 x management RJ-45 ¦ 1 x mini-USB Type B ¦ 1 x USB Type A

Power

Power Device Internal power supply Installed Qty 1 Voltage Required AC 120/230 V (50/60 Hz)

Miscellaneous

MTBF 2,026,793 hours Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A

Dimensions & Weight

Width 17.3 in Depth 11.3 in Height 1.7 in Weight 7.85 lbs
