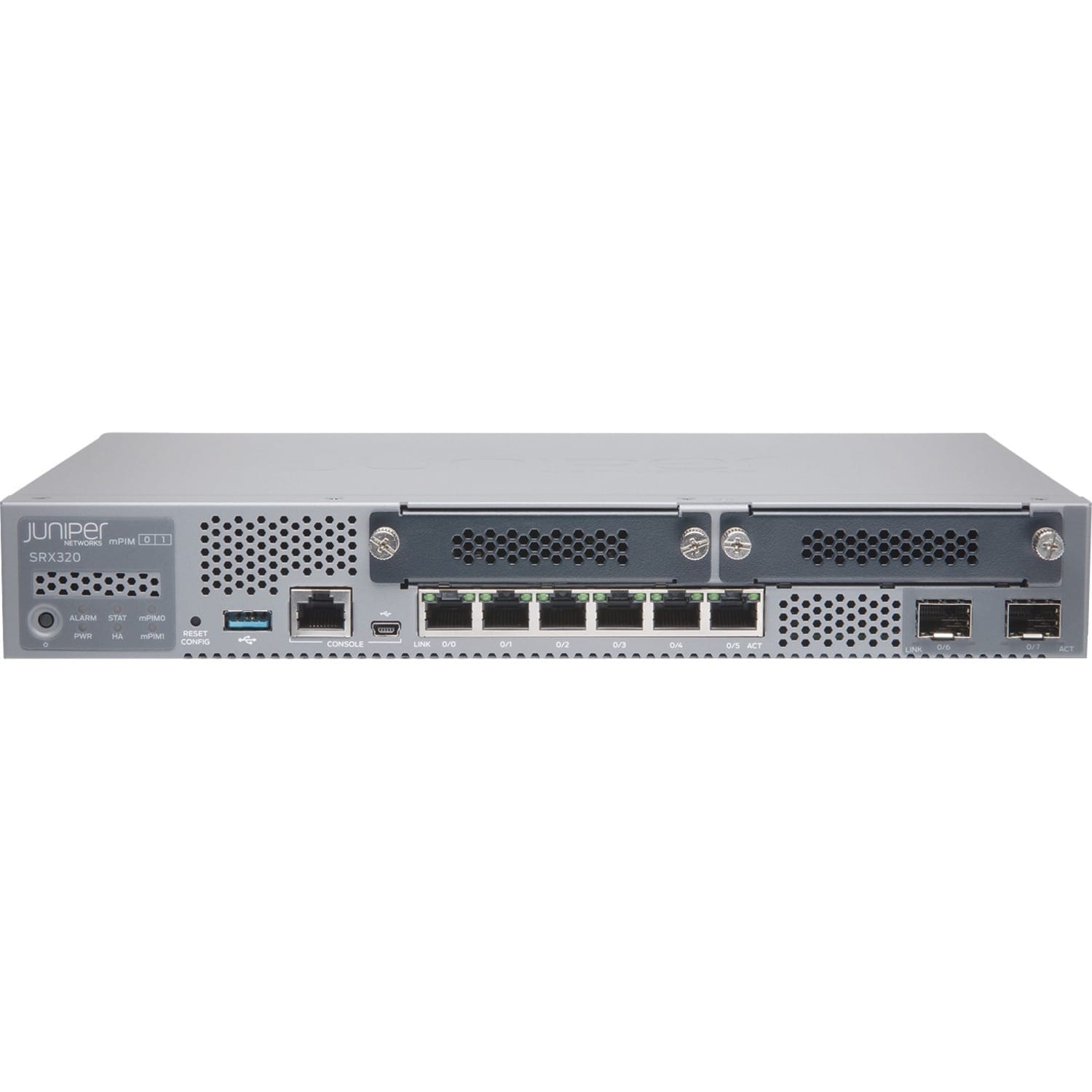

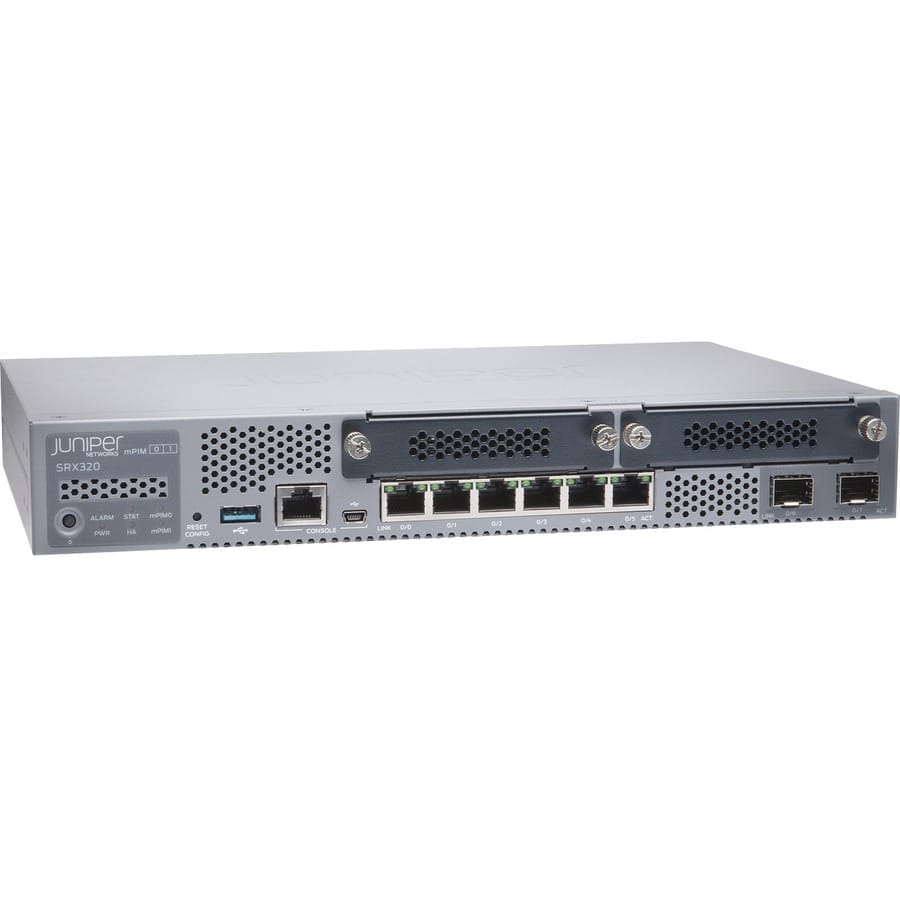

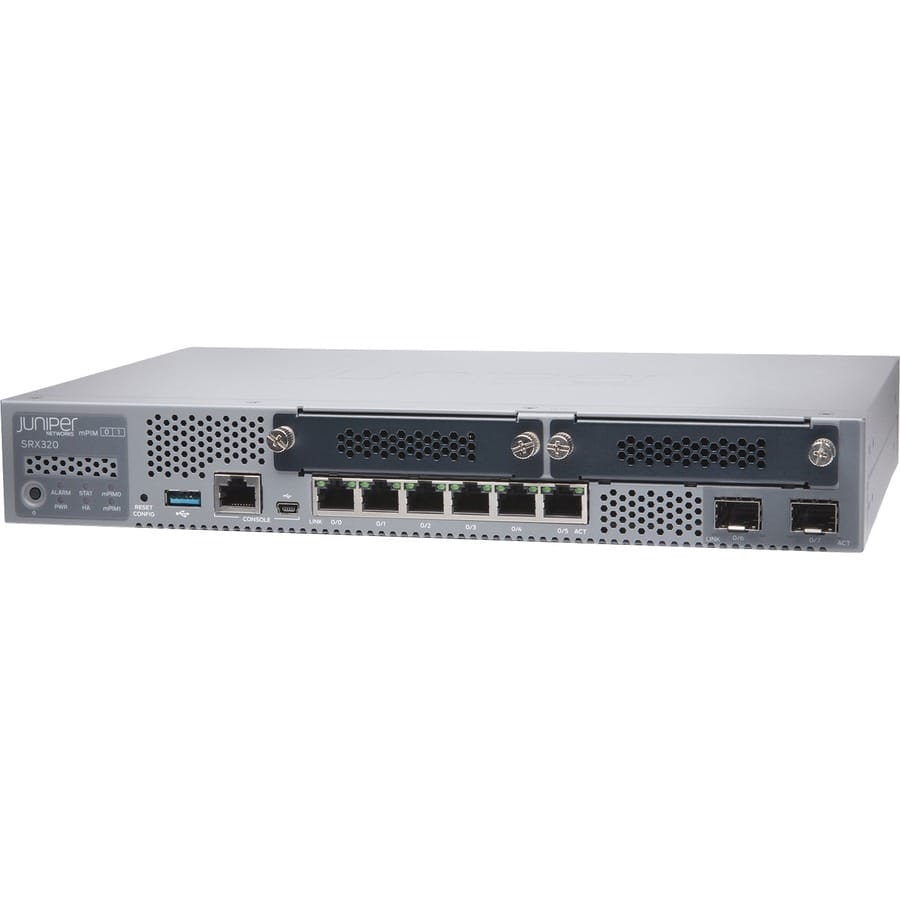

Juniper SRX320-SYS-JE-P PoE+ Firewall with Junos Enhanced Software

Name: Juniper SRX320-SYS-JE-P PoE+ Firewall with Junos Enhanced Software
Brand: Juniper
SKU: SRX320-SYS-JE-P
Price: 2423.85 USD
Availability: InStock

$2,423.85List price: $5,650.00

Available direct from Juniper Ask us for current lead time

ConditionNew

WarrantyManufacturer

ShippingFree (US)

ReturnsRMA required · See policy

Juniper Care & licenses for this modelSee options ↓

An Enhanced PoE+ branch bundle with six powered Gigabit copper ports, two Gigabit SFP ports and two Mini-PIM slots. It includes Junos Software Enhanced, an external supply and cable.

SKU: SRX320-SYS-JE-P Categories: Juniper, Firewalls

Support & Licensing for the SRX320-SYS-JE-P

The SRX320-SYS-JE-P comes with Junos software for firewall, NAT, IPsec VPN, routing and switching. Most buyers add Juniper Care support; security subscriptions add threat protection such as IPS, antivirus and web filtering. Not sure what you need? Call (984) 225-1600 or request a quote and we'll spec it with you.

1Juniper Care support recommended

A support contract from Juniper for the SRX320-SYS-JE-P. Every level includes 24/7 tech support and software updates; they differ in how fast a failed part is replaced.

Core24/7 Juniper tech support (JTAC) and software updates. No hardware replacement.SVC-COR-SRX320JEP
$293 / yr
Core PlusCore, plus repair or replacement shipped within 10 business days of Juniper receiving the failed part.SVC-CP-SRX320JEP
$490 / yr
Next DayCore, plus a replacement part delivered the next business day (RMA issued by 3 p.m. local time).SVC-ND-SRX320JEP
$510 / yr
Same DayCore, plus a replacement part delivered within 4 hours, 24/7.SVC-SD-SRX320JEP
$703 / yr

More levels: onsite technician and 2-hour delivery

Next Day OnsiteNext Day delivery, plus a technician on site to install the replacement part.SVC-NDCE-SRX320JEP
$595 / yr
Same Day OnsiteSame Day delivery, plus a technician on site to install the replacement part.SVC-SDCE-SRX320JEP
$831 / yr
Same Day 2-HourCore, plus a replacement part delivered within 2 hours, 24/7.SVC-SD2-SRX320JEP
$915 / yr

Delivery times depend on your location. Onsite technicians handle hardware replacement; software questions go to JTAC.

2Security subscription optional

Optional threat protection for the SRX320-SYS-JE-P, sold as 1, 3 or 5-year subscriptions. Licenses are per firewall.

Junos software

Included with the firewall

Firewall and NAT
IPsec VPN
Routing, MPLS and switching

Included

Advanced 1

Adds:

IPS (intrusion prevention)
App+ application security: identify, control and prioritize apps
SD-WAN application routing
SecIntel threat intelligence feeds

Subscription Includes Juniper software supportS-SRX320-A1-1/3/5

1 yr$183 3 yr$365$122 / yr 5 yr$548$110 / yr

Advanced 2

Everything in Advanced 1, plus:

Antivirus
Enhanced web filtering
Antispam

Subscription Includes Juniper software supportS-SRX320-A2-1/3/5

1 yr$563 3 yr$1,127$376 / yr 5 yr$1,690$338 / yr

Premium 1

Everything in Advanced 1, plus:

Juniper ATP Cloud: detects and blocks zero-day malware

Subscription Includes Juniper software supportS-SRX320-P1-1/3/5

1 yr$345 3 yr$691$230 / yr 5 yr$1,036$207 / yr

3Add-on licenses only if you need them

Remote access VPN (Juniper Secure Connect)VPN for remote users with the Juniper Secure Connect client, licensed by the number of users connected at once.
- 5 usersS-RA3-5CCU-S-1/3/5
  1 yr$67 3 yr$134$45 / yr 5 yr$201$40 / yr
- 25 usersS-RA3-25CCU-S-1/3/5
  1 yr$286 3 yr$571$190 / yr 5 yr$856$171 / yr
- 50 users, SRX320 packS-RA3-SRX320-S-1/3/5
  1 yr$277 3 yr$555$185 / yr 5 yr$832$166 / yr
- 50 usersS-RA3-50CCU-S-1/3/5
  1 yr$504 3 yr$1,007$336 / yr 5 yr$1,511$302 / yr
Mist WAN AssuranceManage and monitor this firewall from the Juniper Mist cloud, with AI insights and service-level tracking.S-WAN-C1-1/3/5
1 yr$283 3 yr$567$189 / yr 5 yr$849$170 / yr
Mist WAN Assurance, Standard bundleWAN Assurance plus application visibility (Junos AppID, activated from Mist).S-SRX-S-C1-1/3/5
1 yr$393 3 yr$782$261 / yr 5 yr$1,171$234 / yr
Bundled with Juniper Care
- With Core supportS-SRX-S-C1-1/3/5-COR
  1 yr$444 3 yr$939$313 / yr 5 yr$1,433$287 / yr
- With Core Plus supportS-SRX-S-C1-1/3/5-CP
  1 yr$486 3 yr$1,066$355 / yr 5 yr$1,640$328 / yr
- With Next Day supportS-SRX-S-C1-1/3/5-ND
  1 yr$490 3 yr$1,078$359 / yr 5 yr$1,662$332 / yr
- With Same Day supportS-SRX-S-C1-1/3/5-SD
  1 yr$532 3 yr$1,197$399 / yr 5 yr$1,860$372 / yr
Mist WAN Assurance, Advanced bundleThe Standard bundle plus Marvis, Juniper's AI assistant for troubleshooting.S-SRX-A-C1-1/3/5
1 yr$524 3 yr$1,044$348 / yr 5 yr$1,565$313 / yr
Bundled with Juniper Care
- With Core supportS-SRX-A-C1-1/3/5-COR
  1 yr$574 3 yr$1,200$400 / yr 5 yr$1,826$365 / yr
- With Core Plus supportS-SRX-A-C1-1/3/5-CP
  1 yr$617 3 yr$1,327$442 / yr 5 yr$2,034$407 / yr
- With Next Day supportS-SRX-A-C1-1/3/5-ND
  1 yr$621 3 yr$1,340$447 / yr 5 yr$2,055$411 / yr
- With Same Day supportS-SRX-A-C1-1/3/5-SD
  1 yr$663 3 yr$1,458$486 / yr 5 yr$2,254$451 / yr
IPS signature updatesIntrusion prevention signature updates on their own. Every security subscription tier includes IPS.SRX320-IPS-1/3/5
1 yr$309 3 yr$841$280 / yr 5 yr$1,373$275 / yr
Enhanced web filteringWeb filtering on its own. The Advanced 2 tier includes it.SRX320-W-EWF-1/3/5
1 yr$309 3 yr$841$280 / yr 5 yr$1,373$275 / yr
ATP threat feedsJuniper ATP Cloud threat intelligence feeds only, with no file scanning. The Premium tiers include full ATP Cloud.SRX320-THRTFEED-1/3/5
1 yr$85 3 yr$172$57 / yr 5 yr$342$68 / yr

Description

About the SRX320-SYS-JE-P

For PoE+ branch connections with application security, the SRX320-SYS-JE-P combines six Gigabit powered copper ports and two Gigabit SFP ports with Junos Software Enhanced. Two Mini-PIM slots provide optional interface expansion. The software also covers firewall, NAT, IPsec, routing, MPLS and switching; the external supply and cable are included, with the rack kit separate.

What’s included

SRX320-SYS-JE-P services gateway with six PoE+ copper ports and two SFP ports
External power supply and power cable
Junos Software Enhanced: firewall, NAT, IPsec, routing, MPLS and switching, plus application security

Sold separately

Rack-mount kit
Advanced and Premium licenses and Juniper Care, listed in Support & Licensing above

Choosing a version

SRX320-SYS-JE-P (this page): Junos Software Enhanced bundle, front-to-back airflow, 6 PoE+ ports
SRX320: hardware only; JSB or JSE required, front-to-back airflow
SRX320-POE: hardware only; JSB or JSE required, front-to-back airflow, 6 PoE+ ports
SRX320-SYS-JB: Junos Software Base bundle, front-to-back airflow
SRX320-SYS-JB-P: Junos Software Base bundle, front-to-back airflow, 6 PoE+ ports
SRX320-SYS-JB-P-T: Junos Software Base bundle, front-to-back airflow, TAA-compliant, 6 PoE+ ports
SRX320-SYS-JE: Junos Software Enhanced bundle, front-to-back airflow

Related models: SRX300, SRX340.

Not sure which version you need? Call (984) 225-1600 or request a quote and we’ll check it against your rack and network.

SRX320-SYS-JE-P specifications

Network ports	6x RJ-45, 2x SFP
Mini-PIM slots	2
MACsec	Yes
Firewall throughput (1518B)	1900 Mbps
Firewall throughput (IMIX)	600 Mbps
IPsec VPN throughput (IMIX)	0.116 Gbps
Concurrent sessions (thousands)	64
Form factor	Desktop, fixed chassis
Dimensions (H x W x D)	1.73 x 11.81 x 7.52 in (4.4 x 30 x 19.1 cm)
Weight (as shipped)	3.4 lb / 1.55 kg
Airflow	Front-to-back
Fans	2
Memory	4 GB
Storage	8 GB Flash
MAC addresses (thousands)	15
Operating temperature	32° through 104° F / 0° through 40° C
Operating system	Junos OS

Full specifications (64)

Network ports

RJ-45 Ports	6
SFP Ports	2
SFP Port MACsec	Yes

Management and other ports

Console Ports	2
Console Port Type	RJ-45, Mini USB Type B
USB Ports	1
USB Port Type	USB 3.0 Type A

Chassis

Chassis type	Fixed
Form Factor	Desktop
Chassis Height	1.73 in / 4.3942 cm
Chassis Width	11.81 in / 29.997 cm
Chassis Depth	7.52 in / 19.1008 cm
Chassis depth (with power supplies and fans)	7.52 in / 19.1008 cm
Weight (as shipped)	3.4 lb / 1.55 kg

Power

Power Adapter Type	AC to DC
AC PSU Average Heat Dissipation	755 BTU/h
System Average Power Consumption	221 W
System Maximum DC Input Rating	4.6 A
System Maximum Current Rating	3.25 A
Maximum Current Consumption	0.634 A
Maximum Inrush Current	15 A

Cooling

Airflow Direction	Front-to-back
Fan modules	2

Processor

Memory (DRAM)	4 GB

Storage

Internal Storage Size	8 GB
Internal Storage Type	Flash

Routing engines and fabric

Mini PIM Slots	2

Security performance

Firewall Throughput (1518B)	1900 Mbps
Firewall Throughput (64B)	200 Kpps
Firewall Throughput (IMIX)	600 Mbps
IPsec VPN Throughput (1400B)	0.336 Gbps
IPsec VPN Throughput (IMIX)	0.116 Gbps
Routing With Packet Mode (64B)	300 Kpps
Routing With Packet Mode (1518B)	1500 Mbps
Routing With Packet Mode (IMIX)	800 Mbps
NGFW Performance (CPS)	0.226 Gbps
Secure Web Access Firewall (CPS)	0.171 Gbps
AppID Sessions (thousands)	16
Application Visibility And Control	0.5 Gbps
GRE Tunnels	256
IPS Sessions (thousands)	16
Maximum SSL VPN Concurrent Users	50
Maximum Security Policies	1000
Maximum Security Zones	16
Maximum Virtual Routers	32
NAT Rules	1000
Recommended IPS	0.2 Gbps
URLF Sessions (thousands)	16

Performance

Route Table Size (RIB) (IPv4) (thousands)	256
Route Table Size (FIB) (IPv4) (thousands)	256
Route Table Size (RIB) (IPv6) (thousands)	256
Route Table Size (FIB) (IPv6) (thousands)	256
Max Concurrent Sessions (IPv4/IPv6) (thousands)	64
IPsec VPN Tunnels	256

Switching and routing scale

MAC Addresses Per System (thousands)	15
VLAN IDs	1000

Environmental

Operating Temperature	32° through 104° F / 0° through 40° C
Storage Temperature	-4° through 158° F / -20° through 70° C
Operating Altitude	10000 ft (3040 m)
Humidity, operating (noncondensing)	10% through 90%
Humidity, non-operating (noncondensing)	5% through 95%
Acoustic Noise Level (Max)	40 dB
Maintenance Clearance	24 in / 60.96 cm

Software

Operating system	Junos OS

Common questions

Which software is included?

Junos Software Enhanced is included with the hardware.

Does it come with a rack-mount kit?

No. The rack-mount kit is ordered separately.

Can I add WAN interfaces?

The hardware provides 2 Mini-PIM slots for optional interface modules.

Does this combine PoE+ and Enhanced software?

Yes. It includes six PoE+ copper ports and Junos Software Enhanced with application security.
