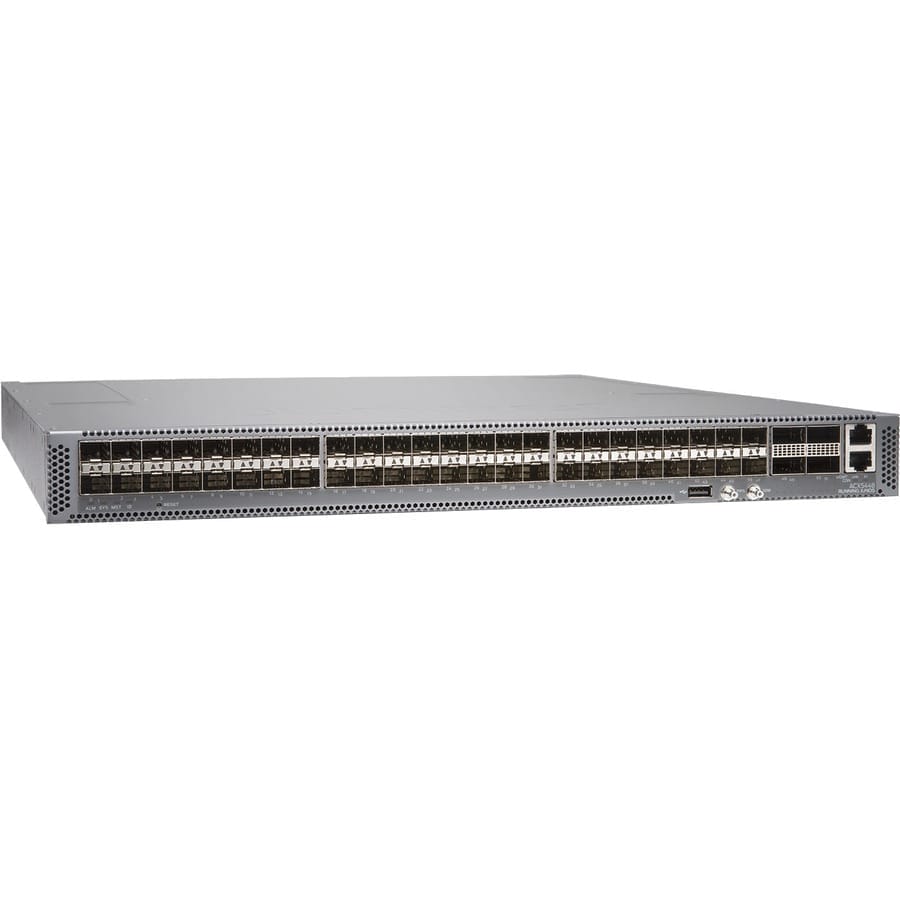

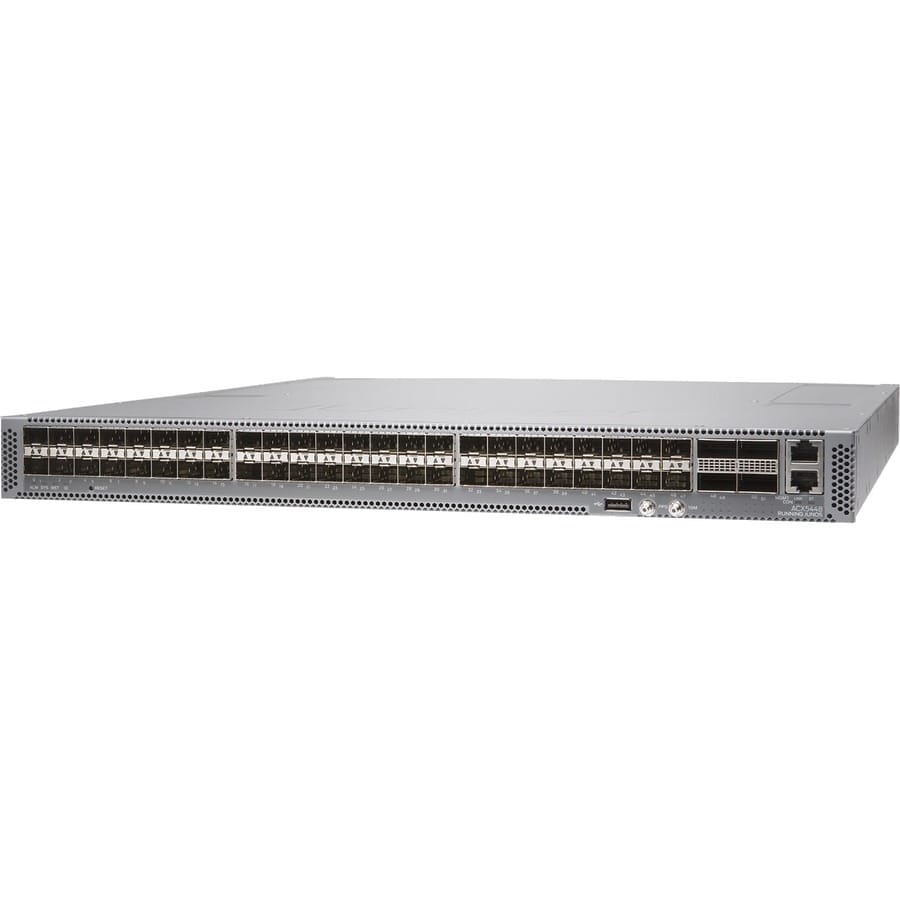

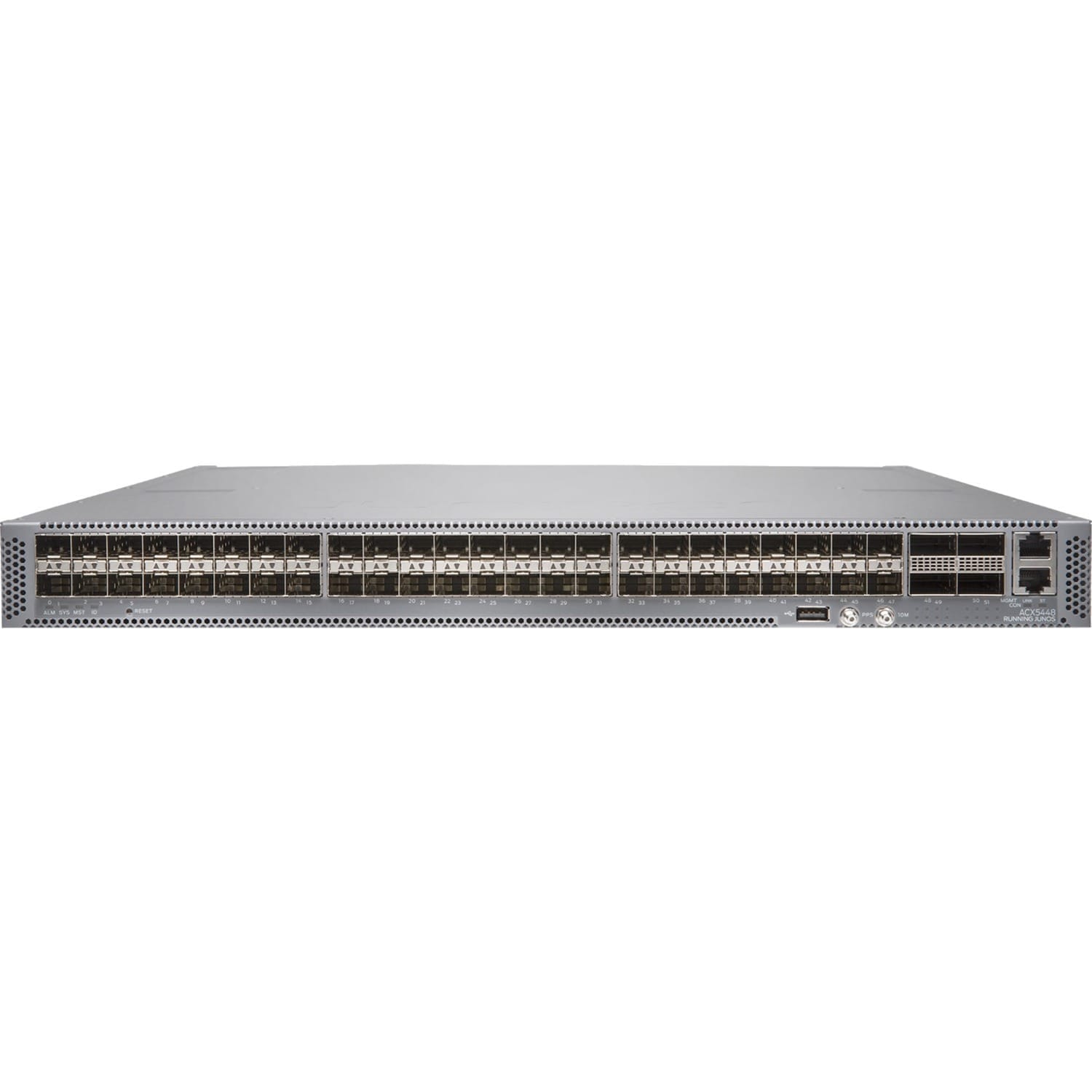

Juniper ACX5448-A-AC-AFO Router, 48x 10GE + 4x 100GE, L2/IGP Included, AC, Front-to-Back Airflow
$150,600.81List price: $206,886.00
Available direct from Juniper Ask us for current lead time
We'll confirm price and lead time for your quantity. Or call (984) 225-1600.
Bundled ACX5448 metro router with 48 SFP+ ports, 4 QSFP28 ports, AC power and front-to-back airflow. L2 and IGP rights for all 48 10GbE ports and 4 100GbE ports come with it.
Support & Licensing for the ACX5448-A-AC-AFO
Juniper licenses the ACX5448-A-AC-AFO by feature tier (Advanced or Premium) and by blocks of capacity. Every feature runs without a license key, but Juniper's terms require a license for the features and capacity you use. Most buyers also add Juniper Care support. Not sure what you need? Call (984) 225-1600 or request a quote and we'll spec it with you.
1Juniper Care support recommended
A support contract from Juniper for the ACX5448-A-AC-AFO. Every level includes 24/7 tech support and software updates; they differ in how fast a failed part is replaced.
- Core24/7 Juniper tech support (JTAC) and software updates. No hardware replacement.B-SVC-COR-ACX5K-A$9,326 / yr
- Core PlusCore, plus repair or replacement shipped within 10 business days of Juniper receiving the failed part.B-SVC-CP-ACX5K-A$9,743 / yr
- Next DayCore, plus a replacement part delivered the next business day (RMA issued by 3 p.m. local time).B-SVC-ND-ACX5K-A$10,155 / yr
- Same DayCore, plus a replacement part delivered within 4 hours, 24/7.B-SVC-SD-ACX5K-A$12,635 / yr
More levels: onsite technician and 2-hour delivery
- Next Day OnsiteNext Day delivery, plus a technician on site to install the replacement part.B-SVC-NDCE-ACX5K-A$11,189 / yr
- Same Day OnsiteSame Day delivery, plus a technician on site to install the replacement part.B-SVC-SDCE-ACX5K-A$14,292 / yr
Delivery times depend on your location. Onsite technicians handle hardware replacement; software questions go to JTAC.
2Software license optional
Sold per block of capacity: buy enough blocks to cover the bandwidth you use on the ACX5448-A-AC-AFO. Tell us your port plan and we'll size it. Licenses are per router.
Advanced
For metro services over MPLS or segment routing:
- Layer 2 features: LAG, MC-LAG, Q-in-Q, VXLAN, IRB, Ethernet OAM
- Layer 2 VPN (pseudowire, VPLS, EVPN) and Layer 3 VPN
- All IPv4/IPv6 routing protocols: OSPF, BGP, IS-IS, LDP
- Segment routing, SR-TE and SRv6
- Timing (PTP, SyncE), H-QoS and traffic filters
- Telemetry, RFC 2544, LFM and CFM
- Up to 32 L3 VPNs and 8 NG-MVPNs
Per 400G of capacity
Subscription Includes Juniper software supportS-ACX-400G-A-1/3/5
Perpetual One-time purchase, without software supportS-ACX-400G-A1-P
Premium
For the metro and service edge. Everything in Advanced, plus:
- Pseudowire headend termination (PWHT)
- Every other feature that doesn't need its own license
- Full platform scale for FIB and VPNs
Per 400G of capacity
Subscription Includes Juniper software supportS-ACX-400G-P-1/3/5
Perpetual One-time purchase, without software supportS-ACX-400G-P1-P
3Add-on licenses only if you need them
Juniper's older ACX5000 licensing, still sold for this model: the right to use a set number of ports or a feature set.
- 10GbE port licensesThe right to use a set number of 10GbE ports.
- 1 × 10GbEACX5K-L-1X10GE-S
- 8 × 10GbEACX5K-L-8X10GE-S
- 16 × 10GbEACX5K-L-16X10GE-S
- 24 × 10GbEACX5K-L-24X10GE-S
- 48 × 10GbEACX5K-L-48X10GE-S
- 100GbE port licenseThe right to use one 40GbE or 100GbE port.ACX5K-L-100GE-S
- Layer 2 feature licenseLayer 2 features and IGP routing protocols, without MPLS or BGP, for network management only.ACX5K-L-L2
- IP/MPLS feature licenseIP/MPLS features, except IP VPN.ACX5K-L-IP-MPLS
- IP VPN feature licenseThe right to use IP VPN.ACX5K-L-IPVPN
- Scale licenseMore than 256K FIB routes and more than 512 VRFs, up to the hardware limits.ACX5448-L-PE
About the ACX5448-A-AC-AFO
ACX5448-A-AC-AFO is the bundle version of the ACX5448: a 1U fixed router with 48 SFP+ ports, 4 QSFP28 ports and 800 Gbps of throughput, on AC power with front-to-back airflow. Most ACX5448 SKUs are sold without feature rights; this one comes with its rights, so it can be put to work on L2 and IGP as soon as it is racked.
The bundle includes L2 features, IGP, all 48 10GbE ports, all 4 100GbE ports, all 1GE, 25GbE and 40GE ports, and a FIB up to 256K. It has no right to use MPLS, VRF or BGP, so a design that needs them should check the license tiers in Support & Licensing above.
What’s included
- ACX5448 router with 48 SFP+ and 4 QSFP28 ports, AC power and front-to-back airflow
- Junos OS
- Feature rights for L2, IGP, the 48 10GbE ports, the 4 100GbE ports and all 1GE, 25GbE and 40GE ports, with a FIB up to 256K
Sold separately
- Advanced and Premium licenses and Juniper Care, listed in Support & Licensing above
Choosing a version
- ACX5448-A-AC-AFO (this page): included L2 and IGP feature rights, AC power, front-to-back airflow
- ACX5448-AC-AFI: AC power, back-to-front airflow
- ACX5448-AC-AFO: AC power, front-to-back airflow
- ACX5448-R-DC-AFI: included MPLS and BGP feature rights, DC power, back-to-front airflow
Related models: ACX5448-DC-AFI, ACX5448-M-AC-AFI.
Not sure which version you need? Call (984) 225-1600 or request a quote and we’ll check it against your rack and network.
ACX5448-A-AC-AFO specifications
| Network ports | 48x SFP+, 4x QSFP28 |
|---|---|
| Throughput | 800 Gbps |
| Form factor | 1U, fixed chassis |
| Dimensions (H x W x D) | 1.7 x 17.26 x 20.29 in (4.3 x 43.8 x 51.5 cm) |
| Weight (fully loaded) | 22.48 lb / 10.2 kg |
| Airflow | Front-to-back |
| Power supplies | 2x JPSU-650W-AC-AO (1+1 redundant, hot-swappable) |
| Max power draw (AC) | 450 W |
| Fans | 6x ACX5448-FAN-AFO (hot-swappable) |
| CPU | 1.9-Ghz six-core Intel |
| Memory | 32 GB |
| Storage | 200 (100+100) GB SSD |
| Operating temperature | 32° through 104° F / 0° through 40° C |
| Operating system | Junos OS |
Full specifications (43)
Network ports
| SFP+ Ports | 48 |
|---|---|
| QSFP28 Ports | 4 |
| QSFP28 Port Channelization | Yes |
Management and other ports
| Console Ports | 1 |
|---|---|
| Console Port Type | RJ-45 |
| Management Ports | 1 |
| Management Port Type | RJ-45 |
| USB Ports | 1 |
| USB Port Type | Type A |
| 10 MHz Port | Yes |
| PPS Port | Yes |
Chassis
| Chassis type | Fixed |
|---|---|
| Form Factor | 1U |
| Chassis Height | 1.7 in / 4.318 cm |
| Chassis Width | 17.26 in / 43.8404 cm |
| Chassis Depth | 20.29 in / 51.53 cm |
| Chassis depth (with power supplies and fans) | 21.81 in / 55.3974 cm |
| Weight (chassis only) | 16 lb / 7.26 kg |
| Weight (fully loaded) | 22.48 lb / 10.2 kg |
| Chassis Model Number | ACX5448-CHASSIS |
Power
| Power supplies | 2 |
|---|---|
| Power supply redundancy | 1+1 |
| Power supply airflow | Front-to-back |
| Hot-swappable power supplies | Yes |
| AC power supply model | JPSU-650W-AC-AO |
| AC Max Power Consumption | 450 W |
| AC Average Power Consumption | 250 W |
Cooling
| Airflow Direction | Front-to-back |
|---|---|
| Fan module model | ACX5448-FAN-AFO |
| Fan modules | 6 |
| Hot-swappable fans | Yes |
Processor
| CPU | 1.9-Ghz six-core Intel |
|---|---|
| Memory (DRAM) | 32 GB |
Storage
| Internal Storage Size | 200 (100+100) GB |
|---|---|
| Internal Storage Type | SSD |
Switching and routing scale
| Throughput | 800 Gbps |
|---|
Environmental
| Operating Temperature | 32° through 104° F / 0° through 40° C |
|---|---|
| Storage Temperature | -40° through 158° F / -40° through 70° C |
| Operating Altitude | 6000 ft / 1829 m |
| Humidity, operating (noncondensing) | 5% through 90% |
| Seismic Tolerance | Zone 4 |
| Maintenance Clearance | 24 in / 60.96 cm |
Software
| Operating system | Junos OS |
|---|
Common questions
Does this one need a feature license to carry traffic?
Not for L2 and IGP. The bundle already covers L2 features, IGP and every port. It does not include rights for MPLS, VRF or BGP.
What do I give up compared with the R bundle?
This A bundle stops at L2 and IGP with a 256K FIB. The ACX5448-R-DC-AFI is the version listed with MPLS and BGP rights, but it is a DC unit with back-to-front airflow.
AFO means which direction for my rack?
AFO here is front-to-back: air enters at the port side and leaves at the power-supply side. Its two JPSU-650W-AC-AO supplies run 1+1 and are hot-swappable.
