Juniper ACX5448-AC-AFO Router, 48x 10GE + 4x 100GE, AC, Front-to-Back Airflow

Name: Juniper ACX5448-AC-AFO Router, 48x 10GE + 4x 100GE, AC, Front-to-Back Airflow
Brand: Juniper
SKU: ACX5448-AC-AFO
Price: 60203.64 USD
Availability: InStock

$60,203.64List price: $82,704.00

Available direct from Juniper Ask us for current lead time

ConditionNew

WarrantyManufacturer

ShippingFree (US)

ReturnsRMA required · See policy

Juniper Care & licenses for this modelSee options ↓

A 1U metro router with 48 SFP+ ports and 4 QSFP28 ports for cold-aisle-at-the-front racks, with redundant AC supplies and fans. Order feature rights separately.

SKU: ACX5448-AC-AFO Categories: Juniper, Routers

Support & Licensing for the ACX5448-AC-AFO

Juniper licenses the ACX5448-AC-AFO by feature tier (Advanced or Premium) and by blocks of capacity. Every feature runs without a license key, but Juniper's terms require a license for the features and capacity you use. Most buyers also add Juniper Care support. Not sure what you need? Call (984) 225-1600 or request a quote and we'll spec it with you.

1Juniper Care support recommended

A support contract from Juniper for the ACX5448-AC-AFO. Every level includes 24/7 tech support and software updates; they differ in how fast a failed part is replaced.

Core24/7 Juniper tech support (JTAC) and software updates. No hardware replacement.SVC-COR-ACX5448
$3,308 / yr
Core PlusCore, plus repair or replacement shipped within 10 business days of Juniper receiving the failed part.SVC-CP-ACX5448
$3,725 / yr
Next DayCore, plus a replacement part delivered the next business day (RMA issued by 3 p.m. local time).SVC-ND-ACX5448
$4,137 / yr
Same DayCore, plus a replacement part delivered within 4 hours, 24/7.SVC-SD-ACX5448
$6,617 / yr

More levels: onsite technician and 2-hour delivery

Next Day OnsiteNext Day delivery, plus a technician on site to install the replacement part.SVC-NDCE-ACX5448
$5,171 / yr
Same Day OnsiteSame Day delivery, plus a technician on site to install the replacement part.SVC-SDCE-ACX5448
$8,274 / yr
Same Day 2-HourCore, plus a replacement part delivered within 2 hours, 24/7.SVC-SD2-ACX5448
$8,602 / yr

Delivery times depend on your location. Onsite technicians handle hardware replacement; software questions go to JTAC.

2Software license optional

Sold per block of capacity: buy enough blocks to cover the bandwidth you use on the ACX5448-AC-AFO. Tell us your port plan and we'll size it. Licenses are per router.

Advanced

For metro services over MPLS or segment routing:

Layer 2 features: LAG, MC-LAG, Q-in-Q, VXLAN, IRB, Ethernet OAM
Layer 2 VPN (pseudowire, VPLS, EVPN) and Layer 3 VPN
All IPv4/IPv6 routing protocols: OSPF, BGP, IS-IS, LDP
Segment routing, SR-TE and SRv6
Timing (PTP, SyncE), H-QoS and traffic filters
Telemetry, RFC 2544, LFM and CFM
Up to 32 L3 VPNs and 8 NG-MVPNs

Per 400G of capacity

Subscription Includes Juniper software supportS-ACX-400G-A-1/3/5

1 yr$4,208 3 yr$8,444$2,815 / yr 5 yr$12,668$2,534 / yr

Perpetual One-time purchase, without software supportS-ACX-400G-A1-P

Perpetual$9,465

Premium

For the metro and service edge. Everything in Advanced, plus:

Pseudowire headend termination (PWHT)
Every other feature that doesn't need its own license
Full platform scale for FIB and VPNs

Per 400G of capacity

Subscription Includes Juniper software supportS-ACX-400G-P-1/3/5

1 yr$6,398 3 yr$12,796$4,265 / yr 5 yr$19,194$3,839 / yr

Perpetual One-time purchase, without software supportS-ACX-400G-P1-P

Perpetual$14,201

3Add-on licenses only if you need them

Juniper's older ACX5000 licensing, still sold for this model: the right to use a set number of ports or a feature set.

10GbE port licensesThe right to use a set number of 10GbE ports.
- 1 × 10GbEACX5K-L-1X10GE-S
  Perpetual$1,930
- 8 × 10GbEACX5K-L-8X10GE-S
  Perpetual$14,902
- 16 × 10GbEACX5K-L-16X10GE-S
  Perpetual$29,800
- 24 × 10GbEACX5K-L-24X10GE-S
  Perpetual$44,613
- 48 × 10GbEACX5K-L-48X10GE-S
  Perpetual$88,133
100GbE port licenseThe right to use one 40GbE or 100GbE port.ACX5K-L-100GE-S
Perpetual$13,937
Layer 2 feature licenseLayer 2 features and IGP routing protocols, without MPLS or BGP, for network management only.ACX5K-L-L2
Perpetual$965
IP/MPLS feature licenseIP/MPLS features, except IP VPN.ACX5K-L-IP-MPLS
Perpetual$9,293
IP VPN feature licenseThe right to use IP VPN.ACX5K-L-IPVPN
Perpetual$4,644
Scale licenseMore than 256K FIB routes and more than 512 VRFs, up to the hardware limits.ACX5448-L-PE
Perpetual$13,937

Description

About the ACX5448-AC-AFO

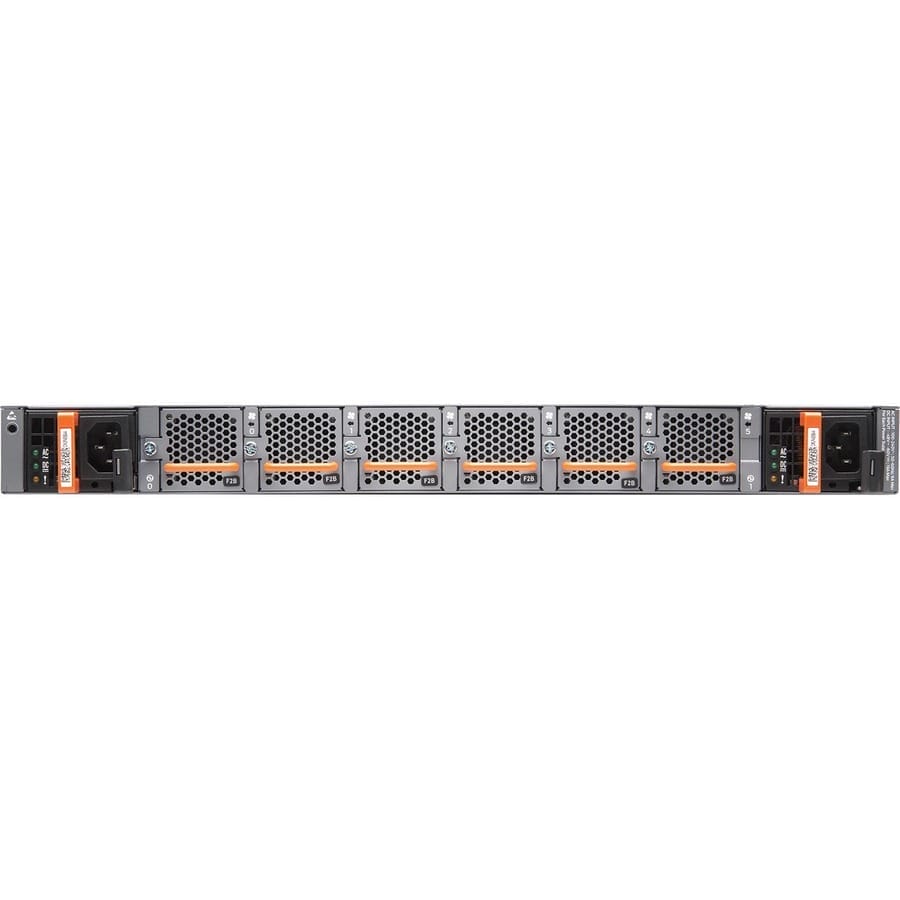

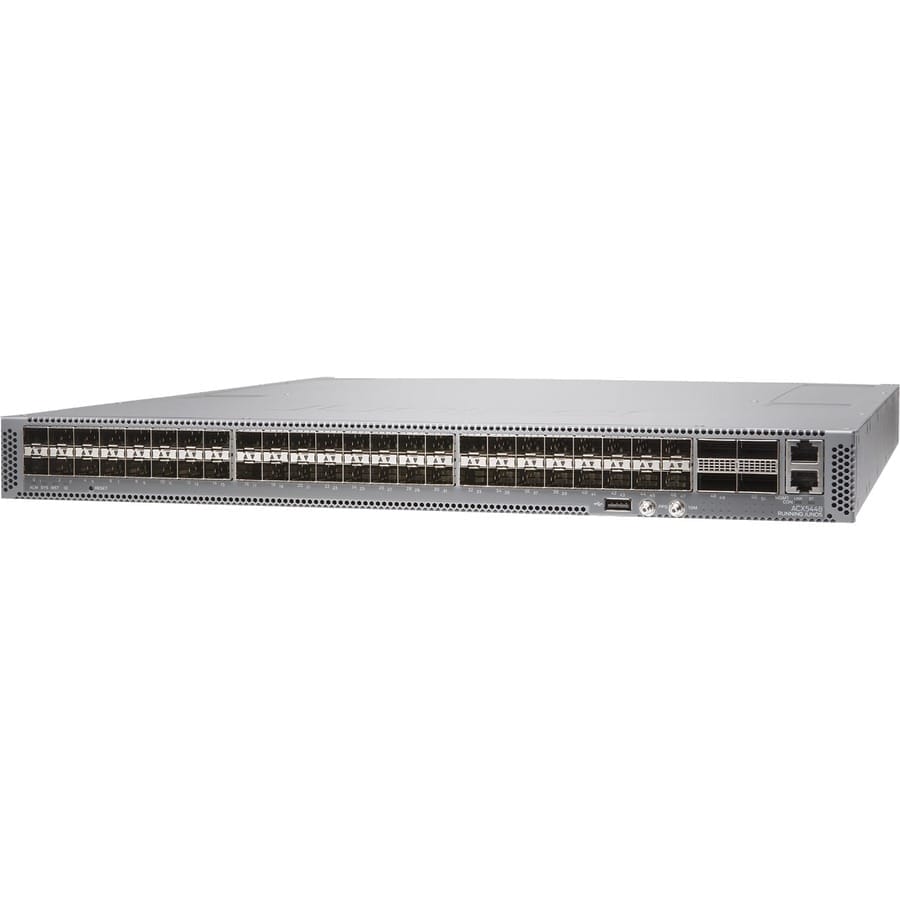

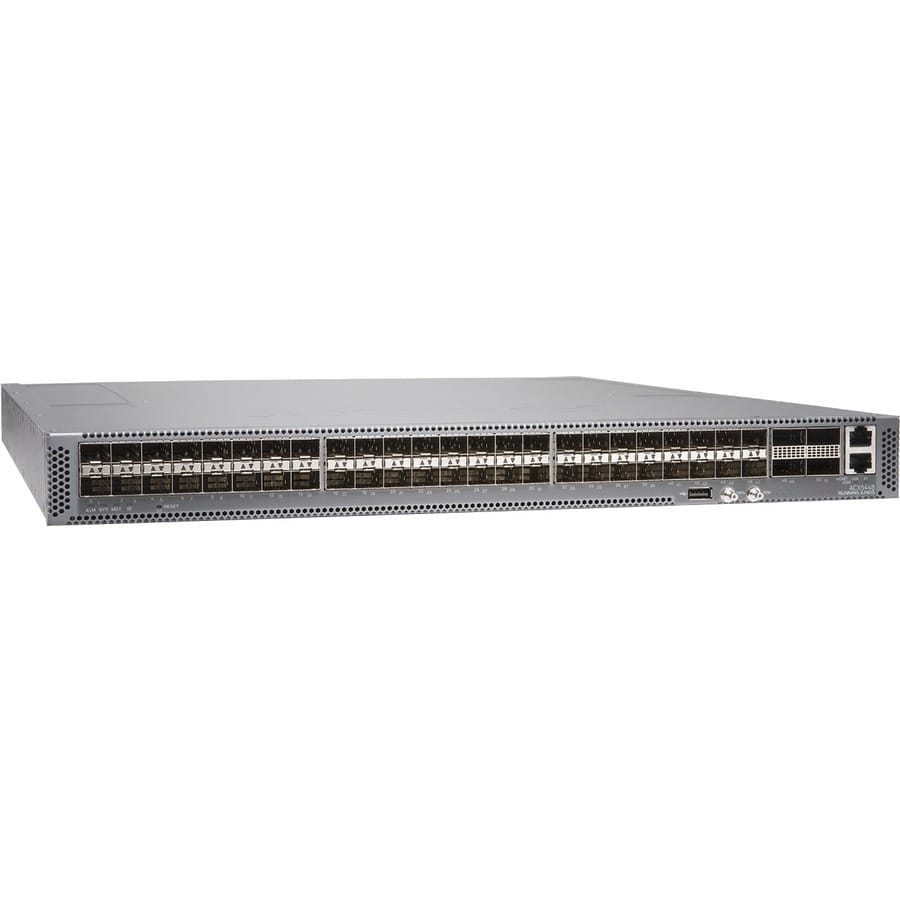

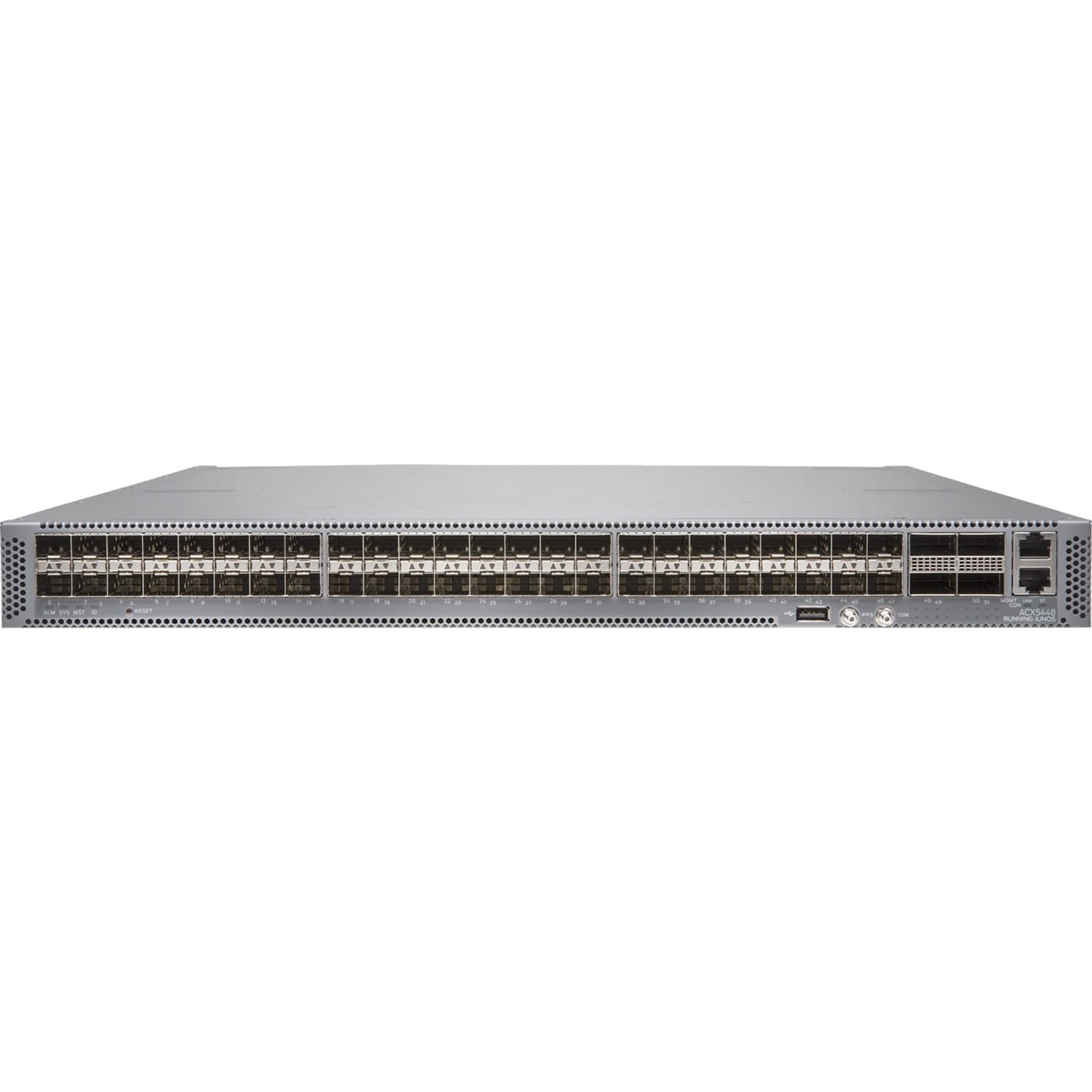

The ACX5448-AC-AFO has 48 SFP+ ports and 4 QSFP28 ports in a 1U fixed chassis, with 800 Gbps of throughput. It uses front-to-back airflow: cool air enters at the port side and leaves at the power-supply side.

Two AC supplies (JPSU-650W-AC-AO, 1+1) and six fans (ACX5448-FAN-AFO) are hot-swappable. The SKU has no feature rights built in, so add the L2, IGP or MPLS rights you need from Support & Licensing above.

What’s included

ACX5448 router with 48 SFP+ and 4 QSFP28 ports and front-to-back airflow
Redundant fans
Redundant AC power supplies
Junos OS

Sold separately

Feature right-to-use licenses, listed in Support & Licensing above
Advanced and Premium licenses, listed in Support & Licensing above

Choosing a version

ACX5448-AC-AFO (this page): AC power, front-to-back airflow
ACX5448-A-AC-AFO: included L2 and IGP feature rights, AC power, front-to-back airflow
ACX5448-AC-AFI: AC power, back-to-front airflow
ACX5448-R-DC-AFI: included MPLS and BGP feature rights, DC power, back-to-front airflow

Related models: ACX5448-DC-AFI, ACX5448-M-AC-AFI.

Not sure which version you need? Call (984) 225-1600 or request a quote and we’ll check it against your rack and network.

ACX5448-AC-AFO specifications

Network ports	48x SFP+, 4x QSFP28
Throughput	800 Gbps
Form factor	1U, fixed chassis
Dimensions (H x W x D)	1.7 x 17.26 x 20.29 in (4.3 x 43.8 x 51.5 cm)
Weight (fully loaded)	22.48 lb / 10.2 kg
Airflow	Front-to-back
Power supplies	2x JPSU-650W-AC-AO (1+1 redundant, hot-swappable)
Max power draw (AC)	450 W
Fans	6x ACX5448-FAN-AFO (hot-swappable)
CPU	1.9-Ghz six-core Intel
Memory	32 GB
Storage	200 (100+100) GB SSD
Operating temperature	32° through 104° F / 0° through 40° C
Operating system	Junos OS

Full specifications (43)

Network ports

SFP+ Ports	48
QSFP28 Ports	4
QSFP28 Port Channelization	Yes

Management and other ports

Console Ports	1
Console Port Type	RJ-45
Management Ports	1
Management Port Type	RJ-45
USB Ports	1
USB Port Type	Type A
10 MHz Port	Yes
PPS Port	Yes

Chassis

Chassis type	Fixed
Form Factor	1U
Chassis Height	1.7 in / 4.318 cm
Chassis Width	17.26 in / 43.8404 cm
Chassis Depth	20.29 in / 51.53 cm
Chassis depth (with power supplies and fans)	21.81 in / 55.3974 cm
Weight (chassis only)	16 lb / 7.26 kg
Weight (fully loaded)	22.48 lb / 10.2 kg
Chassis Model Number	ACX5448-CHASSIS

Power

Power supplies	2
Power supply redundancy	1+1
Power supply airflow	Front-to-back
Hot-swappable power supplies	Yes
AC power supply model	JPSU-650W-AC-AO
AC Max Power Consumption	450 W
AC Average Power Consumption	250 W

Cooling

Airflow Direction	Front-to-back
Fan module model	ACX5448-FAN-AFO
Fan modules	6
Hot-swappable fans	Yes

Processor

CPU	1.9-Ghz six-core Intel
Memory (DRAM)	32 GB

Storage

Internal Storage Size	200 (100+100) GB
Internal Storage Type	SSD

Switching and routing scale

Throughput	800 Gbps

Environmental

Operating Temperature	32° through 104° F / 0° through 40° C
Storage Temperature	-40° through 158° F / -40° through 70° C
Operating Altitude	6000 ft / 1829 m
Humidity, operating (noncondensing)	5% through 90%
Seismic Tolerance	Zone 4
Maintenance Clearance	24 in / 60.96 cm

Software

Operating system	Junos OS

Common questions

Is this the AFO or the AFI airflow?

AFO. Cool air comes in at the port side and warm air leaves at the power-supply side. The AFI model reverses that.

Does the 450 W figure mean I need big circuits?

450 W is the maximum AC draw listed for this chassis, so a standard AC feed is enough for planning.

Are the feature rights part of the price?

No. Feature rights to use must be ordered separately.
