Juniper ACX5448-D-AC-AFI Router, 36x 10GE + 2x 100GE + 2x CFP2, AC, Back-to-Front Airflow
$58,217.82List price: $79,976.00
Available direct from Juniper Ask us for current lead time
We'll confirm price and lead time for your quantity. Or call (984) 225-1600.
A 36 SFP+, 2 QSFP28 and 2 CFP2 metro router for AC sites, back-to-front airflow. Software subscription is ordered separately.
Support & Licensing for the ACX5448-D-AC-AFI
Juniper licenses the ACX5448-D-AC-AFI by feature tier (Advanced or Premium) and by blocks of capacity. Every feature runs without a license key, but Juniper's terms require a license for the features and capacity you use. Most buyers also add Juniper Care support. Not sure what you need? Call (984) 225-1600 or request a quote and we'll spec it with you.
1Juniper Care support recommended
A support contract from Juniper for the ACX5448-D-AC-AFI. Every level includes 24/7 tech support and software updates; they differ in how fast a failed part is replaced.
- Core24/7 Juniper tech support (JTAC) and software updates. No hardware replacement.SVC-COR-ACX5448-D$3,984 / yr
- Core PlusCore, plus repair or replacement shipped within 10 business days of Juniper receiving the failed part.SVC-CP-ACX5448-D$4,483 / yr
- Next DayCore, plus a replacement part delivered the next business day (RMA issued by 3 p.m. local time).SVC-ND-ACX5448-D$4,980 / yr
- Same DayCore, plus a replacement part delivered within 4 hours, 24/7.SVC-SD-ACX5448-D$7,966 / yr
More levels: onsite technician and 2-hour delivery
- Next Day OnsiteNext Day delivery, plus a technician on site to install the replacement part.SVC-NDCE-ACX5448-D$6,225 / yr
- Same Day OnsiteSame Day delivery, plus a technician on site to install the replacement part.SVC-SDCE-ACX5448-D$9,958 / yr
- Same Day 2-HourCore, plus a replacement part delivered within 2 hours, 24/7.SVC-SD2-ACX5448-D$10,358 / yr
Delivery times depend on your location. Onsite technicians handle hardware replacement; software questions go to JTAC.
2Software license optional
Sold per block of capacity: buy enough blocks to cover the bandwidth you use on the ACX5448-D-AC-AFI. Tell us your port plan and we'll size it. Licenses are per router.
Advanced
For metro services over MPLS or segment routing:
- Layer 2 features: LAG, MC-LAG, Q-in-Q, VXLAN, IRB, Ethernet OAM
- Layer 2 VPN (pseudowire, VPLS, EVPN) and Layer 3 VPN
- All IPv4/IPv6 routing protocols: OSPF, BGP, IS-IS, LDP
- Segment routing, SR-TE and SRv6
- Timing (PTP, SyncE), H-QoS and traffic filters
- Telemetry, RFC 2544, LFM and CFM
- Up to 32 L3 VPNs and 8 NG-MVPNs
Per 400G of capacity
Subscription Includes Juniper software supportS-ACX-400G-A-1/3/5
Perpetual One-time purchase, without software supportS-ACX-400G-A1-P
Premium
For the metro and service edge. Everything in Advanced, plus:
- Pseudowire headend termination (PWHT)
- Every other feature that doesn't need its own license
- Full platform scale for FIB and VPNs
Per 400G of capacity
Subscription Includes Juniper software supportS-ACX-400G-P-1/3/5
Perpetual One-time purchase, without software supportS-ACX-400G-P1-P
3Add-on licenses only if you need them
Juniper's older ACX5000 licensing, still sold for this model: the right to use a set number of ports or a feature set.
- 10GbE port licensesThe right to use a set number of 10GbE ports.
- 1 × 10GbEACX5K-L-1X10GE-S
- 8 × 10GbEACX5K-L-8X10GE-S
- 16 × 10GbEACX5K-L-16X10GE-S
- 24 × 10GbEACX5K-L-24X10GE-S
- 48 × 10GbEACX5K-L-48X10GE-S
- 100GbE port licenseThe right to use one 40GbE or 100GbE port.ACX5K-L-100GE-S
- Layer 2 feature licenseLayer 2 features and IGP routing protocols, without MPLS or BGP, for network management only.ACX5K-L-L2
- IP/MPLS feature licenseIP/MPLS features, except IP VPN.ACX5K-L-IP-MPLS
- IP VPN feature licenseThe right to use IP VPN.ACX5K-L-IPVPN
- Scale licenseMore than 256K FIB routes and more than 512 VRFs, up to the hardware limits.ACX5448-L-PE
About the ACX5448-D-AC-AFI

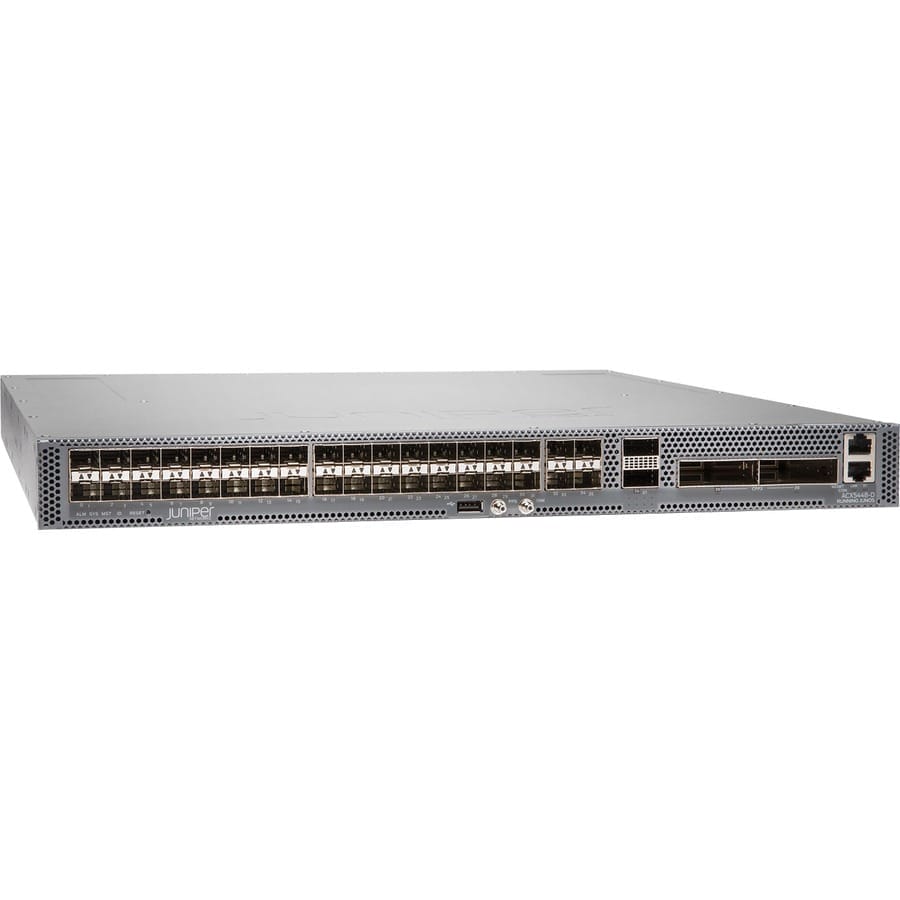

The D version of the ACX5448 has 36 SFP+ ports, 2 QSFP28 ports and 2 CFP2 ports in a 1U chassis, still at 800 Gbps of throughput. The ACX5448-D-AC-AFI runs on two AC supplies (JPSU-850W-AC-AFI, 1+1) and pulls air in at the power-supply side.
It comes with basic L2 software and IGP only, with no MPLS. A software subscription is ordered separately; the tiers are in Support & Licensing above.
What’s included
- ACX5448-D router with 36 SFP+, 2 QSFP28 and 2 CFP2 ports and back-to-front airflow
- Redundant fans
- Redundant AC power supplies
- Junos OS with basic L2 software and IGP, without MPLS
Sold separately
- Software subscription, listed in Support & Licensing above
- Advanced and Premium licenses and Juniper Care, listed in Support & Licensing above
Choosing a version
- ACX5448-D-AC-AFI (this page): AC power, back-to-front airflow
- ACX5448-D-AC-AFO: AC power, front-to-back airflow
- ACX5448-D-DC-AFI: DC power, back-to-front airflow
- ACX5448-D-DC-AFO: DC power, front-to-back airflow
- ACX5448-DC-AFI: DC power, back-to-front airflow
- ACX5448-DC-AFO: DC power, front-to-back airflow
Related models: ACX5448-A-AC-AFO, ACX5448-M-AC-AFI.
Not sure which version you need? Call (984) 225-1600 or request a quote and we’ll check it against your rack and network.
ACX5448-D-AC-AFI specifications
| Network ports | 36x SFP+, 2x QSFP28, 2x CFP2 |
|---|---|
| Throughput | 800 Gbps |
| Form factor | 1U, fixed chassis |
| Dimensions (H x W x D) | 1.7 x 17.26 x 20.29 in (4.3 x 43.8 x 51.5 cm) |
| Weight (fully loaded) | 23.14 lb / 10.49 kg |
| Airflow | Back-to-front |
| Power supplies | 2x JPSU-850W-AC-AFI (1+1 redundant, hot-swappable) |
| Max power draw (AC) | 550 W |
| Fans | 6x ACX5448-D-FAN-AFI (hot-swappable) |
| CPU | 1.9-Ghz six-core Intel |
| Memory | 32 GB |
| Storage | 200 (100+100) GB SSD |
| Operating temperature | 32° through 104° F / 0° through 40° C |
| Operating system | Junos OS |
Full specifications (44)
Network ports
| SFP+ Ports | 36 |
|---|---|
| QSFP28 Ports | 2 |
| QSFP28 Port Channelization | Yes |
| CFP2 Ports | 2 |
Management and other ports
| Console Ports | 1 |
|---|---|
| Console Port Type | RJ-45 |
| Management Ports | 1 |
| Management Port Type | RJ-45 |
| USB Ports | 1 |
| USB Port Type | Type A |
| 10 MHz Port | Yes |
| PPS Port | Yes |
Chassis
| Chassis type | Fixed |
|---|---|
| Form Factor | 1U |
| Chassis Height | 1.7 in / 4.318 cm |
| Chassis Width | 17.26 in / 43.8404 cm |
| Chassis Depth | 20.29 in / 51.5366 cm |
| Chassis depth (with power supplies and fans) | 21.81 in / 55.3974 cm |
| Weight (chassis only) | 16.76 lb / 7.6 kg |
| Weight (fully loaded) | 23.14 lb / 10.49 kg |
| Chassis Model Number | ACX5448-D-CHASSIS |
Power
| Power supplies | 2 |
|---|---|
| Power supply redundancy | 1+1 |
| Power supply airflow | Back-to-front |
| Hot-swappable power supplies | Yes |
| AC power supply model | JPSU-850W-AC-AFI |
| AC Max Power Consumption | 550 W |
| AC Average Power Consumption | 340 W |
Cooling
| Airflow Direction | Back-to-front |
|---|---|
| Fan module model | ACX5448-D-FAN-AFI |
| Fan modules | 6 |
| Hot-swappable fans | Yes |
Processor
| CPU | 1.9-Ghz six-core Intel |
|---|---|
| Memory (DRAM) | 32 GB |
Storage
| Internal Storage Size | 200 (100+100) GB |
|---|---|
| Internal Storage Type | SSD |
Switching and routing scale
| Throughput | 800 Gbps |
|---|
Environmental
| Operating Temperature | 32° through 104° F / 0° through 40° C |
|---|---|
| Storage Temperature | -40° through 158° F / -40° through 70° C |
| Operating Altitude | 6000 ft / 1829 m |
| Humidity, operating (noncondensing) | 5% through 90% |
| Seismic Tolerance | Zone 4 |
| Maintenance Clearance | 24 in / 60.96 cm |
Software
| Operating system | Junos OS |
|---|
Common questions
What are CFP2 ports used for here?
The D version carries 2 CFP2 ports in place of the base model’s 100GbE layout, next to 36 SFP+ and 2 QSFP28 ports.
Does this D model do MPLS out of the box?
No. Its software is basic L2 and IGP only, with no MPLS. A software subscription is a separate order.
AC and AFI: what does that mean for my rack?
Two JPSU-850W-AC-AFI supplies feed it, and air flows from the power-supply side to the port side.
