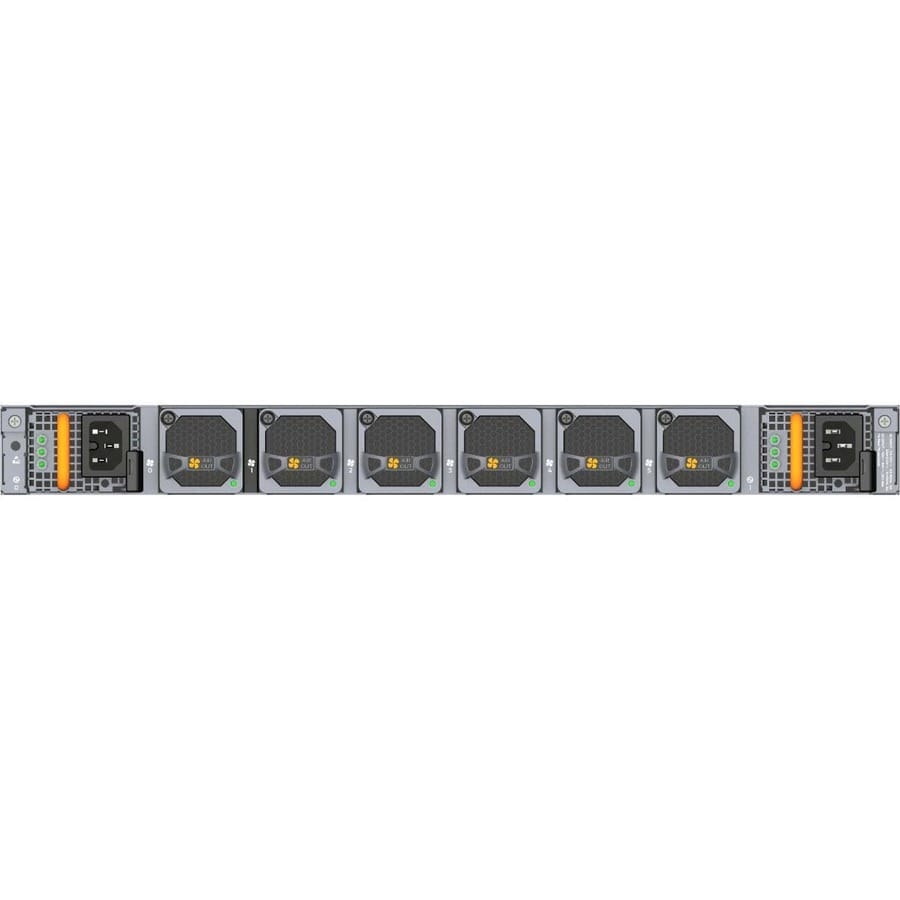

Juniper-ACX7100-32C-AC-AO-Router-Chassis-Rear

Juniper ACX7100-32C-AC-AO 32x QSFP28 + 4x QSFP56-DD Router, AC, Front-to-Back Airflow

Name: Juniper ACX7100-32C-AC-AO 32x QSFP28 + 4x QSFP56-DD Router, AC, Front-to-Back Airflow
Brand: Juniper
SKU: ACX7100-32C-AC-AO
Price: 85198.22 USD
Availability: InStock

$85,198.22List price: $117,040.00

Available direct from Juniper Ask us for current lead time

ConditionNew

WarrantyManufacturer

ShippingFree (US)

ReturnsRMA required · See policy

Juniper Care & licenses for this modelSee options ↓

4.8 Tbps cloud metro router with 32 QSFP28 and 4 QSFP56-DD ports, MACsec, AC power and front-to-back airflow. Runs Junos OS Evolved.

SKU: ACX7100-32C-AC-AO Categories: Juniper, Routers

Support & Licensing for the ACX7100-32C-AC-AO

Juniper licenses the ACX7100-32C-AC-AO by feature tier (Advanced or Premium) and by blocks of capacity. Every feature runs without a license key, but Juniper's terms require a license for the features and capacity you use. Most buyers also add Juniper Care support. Not sure what you need? Call (984) 225-1600 or request a quote and we'll spec it with you.

1Juniper Care support recommended

A support contract from Juniper for the ACX7100-32C-AC-AO. Every level includes 24/7 tech support and software updates; they differ in how fast a failed part is replaced.

Core24/7 Juniper tech support (JTAC) and software updates. No hardware replacement.SVC-COR-ACX71-32C
$5,826 / yr
Core PlusCore, plus repair or replacement shipped within 10 business days of Juniper receiving the failed part.SVC-CP-ACX71-32C
$6,554 / yr
Next DayCore, plus a replacement part delivered the next business day (RMA issued by 3 p.m. local time).SVC-ND-ACX71-32C
$7,282 / yr
Same DayCore, plus a replacement part delivered within 4 hours, 24/7.SVC-SD-ACX71-32C
$11,652 / yr

More levels: onsite technician and 2-hour delivery

Next Day OnsiteNext Day delivery, plus a technician on site to install the replacement part.SVC-NDCE-ACX71-32C
$9,105 / yr
Same Day OnsiteSame Day delivery, plus a technician on site to install the replacement part.SVC-SDCE-ACX71-32C
$14,565 / yr
Same Day 2-HourCore, plus a replacement part delivered within 2 hours, 24/7.SVC-SD2-ACX71-32C
$15,148 / yr

Delivery times depend on your location. Onsite technicians handle hardware replacement; software questions go to JTAC.

2Software license optional

Sold per block of capacity: buy enough blocks to cover the bandwidth you use on the ACX7100-32C-AC-AO. Tell us your port plan and we'll size it. Licenses are per router.

Advanced

For metro services over MPLS or segment routing:

Layer 2 features: LAG, MC-LAG, Q-in-Q, VXLAN, IRB, Ethernet OAM
Layer 2 VPN (pseudowire, VPLS, EVPN) and Layer 3 VPN
All IPv4/IPv6 routing protocols: OSPF, BGP, IS-IS, LDP
Segment routing, SR-TE and SRv6
Timing (PTP, SyncE), H-QoS and traffic filters
Telemetry, RFC 2544, LFM and CFM
Up to 32 VRFs and 2 million FIB entries

Per 100G of capacity

Subscription Includes Juniper software supportS-EACX-100G-A-1/3/5/7

1 yr$709 3 yr$1,425$475 / yr 5 yr$2,146$429 / yr 7 yr$3,004$429 / yr

Subscription Without software supportS-EACXNS-100G-A1-1/3/5

1 yr$617 3 yr$981$327 / yr 5 yr$1,225$245 / yr

Perpetual One-time purchase, without software supportS-EACX-100G-A1-P

Perpetual$1,577

Per 400G of capacity

Subscription Includes Juniper software supportS-EACX-400G-A-1/3/5/7

1 yr$2,851 3 yr$5,698$1,899 / yr 5 yr$8,536$1,707 / yr 7 yr$11,950$1,707 / yr

Subscription Without software supportS-EACXNS-400G-A1-3/5

3 yr$3,932$1,311 / yr 5 yr$4,865$973 / yr

Perpetual One-time purchase, without software supportS-EACX-400G-A1-P

Perpetual$6,310

Premium

For the metro and service edge. Everything in Advanced, plus:

Pseudowire headend termination (PWHT)
Every other feature that doesn't need its own license
Full platform scale for FIB and VPNs

Per 100G of capacity

Subscription Includes Juniper software supportS-EACX-100G-P-1/3/5

1 yr$1,069 3 yr$2,146$715 / yr 5 yr$3,199$640 / yr

Subscription Without software supportS-EACXNS-100G-P1-5

5 yr$1,826$365 / yr

Perpetual One-time purchase, without software supportS-EACX-100G-P1-P

Perpetual$2,367

Per 400G of capacity

Subscription Includes Juniper software supportS-EACX-400G-P-1/3/5/7

1 yr$4,288 3 yr$8,588$2,863 / yr 5 yr$12,796$2,559 / yr 7 yr$17,914$2,559 / yr

Perpetual One-time purchase, without software supportS-EACX-400G-P1-P

Perpetual$9,465

3Add-on licenses only if you need them

Mist Routing AssuranceMonitor this router from the Juniper Mist cloud, with router insights and service-level tracking.S-RA-S-C2-1/5/7
1 yr$543 5 yr$1,630$326 / yr 7 yr$2,282$326 / yr
Marvis AI assistantAI troubleshooting in Juniper Mist. An add-on to Routing Assurance.S-RA-A-C2-1/3/5/7
1 yr$233 3 yr$466$155 / yr 5 yr$698$140 / yr 7 yr$978$140 / yr
Data center license, Advanced 1For a data center IP fabric: BGP, OSPF, IS-IS, VRF, VRRP, GRE, filter-based forwarding, sFlow, JTI telemetry and RoCEv2.S-ACXCLDDC32C-A1-P, S-ACXCLDDC32C-A1-3
Perpetual$17,532 3 yr$15,799$5,266 / yr
Data center license, Advanced 2For a data center EVPN-VXLAN fabric: Advanced 1 plus EVPN-VXLAN, Layer 3 multicast, Q-in-Q, PTP, CFM and OAM, and Virtual Chassis.S-ACXCLDDC32C-A2-P, S-ACXCLDDC32C-A2-3/5
Perpetual$29,219 3 yr$26,328$8,776 / yr 5 yr$39,492$7,898 / yr

Description

About the ACX7100-32C-AC-AO

ACX7100-32C-AC-AO is the 100GbE-oriented ACX7100: 32 QSFP28 ports and 4 QSFP56-DD multi-rate ports with MACsec support, at 4.8 Tbps of throughput. It runs Junos OS Evolved with 64 GB of memory.

This version takes AC power, through two JPSU-1600W-1UACAFO supplies in a 1+1 pair, and uses front-to-back airflow (AO). Maximum AC draw is 960 W.

What’s included

ACX7100-32C router with 32 QSFP28 and 4 QSFP56-DD ports, AC power and front-to-back airflow
Junos OS Evolved

Sold separately

Advanced and Premium licenses and Juniper Care, listed in Support & Licensing above

Choosing a version

ACX7100-32C-AC-AO (this page): AC power, front-to-back airflow, Junos OS Evolved
ACX7100-32C-DC-AO: DC power, front-to-back airflow
ACX7100-32C-LAC-AO: AC power, front-to-back airflow, Limited Junos EVO
ACX7100-32C-LDC-AO: DC power, front-to-back airflow, Limited Junos EVO

Related models: ACX7100-48L-AC-AI.

Not sure which version you need? Call (984) 225-1600 or request a quote and we’ll check it against your rack and network.

ACX7100-32C-AC-AO specifications

Network ports	32x QSFP28, 4x QSFP56-DD
MACsec	Yes
Throughput	4800 Gbps
Form factor	1U, fixed chassis
Dimensions (H x W x D)	1.75 x 17.36 x 23.42 in (4.4 x 44.1 x 59.5 cm)
Weight (fully loaded)	28.58 lb / 12.96 kg
Airflow	Front-to-back
Power supplies	2x JPSU-1600W-1UACAFO (1+1 redundant, hot-swappable)
Max power draw (AC)	960 W
Fans	6x JNP7100-FAN1RU-AO (5+1 redundant, hot-swappable)
CPU	2.9-Ghz six-core Intel
Memory	64 GB
Storage	200 (100+100) GB SSD
Operating temperature	32° through 104° F / 0° through 40° C
Operating system	Junos OS Evolved

Full specifications (47)

Network ports

QSFP28 Ports	32
QSFP28 Port Channelization	Yes
QSFP28 Port MACsec	Yes
QSFP56-DD Ports	4
QSFP56-DD Port Channelization	Yes
QSFP-56DD Port MACsec	Yes

Management and other ports

Console Ports	1
Console Port Type	RJ-45
Management Ports	1
Management Port Type	RJ-45
USB Ports	1
USB Port Type	Type A
10 MHz Port	Yes
PPS Port	Yes

Chassis

Chassis type	Fixed
Form Factor	1U
Chassis Height	1.75 in / 4.445 cm
Chassis Width	17.36 in / 44.0944 cm
Chassis Depth	23.42 in / 59.4868 cm
Chassis depth (with power supplies and fans)	24.94 in / 63.3476 cm
Weight (chassis only)	22.24 lb / 10.09 kg
Weight (fully loaded)	28.58 lb / 12.96 kg
Chassis Model Number	JNP7100-32C-CHAS

Power

Power supplies	2
Power supply redundancy	1+1
Power supply airflow	Front-to-back
Hot-swappable power supplies	Yes
AC power supply model	JPSU-1600W-1UACAFO
AC Max Power Consumption	960 W
AC Average Power Consumption	570 W

Cooling

Airflow Direction	Front-to-back
Fan module model	JNP7100-FAN1RU-AO
Fan modules	6
Fan redundancy	5+1
Hot-swappable fans	Yes

Processor

CPU	2.9-Ghz six-core Intel
Memory (DRAM)	64 GB

Storage

Internal Storage Size	200 (100+100) GB
Internal Storage Type	SSD

Switching and routing scale

Throughput	4800 Gbps

Environmental

Operating Temperature	32° through 104° F / 0° through 40° C
Storage Temperature	-40° through 158° F / -40° through 70° C
Operating Altitude	6000 ft / 1829 m
Humidity, operating (noncondensing)	5% through 90%
Seismic Tolerance	Zone 4
Maintenance Clearance	24 in / 60.96 cm

Software

Operating system	Junos OS Evolved

Common questions

Which ACX7100 do I use for 100GbE ports?

The 32C, with 32 QSFP28 ports. The ACX7100-48L has SFP56 access ports and QSFP56-DD uplinks instead.

Is this the Limited version?

No. The L versions, such as ACX7100-32C-LAC-AO, ship with Limited Junos EVO.

What does AO mean?

Airflow out at the power-supply side: front-to-back, with air entering at the ports.
