About the ACX7100-48L-AC-AI

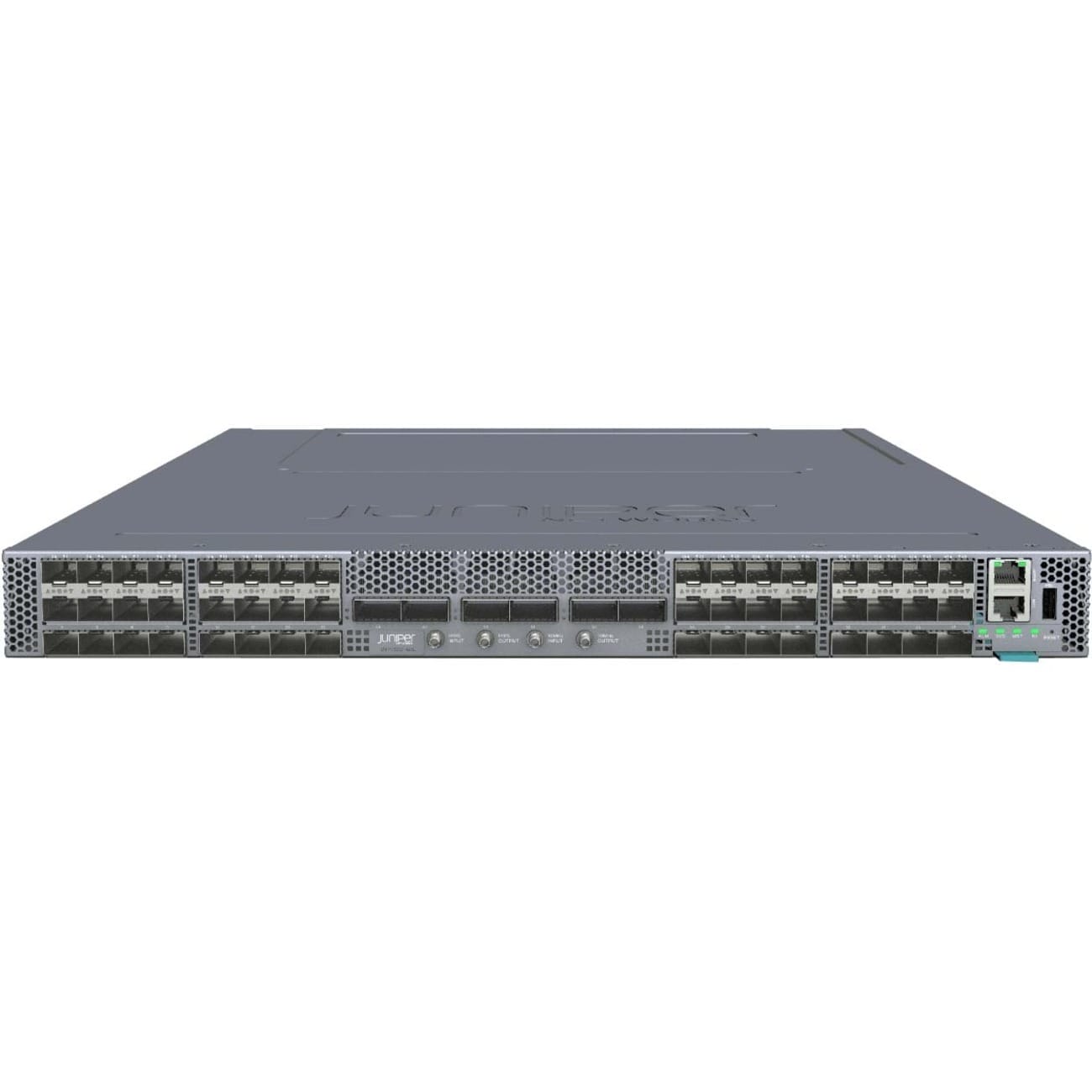

The ACX7100-48L is a fixed 1U router in Juniper’s ACX7000 Cloud Metro family, built for service-provider and operator metro networks. It has 48 SFP56 ports that run at 50, 25 or 10GbE (port 47 at 25 or 10GbE only) and six 400GbE QSFP56-DD ports, with 4.8 Tbps of forwarding capacity. It runs Junos OS Evolved.
What’s included

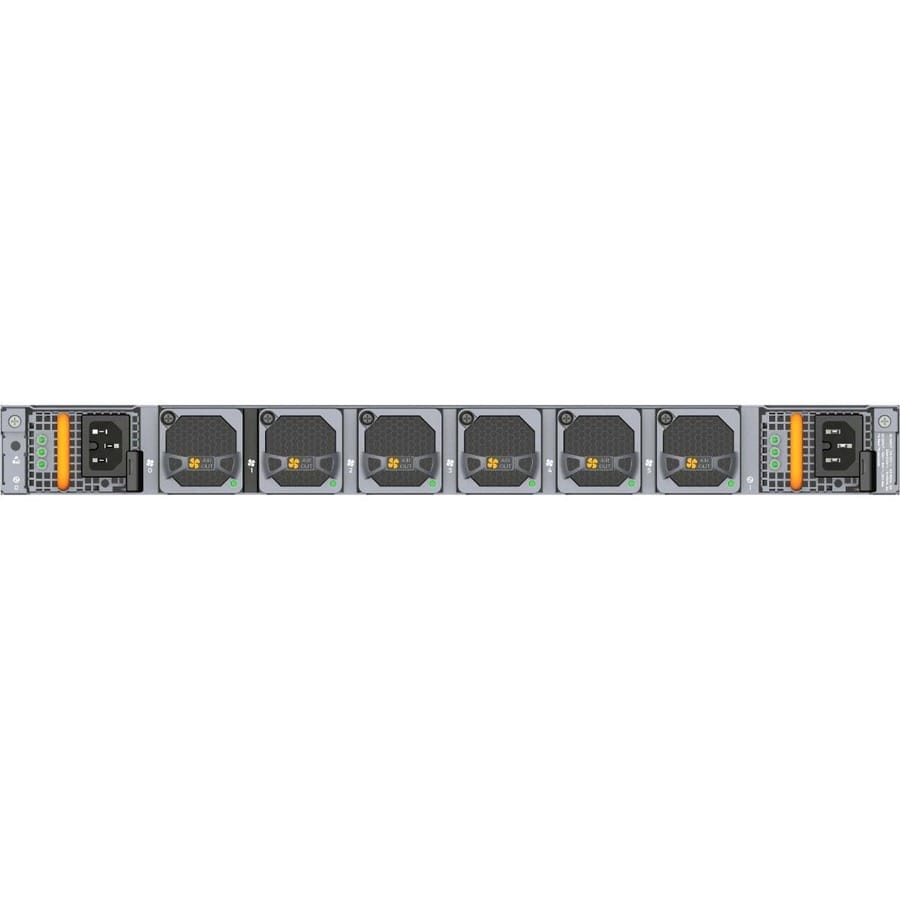

- ACX7100-48L chassis with AC power supplies and fans, back-to-front airflow (AI = airflow in)
- Junos OS Evolved
Sold separately
- Optics and cables for the SFP56 and QSFP56-DD ports
- Advanced and Premium licenses, sold per 100G or 400G of capacity, and Juniper Care, listed in Support & Licensing above
Choosing a version
- ACX7100-48L-AC-AI (this page): AC power, back-to-front airflow
- ACX7100-48L-AC-AO: AC power, front-to-back airflow
- ACX7100-48L-DC-AI: DC power, back-to-front airflow
- ACX7100-48L-LAC-AI and the other L versions: ship with Limited Junos EVO
For 100GbE ports instead of SFP56, see the ACX7100-32C-AC-AO.
Not sure which version you need? Call (984) 225-1600 or request a quote and we’ll check it against your rack and network.
ACX7100-48L-AC-AI specifications
| Network ports | 48x SFP56 (port 47: 25G/10G only), 6x QSFP56-DD |
|---|---|
| Throughput | 4800 Gbps |
| Form factor | 1U, fixed chassis |
| Dimensions (H x W x D) | 1.75 x 17.36 x 23.42 in (4.4 x 44.1 x 59.5 cm) |
| Weight (fully loaded) | 26.94 lb / 12.22 kg |
| Airflow | Back-to-front |
| Power supplies | 2x JPSU-1600W-1UACAFI (1+1 redundant, hot-swappable) |
| Max power draw (AC) | 620 W |
| Fans | 6x JNP7100-FAN1RU-AI (5+1 redundant, hot-swappable) |
| CPU | 2.9-Ghz six-core Intel |
| Memory | 64 GB |
| Storage | 200 (100+100) GB SSD |
| Operating temperature | 32° through 104° F / 0° through 40° C |
| Operating system | Junos OS Evolved |
Full specifications (45)
Network ports
| SFP28 Ports | 1 |
|---|---|
| SFP56 Ports | 47 |
| QSFP56-DD Ports | 6 |
| QSFP56-DD Port Channelization | Yes |
Management and other ports
| Console Ports | 1 |
|---|---|
| Console Port Type | RJ-45 |
| Management Ports | 1 |
| Management Port Type | RJ-45 |
| USB Ports | 1 |
| USB Port Type | Type A |
| 10 MHz Port | Yes |
| PPS Port | Yes |
Chassis
| Chassis type | Fixed |
|---|---|
| Form Factor | 1U |
| Chassis Height | 1.75 in / 4.445 cm |
| Chassis Width | 17.36 in / 44.0944 cm |
| Chassis Depth | 23.42 in / 59.4868 cm |
| Chassis depth (with power supplies and fans) | 24.94 in / 63.3476 cm |
| Weight (chassis only) | 20.54 lb / 9.32 kg |
| Weight (fully loaded) | 26.94 lb / 12.22 kg |
| Chassis Model Number | JNP7100-48L-CHAS |
Power
| Power supplies | 2 |
|---|---|
| Power supply redundancy | 1+1 |
| Power supply airflow | Back-to-front |
| Hot-swappable power supplies | Yes |
| AC power supply model | JPSU-1600W-1UACAFI |
| AC Max Power Consumption | 620 W |
| AC Average Power Consumption | 270 W |
Cooling
| Airflow Direction | Back-to-front |
|---|---|
| Fan module model | JNP7100-FAN1RU-AI |
| Fan modules | 6 |
| Fan redundancy | 5+1 |
| Hot-swappable fans | Yes |
Processor
| CPU | 2.9-Ghz six-core Intel |
|---|---|
| Memory (DRAM) | 64 GB |
Storage
| Internal Storage Size | 200 (100+100) GB |
|---|---|
| Internal Storage Type | SSD |
Switching and routing scale
| Throughput | 4800 Gbps |
|---|
Environmental
| Operating Temperature | 32° through 104° F / 0° through 40° C |
|---|---|
| Storage Temperature | -40° through 158° F / -40° through 70° C |
| Operating Altitude | 6000 ft / 1829 m |
| Humidity, operating (noncondensing) | 5% through 90% |
| Seismic Tolerance | Zone 4 |
| Maintenance Clearance | 24 in / 60.96 cm |
Software
| Operating system | Junos OS Evolved |
|---|
Common questions
What does the L in ACX7100-48L-LAC-AI mean?
The L versions ship with Limited Junos EVO software. This version ships with Junos OS Evolved.
Which ports run at 50GbE?
All 48 SFP56 ports except port 47, which runs at 25 or 10GbE only.
How are licenses sold?
Advanced and Premium licenses are sold per 100G or per 400G of capacity, as subscriptions or perpetual. See Support & Licensing above.
Are optics included?
No. Transceivers and cables are sold separately, and we can quote compatible ones.
