Juniper ACX7024-AC-2PSU 24x25G 4x100G Router

Name: Juniper ACX7024-AC-2PSU 24x25G 4x100G Router | Link US
Brand: Juniper
SKU: ACX7024-AC-2PSU
Price: 25243.54 USD
Availability: InStock

$25,243.54List price: $34,678.00

Available direct from Juniper Ask us for current lead time

ConditionNew

WarrantyManufacturer

ShippingFree (US)

ReturnsRMA required · See policy

Juniper Care & licenses for this modelSee options ↓

1RU cloud metro router with 24 SFP28 and 4 QSFP28 ports, redundant AC power and front-to-back airflow. Runs Junos OS Evolved.

SKU: ACX7024-AC-2PSU Categories: Juniper, Routers

Support & Licensing for the ACX7024-AC-2PSU

Juniper licenses the ACX7024-AC-2PSU by feature tier (Advanced or Premium) and by blocks of capacity. Every feature runs without a license key, but Juniper's terms require a license for the features and capacity you use. Most buyers also add Juniper Care support. Not sure what you need? Call (984) 225-1600 or request a quote and we'll spec it with you.

1Juniper Care support recommended

A support contract from Juniper for the ACX7024-AC-2PSU. Every level includes 24/7 tech support and software updates; they differ in how fast a failed part is replaced.

Core24/7 Juniper tech support (JTAC) and software updates. No hardware replacement.SVC-COR-ACX70242P
$1,720 / yr
Core PlusCore, plus repair or replacement shipped within 10 business days of Juniper receiving the failed part.SVC-CP-ACX70242P
$1,935 / yr
Next DayCore, plus a replacement part delivered the next business day (RMA issued by 3 p.m. local time).SVC-ND-ACX70242P
$2,151 / yr
Same DayCore, plus a replacement part delivered within 4 hours, 24/7.SVC-SD-ACX70242P
$3,441 / yr

More levels: onsite technician and 2-hour delivery

Next Day OnsiteNext Day delivery, plus a technician on site to install the replacement part.SVC-NDCE-ACX70242P
$2,688 / yr
Same Day OnsiteSame Day delivery, plus a technician on site to install the replacement part.SVC-SDCE-ACX70242P
$4,301 / yr
Same Day 2-HourCore, plus a replacement part delivered within 2 hours, 24/7.SVC-SD2-ACX70242P
$4,473 / yr

Delivery times depend on your location. Onsite technicians handle hardware replacement; software questions go to JTAC.

2Software license optional

Sold per block of capacity: buy enough blocks to cover the bandwidth you use on the ACX7024-AC-2PSU. Tell us your port plan and we'll size it. Licenses are per router.

Advanced

For metro services over MPLS or segment routing:

Layer 2 features: LAG, MC-LAG, Q-in-Q, VXLAN, IRB, Ethernet OAM
Layer 2 VPN (pseudowire, VPLS, EVPN) and Layer 3 VPN
All IPv4/IPv6 routing protocols: OSPF, BGP, IS-IS, LDP
Segment routing, SR-TE and SRv6
Timing (PTP, SyncE), H-QoS and traffic filters
Telemetry, RFC 2544, LFM and CFM
Up to 32 VRFs and 2 million FIB entries

Per 100G of capacity

Subscription Includes Juniper software supportS-EACX-100G-A-1/3/5/7

1 yr$709 3 yr$1,425$475 / yr 5 yr$2,146$429 / yr 7 yr$3,004$429 / yr

Subscription Without software supportS-EACXNS-100G-A1-1/3/5

1 yr$617 3 yr$981$327 / yr 5 yr$1,225$245 / yr

Perpetual One-time purchase, without software supportS-EACX-100G-A1-P

Perpetual$1,577

Per 400G of capacity

Subscription Includes Juniper software supportS-EACX-400G-A-1/3/5/7

1 yr$2,851 3 yr$5,698$1,899 / yr 5 yr$8,536$1,707 / yr 7 yr$11,950$1,707 / yr

Subscription Without software supportS-EACXNS-400G-A1-3/5

3 yr$3,932$1,311 / yr 5 yr$4,865$973 / yr

Perpetual One-time purchase, without software supportS-EACX-400G-A1-P

Perpetual$6,310

Premium

For the metro and service edge. Everything in Advanced, plus:

Pseudowire headend termination (PWHT)
Every other feature that doesn't need its own license
Full platform scale for FIB and VPNs

Per 100G of capacity

Subscription Includes Juniper software supportS-EACX-100G-P-1/3/5

1 yr$1,069 3 yr$2,146$715 / yr 5 yr$3,199$640 / yr

Subscription Without software supportS-EACXNS-100G-P1-5

5 yr$1,826$365 / yr

Perpetual One-time purchase, without software supportS-EACX-100G-P1-P

Perpetual$2,367

Per 400G of capacity

Subscription Includes Juniper software supportS-EACX-400G-P-1/3/5/7

1 yr$4,288 3 yr$8,588$2,863 / yr 5 yr$12,796$2,559 / yr 7 yr$17,914$2,559 / yr

Perpetual One-time purchase, without software supportS-EACX-400G-P1-P

Perpetual$9,465

3Add-on licenses only if you need them

Mist Routing AssuranceMonitor this router from the Juniper Mist cloud, with router insights and service-level tracking.S-RA-S-C2-1/5/7
1 yr$543 5 yr$1,630$326 / yr 7 yr$2,282$326 / yr
Marvis AI assistantAI troubleshooting in Juniper Mist. An add-on to Routing Assurance.S-RA-A-C2-1/3/5/7
1 yr$233 3 yr$466$155 / yr 5 yr$698$140 / yr 7 yr$978$140 / yr
Data center license, Advanced 1For a data center IP fabric: BGP, OSPF, IS-IS, VRF, VRRP, GRE, filter-based forwarding, sFlow, JTI telemetry and RoCEv2.S-ACXCLDDC48L-A1-P, S-ACXCLDDC48L-A1-3/5
Perpetual$17,532 3 yr$15,799$5,266 / yr 5 yr$23,698$4,740 / yr
Data center license, Advanced 2For a data center EVPN-VXLAN fabric: Advanced 1 plus EVPN-VXLAN, Layer 3 multicast, Q-in-Q, PTP, CFM and OAM, and Virtual Chassis.S-ACXCLDDC48L-A2-P, S-ACXCLDDC48L-A2-3/5
Perpetual$29,219 3 yr$26,328$8,776 / yr 5 yr$39,492$7,898 / yr

Description

About the ACX7024-AC-2PSU

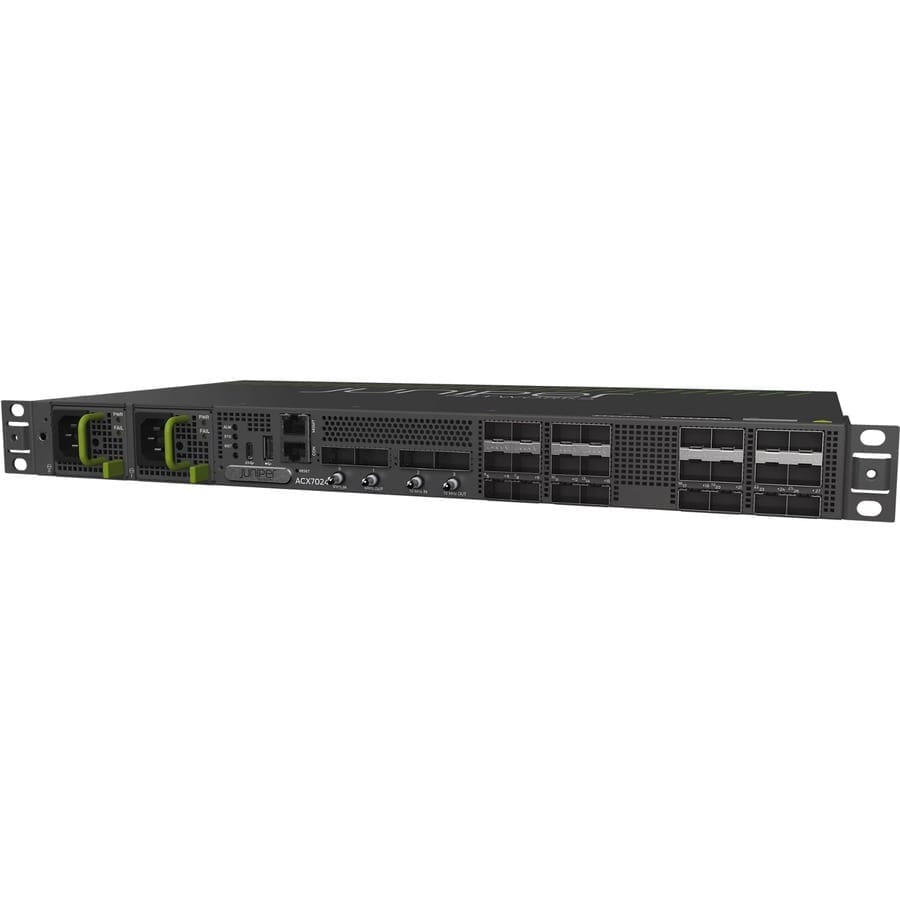

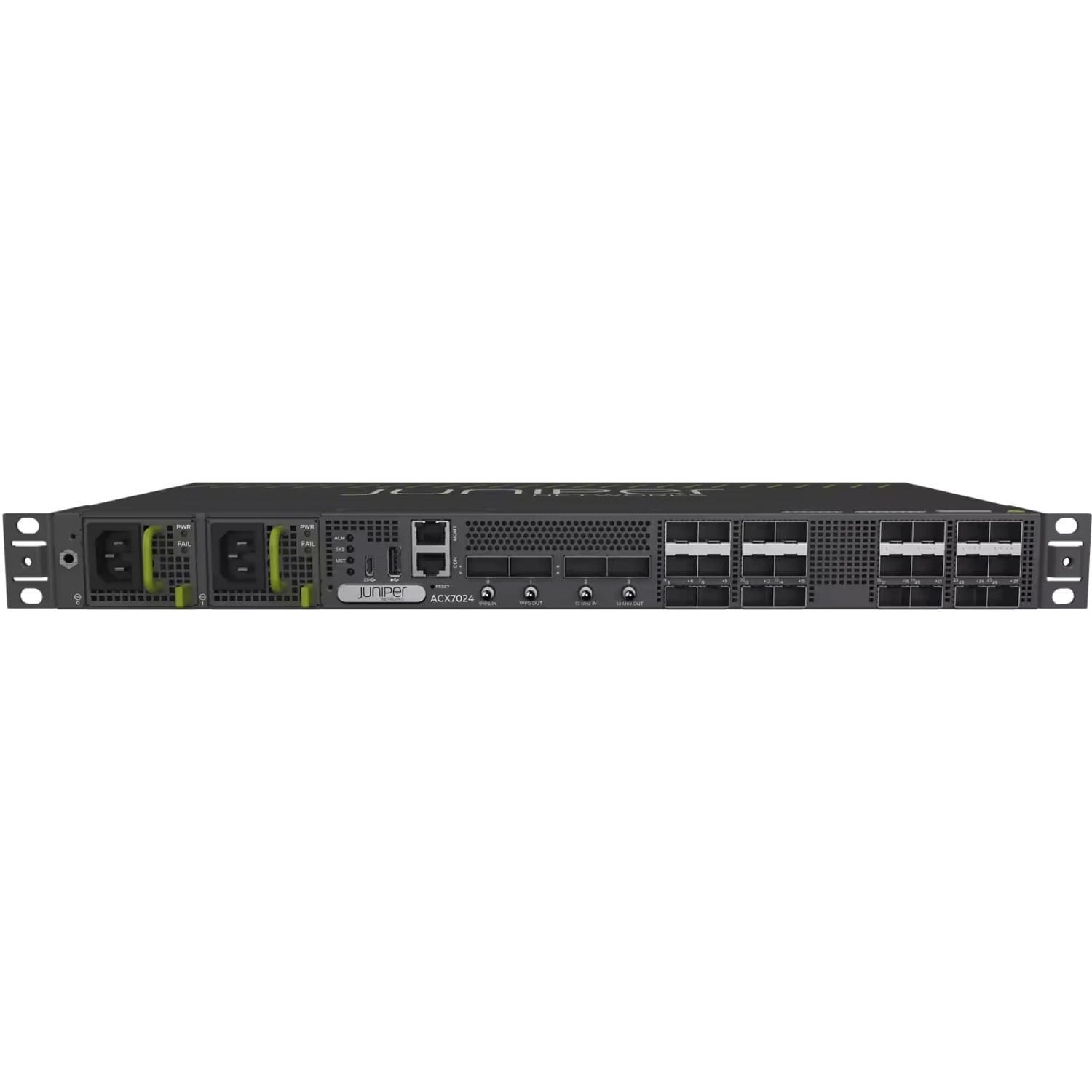

The ACX7024-AC-2PSU is the redundant-power edition of the ACX7024: 24 SFP28 ports, 4 QSFP28 ports and 360 Gbps of throughput in a 1RU, 250 mm deep chassis. It runs Junos OS Evolved.

It is the AC redundant power supply configuration. Two JPSU-400W-AC-AFI supplies run in a 1+1 hot-swappable arrangement, and the maximum AC draw is 150 W.

What’s included

ACX7024 router with 24 SFP28 and 4 QSFP28 ports, 1RU and 250 mm deep
Redundant AC power supply configuration
Junos OS Evolved

Sold separately

Advanced and Premium licenses and Juniper Care, listed in Support & Licensing above

Choosing a version

ACX7024-AC-2PSU (this page): redundant supplies, AC power, front-to-back airflow, Junos OS Evolved
ACX7024-AC-1PSU: non-redundant supply, AC power, front-to-back airflow
ACX7024-DC-1PSU: non-redundant supply, DC power, front-to-back airflow
ACX7024-DC-2PSU: redundant supplies, DC power, front-to-back airflow

Not sure which version you need? Call (984) 225-1600 or request a quote and we’ll check it against your rack and network.

ACX7024-AC-2PSU specifications

Network ports	24x SFP28, 4x QSFP28
Throughput	360 Gbps
Form factor	1U, fixed chassis
Dimensions (H x W x D)	1.75 x 19 x 9.6 in (4.4 x 48.3 x 24.4 cm)
Weight (fully loaded)	12.5 lb / 5.67 kg
Airflow	Front-to-back
Power supplies	2x JPSU-400W-AC-AFI (1+1 redundant, hot-swappable)
Max power draw (AC)	150 W
Fans	6 (5+1 redundant)
CPU	Intel 4-core
Memory	16 GB
Operating temperature	-40° through 149° F / -40° through 65° C
Operating system	Junos OS Evolved

Full specifications (37)

Network ports

SFP28 Ports	24
QSFP28 Ports	4
QSFP28 Port Channelization	Yes

Management and other ports

Console Ports	1
Console Port Type	RJ-45
Management Ports	1
Management Port Type	RJ-45
USB Ports	2
USB Port Type	Type A, Type C
10 MHz Port	Yes
PPS Port	Yes

Chassis

Chassis type	Fixed
Form Factor	1U
Chassis Height	1.75 in / 4.445 cm
Chassis Width	19 in / 48.26 cm
Chassis Depth	9.6 in / 24.384 cm
Chassis depth (with power supplies and fans)	10.63 in / 27.0002 cm
Weight (fully loaded)	12.5 lb / 5.67 kg

Power

Power supplies	2
Power supply redundancy	1+1
Power supply airflow	Back-to-front
Hot-swappable power supplies	Yes
AC power supply model	JPSU-400W-AC-AFI
AC Max Power Consumption	150 W
AC Average Power Consumption	97 W

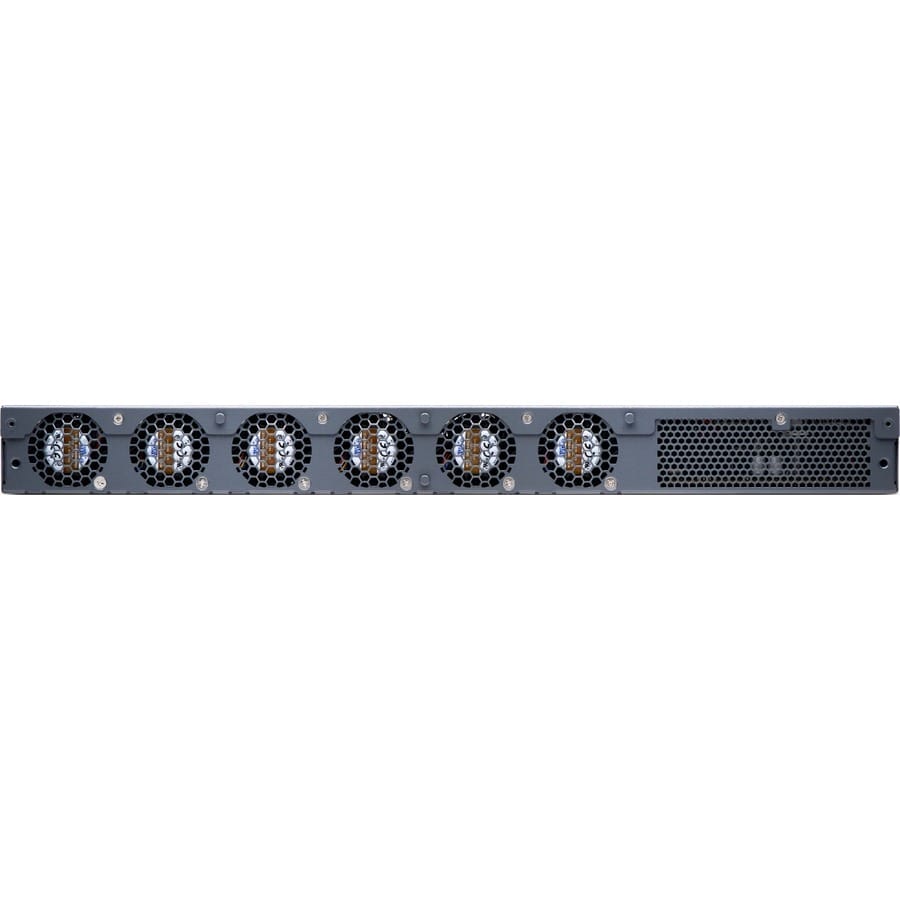

Cooling

Airflow Direction	Front-to-back
Fan modules	6
Fan redundancy	5+1

Processor

CPU	Intel 4-core
Memory (DRAM)	16 GB

Switching and routing scale

Throughput	360 Gbps

Environmental

Operating Temperature	-40° through 149° F / -40° through 65° C
Storage Temperature	-40° through 158° F / -40° through 70° C
Operating Altitude	6000 ft / 1829 m
Humidity, operating (noncondensing)	5% through 90%
Maintenance Clearance	24 in / 60.96 cm
