Juniper SRX340 Firewall (Hardware Only)

Name: Juniper SRX340 Firewall (Hardware Only)
Brand: Juniper
SKU: SRX340
Price: 2788.50 USD
Availability: InStock

$2,788.50List price: $6,500.00

Available direct from Juniper Ask us for current lead time

ConditionNew

WarrantyManufacturer

ShippingFree (US)

ReturnsRMA required · See policy

Juniper Care & licenses for this modelSee options ↓

A hardware-only branch services gateway with eight Gigabit RJ-45 ports, eight Gigabit SFP ports and four Mini-PIM slots. It includes the supply, cable and rack kit; a JSB or JSE license is required.

SKU: SRX340 Categories: Juniper, Firewalls

Support & Licensing for the SRX340

The SRX340 is hardware only: Juniper requires a Junos software license to complete the system. Most buyers also add Juniper Care support; security subscriptions add threat protection such as IPS, antivirus and web filtering. Not sure what you need? Call (984) 225-1600 or request a quote and we'll spec it with you.

1Juniper Care support recommended

A support contract from Juniper for the SRX340. Every level includes 24/7 tech support and software updates; they differ in how fast a failed part is replaced.

Core PlusCore, plus repair or replacement shipped within 10 business days of Juniper receiving the failed part.SVC-CP-SRX340HW
$349 / yr
Next DayCore, plus a replacement part delivered the next business day (RMA issued by 3 p.m. local time).SVC-ND-SRX340HW
$388 / yr
Same DayCore, plus a replacement part delivered within 4 hours, 24/7.SVC-SD-SRX340HW
$735 / yr

More levels: onsite technician and 2-hour delivery

Next Day OnsiteNext Day delivery, plus a technician on site to install the replacement part.SVC-NDCE-SRX340HW
$543 / yr
Same Day OnsiteSame Day delivery, plus a technician on site to install the replacement part.SVC-SDCE-SRX340HW
$968 / yr
Same Day 2-HourCore, plus a replacement part delivered within 2 hours, 24/7.SVC-SD2-SRX340HW
$957 / yr

Delivery times depend on your location. Onsite technicians handle hardware replacement; software questions go to JTAC.

2Junos software license required

The SRX340 ships without software. Choose one of these one-time licenses to complete the system.

Junos Software Base (JSB)Firewall, NAT, IPsec VPN, routing, MPLS and switching.SRX340-JSB
Perpetual$1,322
Junos Software Enhanced (JSE)Everything in JSB, plus application security services (AppSecure).SRX340-JSE
Perpetual$2,647

3Security subscription optional

Optional threat protection for the SRX340, sold as 1, 3 or 5-year subscriptions. Licenses are per firewall.

Junos software

With the Junos license above

Firewall and NAT
IPsec VPN
Routing, MPLS and switching

Included

Advanced 1

Adds:

IPS (intrusion prevention)
App+ application security: identify, control and prioritize apps
SD-WAN application routing
SecIntel threat intelligence feeds

Subscription Includes Juniper software supportS-SRX340-A1-1/3/5

1 yr$258 3 yr$517$172 / yr 5 yr$775$155 / yr

Advanced 2

Everything in Advanced 1, plus:

Antivirus
Enhanced web filtering
Antispam

Subscription Includes Juniper software supportS-SRX340-A2-1/3/5

1 yr$936 3 yr$1,872$624 / yr 5 yr$2,808$562 / yr

Premium 1

Everything in Advanced 1, plus:

Juniper ATP Cloud: detects and blocks zero-day malware

Subscription Includes Juniper software supportS-SRX340-P1-1/3/5

1 yr$592 3 yr$1,185$395 / yr 5 yr$1,777$355 / yr

Premium 2

Everything in Advanced 2 and Premium 1:

Antivirus, web filtering and antispam
Juniper ATP Cloud zero-day protection

Subscription Includes Juniper software supportS-SRX340-P2-1/3/5

1 yr$1,088 3 yr$2,177$726 / yr 5 yr$3,265$653 / yr

4Add-on licenses only if you need them

Remote access VPN (Juniper Secure Connect)VPN for remote users with the Juniper Secure Connect client, licensed by the number of users connected at once.
- 5 usersS-RA3-5CCU-S-1/3/5
  1 yr$67 3 yr$134$45 / yr 5 yr$201$40 / yr
- 25 usersS-RA3-25CCU-S-1/3/5
  1 yr$286 3 yr$571$190 / yr 5 yr$856$171 / yr
- 50 usersS-RA3-50CCU-S-1/3/5
  1 yr$504 3 yr$1,007$336 / yr 5 yr$1,511$302 / yr
- 100 usersS-RA3-100CCU-S-1/3/5
  1 yr$874 3 yr$1,745$582 / yr 5 yr$2,620$524 / yr
- 150 users, SRX340 packS-RA3-SRX340-S-1/3/5
  1 yr$665 3 yr$1,330$443 / yr 5 yr$1,995$399 / yr
Mist WAN AssuranceManage and monitor this firewall from the Juniper Mist cloud, with AI insights and service-level tracking.S-WAN-C2-1/3/5
1 yr$655 3 yr$1,306$435 / yr 5 yr$1,961$392 / yr
Mist WAN Assurance, Standard bundleWAN Assurance plus application visibility (Junos AppID, activated from Mist).S-SRX-S-C2-1/3/5
1 yr$782 3 yr$1,564$521 / yr 5 yr$2,346$469 / yr
Bundled with Juniper Care
- With Core supportS-SRX-S-C2-1/3/5-COR
  1 yr$956 3 yr$2,088$696 / yr 5 yr$3,217$643 / yr
- With Core Plus supportS-SRX-S-C2-1/3/5-CP
  1 yr$1,078 3 yr$2,447$816 / yr 5 yr$3,826$765 / yr
- With Next Day supportS-SRX-S-C2-1/3/5-ND
  1 yr$1,117 3 yr$2,574$858 / yr 5 yr$4,029$806 / yr
- With Same Day supportS-SRX-S-C2-1/3/5-SD
  1 yr$1,260 3 yr$2,993$998 / yr 5 yr$4,730$946 / yr
Mist WAN Assurance, Advanced bundleThe Standard bundle plus Marvis, Juniper's AI assistant for troubleshooting.S-SRX-A-C2-1/3/5
1 yr$1,176 3 yr$2,346$782 / yr 5 yr$3,521$704 / yr
Bundled with Juniper Care
- With Core supportS-SRX-A-C2-1/3/5-COR
  1 yr$1,349 3 yr$2,871$957 / yr 5 yr$4,392$878 / yr
- With Core Plus supportS-SRX-A-C2-1/3/5-CP
  1 yr$1,471 3 yr$3,229$1,076 / yr 5 yr$5,001$1,000 / yr
- With Next Day supportS-SRX-A-C2-1/3/5-ND
  1 yr$1,510 3 yr$3,356$1,119 / yr 5 yr$5,204$1,041 / yr
- With Same Day supportS-SRX-A-C2-1/3/5-SD
  1 yr$1,653 3 yr$3,775$1,258 / yr 5 yr$5,905$1,181 / yr
IPS signature updatesIntrusion prevention signature updates on their own. Every security subscription tier includes IPS.SRX340-IPS-1/3/5
1 yr$617 3 yr$1,715$572 / yr 5 yr$2,653$531 / yr
Enhanced web filteringWeb filtering on its own. The Advanced 2 tier includes it.SRX340-W-EWF-1/3/5
1 yr$617 3 yr$1,715$572 / yr 5 yr$2,653$531 / yr
ATP threat feedsJuniper ATP Cloud threat intelligence feeds only, with no file scanning. The Premium tiers include full ATP Cloud.SRX340-THRTFEED-1/3/5
1 yr$290 3 yr$584$195 / yr 5 yr$1,165$233 / yr

Description

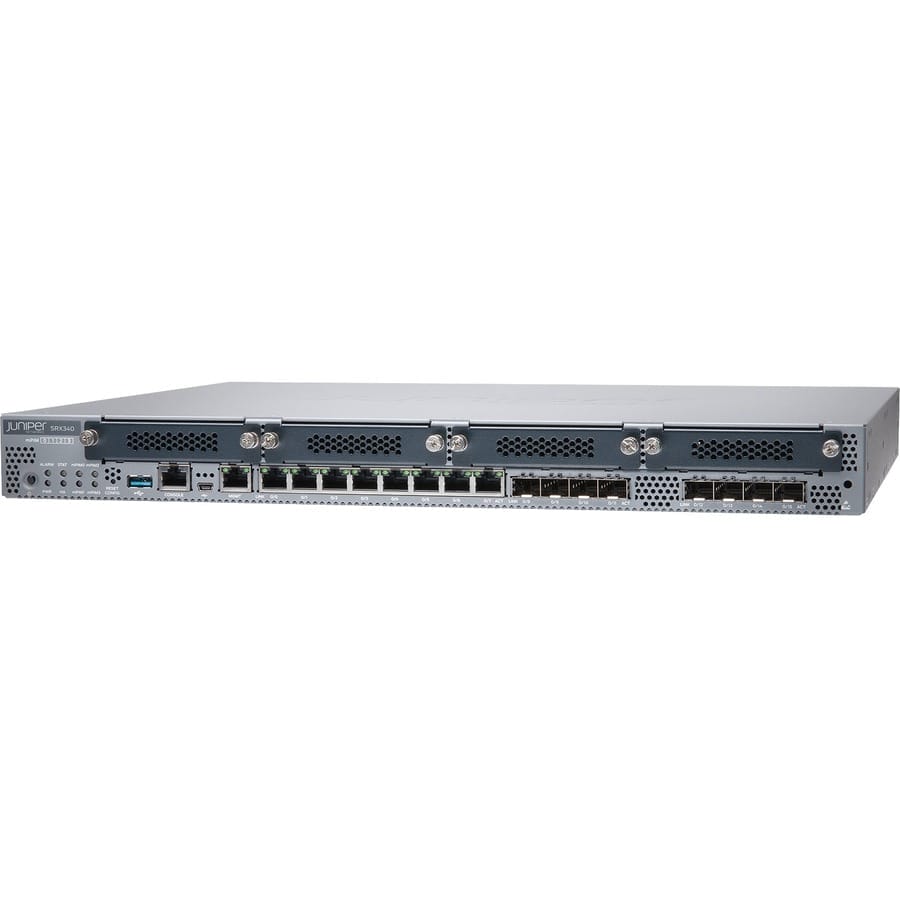

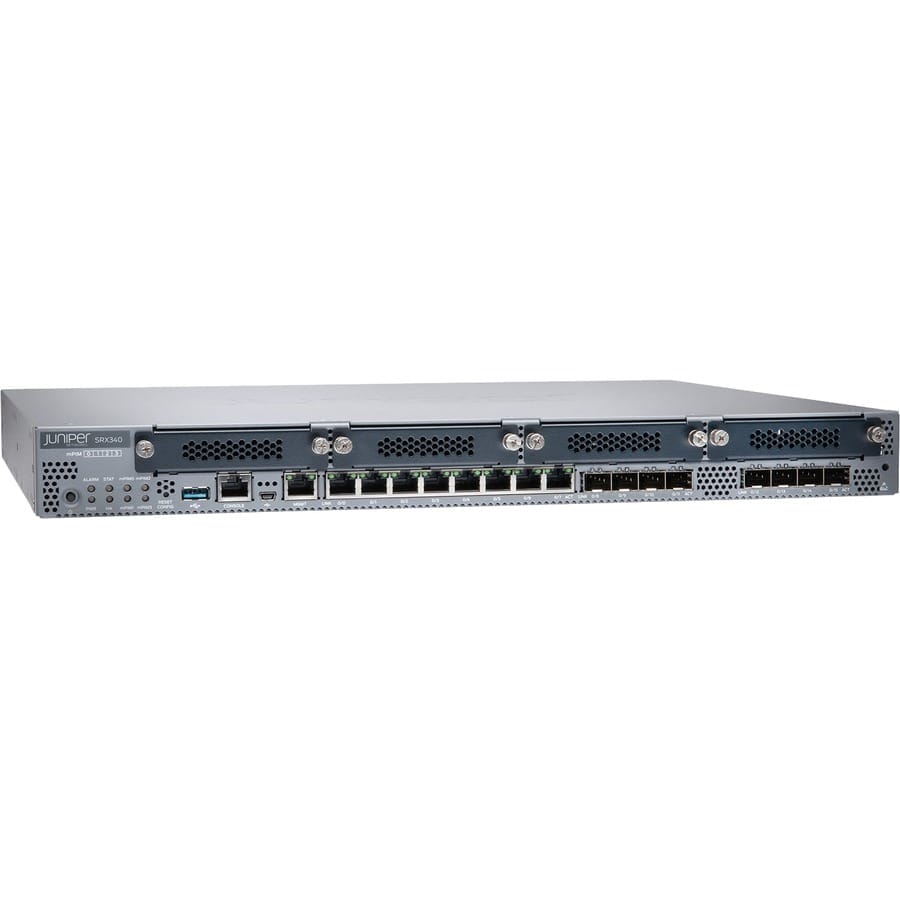

About the SRX340

The SRX340 provides 16 Gigabit connections split equally between eight RJ-45 ports and eight SFP ports, with four Mini-PIM slots for optional branch interfaces. This hardware-only SKU requires a JSB or JSE software license to complete the system. The internal power supply, cable and rack-mount kit are included.

What’s included

SRX340 hardware-only services gateway with 16 Gigabit connections and four Mini-PIM slots
Power supply and power cable
Rack-mount kit

Sold separately

Junos Software Base (JSB) or Junos Software Enhanced (JSE) license required to complete the system
Advanced and Premium licenses and Juniper Care, listed in Support & Licensing above

Choosing a version

SRX340 (this page): hardware only; JSB or JSE required, front-to-back airflow
SRX340-SYS-JB: Junos Software Base bundle, front-to-back airflow
SRX340-SYS-JB-T: Junos Software Base bundle, front-to-back airflow, TAA-compliant
SRX340-SYS-JE: Junos Software Enhanced bundle, front-to-back airflow

Related models: SRX300, SRX320.

Not sure which version you need? Call (984) 225-1600 or request a quote and we’ll check it against your rack and network.

SRX340 specifications

Network ports	8x RJ-45, 8x SFP
Mini-PIM slots	4
MACsec	Yes
Firewall throughput (1518B)	4700 Mbps
Firewall throughput (IMIX)	1100 Mbps
IPsec VPN throughput (IMIX)	0.239 Gbps
Concurrent sessions (thousands)	256
Form factor	1U, fixed chassis
Dimensions (H x W x D)	1.72 x 17.36 x 14.57 in (4.4 x 44.1 x 37 cm)
Weight (as shipped)	10.8 lb / 4.9 kg
Airflow	Front-to-back
Power supplies	1
Fans	4
Memory	4 GB
Storage	8 GB Flash
MAC addresses (thousands)	15
Operating temperature	32° through 104° F / 0° through 40° C
Operating system	Junos OS

Full specifications (65)

Network ports

RJ-45 Ports	8
RJ-45 Port MACsec	Yes
SFP Ports	8
SFP Port MACsec	Yes

Management and other ports

Console Ports	2
Console Port Type	RJ-45, Mini USB Type B
Management Ports	1
Management Port Type	RJ-45
USB Ports	1
USB Port Type	USB 3.0 Type A

Chassis

Chassis type	Fixed
Form Factor	1U
Chassis Height	1.72 in / 4.3688 cm
Chassis Width	17.36 in / 44.0944 cm
Chassis Depth	14.57 in / 37.0078 cm
Chassis depth (with power supplies and fans)	14.57 in / 37.0078 cm
Weight (as shipped)	10.8 lb / 4.9 kg

Power

Power supplies	1
AC Average Power Consumption	122 W
AC PSU Average Heat Dissipation	420 BTU/h
Maximum Current Consumption	1.496 A
Maximum Inrush Current	7.3 A (220 VAC)

Cooling

Airflow Direction	Front-to-back
Fan modules	4

Processor

Memory (DRAM)	4 GB

Storage

Internal Storage Size	8 GB
Internal Storage Type	Flash

Routing engines and fabric

Mini PIM Slots	4

Security performance

Firewall Throughput (1518B)	4700 Mbps
Firewall Throughput (64B)	350 Kpps
Firewall Throughput (IMIX)	1100 Mbps
IPsec VPN Throughput (1400B)	0.733 Gbps
IPsec VPN Throughput (IMIX)	0.239 Gbps
Routing With Packet Mode (64B)	550 Kpps
Routing With Packet Mode (1518B)	3000 Mbps
Routing With Packet Mode (IMIX)	1600 Mbps
NGFW Performance (CPS)	0.42 Gbps
Secure Web Access Firewall (CPS)	0.28 Gbps
AppID Sessions (thousands)	64
Application Visibility And Control	1 Gbps
GRE Tunnels	512
IPS Sessions (thousands)	64
Maximum SSL VPN Concurrent Users	150
Maximum Security Policies	2000
Maximum Security Zones	64
Maximum Virtual Routers	64
NAT Rules	2000
Recommended IPS	0.4 Gbps
URLF Sessions (thousands)	64

Performance

Route Table Size (RIB) (IPv4) (thousands)	1000
Route Table Size (FIB) (IPv4) (thousands)	600
Route Table Size (RIB) (IPv6) (thousands)	1000
Route Table Size (FIB) (IPv6) (thousands)	600
Max Concurrent Sessions (IPv4/IPv6) (thousands)	256
IPsec VPN Tunnels	1024

Switching and routing scale

MAC Addresses Per System (thousands)	15
VLAN IDs	2000

Environmental

Operating Temperature	32° through 104° F / 0° through 40° C
Storage Temperature	-4° through 158° F / -20° through 70° C
Operating Altitude	10000 ft (3040 m)
Humidity, operating (noncondensing)	10% through 90%
Humidity, non-operating (noncondensing)	5% through 95%
Acoustic Noise Level (Max)	45.5 dB
Maintenance Clearance	24 in / 60.96 cm

Software

Operating system	Junos OS

Common questions

Does this include a software license?

No. This is hardware only and requires a JSB or JSE license to complete the system.

What about the rack-mount kit?

It is included, with an internal power supply and a power cable.

Can I expand the ports on it?

Yes, through its 4 Mini-PIM slots, which are in addition to 8x RJ-45 and 8x SFP.

What comes with the hardware-only configuration?

The gateway includes its internal power supply, power cable and rack-mount kit; software is ordered separately.
