Juniper SRX340-SYS-JB Firewall with Junos Base Software

Name: Juniper SRX340-SYS-JB Firewall with Junos Base Software
Brand: Juniper
SKU: SRX340-SYS-JB
Price: 3131.70 USD
Availability: InStock

$3,131.70List price: $7,300.00

In stock (10+) Ships in 1–2 business days

ConditionNew

WarrantyManufacturer

ShippingFree (US)

ReturnsRMA required · See policy

Juniper Care & licenses for this modelSee options ↓

A 16-port Gigabit branch gateway bundle with eight RJ-45 ports, eight SFP ports and four Mini-PIM slots. Junos Software Base, the power supply, cable and rack kit are included.

SKU: SRX340-SYS-JB Categories: Juniper, Firewalls

Support & Licensing for the SRX340-SYS-JB

The SRX340-SYS-JB comes with Junos software for firewall, NAT, IPsec VPN, routing and switching. Most buyers add Juniper Care support; security subscriptions add threat protection such as IPS, antivirus and web filtering. Not sure what you need? Call (984) 225-1600 or request a quote and we'll spec it with you.

1Juniper Care support recommended

A support contract from Juniper for the SRX340-SYS-JB. Every level includes 24/7 tech support and software updates; they differ in how fast a failed part is replaced.

Core24/7 Juniper tech support (JTAC) and software updates. No hardware replacement.SVC-COR-SRX340JB
$299 / yr
Core PlusCore, plus repair or replacement shipped within 10 business days of Juniper receiving the failed part.SVC-CP-SRX340JB
$574 / yr
Next DayCore, plus a replacement part delivered the next business day (RMA issued by 3 p.m. local time).SVC-ND-SRX340JB
$599 / yr
Same DayCore, plus a replacement part delivered within 4 hours, 24/7.SVC-SD-SRX340JB
$903 / yr

More levels: onsite technician and 2-hour delivery

Next Day OnsiteNext Day delivery, plus a technician on site to install the replacement part.SVC-NDCE-SRX340JB
$733 / yr
Same Day OnsiteSame Day delivery, plus a technician on site to install the replacement part.SVC-SDCE-SRX340JB
$1,107 / yr
Same Day 2-HourCore, plus a replacement part delivered within 2 hours, 24/7.SVC-SD2-SRX340JB
$1,172 / yr

Delivery times depend on your location. Onsite technicians handle hardware replacement; software questions go to JTAC.

2Security subscription optional

Optional threat protection for the SRX340-SYS-JB, sold as 1, 3 or 5-year subscriptions. Licenses are per firewall.

Junos software

Included with the firewall

Firewall and NAT
IPsec VPN
Routing, MPLS and switching

Included

Advanced 1

Adds:

IPS (intrusion prevention)
App+ application security: identify, control and prioritize apps
SD-WAN application routing
SecIntel threat intelligence feeds

Subscription Includes Juniper software supportS-SRX340-A1-1/3/5

1 yr$258 3 yr$517$172 / yr 5 yr$775$155 / yr

Advanced 2

Everything in Advanced 1, plus:

Antivirus
Enhanced web filtering
Antispam

Subscription Includes Juniper software supportS-SRX340-A2-1/3/5

1 yr$936 3 yr$1,872$624 / yr 5 yr$2,808$562 / yr

Premium 1

Everything in Advanced 1, plus:

Juniper ATP Cloud: detects and blocks zero-day malware

Subscription Includes Juniper software supportS-SRX340-P1-1/3/5

1 yr$592 3 yr$1,185$395 / yr 5 yr$1,777$355 / yr

Premium 2

Everything in Advanced 2 and Premium 1:

Antivirus, web filtering and antispam
Juniper ATP Cloud zero-day protection

Subscription Includes Juniper software supportS-SRX340-P2-1/3/5

1 yr$1,088 3 yr$2,177$726 / yr 5 yr$3,265$653 / yr

3Add-on licenses only if you need them

Remote access VPN (Juniper Secure Connect)VPN for remote users with the Juniper Secure Connect client, licensed by the number of users connected at once.
- 5 usersS-RA3-5CCU-S-1/3/5
  1 yr$67 3 yr$134$45 / yr 5 yr$201$40 / yr
- 25 usersS-RA3-25CCU-S-1/3/5
  1 yr$286 3 yr$571$190 / yr 5 yr$856$171 / yr
- 50 usersS-RA3-50CCU-S-1/3/5
  1 yr$504 3 yr$1,007$336 / yr 5 yr$1,511$302 / yr
- 100 usersS-RA3-100CCU-S-1/3/5
  1 yr$874 3 yr$1,745$582 / yr 5 yr$2,620$524 / yr
- 150 users, SRX340 packS-RA3-SRX340-S-1/3/5
  1 yr$665 3 yr$1,330$443 / yr 5 yr$1,995$399 / yr
Mist WAN AssuranceManage and monitor this firewall from the Juniper Mist cloud, with AI insights and service-level tracking.S-WAN-C2-1/3/5
1 yr$655 3 yr$1,306$435 / yr 5 yr$1,961$392 / yr
Mist WAN Assurance, Standard bundleWAN Assurance plus application visibility (Junos AppID, activated from Mist).S-SRX-S-C2-1/3/5
1 yr$782 3 yr$1,564$521 / yr 5 yr$2,346$469 / yr
Bundled with Juniper Care
- With Core supportS-SRX-S-C2-1/3/5-COR
  1 yr$956 3 yr$2,088$696 / yr 5 yr$3,217$643 / yr
- With Core Plus supportS-SRX-S-C2-1/3/5-CP
  1 yr$1,078 3 yr$2,447$816 / yr 5 yr$3,826$765 / yr
- With Next Day supportS-SRX-S-C2-1/3/5-ND
  1 yr$1,117 3 yr$2,574$858 / yr 5 yr$4,029$806 / yr
- With Same Day supportS-SRX-S-C2-1/3/5-SD
  1 yr$1,260 3 yr$2,993$998 / yr 5 yr$4,730$946 / yr
Mist WAN Assurance, Advanced bundleThe Standard bundle plus Marvis, Juniper's AI assistant for troubleshooting.S-SRX-A-C2-1/3/5
1 yr$1,176 3 yr$2,346$782 / yr 5 yr$3,521$704 / yr
Bundled with Juniper Care
- With Core supportS-SRX-A-C2-1/3/5-COR
  1 yr$1,349 3 yr$2,871$957 / yr 5 yr$4,392$878 / yr
- With Core Plus supportS-SRX-A-C2-1/3/5-CP
  1 yr$1,471 3 yr$3,229$1,076 / yr 5 yr$5,001$1,000 / yr
- With Next Day supportS-SRX-A-C2-1/3/5-ND
  1 yr$1,510 3 yr$3,356$1,119 / yr 5 yr$5,204$1,041 / yr
- With Same Day supportS-SRX-A-C2-1/3/5-SD
  1 yr$1,653 3 yr$3,775$1,258 / yr 5 yr$5,905$1,181 / yr
IPS signature updatesIntrusion prevention signature updates on their own. Every security subscription tier includes IPS.SRX340-IPS-1/3/5
1 yr$617 3 yr$1,715$572 / yr 5 yr$2,653$531 / yr
Enhanced web filteringWeb filtering on its own. The Advanced 2 tier includes it.SRX340-W-EWF-1/3/5
1 yr$617 3 yr$1,715$572 / yr 5 yr$2,653$531 / yr
ATP threat feedsJuniper ATP Cloud threat intelligence feeds only, with no file scanning. The Premium tiers include full ATP Cloud.SRX340-THRTFEED-1/3/5
1 yr$290 3 yr$584$195 / yr 5 yr$1,165$233 / yr

Description

About the SRX340-SYS-JB

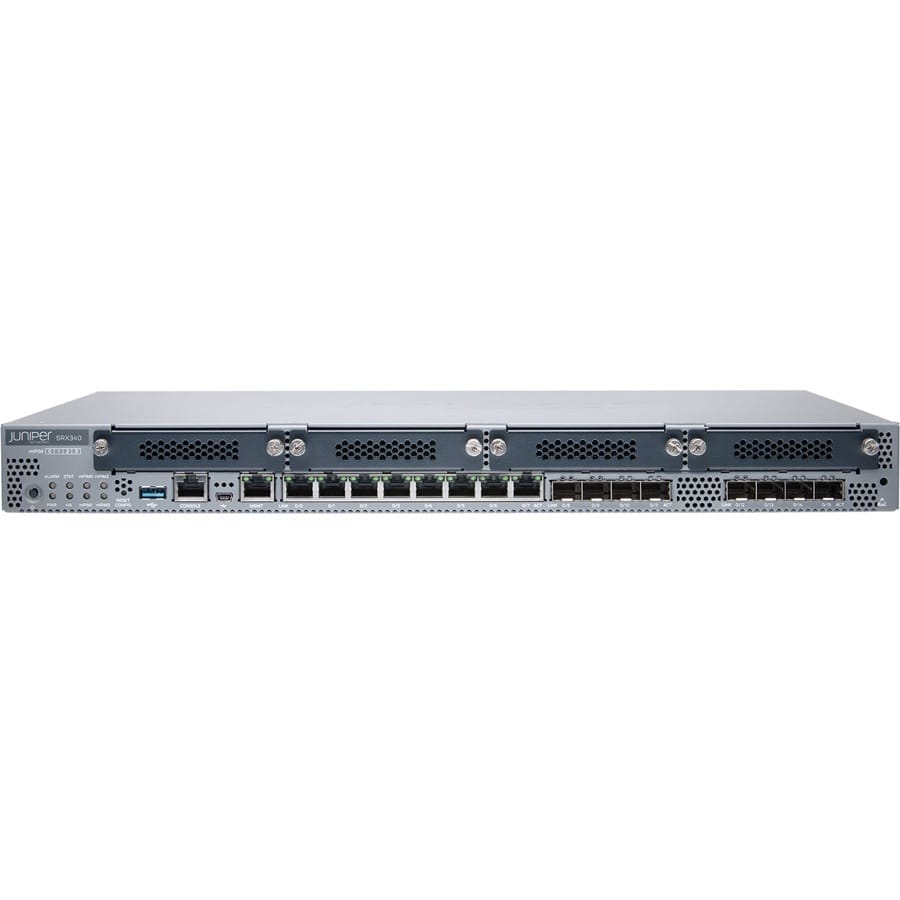

The SRX340-SYS-JB combines eight Gigabit RJ-45 ports and eight Gigabit SFP ports with Junos Software Base for branch firewall and routing deployments. Four Mini-PIM slots take optional interface modules. The software covers firewall, NAT, IPsec, routing, MPLS and switching, and the supply, cable and rack-mount kit are included.

What’s included

SRX340-SYS-JB services gateway with eight RJ-45 ports, eight SFP ports and four Mini-PIM slots
Power supply and power cable
Rack-mount kit
Junos Software Base: firewall, NAT, IPsec, routing, MPLS and switching

Sold separately

Advanced and Premium licenses and Juniper Care, listed in Support & Licensing above

Choosing a version

SRX340-SYS-JB (this page): Junos Software Base bundle, front-to-back airflow
SRX340: hardware only; JSB or JSE required, front-to-back airflow
SRX340-SYS-JB-T: Junos Software Base bundle, front-to-back airflow, TAA-compliant
SRX340-SYS-JE: Junos Software Enhanced bundle, front-to-back airflow

Related models: SRX300, SRX320.

Not sure which version you need? Call (984) 225-1600 or request a quote and we’ll check it against your rack and network.

SRX340-SYS-JB specifications

Network ports	8x RJ-45, 8x SFP
Mini-PIM slots	4
MACsec	Yes
Firewall throughput (1518B)	4700 Mbps
Firewall throughput (IMIX)	1100 Mbps
IPsec VPN throughput (IMIX)	0.239 Gbps
Concurrent sessions (thousands)	256
Form factor	1U, fixed chassis
Dimensions (H x W x D)	1.72 x 17.36 x 14.57 in (4.4 x 44.1 x 37 cm)
Weight (as shipped)	10.8 lb / 4.9 kg
Airflow	Front-to-back
Power supplies	1
Fans	4
Memory	4 GB
Storage	8 GB Flash
MAC addresses (thousands)	15
Operating temperature	32° through 104° F / 0° through 40° C
Operating system	Junos OS

Full specifications (65)

Network ports

RJ-45 Ports	8
RJ-45 Port MACsec	Yes
SFP Ports	8
SFP Port MACsec	Yes

Management and other ports

Console Ports	2
Console Port Type	RJ-45, Mini USB Type B
Management Ports	1
Management Port Type	RJ-45
USB Ports	1
USB Port Type	USB 3.0 Type A

Chassis

Chassis type	Fixed
Form Factor	1U
Chassis Height	1.72 in / 4.3688 cm
Chassis Width	17.36 in / 44.0944 cm
Chassis Depth	14.57 in / 37.0078 cm
Chassis depth (with power supplies and fans)	14.57 in / 37.0078 cm
Weight (as shipped)	10.8 lb / 4.9 kg

Power

Power supplies	1
AC Average Power Consumption	122 W
AC PSU Average Heat Dissipation	420 BTU/h
Maximum Current Consumption	1.496 A
Maximum Inrush Current	7.3 A (220 VAC)

Cooling

Airflow Direction	Front-to-back
Fan modules	4

Processor

Memory (DRAM)	4 GB

Storage

Internal Storage Size	8 GB
Internal Storage Type	Flash

Routing engines and fabric

Mini PIM Slots	4

Security performance

Firewall Throughput (1518B)	4700 Mbps
Firewall Throughput (64B)	350 Kpps
Firewall Throughput (IMIX)	1100 Mbps
IPsec VPN Throughput (1400B)	0.733 Gbps
IPsec VPN Throughput (IMIX)	0.239 Gbps
Routing With Packet Mode (64B)	550 Kpps
Routing With Packet Mode (1518B)	3000 Mbps
Routing With Packet Mode (IMIX)	1600 Mbps
NGFW Performance (CPS)	0.42 Gbps
Secure Web Access Firewall (CPS)	0.28 Gbps
AppID Sessions (thousands)	64
Application Visibility And Control	1 Gbps
GRE Tunnels	512
IPS Sessions (thousands)	64
Maximum SSL VPN Concurrent Users	150
Maximum Security Policies	2000
Maximum Security Zones	64
Maximum Virtual Routers	64
NAT Rules	2000
Recommended IPS	0.4 Gbps
URLF Sessions (thousands)	64

Performance

Route Table Size (RIB) (IPv4) (thousands)	1000
Route Table Size (FIB) (IPv4) (thousands)	600
Route Table Size (RIB) (IPv6) (thousands)	1000
Route Table Size (FIB) (IPv6) (thousands)	600
Max Concurrent Sessions (IPv4/IPv6) (thousands)	256
IPsec VPN Tunnels	1024

Switching and routing scale

MAC Addresses Per System (thousands)	15
VLAN IDs	2000

Environmental

Operating Temperature	32° through 104° F / 0° through 40° C
Storage Temperature	-4° through 158° F / -20° through 70° C
Operating Altitude	10000 ft (3040 m)
Humidity, operating (noncondensing)	10% through 90%
Humidity, non-operating (noncondensing)	5% through 95%
Acoustic Noise Level (Max)	45.5 dB
Maintenance Clearance	24 in / 60.96 cm

Software

Operating system	Junos OS

Common questions

What software does it ship with?

Junos Software Base, covering firewall, NAT, IPsec, routing, MPLS and switching, on a gateway with 8x RJ-45 and 8x SFP.

Is a rack-mount kit part of the box?

Yes. It ships with a rack-mount kit and cable, plus an internal power supply.

Does it have slots for extra interface modules?

Yes. It has 4 Mini-PIM slots for optional interface modules, in addition to 8x RJ-45 and 8x SFP.

What functions are covered by the Base bundle?

Junos Software Base includes firewall, NAT, IPsec, routing, MPLS and switching with the gateway hardware.
