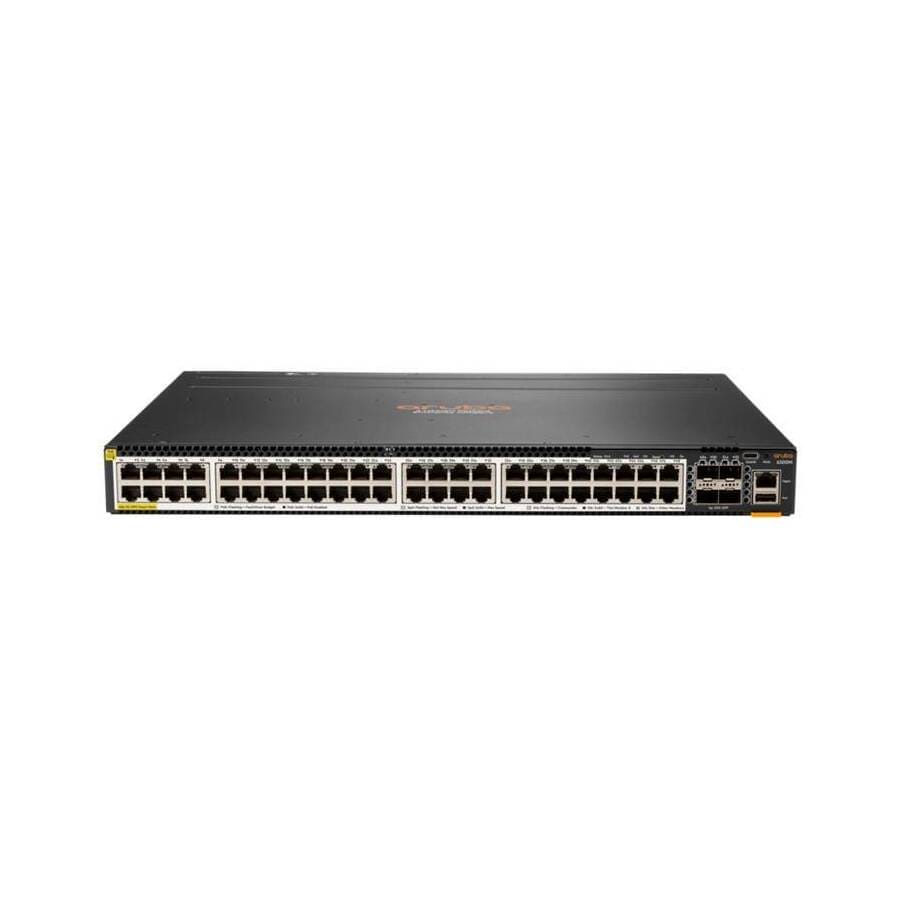

Hewlett Packard JL659A – Aruba 6300M Managed L3 Switch – 48x 100M/1/2.5/5G PoE+ (2880 W), 4x 1/10/25/50 Gigabit SFP56

The Hewlett Packard Aruba JL659A, also known as the Aruba CX 6300M 48-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 Switch, is a powerful and versatile network switch designed for high-performance access layer deployments in enterprise networks.

Key Features:

• 48 HPE Smart Rate 1/2.5/5GbE PoE+ ports: Deliver high-speed connectivity and PoE+ support for a wide range of devices, including IP phones, VoIP cameras, and wireless access points.
• 4 SFP56 uplink ports: Provide high-bandwidth uplinks for fiber optic connections, enabling seamless integration with core networks.
• CX programmable pipeline: Offers unmatched flexibility and customization for demanding applications.
• Advanced security features: Protect your network from unauthorized access and cyber threats.
• Cloud-based management: Enables centralized configuration, monitoring, and troubleshooting.
• Stackable design: Allows you to scale your network easily by adding additional switches.
• Virtual SAN (vSAN) support: Simplifies storage management for virtualized environments.

Benefits:

• Increased network performance: 48 HPE Smart Rate ports and SFP56 uplinks deliver high-speed data transfer, improving network efficiency and responsiveness.
• Simplified network management: Cloud-based management tools and a user-friendly interface make it easy to configure, monitor, and troubleshoot your network.
• Enhanced security: Advanced security features provide comprehensive protection against unauthorized access and cyber threats.
• Reduced costs: PoE+ eliminates the need for separate power injectors, leading to lower hardware and installation costs.
• Scalability: The stackable design allows you to easily expand your network as your business grows.

Overall, the Aruba JL659A is a powerful and versatile switch that offers a compelling value proposition for businesses of all sizes. It is a great choice for organizations that need a high-performance, scalable, and secure network solution.

• Primary Information

  Product Description:	HPE Aruba 6300M – switch – 48 ports – managed – rack-mountable
  Device Type:	Switch – 48 ports – L3 – managed – stackable
  Enclosure Type:	Front and side to back rack-mountable 1U
  Subtype:	5 Gigabit Ethernet
  Ports:	48 x 100/1000/2.5G/5G (PoE+) + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
  Power Over Ethernet (PoE):	PoE+
  PoE Budget:	2880 W
  Performance:	Switching capacity: 880 Gbps ¦ Throughput: 654 Mpps ¦ Latency (1 Gbps): 4.24 µs ¦ Latency (10 Gbps): 1.5 µs ¦ Latency (25 Gbps): 2.91 µs ¦ Latency (50 Gbps): 3.49 µs ¦ Stacking bandwidth: 200 Gbps
  Capacity:	Switched virtual interfaces (SVIs): 1000 ¦ IPv4 host table capacity: 32000 ¦ IPv6 host table capacity: 32000 ¦ IPv4 routes (Unicast): 64000 ¦ IPv6 routes (Unicast): 32000 ¦ IPv4 routes (Multicast): 8000 ¦ IPv6 routes (Multicast): 8000 ¦ IGMP groups: 8000 ¦ MLD groups: 4000 ¦ IPv4 ACL entries (ingress): 5000 ¦ IPv6 ACL entries (ingress): 1250 ¦ MAC ACL entries (ingress): 5000 ¦ IPv4 ACL entries (egress): 2000 ¦ IPv6 ACL entries (egress): 500 ¦ MAC ACL entries (egress): 2000
  MAC Address Table Size:	32000 entries
  Jumbo Frame Support:	9198 bytes
  Routing Protocol:	EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv6 routing, ECMP, MLD, Bidirectional Forwarding Detection (BFD)
  Remote Management Protocol:	RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, XRMON, SFTP
  Features:	DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, High Availability, Per-VLAN Spanning Tree (PVST), Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Deficit Weighted Round Robin (DWRR), LLDP support, Management Information Base (MIB), DHCP protection, dual firmware images, Multiple VLAN Registration Protocol (MVRP), packet storm protection, Class of Service (CoS), Strict Priority (SP), broadcast storm protection, Type of Service (ToS), Bridge protocol data unit (BPDU), Virtual Extensible LAN (VXLAN), Multicast Storm Protection, Network Timing Protocol (NTP), RA guard, Zero-touch provisioning (ZTP), Protocol Independent Multicast (PIM), VLAN Tagging, Rapid Reconfiguration of Spanning Tree (RSTP), IPv4 and IPv6 dual stack, IP multicast, Aruba Virtual Switching Framework (VSF), dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft Network Load Balancer (NLB)
  Compliant Standards:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.1AX, IEEE 802.3bt
  Dimensions (WxDxH):	17.4 in x 15.2 in x 1.7 in
  Weight:	14.79 lbs

• General

  Device Type:	Switch – 48 ports – L3 – managed – stackable
  Enclosure Type:	Front and side to back rack-mountable 1U
  Subtype:	5 Gigabit Ethernet
  Ports:	48 x 100/1000/2.5G/5G (PoE+) + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
  Power Over Ethernet (PoE):	PoE+
  PoE Budget:	2880 W
  Performance:	Switching capacity: 880 Gbps ¦ Throughput: 654 Mpps ¦ Latency (1 Gbps): 4.24 µs ¦ Latency (10 Gbps): 1.5 µs ¦ Latency (25 Gbps): 2.91 µs ¦ Latency (50 Gbps): 3.49 µs ¦ Stacking bandwidth: 200 Gbps
  Capacity:	Switched virtual interfaces (SVIs): 1000 ¦ IPv4 host table capacity: 32000 ¦ IPv6 host table capacity: 32000 ¦ IPv4 routes (Unicast): 64000 ¦ IPv6 routes (Unicast): 32000 ¦ IPv4 routes (Multicast): 8000 ¦ IPv6 routes (Multicast): 8000 ¦ IGMP groups: 8000 ¦ MLD groups: 4000 ¦ IPv4 ACL entries (ingress): 5000 ¦ IPv6 ACL entries (ingress): 1250 ¦ MAC ACL entries (ingress): 5000 ¦ IPv4 ACL entries (egress): 2000 ¦ IPv6 ACL entries (egress): 500 ¦ MAC ACL entries (egress): 2000
  MAC Address Table Size:	32000 entries
  Jumbo Frame Support:	9198 bytes
  Routing Protocol:	EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv6 routing, ECMP, MLD, Bidirectional Forwarding Detection (BFD)
  Remote Management Protocol:	RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, XRMON, SFTP
  Authentication Method:	Secure Shell (SSH), RADIUS, TACACS+
  Features:	DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, High Availability, Per-VLAN Spanning Tree (PVST), Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Deficit Weighted Round Robin (DWRR), LLDP support, Management Information Base (MIB), DHCP protection, dual firmware images, Multiple VLAN Registration Protocol (MVRP), packet storm protection, Class of Service (CoS), Strict Priority (SP), broadcast storm protection, Type of Service (ToS), Bridge protocol data unit (BPDU), Virtual Extensible LAN (VXLAN), Multicast Storm Protection, Network Timing Protocol (NTP), RA guard, Zero-touch provisioning (ZTP), Protocol Independent Multicast (PIM), VLAN Tagging, Rapid Reconfiguration of Spanning Tree (RSTP), IPv4 and IPv6 dual stack, IP multicast, Aruba Virtual Switching Framework (VSF), dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft Network Load Balancer (NLB)
  Compliant Standards:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.1AX, IEEE 802.3bt
  Processor:	1 x ARM Cortex-A72: 1.78 GHz
  RAM:	8 GB DDR4 SDRAM
  Flash Memory:	32 GB

• Expansion / Connectivity

  Interfaces:

  48 x 100/1000/2.5G/5G RJ-45 PoE+ – 60 W ¦ 4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56 ¦ 1 x USB-C console ¦ 1 x management ¦ 1 x USB Type A

• Miscellaneous

  Rack Mounting Kit:

  Included

  Compliant Standards:

  FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, FCC Part 15, ICES-003 Class A, RoHS, WEEE, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, EN 50581:2012, IEC 60950-1:2005, EN 61000-3-3:2013, CISPR 24:2010, EN 55022:2010, EN 61000-3-2:2014, EN 60825-1:2007, IEC 60825-1:2007 Class 1, EN 55032:2012 Class A, CISPR 32 Class A, UL/CSA60950-1 (2nd Edition), CISPR 35, EN 55024:2010 Class A, EN 55035:2017, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

• Dimensions & Weight

  Width:	17.4 in
  Depth:	15.2 in
  Height:	1.7 in
  Weight:	14.79 lbs
