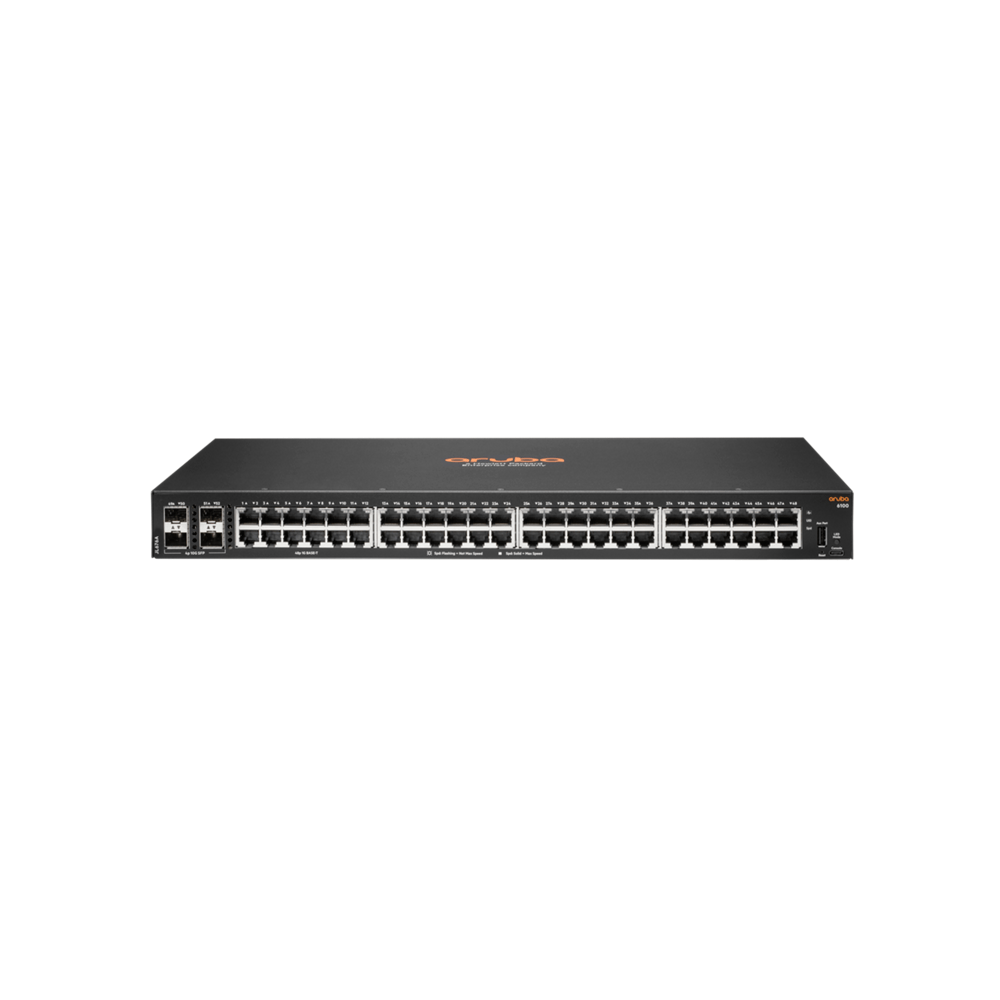

Hewlett Packard JL676A – Aruba 6100 48G 4SFP+ Switch – Switch – managed – 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ – side to side airflow – rack-mountable

The JL676A is a 48-port 1GbE and 4-port SFP+ switch. It is part of the Aruba CX 6100 switch series, which is designed for small- to medium-sized businesses (SMBs) and branch offices.

The JL676A offers a number of features and benefits, including:

• 48 1GbE ports: Provide high-speed connectivity for a wide range of devices, including computers, printers, and VoIP phones.
• 4 SFP+ ports: Uplink to high-speed fiber networks for future scalability and bandwidth needs.
• PoE+ support: Power and connect a wide range of devices, including IP phones, VoIP cameras, and wireless access points.
• Advanced security features: Protect your network from unauthorized access and cyber threats.
• Cloud-based management: Simplify switch configuration and monitoring with Aruba Central.
• Easy deployment: Plug-and-play functionality minimizes setup time and effort.

The JL676A is a versatile and powerful switch that can meet the needs of a wide range of SMBs and branch offices. It is a good choice for businesses that need high-performance connectivity, PoE+ support, and advanced security features.

Overall, the JL676A is a compelling value proposition for SMBs and branch offices. It is a great choice for organizations that need a high-performance, scalable, and secure network solution.

• Primary Information

  Product Description:	HPE Aruba 6100 48G 4SFP+ Switch – switch – 52 ports – managed – rack-mountable
  Device Type:	Switch – 52 ports – managed – stackable
  Enclosure Type:	Side to side airflow rack-mountable 1U
  Subtype:	10 Gigabit Ethernet
  Ports:	48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
  Performance:	Switching capacity: 176 Gbps ¦ Throughput: 98.6 Mpps ¦ Latency (1 Gbps): 1.9 µs ¦ Latency (10 Gbps): 1.8 µs
  Capacity:	Switched virtual interfaces (SVIs): 16 ¦ ARP entries: 1024 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256
  MAC Address Table Size:	8192 entries
  Routing Protocol:	IGMPv2, IGMPv3
  Features:	Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, MLD snooping, LACP support, LLDP support, port based access control, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Network Access Control (NAC), Neighbor Discovery Protocol (NDP), SNMP support, Internet Control Message Protocol (ICMP), EntityMIB, DNS client, LLDP-MED, User Datagram Protocol (UDP), Rapid Reconfiguration of Spanning Tree (RSTP), IPv6 addressing
  Compliant Standards:	IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3az
  Power:	AC 230 V (50/60 Hz)
  Dimensions (WxDxH):	17.4 in x 9.7 in x 1.7 in
  Weight:	7.54 lbs
  Localization:	English / United States

• General

  Device Type:	Switch – 52 ports – managed – stackable
  Enclosure Type:	Side to side airflow rack-mountable 1U
  Subtype:	10 Gigabit Ethernet
  Ports:	48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
  Performance:	Switching capacity: 176 Gbps ¦ Throughput: 98.6 Mpps ¦ Latency (1 Gbps): 1.9 µs ¦ Latency (10 Gbps): 1.8 µs
  Capacity:	Switched virtual interfaces (SVIs): 16 ¦ ARP entries: 1024 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256
  MAC Address Table Size:	8192 entries
  Routing Protocol:	IGMPv2, IGMPv3
  Encryption Algorithm:	SSL
  Authentication Method:	Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
  Features:	Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, MLD snooping, LACP support, LLDP support, port based access control, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Network Access Control (NAC), Neighbor Discovery Protocol (NDP), SNMP support, Internet Control Message Protocol (ICMP), EntityMIB, DNS client, LLDP-MED, User Datagram Protocol (UDP), Rapid Reconfiguration of Spanning Tree (RSTP), IPv6 addressing
  Compliant Standards:	IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3az
  Processor:	1 x ARM A9: 1.016 GHz
  RAM:	4 GB DDR3 SDRAM
  Flash Memory:	16 GB

• Expansion / Connectivity

  Interfaces:

  24 x 10/100/1000 Base-T RJ-45 ¦ 4 x 1/10Gbit LAN SFP+ ¦ 1 x USB-C console ¦ 1 x USB Type A

• Power

  Power Device:	Internal power supply
  Power Provided:	65 Watt 0.5 A
  Voltage Required:	AC 230 V (50/60 Hz)
  Power Consumption Operational:	20.6 Watt

• Miscellaneous

  Compliant Standards:

  FCC Class A certified, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, UL 60950-1 Second Edition, EN 60825, VCCI Class A, EN 60825-1:2007, CAN/CSA C22.2 No. 60950 Second Edition, IEC 60825-1:2007 Class 1, EN 55022/CISPR 22 Class A, RFC1213, RFC1493, RFC2674, IEC/EN 60950-1, RFC768, RFC2460, RFC2925, RFC1591, RFC783, RFC792

  Localization:

  English / United States

• Dimensions & Weight

  Width:	17.4 in
  Depth:	9.7 in
  Height:	1.7 in
  Weight:	7.54 lbs
